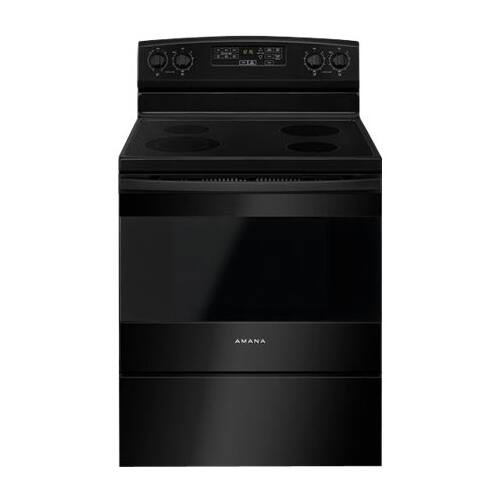

Amana - Self-Cleaning Freestanding Electric Range - Black
- Key Specs
- Color Finish: Black
- Product Height: 46 8/9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 8/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 4/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 5/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Amana
- Model Number: AER6603SFB
- Product Name: Self-Cleaning Freestanding Electric Range
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 46 8/9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 8/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 4/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 5/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Product Weight: 182 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 4.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Control Type: Knob
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Power-On Indicator Light(s): true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Bake
- Oven Settings: Keep Warm Setting, Time Bake, Timer
- Oven Features
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 5
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): Double-ring
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.amana.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.amana.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049411309
Cook with up to 3000W of heat on the multiple elements of this Amana electric range. The Temp Assure cooking system evenly distributes heat throughout the large oven, and a warm-hold option keeps baked dishes warm before serving. This 30-inch Amana electric range has preset baking temperature settings for added convenience.
- 4 cooktop elements: Provide 1200-3000W of power to meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Accommodates multiple courses simultaneously: 4.8 cu. ft. oven lets you cook for a large group in less time.
- Store cookie sheets, cooling racks and more: Storage drawer offers discreet storage for your bakeware.
- Safety features: Include control lock and residual heat indicator.
Whats Included
- Amana Self-Cleaning Freestanding Electric Range
Q: Does this range have a hidden bake element?
A: Hello Bailey, the bake element is not hidden on this model, AER6603SFW. Thank you for your inquiry on our Amana appliances.
Q: How do I get a manual for range, range was here when we bought house no manual
A: Hi grannydee, if the model number you have is the one linked here (Model AER6603SFS) Here is the link to the Owner's Manual. https://bit.ly/3O2e2y8 If you have a different model number please reach out to us at (866) 616-2664 M-F 8 AM to 6 PM ET. Your model number is located either on the left front leg of the unit (you can access the leg by opening up the drawer under the oven about 4-5 inches and looking at the left leg) or around the perimeter of the oven opening. We hope this helps!
Q: How do i turn off the loc feature?
A: Hello! Per the Use and Care Guide: 1. Check that the oven is OFF, 2. Press and hold CONTROL LOCK for 3 seconds., 3. A tone will sound and a lock will be displayed., 4. Repeat to unlock. No keypads will function with the controls locked. We hope this helps.
A: Hello! For model AER6603SFW the Maximum Height is 47.875" and the Minimum Height is 46.875. Thank you for your inquiry about our Amana appliances.
Q: oven door lock in position causing beeping noise , how can I unlock door
A: Ant, we would recommend you contacting Amana's call center for troubleshooting at 800-253-1301. The hours of operation are Monday-Friday 8am-8pm and Saturday 8am-4pm Eastern Standard Time.
Q: I need an off-white range. I’ve been told Amana has discontinued that color. My question is “why”?
A: Appliances are discontinued for numerous reasons, unfortunately we are unable to give an exact reason why. We do apologize if this causes any inconveniences.
A: Hondo, please visit http://bit.ly/2BXj0H2 and refer to page 12 for more information on cleaning this Amana® Range.
Q: If the cook top ceramic glass cracks by itself is that covered by warranty?
A: JayHay- The warranty covers any functional failures to the cook top. If there was a defect determined with the product, then your warranty would cover the repair.
