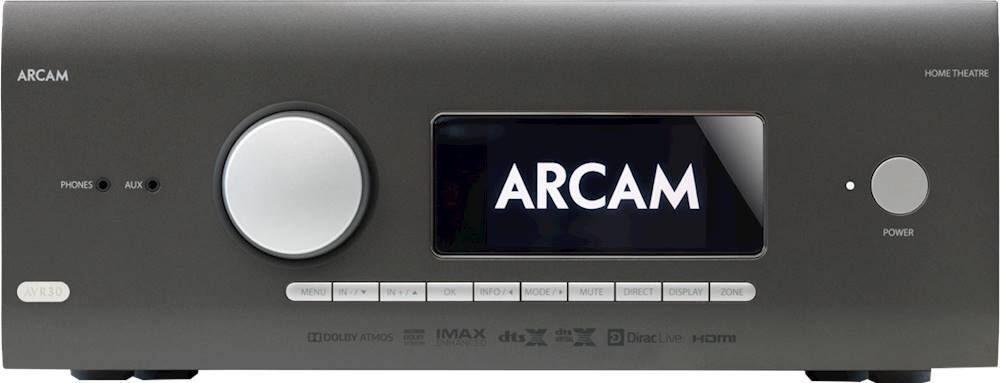

Arcam - AVR30 1260W 9.1.6-Ch. With Google Cast 4K Ultra HD HDR Compatible A/V Home Theater Receiver - Gray
Model: ARCAVR30AM
SKU: 6391971
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 180 watts x 16 channels @ 8 ohms
- Number of Channels: 16 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 2 x Optical digital audio, 3 x Coaxial digital audio, 2 x 3.5mm audio
- Audio/Video Inputs: 7 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x RS-232, 1 x LAN
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Audio/Video Outputs: 3 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Arcam
- Model Number: ARCAVR30AM
- Product Name: AVR30 1260W 9.1.6-Ch. With Google Cast 4K Ultra HD HDR Compatible A/V Home Theater Receiver
- Color: Gray
- Audio
- Continuous Watts x Channel @ Ohms: 180 watts x 16 channels @ 8 ohms
- Number of Channels: 16 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 2 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Digital, Dolby Atmos, DTS:X (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Inputs
- Audio Only Inputs: 2 x Optical digital audio, 3 x Coaxial digital audio, 2 x 3.5mm audio
- Audio/Video Inputs: 7 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x RS-232, 1 x LAN
- Number of HDMI Inputs (Total): 7
- Video
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- High Dynamic Range Format: Dolby Vision (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Audio/Video Outputs: 3 x HDMI (The number and type of HDMI outputs the product has.)
- Number of HDMI Outputs (Total): 3
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Remote Control Included: true
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 6.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 39.9 pounds (The out of box weight of the item.)
- Other
- UPC: 050036353182
The AVR30 is a high-performance audio video receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 16-channel surround solution and featuring all the latest CODECs from Dolby, DTS, and IMAX Enhanced, the AVR30 exemplifies sound quality and engineering excellence. The AVR30 boasts dynamic Class G amplification, powering the most complex speakers with ease while delivering great efficiency. Audiophile listening experiences are optimized with a full 16-channel Dirac calibration on board, as well as simple streaming with a mobile device using the native app of choice.
- Connect to the Internet: Via built-in Wi-Fi for access to Google Cast.
- Up to 4K HDMI passthrough: Transfers 4K video and audio signals from your set-top devices to the TV via the AV receiver.
- AirPlay 2: Stream audio from music services like Apple Music and Spotify or watch videos from services like Youtube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers Airplay 2 sources.
- 1260W total system power: Enables you to achieve robust audio output.
- Surround sound decoders: Include Dolby Digital, Dolby Atmos, DTS decoder, DTS:X and more for crystal surround sound.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 7 HDMI inputs, 3 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Dual-zone capability: Supports distributed audio playback in another room, so you can enjoy music throughout your home.
- Remote control: Lets you control the receiver from afar.
- EQ: 3 Dirac EQ profiles (input assignable).
- Connect to the Internet: Via built-in Wi-Fi for access to Google Cast.
- Up to 4K HDMI passthrough: Transfers 4K video and audio signals from your set-top devices to the TV via the AV receiver.
- AirPlay 2: Stream audio from music services like Apple Music and Spotify or watch videos from services like Youtube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers Airplay 2 sources.
- 1260W total system power: Enables you to achieve robust audio output.
- Surround sound decoders: Include Dolby Digital, Dolby Atmos, DTS decoder, DTS:X and more for crystal surround sound.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 7 HDMI inputs, 3 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Dual-zone capability: Supports distributed audio playback in another room, so you can enjoy music throughout your home.
- Remote control: Lets you control the receiver from afar.
- EQ: 3 Dirac EQ profiles (input assignable).
Whats Included
- Arcam HDA AVR30 1260W 9.1.6-Ch. With Google Cast 4K Ultra HD HDR Compatible A/V Home Theater Receiver
- Manuals & guides
- Specification sheet (PDF)
- Warranty manual (PDF)
- Arcam HDA AVR30 1260W 9.1.6-Ch. With Google Cast 4K Ultra HD HDR Compatible A/V Home Theater Receiver
- Manuals & guides
- Specification sheet (PDF)
- Warranty manual (PDF)
Q: What sonic difference is there between the AVR 30 vs the AVR 20
A: The AVR30 offers more wattage and more robust style amplifier "Class G". Which gives you more headroom, more power, and even clear detail at low volumes.
Q: Are we required to purchase Dirac license in order to calibrate the speakers with this unit?
A: undefined
Q: Does this unit has Dirac Live Room Correction built-in?
A: Yes. You have to run Dirac on a computer separately though.
A: It has 2 subwoofer pre-outs. However if you would like them to be discrete subwoofer signals use Channels 13-14 front subs or 15-16 rear subs and assign them so in the speaker config menu. Then you can also use Dirac live Bass Control with the add on license
