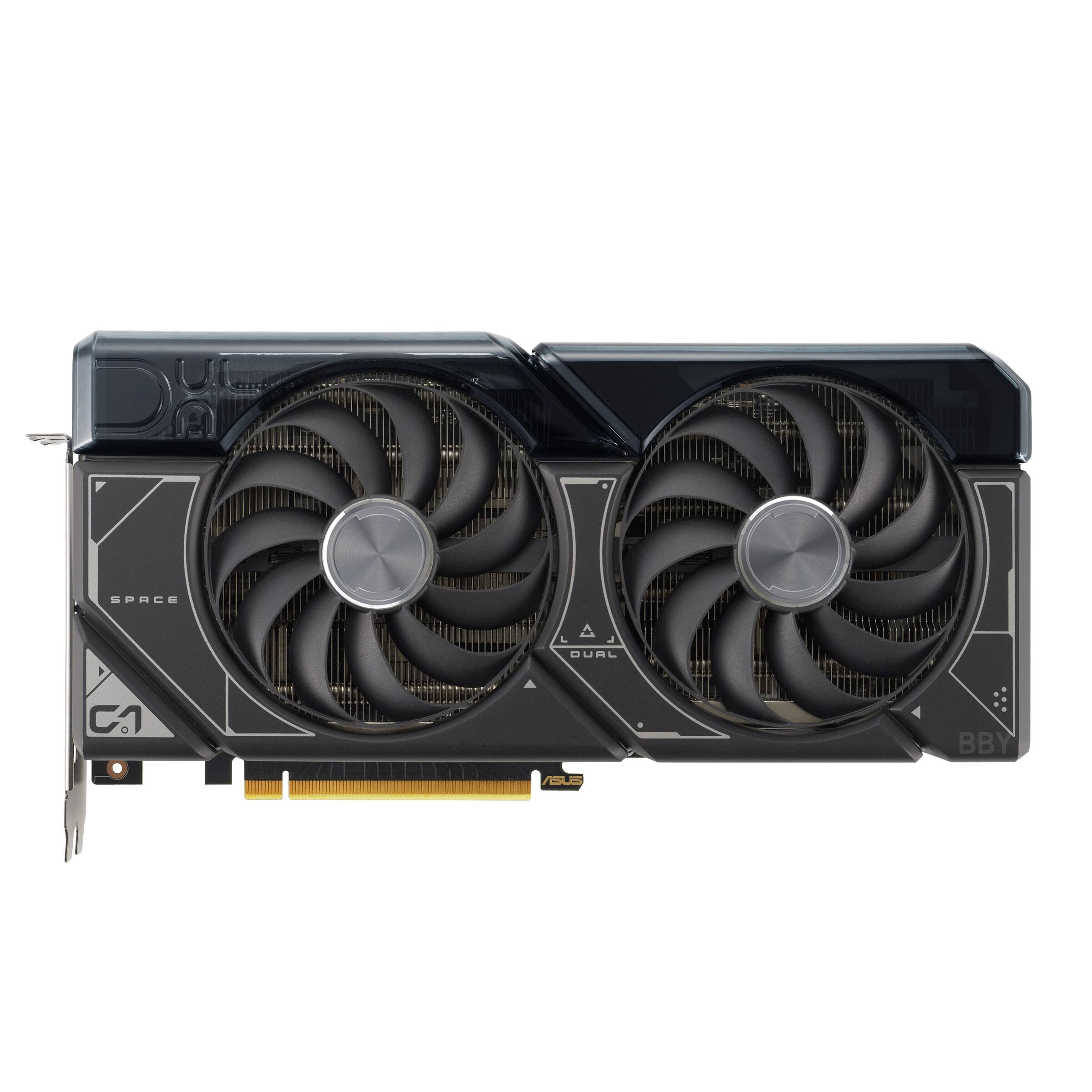

ASUS - Dual NVIDIA GeForce RTX 4070 SUPER 12GB GDDR6X PCI Express 4.0 Graphics Card - Black
Model: DUAL-RTX4070S-12G
SKU: 6571577
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 2.52 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.55 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing, DLSS 3 (Deep Learning Super Sampling) (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 51 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 134 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 267 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4070 SUPER (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Model Number: DUAL-RTX4070S-12G
- Product Name: ASUS - Dual NVIDIA GeForce RTX 4070 SUPER 12GB GDDR6X PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4070 SUPER (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2024
- Performance
- GPU Base Clock Frequency: 2.52 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.55 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan, Heatsink (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Power Connector: 8PIN (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing, DLSS 3 (Deep Learning Super Sampling) (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 1.4 gigahertz
- Compatibility
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 200 watts
- Recommended Power Supply: 750 watts
- Dimensions
- Product Height: 51 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 134 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 267 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.13 pounds (The out of box weight of the item.)
- Other
- UPC: 197105442986
The Dual GeForce RTX 4070 SUPER brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
- Graphics Processing Unit (GPU)/Clock Speed: OC mode: 2505 MHz / Default mode: 2475 MHz (Boost Clock)
- On-board Memory/Memory Type/Processors/Memory Bandwidth: 12GB GDDR6X
- Interface/Interface Compatibility/Backward Compatibility: 192-bit
- Filters: 3rd Generation RT Cores: Dedicated ray tracing hardware enables fast real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination
- Technologies: MAXCONTACT TECHNOLOGY, The heat spreader makes up to 2x more contact with the GPU chip for improved thermal transfer
- Supported video formats: 12GB GDDR6X
- API (Application Programming Interface) Support: Match your card’s RGB LEDs to your system using Aura Sync software or turn them off with a stealth mode button.
- Graphics Processing Unit (GPU)/Clock Speed: OC mode: 2505 MHz / Default mode: 2475 MHz (Boost Clock)
- On-board Memory/Memory Type/Processors/Memory Bandwidth: 12GB GDDR6X
- Interface/Interface Compatibility/Backward Compatibility: 192-bit
- Filters: 3rd Generation RT Cores: Dedicated ray tracing hardware enables fast real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination
- Technologies: MAXCONTACT TECHNOLOGY, The heat spreader makes up to 2x more contact with the GPU chip for improved thermal transfer
- Supported video formats: 12GB GDDR6X
- API (Application Programming Interface) Support: Match your card’s RGB LEDs to your system using Aura Sync software or turn them off with a stealth mode button.
