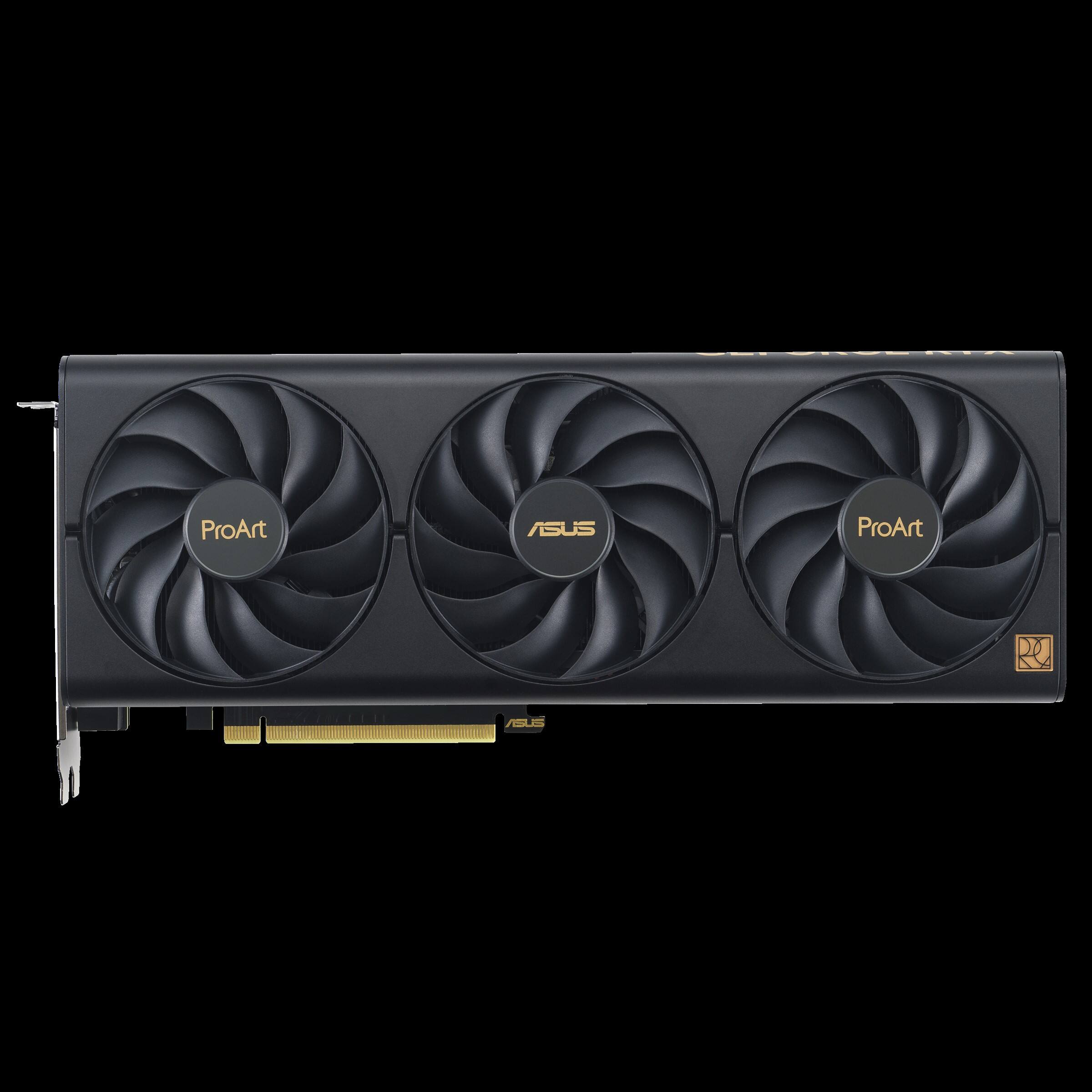

ASUS - NVIDIA GeForce RTX 4060 Ti ProArt Overclock 16GB GDDR6 PCI Express 4.0 Graphics Card - Black
Model: PROART-RTX4060TI-O16G
SKU: 6557698
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 2.655 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.685 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 300 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Model Number: PROART-RTX4060TI-O16G
- Product Name: NVIDIA GeForce RTX 4060 Ti ProArt Overclock 16GB GDDR6 PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
- Performance
- GPU Base Clock Frequency: 2.655 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.685 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan, Heatsink (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 8PIN (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 18 gigahertz
- Compatibility
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows
- Features
- Multi-GPU Support: None
- Included Software: ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver
- Power
- Total Graphics Power: 650 watts
- Recommended Power Supply: 650 watts
- Dimensions
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 300 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.12 pounds (The out of box weight of the item.)
- Other
- UPC: 197105285255
The GeForce ProArt RTX 4060 Ti brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
- Graphics Processing Unit (GPU)/Clock Speed: OC mode: 2685 MHz / Default mode: 2655 MHz (Boost Clock)
- On-board Memory/Memory Type/Processors/Memory Bandwidth: 16GB GDDR6
- Interface/Interface Compatibility/Backward Compatibility: 128-bit
- Filters: RT Cores: Dedicated ray tracing hardware enables fast real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination
- Technologies: MAXCONTACT TECHNOLOGY, The heat spreader makes up to 2x more contact with the GPU chip for improved thermal transfer
Whats Included
- 1 x Quick Start Guide
Q: Is this card compatible with a Lenovo Think Station P330 with 400W power supply?
A: The 4060TI card takes every centimeter of a full sized case and the width of two PCI slots. The height is maximum also. 3 if you count needed air space for the fans. Check you case measurements carefully. 400watt is on the very low side, I believe 600watts is recommended. Have been using standard Diffusion App, Cards run cool and quiet, render performance with HD photos has been under 90 seconds.
