ASUS - Prime Radeon RX 9060 XT 16GB OC Edition Graphics Card - PRIME-RX9060XT-O16G
FREE shipping to
iFixit - Manta Bit Set - 112 Bit Driver Kit - Black$55.99$69.99
More Buying Options
Related Item
Specifications
- GPU Base Clock Frequency1.7 gigahertzGPU Boost Clock Frequency3.33 gigahertzDisplayPort Ports2 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported3
- Key Specs
- GPU Base Clock Frequency: 1.7 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 3.33 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 3
- Advanced Graphics Rendering Technique(s): Ray tracing, RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 304 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 9060 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Product Name: Prime Radeon RX 9060 XT 16GB OC Edition Graphics Card - PRIME-RX9060XT-O16G
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 9060 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Performance
- GPU Base Clock Frequency: 1.7 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 3.33 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan, Heatsink (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 3
- Advanced Graphics Rendering Technique(s): Ray tracing, RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 2.5 gigahertz
- Compatibility
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 192 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 304 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.9 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 197105998858

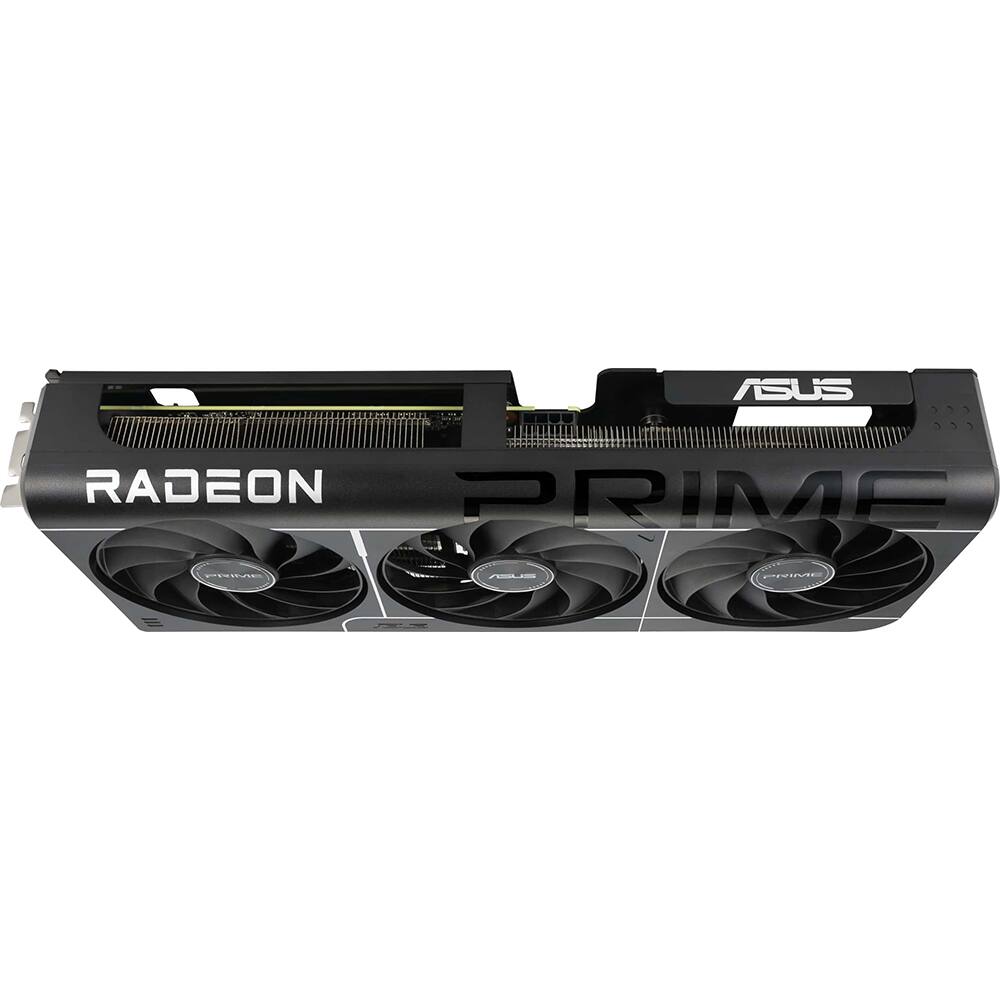

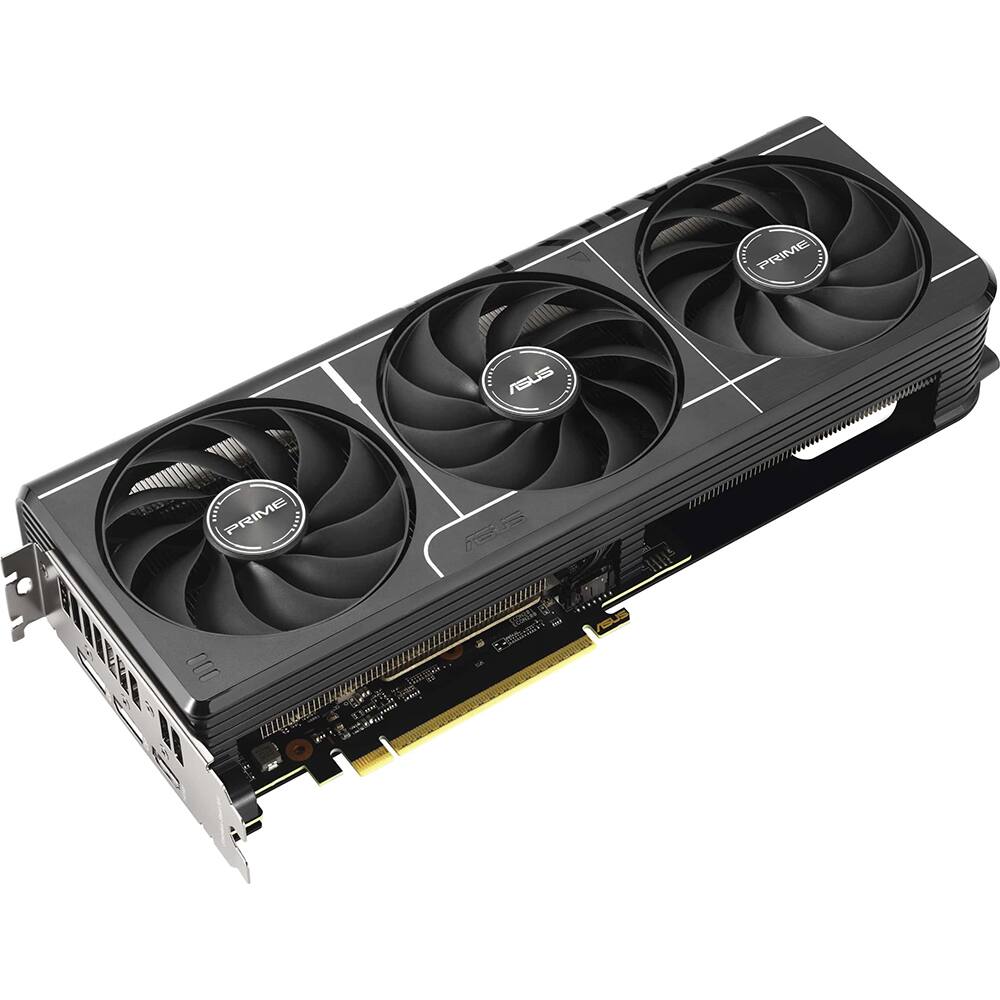

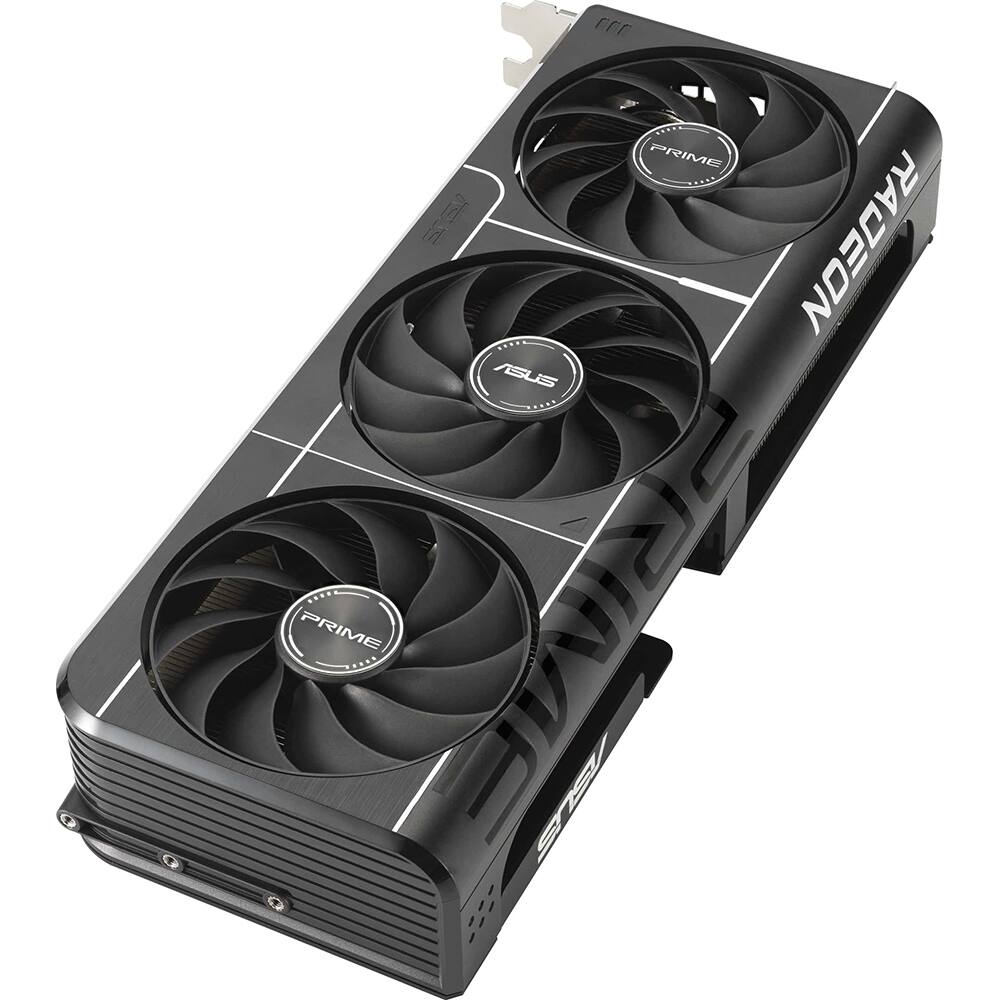

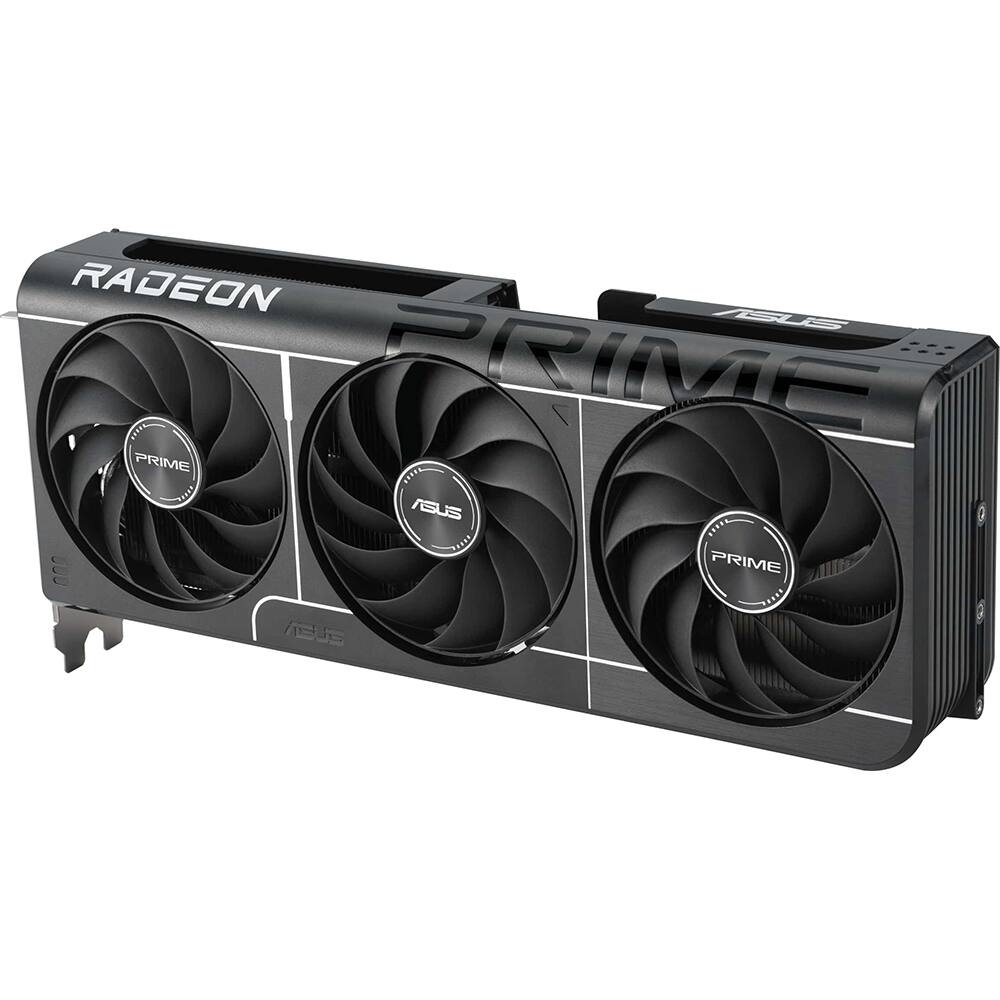

Experience primal power and next-level 1440p gaming with the ASUS Prime Radeon RX 9060 XT graphics card, featuring a compact 2.5-slot design for broad compatibility and a triple Axial-tech fan setup for supreme cooling. The carefully arranged shroud, heatsink, and heat pipes leverage chassis side-panel ventilation, while the smaller fan hubs with longer blades and barrier rings increase downward air pressure, keeping temperatures lower, noise reduced, and performance higher. All three fans stop completely below 55 °C for silent operation during light tasks or less demanding games, then restart above 60 °C to balance performance and acoustics. Dual-ball fan bearings deliver up to twice the lifespan of sleeve bearings, and a vented backplate improves heat dissipation, boosting cooling, stability, and longevity by preventing thermal throttling. ASUS MaxContact manufacturing expands the heat spreader’s surface area by 5%, improving thermal transfer and lowering temperatures by up to 2 °C. Reliability is reinforced with ASUS GPU Guard, which secures all four corners of the PCB to reduce cracking risk, a protective backplate that prevents flex and shields critical pathways, and a corrosion-resistant stainless-steel mounting bracket. Dual BIOS lets you choose between Performance Mode, which prioritizes cooling, or Quiet Mode, which uses a less aggressive fan curve for quieter operation at moderate temperatures. Auto-Extreme Technology completes all soldering in a single pass, reducing thermal strain, power consumption, and environmental impact while improving overall product reliability. For best results, ASUS recommends using the wattage calculator to find a compatible ROG, TUF Gaming, or Prime PSU to power your build. With GPU Tweak III software, you can fine-tune GPU core clocks, memory frequencies, and voltages while monitoring real-time performance through a customizable on-screen display and advanced fan controls. Purchases also include one month of Adobe Creative Cloud, granting access to all Adobe apps and Substance 3D. Powered by AMD’s RDNA 4 architecture with unified compute units, advanced raytracing and AI accelerators, and support for FidelityFX Super Resolution 4 and HYPR-RX, the RX 9060 XT delivers ultra-smooth, responsive gameplay and lifelike, ray-traced visuals with ML-powered upscaling. AMD Software: Adrenalin Edition offers intuitive drivers, AI-assisted optimizations, and one-click performance tuning to boost frame rates, reduce latency, and sharpen visuals. Future-ready features include up to 16 GB of VRAM, PCI Express Gen 5 support, AMD Smart Access Memory, AI-enabled technologies, and seamless pairing with AMD Ryzen 9000 processors to unlock the full potential of the AM5 platform. Finally, the updated Radiance Display Engine with DisplayPort 2.1a and HDMI 2.1b ensures compatibility with the latest ultra-high-refresh-rate monitors for an immersive, cutting-edge gaming experience.
- Primed for Power: Experience Primal performance with the Prime Radeon RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility; enhanced by a triple-fan setup for supreme cooling.
- Generous Video Memory: Features 16 GB of GDDR6 memory, ensuring smooth performance in memory-intensive tasks and high-resolution gaming.
- Advanced Cooling System: Incorporates a triple-fan cooler design with Axial-tech fans, enhancing airflow and reducing temperatures during intensive workloads.
- Dual BIOS Functionality: Offers dual BIOS profiles—Performance and Quiet modes—allowing users to switch between optimal performance and quieter operation.
- Comprehensive Connectivity Options: Provides multiple display outputs, including HDMI 2.1b and DisplayPort 2.1a, supporting up to three monitors for versatile multi-display setups.
- Primed for Power: Experience Primal performance with the Prime Radeon RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility; enhanced by a triple-fan setup for supreme cooling.
- Generous Video Memory: Features 16 GB of GDDR6 memory, ensuring smooth performance in memory-intensive tasks and high-resolution gaming.
- Advanced Cooling System: Incorporates a triple-fan cooler design with Axial-tech fans, enhancing airflow and reducing temperatures during intensive workloads.
- Dual BIOS Functionality: Offers dual BIOS profiles—Performance and Quiet modes—allowing users to switch between optimal performance and quieter operation.
- Comprehensive Connectivity Options: Provides multiple display outputs, including HDMI 2.1b and DisplayPort 2.1a, supporting up to three monitors for versatile multi-display setups.
