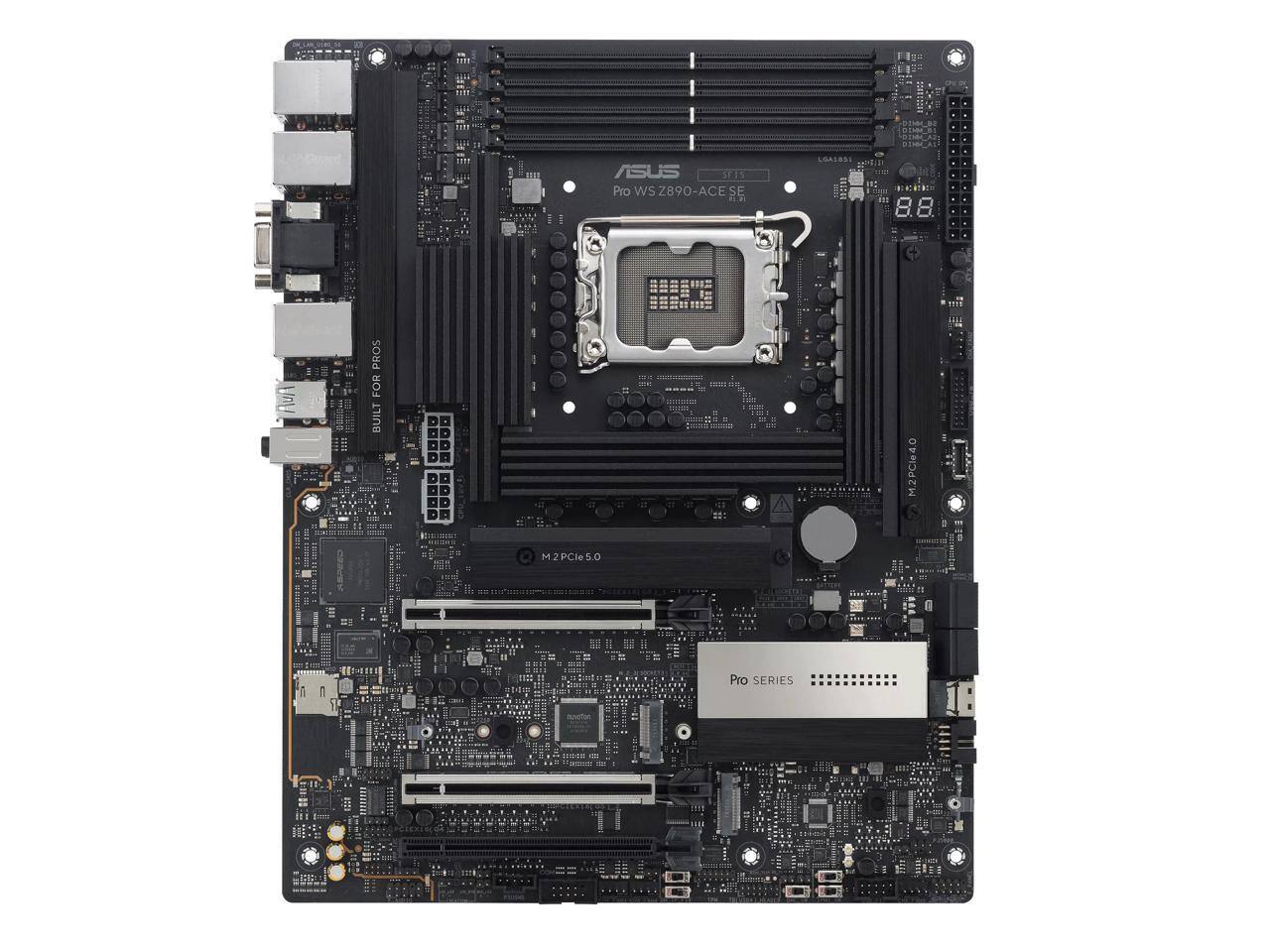

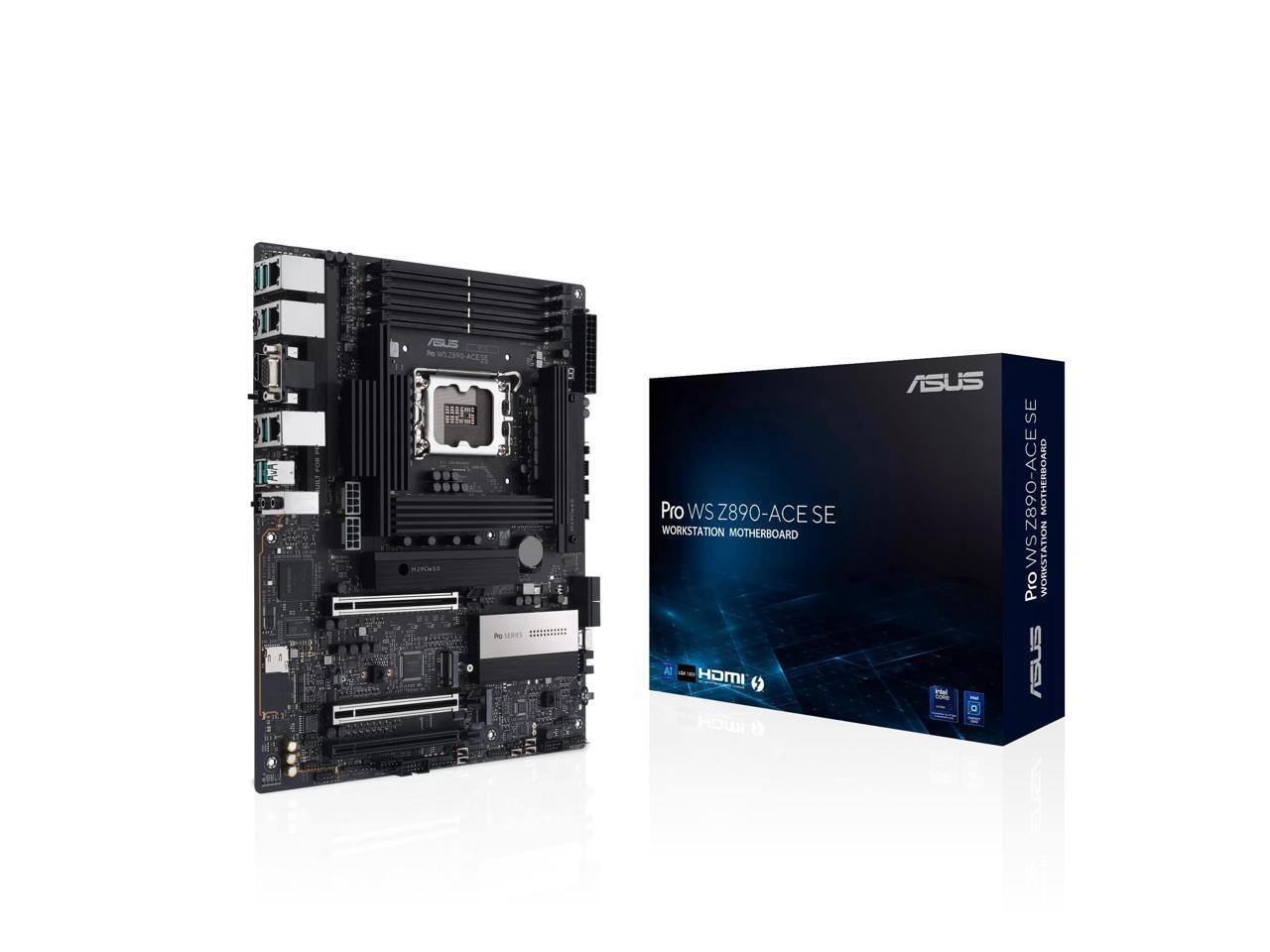

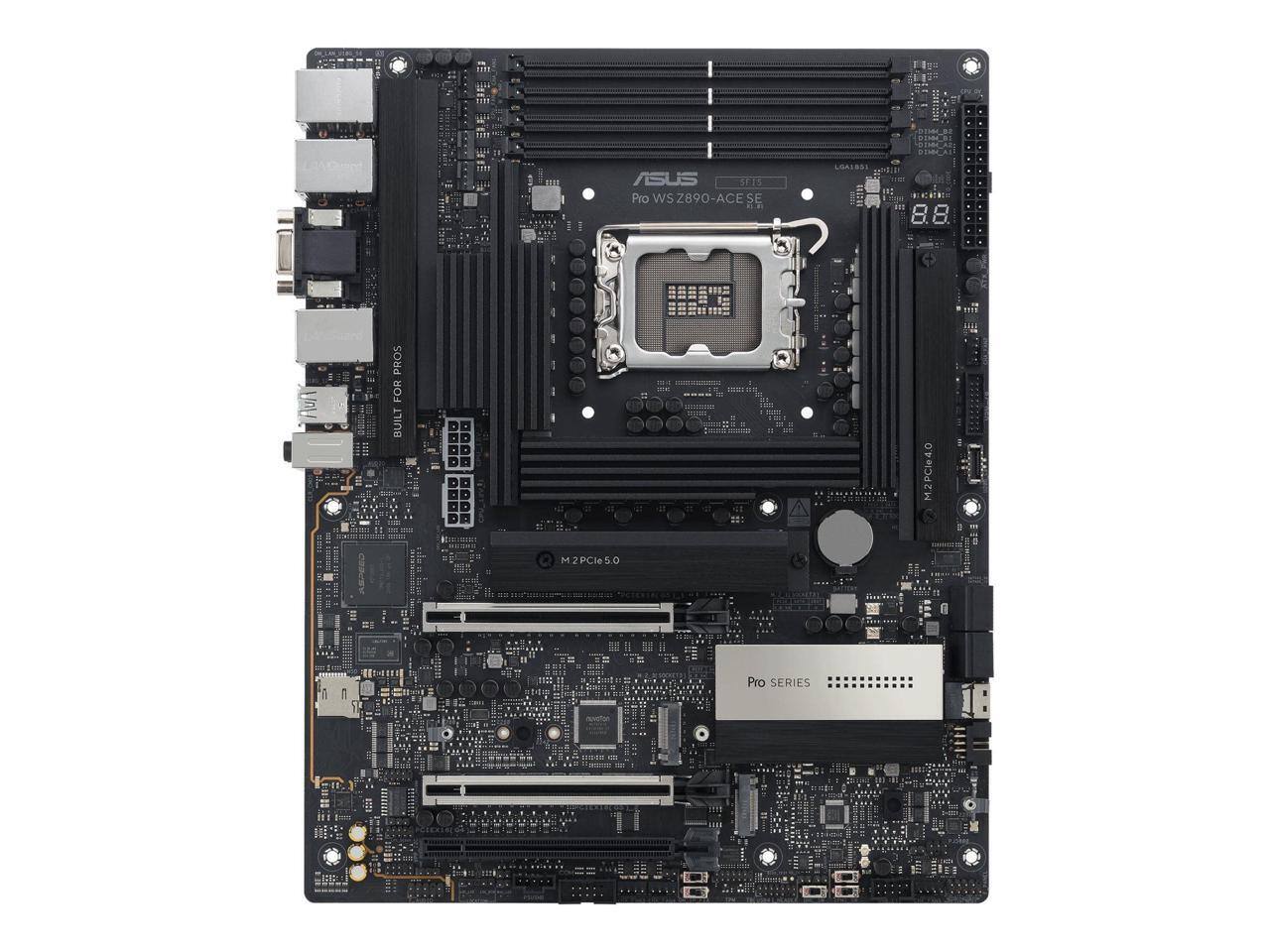

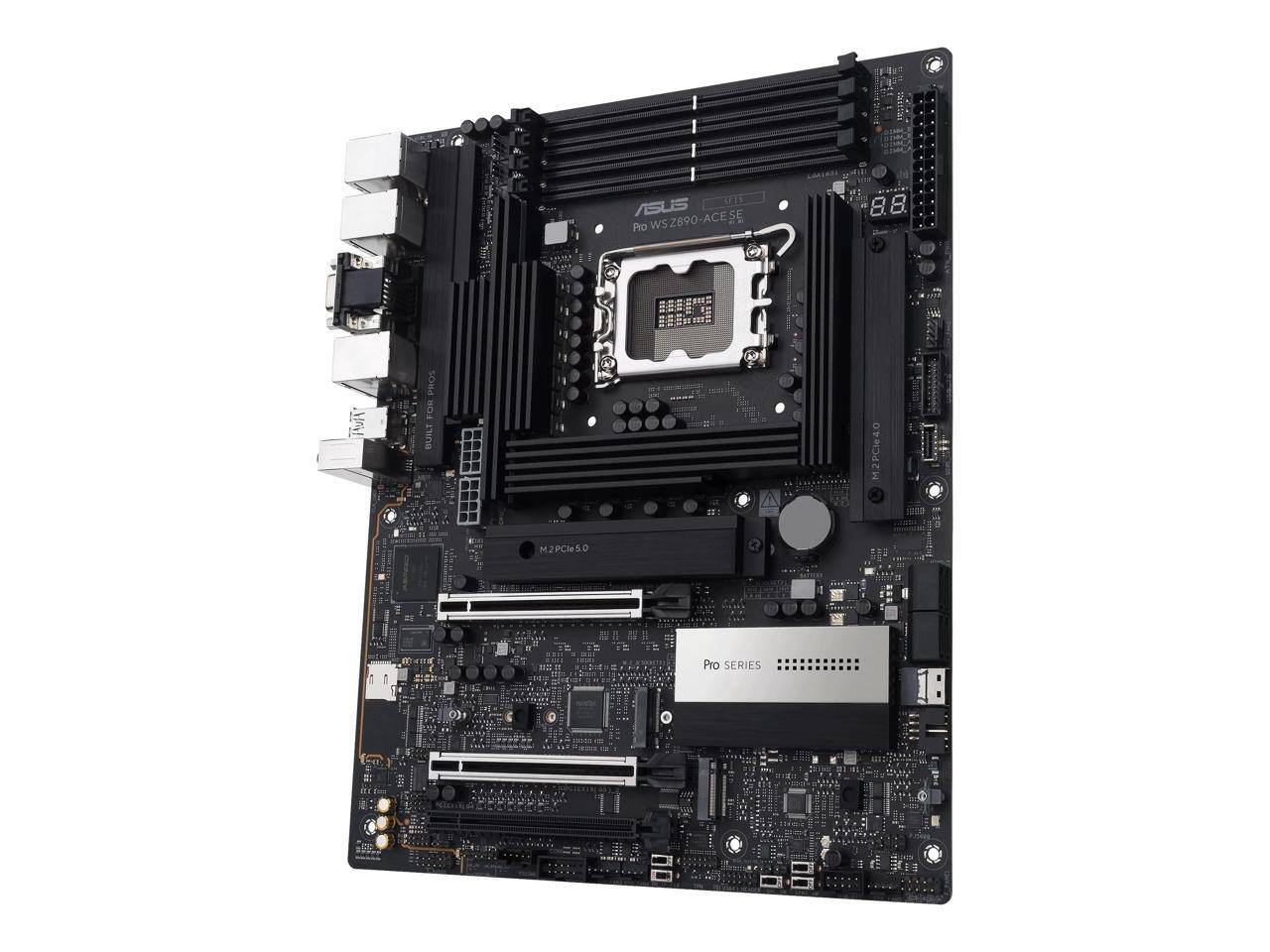

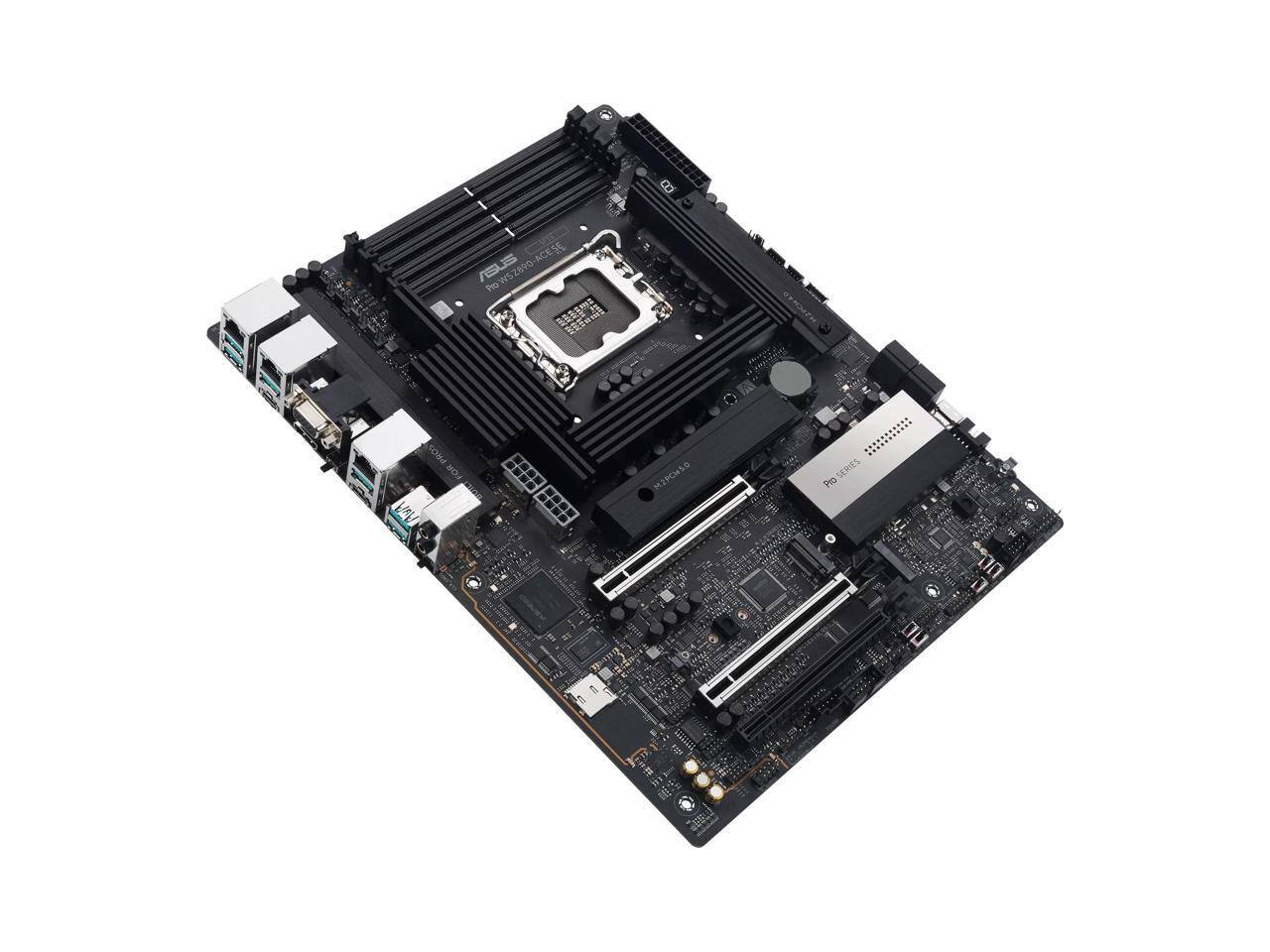

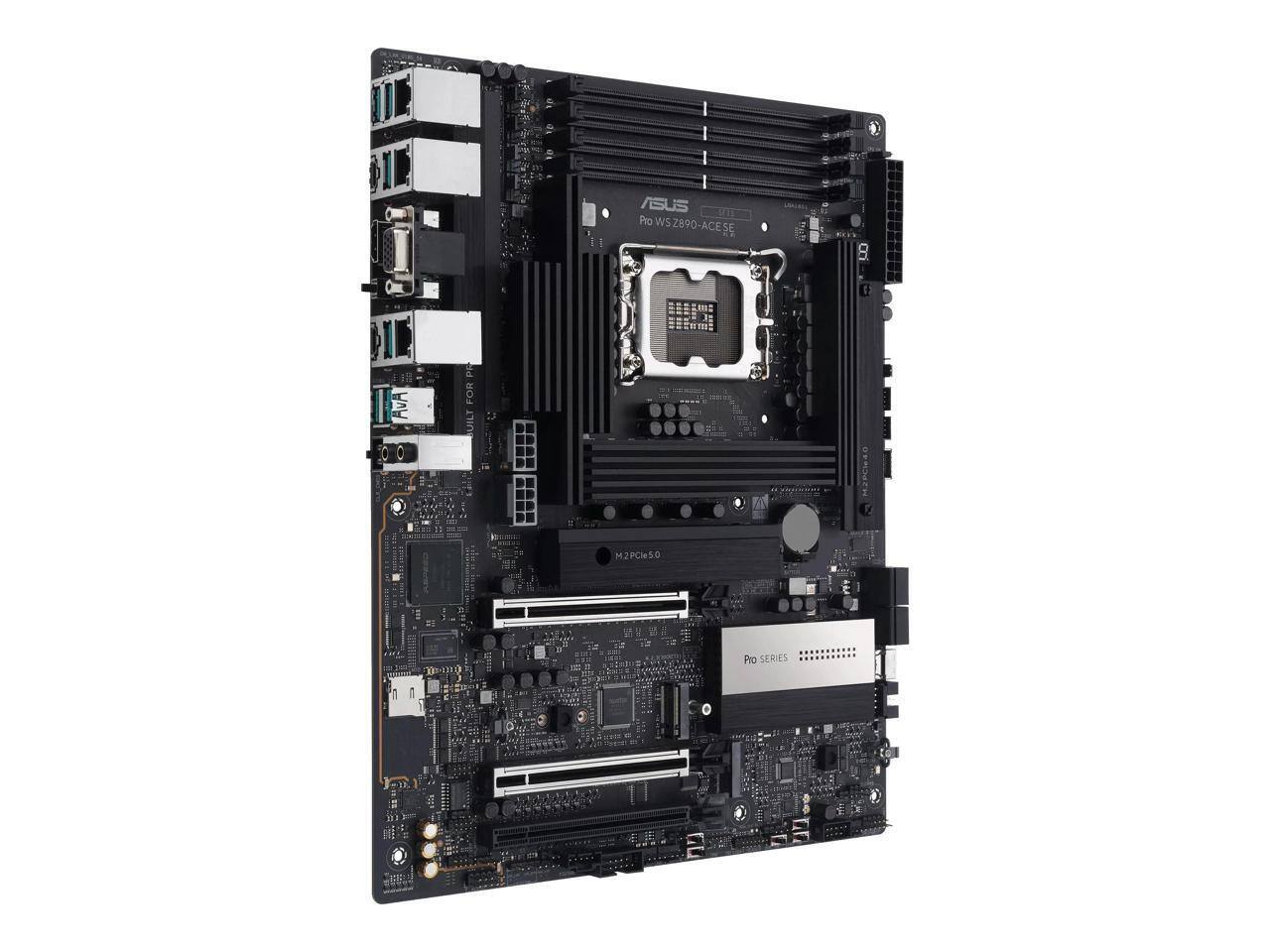

ASUS - Pro WS Z890-ACE SE Workstation Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: ASUS
- Model Number: PRO WS Z890-ACE SE
- Product Name: Pro WS Z890-ACE SE Workstation Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-C 4 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 340.87 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 275.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 29.28 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR5 6000(MHz) / 6600(MHz) / 7200(MHz) / 7600(MHz) / 8000(MHz) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 3 years
- Warranty - Labor: Limited Warranty period (labor): 3 years
- Other
- UPC: 197105828896
ASUS Pro WS Z890-ACE SE Z890 LGA 1851 ATX Motherboard - Intel Core Ultra Series 2 Ready - Advanced AI PC-Ready - PCIe 5.0 DDR5 - 10G & 2.5G LAN - 4X M.2 - USB 20Gbp (PRO WS Z890-ACE SE)
- Advanced connectivity for next-gen performance: Future-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe®?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
- Intel LGA-1851 Socket: Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Future-Proof Connectivity: Intel LGA1851 socket:? Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors
- Exclusive AI and Overclocking Technologies: Robust performance:?16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- DIY-Friendly Design: Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost

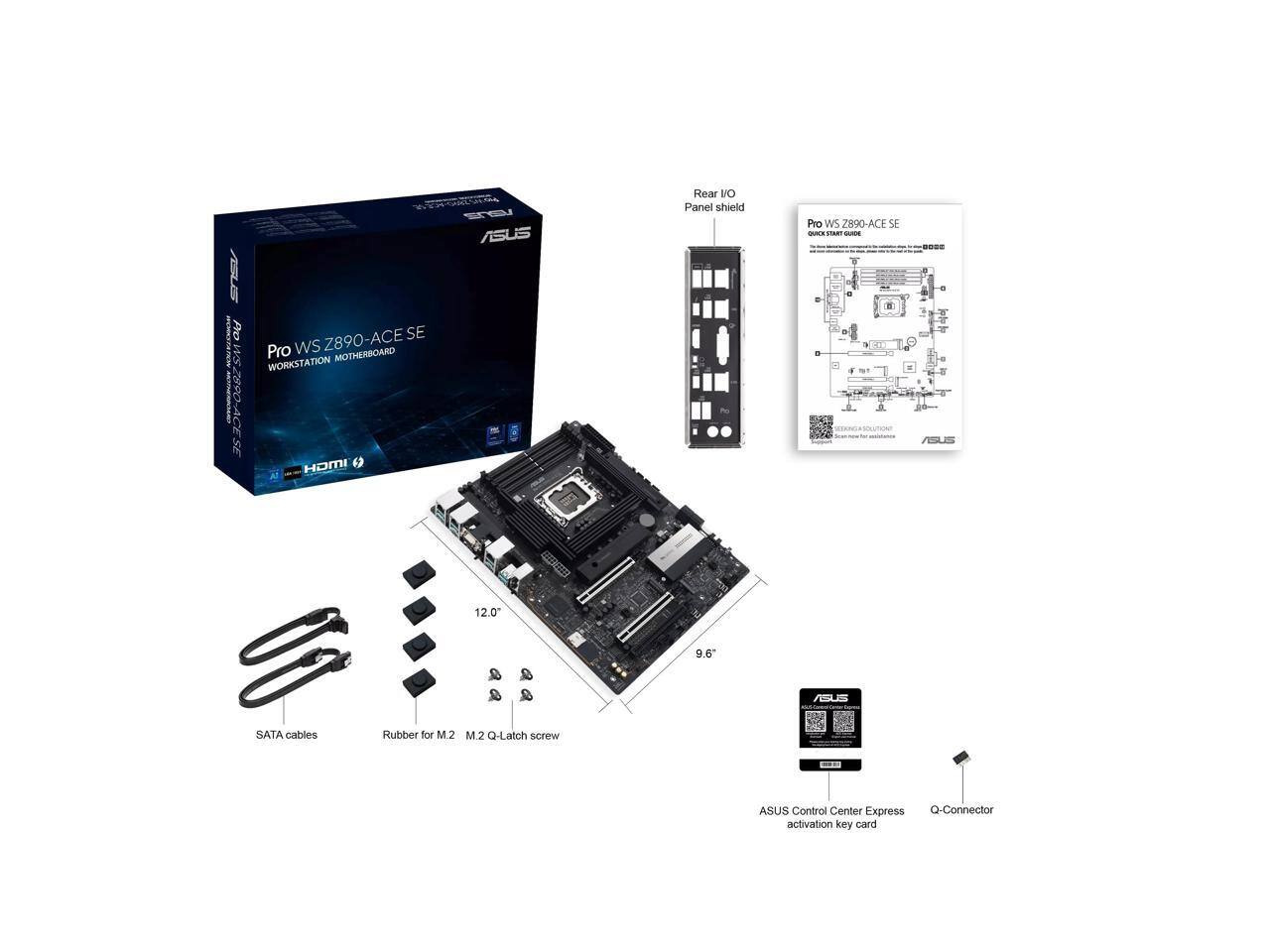

Whats Included
- ASUS Pro WS Z890-ACE SE Z890 LGA 1851 ATX Motherboard - Intel Core Ultra 2 Ready, AI PC-Ready, PCIe 5.0, DDR5, 10G/2.5G LAN, 4x M.2, USB 20Gbps
