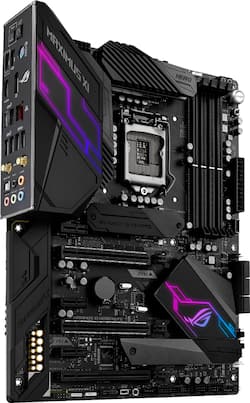

ASUS - ROG MAXIMUS XI HERO (WI-FI) (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting
- Key Specs
- Chipset: Intel Z390
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Brand: ASUS
- Model Number: MAXIMUS XI HERO (WI-FI AC)
- Product Name: ROG MAXIMUS XI HERO (WI-FI) (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting
- Compatibility
- Chipset: Intel Z390
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7
- Connectivity
- Power Connector: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 192876124130
Enhance your gaming rig with this Asus gaming motherboard. Its dedicated onboard clock generator lets you harness its full power, and the ROG firmware provides stability to ensure optimal performance. The cooling system on this Asus gaming motherboard is configured by Fan Xpert 4 and UEFI BIOS to prevent overheating.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1151 socket.
- Up to 4400MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
- NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports 8-channel SupremeFX (S1220A) audio: For high-definition sound.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 PS/2 (mouse/keyboard), 1 TOSLINK, 1 DisplayPort, 1 audio line-in, 1 audio line-out, 1 microphone, 1 audio line-out (center/subwoofer), 1 audio line-out (rear), and more.
- Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1151 socket.
- Up to 4400MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
- NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports 8-channel SupremeFX (S1220A) audio: For high-definition sound.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 PS/2 (mouse/keyboard), 1 TOSLINK, 1 DisplayPort, 1 audio line-in, 1 audio line-out, 1 microphone, 1 audio line-out (center/subwoofer), 1 audio line-out (rear), and more.
- Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
Whats Included
- ASUS ROG MAXIMUS XI HERO (WI-FI)
- 4 x Serial ATA cable
- SLI bridge
- ASUS 2T2R Wi-Fi moving antennas, 1 x M.2 screw, ROG coasters, RGBW LED strip extension cable, ROG big sticker, RGB Addressable LED extension cable
- Software
- ASUS ROG MAXIMUS XI HERO (WI-FI)
- 4 x Serial ATA cable
- SLI bridge
- ASUS 2T2R Wi-Fi moving antennas, 1 x M.2 screw, ROG coasters, RGBW LED strip extension cable, ROG big sticker, RGB Addressable LED extension cable
- Software
Product Manuals
Q: Does this board have bluetooth?
A: The Asus Maximus XI Hero (WiFi edition) has onboard WiFi and Bluetooth. They share a setting in the BIOS. Both will be enabled or disabled together. This is important to note if you plan to use an external or PCIE WiFi adapter. If you disable onboard wireless, Bluetooth will also get disabled. Some reviews on this boards Bluetooth indicate that the range is short, but I cannot confirm this as I am using a PCIE WiFi adapter and have not tested the Bluetooth.
Q: Does this fit in all Towers?
A: This is an ATX motherboard. A full-size ATX board has a height of 305mm and a width of 244mm, or 12 x 9.6 inches. When you’re planning a build, if you’re picking up an ATX motherboard, you’re going to want to pair it with a ATX-compatible PC case. These can either be super-towers, full-towers, middle-towers, or mini-towers. As long as they’re built to support the ATX format, then the board will fit 10/10 times.
Q: How many WATS can this motherboard have?
A: That would depend on your PSU and CPU choice, along with overclocking settings in BIOS. If you have any additional technical questions, please email me at [email protected] and include case #N200774490 for reference.
Q: How much WATS can this have?
A: undefined
Q: What cpu is the best for this?
A: 9700K/9900K.
Q: How much to install this board in my pc?
A: Please refer to page 2-5 of our user manual: https://dlcdnets.asus.com/pub/ASUS/mb/LGA1151/ROG_MAXIMUS_XI_HERO/E14808_ROG_MAXIMUS_XI_HERO_WI-FI_UM_V2_WEB.pdf
