Audio-Technica - Audio Technica AT-XP3 DJ Phonograph Cartridge - Blue
- Key Specs
- Accessory Type: Turntable Accessory
- Model Compatibility: Audio-Technica Turntables
- General
- Brand: Audio-Technica
- Model Number: AUD ATXP3
- Product Name: Audio Technica AT-XP3 DJ Phonograph Cartridge
- Color: Blue
- Features
- Accessory Type: Turntable Accessory
- Quantity: 1
- Compatibility
- Model Compatibility: Audio-Technica Turntables
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Other
- UPC: 4961310145613

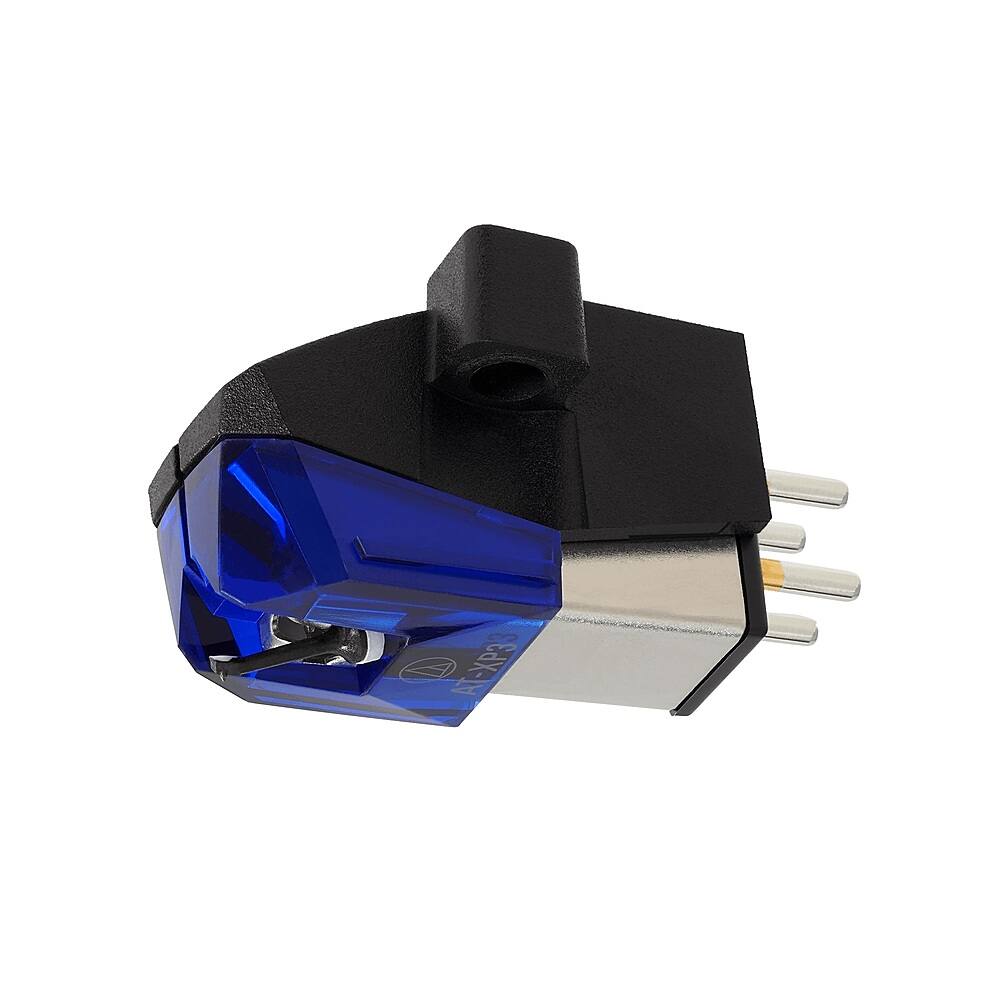

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application. 0.6 mil conical bonded stylus tip. Highly-rigid polyphenylene sulfide (PPS)/glass fiber body. 5.5 mV high-level output. Tracking force of 2.0 to 4.0 grams (3.0 grams standard). Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking. Design offers maximum visibility of the stylus tip. Great tracking and channel separation for high-fidelity sound. AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
- Frequency Response: 20-18,000 Hz
- Stylus Construction: Bonded round shank
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Recommended Load Impedance: 47,000 ohms
- Mount: Half-inch

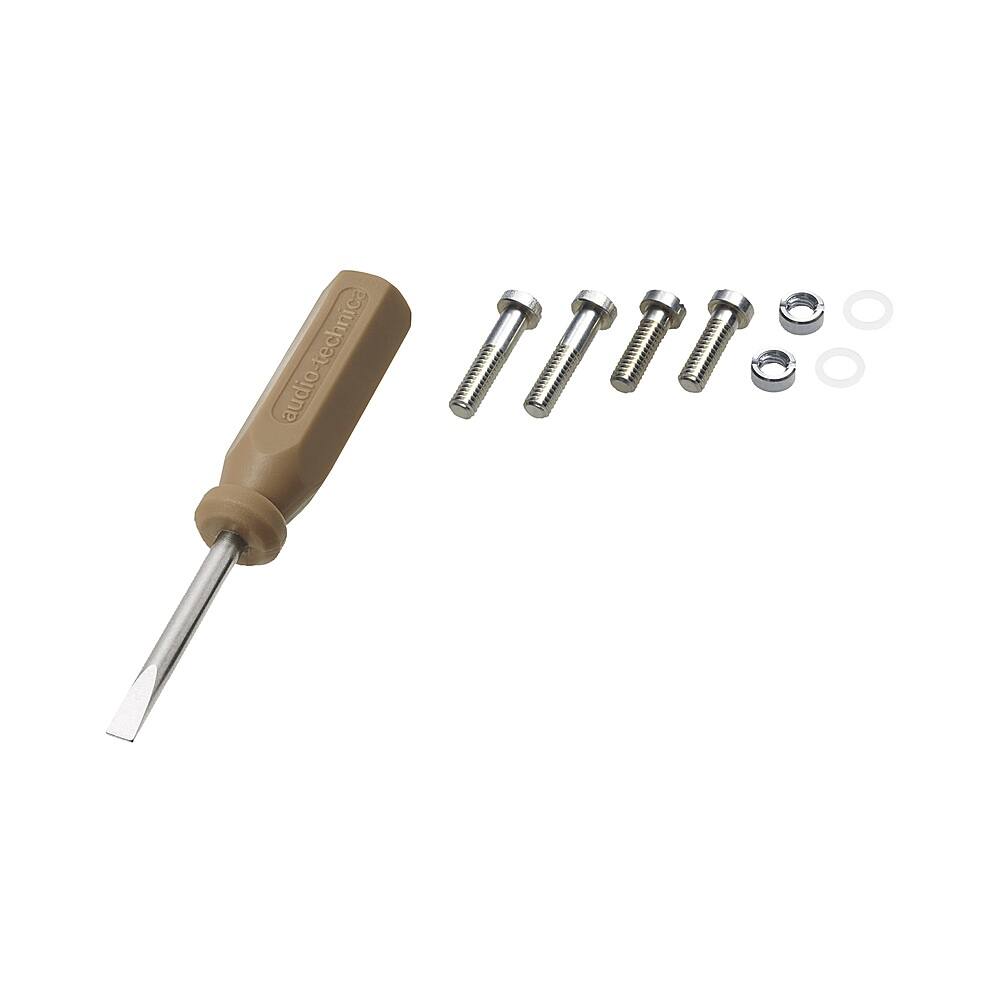

- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
- Frequency Response: 20-18,000 Hz
- Stylus Construction: Bonded round shank
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Recommended Load Impedance: 47,000 ohms
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Whats Included
- Audio Technica AT-XP3 DJ Phonograph Cartridge
- Audio Technica AT-XP3 DJ Phonograph Cartridge
Product Manuals
Q: What is the recommended load impedance for this cartridge?
A: The recommended load impedance for this cartridge is 47,000 ohms.
Q: What comes with this Audio Technica cartridge?
A: This cartridge comes with two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, and a non-magnetic screwdriver.
Q: How is the cantilever on this cartridge constructed?
A: The cantilever on this cartridge is carbon fiber-reinforced ABS.
Q: What is the tracking force of this Audio Technica cartridge?
A: This cartridge has a tracking force of 2.0 to 4.0 grams with 3.0 grams being standard.
Q: What is the frequency response for this Audio Technica cartridge?
A: The frequency response for this cartridge is 20-18,000 Hz.
Q: Does it fit a Pioneer pl-s70
A: The AT-XP3 Cartridge should be fine as long as you will be mounting it to the Pioneer half-inch headshell and the cartridge falls within the acceptable cartridge weight range specified in the tonearm specifications section of the PL-S70 User Manual. The cartridge with mounting screws weighs 7 grams.
Q: Does Audio Technics sell cartridges for linear straight arm turntables??
A: Is it a Plug-in (aka P-mount or T4P) type cartridge? If so, our AT81CP and AT85EP Cartridges will work on a linear tracking tonearm.
Q: Is this compatible with a JVC AL-AL151BKX Turntable??
A: Yes, I believe so--but in case you didn't know --The DJ name in the listing is for DJ "scratching" --meaning that this style of stylus is a little stiffer--I would recommend A/T VMN95C cartridge
