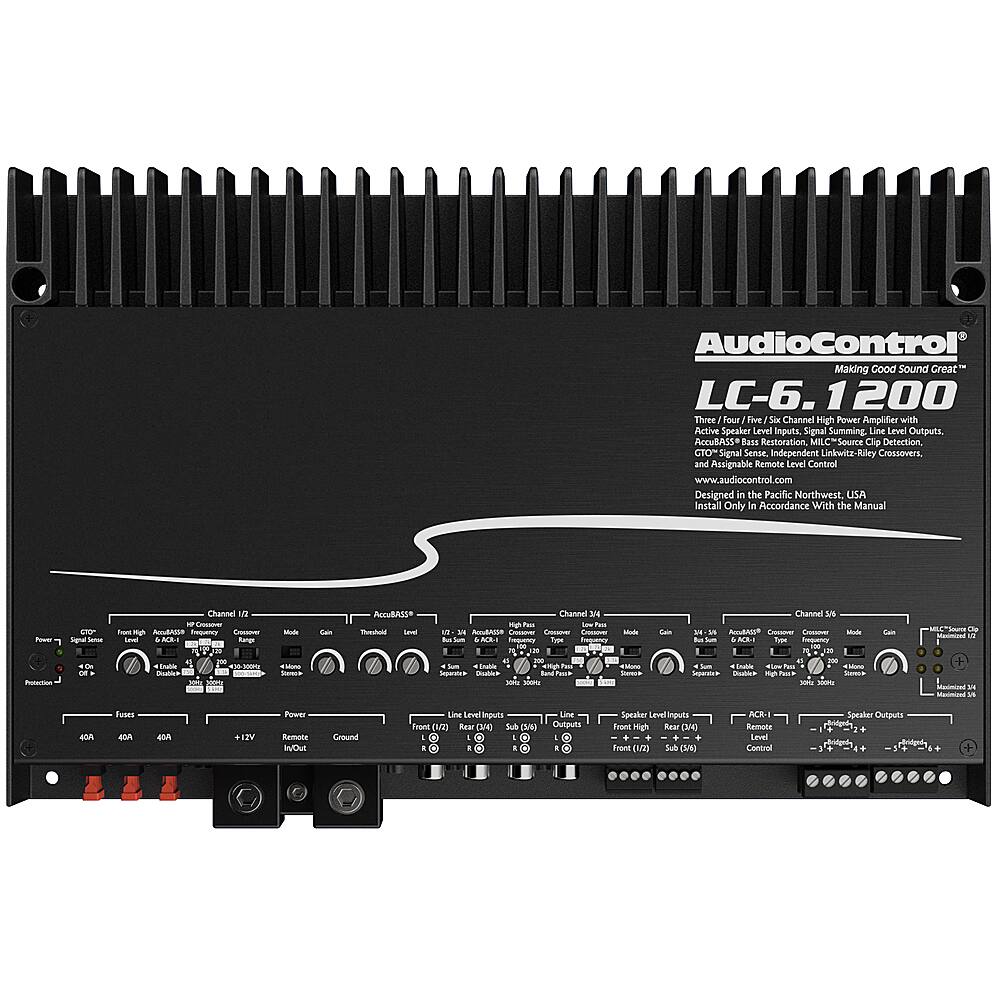

AudioControl - 1200W 6-Channel Class D Amplifier - Black
Model: LC-6.1200
SKU: 6320227
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 200W RMS x 6 @ 2 ohms, 125W RMS x 6 @ 4 ohms, 400W RMS x 3 @ 4 ohms bridged
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 6
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: AudioControl
- Model Number: LC-6.1200
- Product Name: 1200W 6-Channel Class D Amplifier
- Color: Black
- Mounting Hardware Included: false
- Audio Power
- Continuous Watts x Channel @ Ohms: 200W RMS x 6 @ 2 ohms, 125W RMS x 6 @ 4 ohms, 400W RMS x 3 @ 4 ohms bridged
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 6
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 30 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 102 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 851523007201
Experience powerful sound from your car’s audio system with this 1200W 6-Channel Class D Amplifier by AudioControl. The LC-6.1200 features a high-current design and comes equipped with intuitive setup controls that allow for a wide variety of installation possibilities. This 6-channel amplifier also features AccuBASS technology so you can turn up the volume without losing bass.
- 6-channel full range Class D amplifier: Configurable for 6-channel, 5-channel, 4-channel, 3-channel, and 2-channel audio systems.
- Handles up to 200W RMS (continuous) x 6 @ 2 ohms or 125W RMS x 6 @ 4 ohms: To deliver powerful audio. Up to 400W RMS x 3 @ 4 ohms bridged.
- 4 ohms and 2 ohms impedance: Conducts power evenly to keep speakers working at optimal levels.
- AccuBASS processing: Recovers bass frequencies lost at higher volumes.
- Selectable input modes: Accepts both high-level (speaker-level) and low-level (RCA line-level) signals for integration with your existing audio system.
- Automatic and selectable signal summing: Combines the active speaker-level inputs (8 channels) for a full range signal.
- Variable low-pass, band-pass, and high-pass crossovers: Ensure flexible operation.
- Programmable frequency match (PFM) subsonic filter: Eliminates speaker damage and wasted amplifier power.
- Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
- Maximum Input Level Control (MILC) with clipping indicator: Prevents damaging distortions and indicates input clipping on the MILC Source Clip LED.
- Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-1 sold separately).
- 5-year warranty: To protect against defects in materials and workmanship.
- 6-channel full range Class D amplifier: Configurable for 6-channel, 5-channel, 4-channel, 3-channel, and 2-channel audio systems.
- Handles up to 200W RMS (continuous) x 6 @ 2 ohms or 125W RMS x 6 @ 4 ohms: To deliver powerful audio. Up to 400W RMS x 3 @ 4 ohms bridged.
- 4 ohms and 2 ohms impedance: Conducts power evenly to keep speakers working at optimal levels.
- AccuBASS processing: Recovers bass frequencies lost at higher volumes.
- Selectable input modes: Accepts both high-level (speaker-level) and low-level (RCA line-level) signals for integration with your existing audio system.
- Automatic and selectable signal summing: Combines the active speaker-level inputs (8 channels) for a full range signal.
- Variable low-pass, band-pass, and high-pass crossovers: Ensure flexible operation.
- Programmable frequency match (PFM) subsonic filter: Eliminates speaker damage and wasted amplifier power.
- Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
- Maximum Input Level Control (MILC) with clipping indicator: Prevents damaging distortions and indicates input clipping on the MILC Source Clip LED.
- Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-1 sold separately).
- 5-year warranty: To protect against defects in materials and workmanship.
Whats Included
- AudioControl 1200W 6-Channel Class D Amplifier
- Speaker connectors
- 40A fuses (3)
- User manual
- AudioControl 1200W 6-Channel Class D Amplifier
- Speaker connectors
- 40A fuses (3)
- User manual
Q: What is the signal-to-noise ratio of this amplifier?
A: This amplifier boasts a 102dB signal-to-noise ratio, ensuring clear and high-quality audio output.
Q: Does this AudioControl amplifier have a feature to enhance bass?
A: Yes, it features AccuBASS processing which recovers bass frequencies lost at higher volumes.
Q: What kind of inputs does this amplifier accept?
A: This amplifier is versatile as it accepts both high-level (speaker-level) and low-level (RCA line-level) signals.
Q: Can I use this amplifier with different impedance speakers?
A: Yes, the amplifier is compatible with both 4 ohms and 2 ohms impedance speakers.
Q: How many channels does this amplifier have?
A: This amplifier has 6 channels.
