AudioControl - 6-Channel Input 8-Channel Output DSP Matrix Processor - Black

Name: AudioControl - 6-Channel Input 8-Channel Output DSP Matrix Processor - Black
Brand: AudioControl
SKU: 5910101
Rating: 5 (2 reviews)

Model: DM-608

SKU: 5910101

This item is no longer available in new condition. See similar items below

Key Specs
- Number of Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Audio Only Inputs: 3 x Coaxial digital audio
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
General
- Brand: AudioControl
- Model Number: DM-608
- Product Name: 6-Channel Input 8-Channel Output DSP Matrix Processor
- Color: Black
Audio
- Number of Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- High/Low Pass Filters: Variable high pass
Inputs
- Audio Only Inputs: 3 x Coaxial digital audio
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 1
Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Number of HDMI Outputs (Total): 0
Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Remote Control Included: false
- Effect Type(s): Octave, EQ, Delay
Connectivity
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
Display
- On-Screen Display: false
- LED Metering: true
Dimensions
- Product Height: 1.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.4 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
Other
- UPC: 855814005976

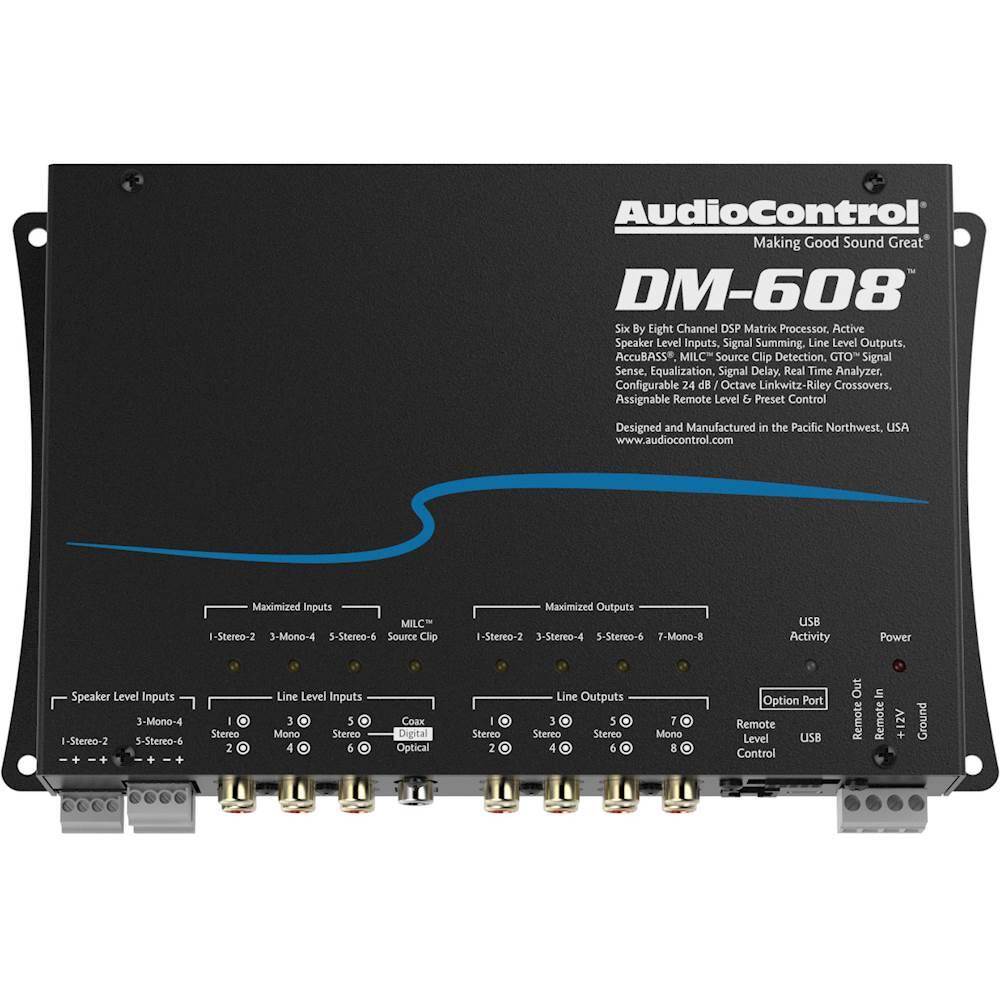

Completely customize and fine tune your audio with this 6-Channel Input 8-Channel Output DSP Matrix Processor by AudioControl. The DM-608 features speaker-level, RCA line-level, and digital audio inputs for a variety of installation scenarios and a smart user interface that allows you to control key features such as signal summing, EQ, time-alignment, input delay, AccuBASS, and more. This six-by-eight channel digital signal processor also features a built-in Option Port so you can stream high-resolution audio directly into your DSP.

Compatible with most vehicles’ audio systems: Works with both factory and aftermarket source units.
Selectable input modes: Features three sets of speaker-level inputs, three sets of RCA line-level preamp inputs, one S/PDIF input, one TOSLINK input, and four sets of RCA line-level preamp outputs for integration with your existing audio system.
DM Smart DSP app: Gives complete control of all processor tuning features via laptop or PC.
AccuBASS processing: Recovers bass frequencies lost at higher volumes.
30-band equalizer with auto EQ: Customize how your audio sounds to get the perfect quality for your music.
Input and output real time analyzers (RTAs): Allow you to easily identify and sum speaker signals from your factory radio.
Internal channel summing: Provides a full-range preamp signal for factory radios with built-in crossovers.
Signal delay mode: Control acoustical alignment between left and right channels as well as front and subwoofer channels.
Variable low-pass, bandpass, and high-pass crossovers: Ensure flexible operation.
Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
Maximum Input Level Control (MILC) with clipping indicator: Prevents damaging distortions and indicates input clipping on the MILC Source Clip LED.
Option Port: Provides a Bluetooth connection to allow simultaneous high-resolution audio streaming and DSP programming (AC-BT24 sold separately).
Optional dash remote: Add a subwoofer with independent level control and memory preset recall (ACR-3 sold separately).
5-year warranty: To protect against defects in materials and workmanship.
Compatible with most vehicles’ audio systems: Works with both factory and aftermarket source units.
Selectable input modes: Features three sets of speaker-level inputs, three sets of RCA line-level preamp inputs, one S/PDIF input, one TOSLINK input, and four sets of RCA line-level preamp outputs for integration with your existing audio system.
DM Smart DSP app: Gives complete control of all processor tuning features via laptop or PC.
AccuBASS processing: Recovers bass frequencies lost at higher volumes.
30-band equalizer with auto EQ: Customize how your audio sounds to get the perfect quality for your music.
Input and output real time analyzers (RTAs): Allow you to easily identify and sum speaker signals from your factory radio.
Internal channel summing: Provides a full-range preamp signal for factory radios with built-in crossovers.
Signal delay mode: Control acoustical alignment between left and right channels as well as front and subwoofer channels.
Variable low-pass, bandpass, and high-pass crossovers: Ensure flexible operation.
Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
Maximum Input Level Control (MILC) with clipping indicator: Prevents damaging distortions and indicates input clipping on the MILC Source Clip LED.
Option Port: Provides a Bluetooth connection to allow simultaneous high-resolution audio streaming and DSP programming (AC-BT24 sold separately).
Optional dash remote: Add a subwoofer with independent level control and memory preset recall (ACR-3 sold separately).
5-year warranty: To protect against defects in materials and workmanship.
