Name: AudioControl - 6-Channel Line Driver - Black
Brand: AudioControl
SKU: 6482933
Rating: 4.5 (2 reviews)

Key Specs
- Number of Channels: 6 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Audio Only Inputs: 3 x Coaxial digital audio
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
General
- Brand: AudioControl
- Model Number: MATRIX PLUS
- Product Name: 6-Channel Line Driver
- Color: Black
Audio
- Number of Channels: 6 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Equalizer: false (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- High/Low Pass Filters: None
Inputs
- Audio Only Inputs: 3 x Coaxial digital audio
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 0
Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Number of Subwoofer Pre Outs: 1
- Number of HDMI Outputs (Total): 0
Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Remote Control Included: false
- Effect Type(s): None
Display
- On-Screen Display: false
Dimensions
- Product Height: 7.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.3 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
Other
- UPC: 851523007904

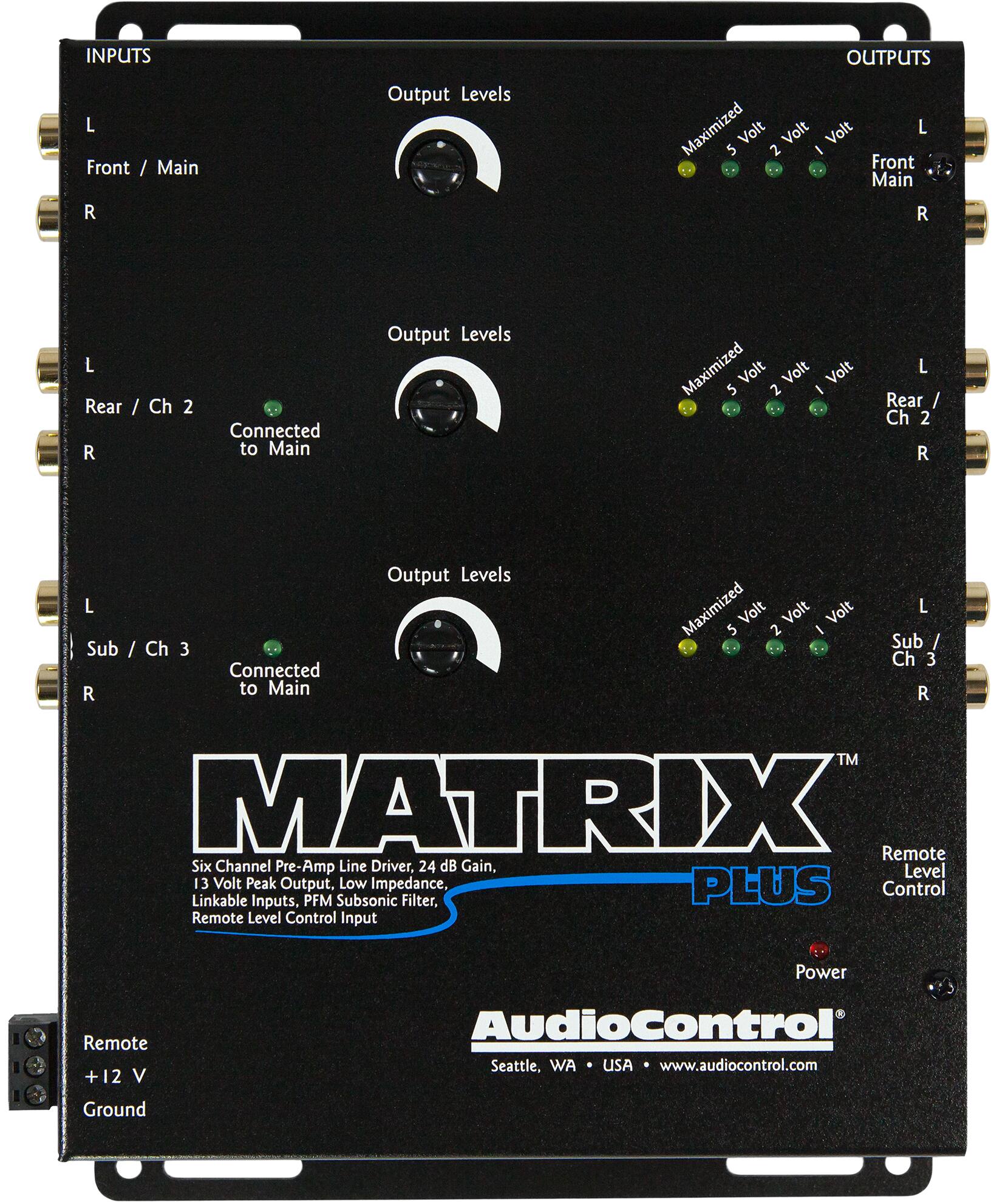

Add power to your vehicle’s audio system with this 6-Channel Line Driver by AudioControl. The MATRIX PLUS increases pre-amp signal levels from your factory radio to an amplifier or processor for clean, robust sound. This quiet, low distortion six-channel line driver also matches the input voltages from different audio sources to allow seamless switching between multimedia, video games, amplifiers, or other components of your car’s audio system.

Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems with low signal output voltages.
6-channel interface: Features three sets of balanced differential line-level inputs and three sets of low impedance line-level outputs for integration with your existing audio system.
Conformally coated printed circuit board (PCB): Resists vibrations and protects against the elements for long-lasting use.
Programmable frequency match (PFM) subsonic filter: Eliminates speaker damage and wasted amplifier power.
Variable stereo gain controls: Allows you to adjust the output signals up to +24dB.
Onboard LED voltage indicators: Alert you to optimal and maximized output voltages for each channel.
13V peak power input (9.5V RMS) per channel @ 20k ohms: For high-quality sound.
9.5V RMS (13V peak) maximum output voltage @ 14.4V: For efficient operation.
10Hz - 100kHz frequency response: Ensures faithful sound reproduction.
<0.005% Total Harmonic Distortion (THD): For clean sound.
Selectable ground isolation: Choose from common, ISO (default), or 200 ohms.
Optional dash remote: Allows you to control master volume and subwoofer levels (ACR-1 sold separately).
5-year warranty: To protect against defects in materials and workmanship.
Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems with low signal output voltages.
6-channel interface: Features three sets of balanced differential line-level inputs and three sets of low impedance line-level outputs for integration with your existing audio system.
Conformally coated printed circuit board (PCB): Resists vibrations and protects against the elements for long-lasting use.
Programmable frequency match (PFM) subsonic filter: Eliminates speaker damage and wasted amplifier power.
Variable stereo gain controls: Allows you to adjust the output signals up to +24dB.
Onboard LED voltage indicators: Alert you to optimal and maximized output voltages for each channel.
13V peak power input (9.5V RMS) per channel @ 20k ohms: For high-quality sound.
9.5V RMS (13V peak) maximum output voltage @ 14.4V: For efficient operation.
10Hz - 100kHz frequency response: Ensures faithful sound reproduction.
<0.005% Total Harmonic Distortion (THD): For clean sound.
Selectable ground isolation: Choose from common, ISO (default), or 200 ohms.
Optional dash remote: Allows you to control master volume and subwoofer levels (ACR-1 sold separately).
5-year warranty: To protect against defects in materials and workmanship.
