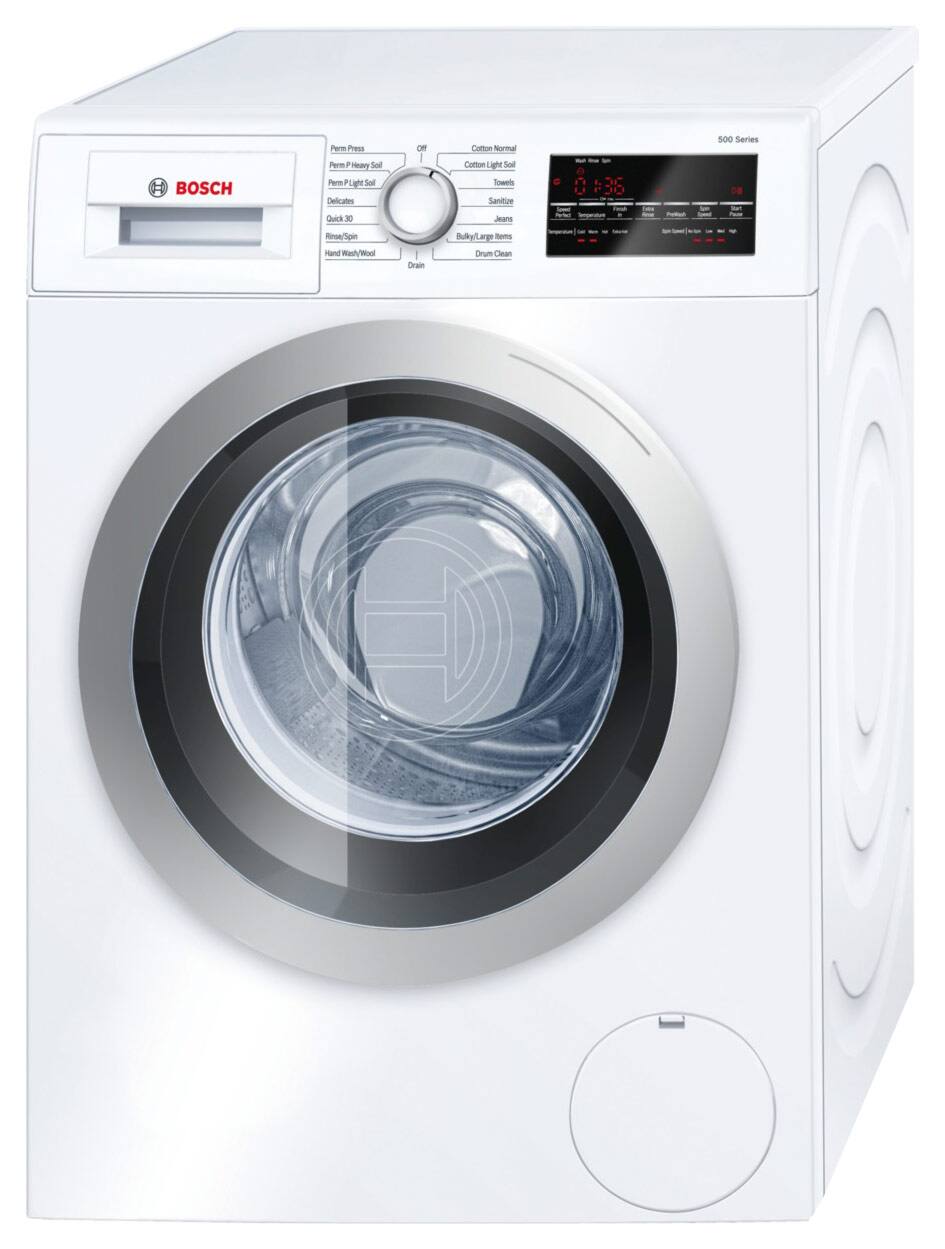

Bosch - 500 series 2.2 Cu. Ft. 15-Cycle High-Efficiency Compact Front-Loading Washer - White/Silver
Model: WAT28401UC
SKU: 8808234
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 33 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 42 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 2.2 cubic feet
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Washer Load Type: Front load
- Pedestal Model Compatibility: WMZ20490
- Matching Dryer Model Number: WTG86401UC
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Model Compatibility: WTZ20410UC
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: WAT28401UC
- Product Name: 500 series 2.2 Cu. Ft. 15-Cycle High-Efficiency Compact Front-Loading Washer
- Color: White/Silver
- Color Finish: White
- Dimensions
- Product Height: 33 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 42 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 160 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 2.2 cubic feet
- Features
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Antimicrobial Protection: false (The product includes protective features which are designed to eliminate or inhibit the growth of microorganisms.)
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Noise Reduction: true
- Maximum Spin Speed: 1400 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
- Out-Of-Balance Detection: true
- Internal Water Heater: true
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Interior Light(s): false
- Bleach Dispenser: false
- Fabric Softener Dispenser: true
- Pre-Wash Detergent Dispenser: true
- Detergent Dispenser Type: Single load (Single load dispensers hold enough liquid detergent for a single cycle and must be refilled after each use. A multiple load dispenser holds enough for multiple cycles before it is necessary to refill the detergent. The exact number of cycles completed before refilling will vary as machines with multiple load dispensers will calculate and dispense detergent automatically based on load size and other user preferences such as concentration level.)
- Detergent Form: Liquid
- Design
- Washer Load Type: Front load
- Reversible Door Hinge: false
- Control Type: Touchscreen
- Tub/Drum Material: Stainless steel
- Window: true
- Wheels/Casters: false
- Adjustable Leveling Legs: false (Legs can be adjusted accordingly to ensure that your appliance sits level, even on uneven ground.)
- Cycle Specifications
- Number of Wash/Rinse Cycles: 15
- Wash/Rinse Cycles: Permanent Press, Permanent Press Heavy Soil, Permanent Press Light Soil, Delicates, Quick 30 min, Rinse/Spin, Hand Wash/Wool, Drain, cotton normal,whitest whites, towels, sanitize, super quick 15min, bulky large items, drum clean
- Options and Programs: SpeedPerfect™, Temperature, Finish in, Extra Rinse, Prewash, Spin Speed, Start/Pause, Child Lock, Signal
- Number of Temperature Settings: 4
- Temperature Settings: Cold, Warm, Hot, Extra Hot
- Number of Spin Speeds: 4
- Soil Levels: Heavy, Normal, Light (Washers with the option to select the soil level will employ different wash cycles to optimally clean the respective load. Most have three options: light, normal, or heavy.)
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: WMZ20490
- Matching Dryer Available: true
- Matching Dryer Model Number: WTG86401UC
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Model Compatibility: WTZ20410UC
- Stacking Kit Included: false
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Fill Hoses Included: false
- Drain Hose Included: true
- Electrical Specification
- Estimated Annual Electricity Use: 84 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 10 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 825225912774
Bosch washer: Keep your clothing fresh and clean with this washer, which features 15 cycles, including a sanitation cycle and a SpeedPerfect option, to meet a variety of laundry needs. The EcoSilence motor ensures quiet, reliable operation.
- Prevent leaks and flooding in your home: AquaShield hose helps keep the washer running smoothly.
- LED touch controls with dial: Easily choose from a wide selection of settings for customized fabric care.
- 2.2 cu. ft. capacity: Space-saving design accommodates sizeable loads easily.
- 15 wash cycles: Including heavy-duty, delicates, knits and permanent press to meet a variety of laundry needs. A sanitation cycle enables deep cleaning.
- SpeedPerfect option: For efficient performance when you're in a hurry.
- 4 temperature settings: Ensure proper fabric care for a variety of materials, from heavy towels to delicates.
- VRT (Vibration Reduction Technology): Minimizes noise and vibration for flexible placement.
- EcoSilence motor: Complete loads of laundry without disturbing your family.
- Do laundry on your schedule: Delay-start feature lets you set a load to start while you're sleeping or out and about.
- Prevent leaks and flooding in your home: AquaShield hose helps keep the washer running smoothly.
- LED touch controls with dial: Easily choose from a wide selection of settings for customized fabric care.
- 2.2 cu. ft. capacity: Space-saving design accommodates sizeable loads easily.
- 15 wash cycles: Including heavy-duty, delicates, knits and permanent press to meet a variety of laundry needs. A sanitation cycle enables deep cleaning.
- SpeedPerfect option: For efficient performance when you're in a hurry.
- 4 temperature settings: Ensure proper fabric care for a variety of materials, from heavy towels to delicates.
- VRT (Vibration Reduction Technology): Minimizes noise and vibration for flexible placement.
- EcoSilence motor: Complete loads of laundry without disturbing your family.
- Do laundry on your schedule: Delay-start feature lets you set a load to start while you're sleeping or out and about.
Whats Included
- 2.2 Cu. Ft. 15-Cycle High-Efficiency Compact Front-Loading Washer
- Fill/drain hose
- 3-prong power cord
- Owner's manual
- 2.2 Cu. Ft. 15-Cycle High-Efficiency Compact Front-Loading Washer
- Fill/drain hose
- 3-prong power cord
- Owner's manual
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: When we bought the Bosch washer at Best Buy they did not inform us that it was a 220 volt, I fond that out when I was surching for the electric info . I called our electrician an he put a 220 volt pluck in the wall . When they delivered the wacher we found out that it had a total different pluck,so we had to call our electrician again and he fixt the promblem. I think that Best Buy sales had no idea about this problem PIET
A: Hi Pippin. Thank you for your question. The Washer is designed to plug into the Bosch Dryer. If you are purchasing the Washer separately, you will need to have a NEMA 6-15, 240 V outlet installed to accommodate the 3-prong plug on the Washer.
Q: Can a 3 prong power cord be put on a Bosch 300 series?
A: HI Pat. Thank you for your question. A three prong cord can be put on a Bosch compact dryer. The washer is designed to be plugged into the dryer.
A: Hi Victoria. Thank you for your question. The 500 Series Washer and Dryer include the cold and hot water hoses, electric power cords for washer and dryer. The washer power cord plugs into the dryer and the dryer has a four-prong plug, which can be changed to a three-prong plug by the installer. We have two stacking kits available for this unit. They are WTZ20410UC, which is a standard stacking kit and WTZ11400UC, which has a pull-out tray.
A: The mold Smell is because water collects in the rubber ring outside of the drum. To prevent that, I wipe out the washer and leave the washer door open to air it out.
A: You are correct. One single 240V outlet services both machines. A separate 110V outlet is not needed. I believe that Bosch is one of the few that has this setup. Note that the matching dryer is also ventless, so no vent to the outside is needed either. All you need is one 240V outlet, hot and cold water faucets, and a drain. Both the washer and the dryer connect to the drain.
A: Hi there, thank you for your question. You will need to switch your current outlet to 220v.
A: Hi there. Thank you for your question. Here are the overall appliance dimensions (HxWxD) (in) 33 1/4" x 23 1/2" x 24 1/4".
