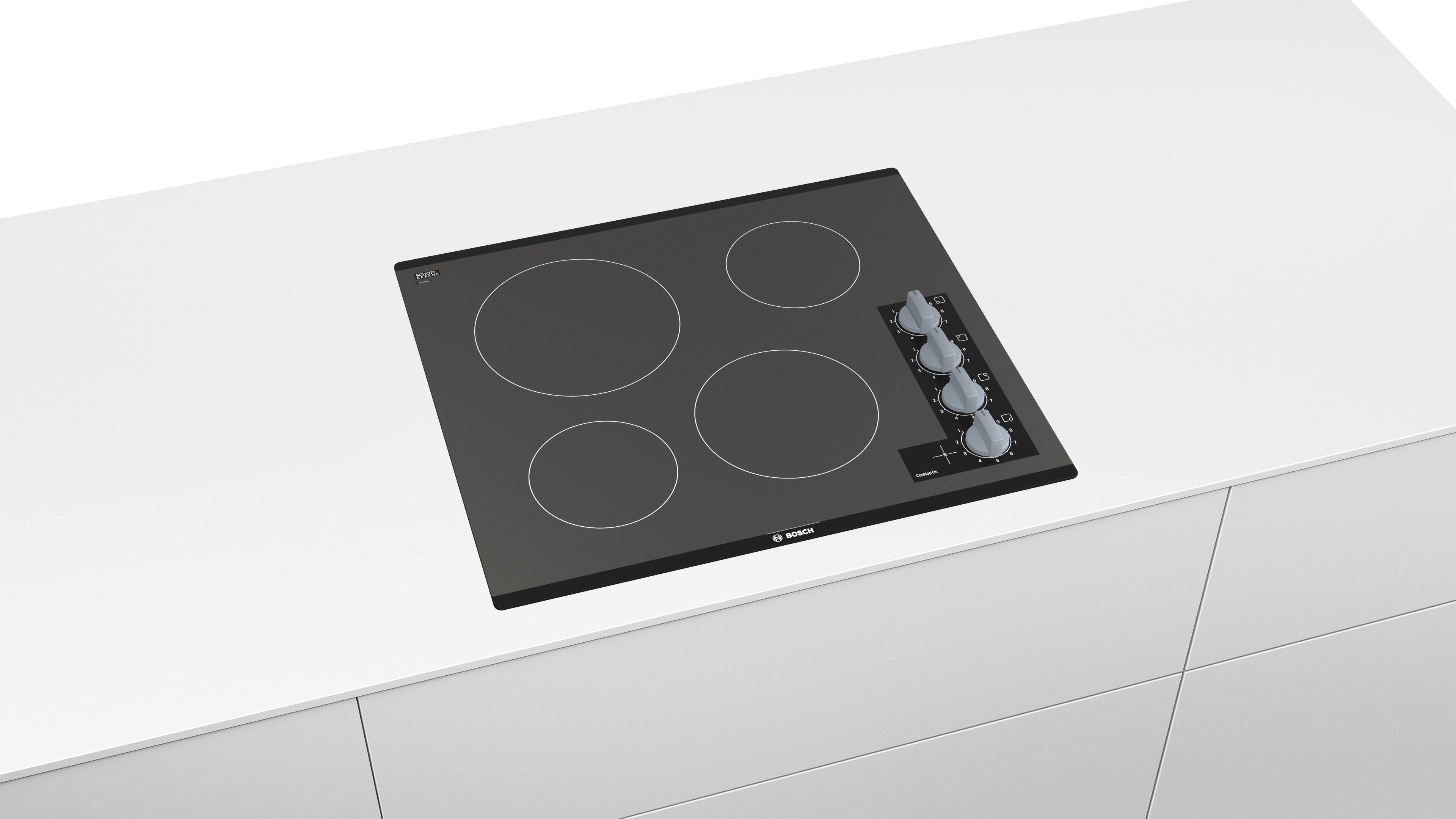

Bosch - 500 Series 24" Built-In Electric Cooktop with 4 Elements - Black
Bosch - 500 Series 24" Built-In Electric Cooktop with 4 Elements - Black
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlackProduct Height4 inchesProduct Width23 inchesProduct Depth20 1/2 inchesCooktop Surface TypeSmoothtopNumber of Elements4
- Key Specs
- Color Finish: Black
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NEM5466UC
- Product Name: 500 Series 24" Built-In Electric Cooktop with 4 Elements
- Color: Black
- Color Finish: Black
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 20 pounds (The out of box weight of the item.)

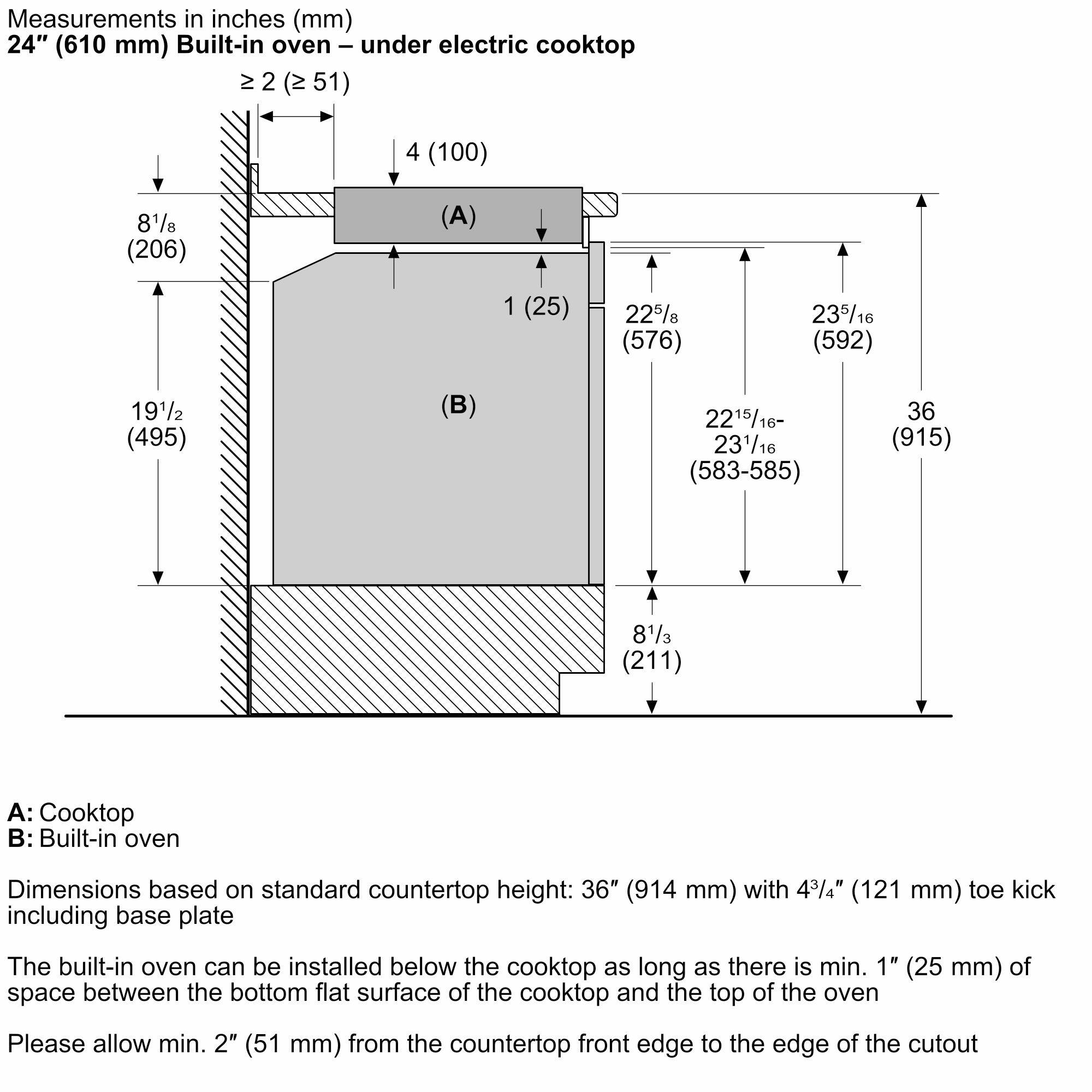

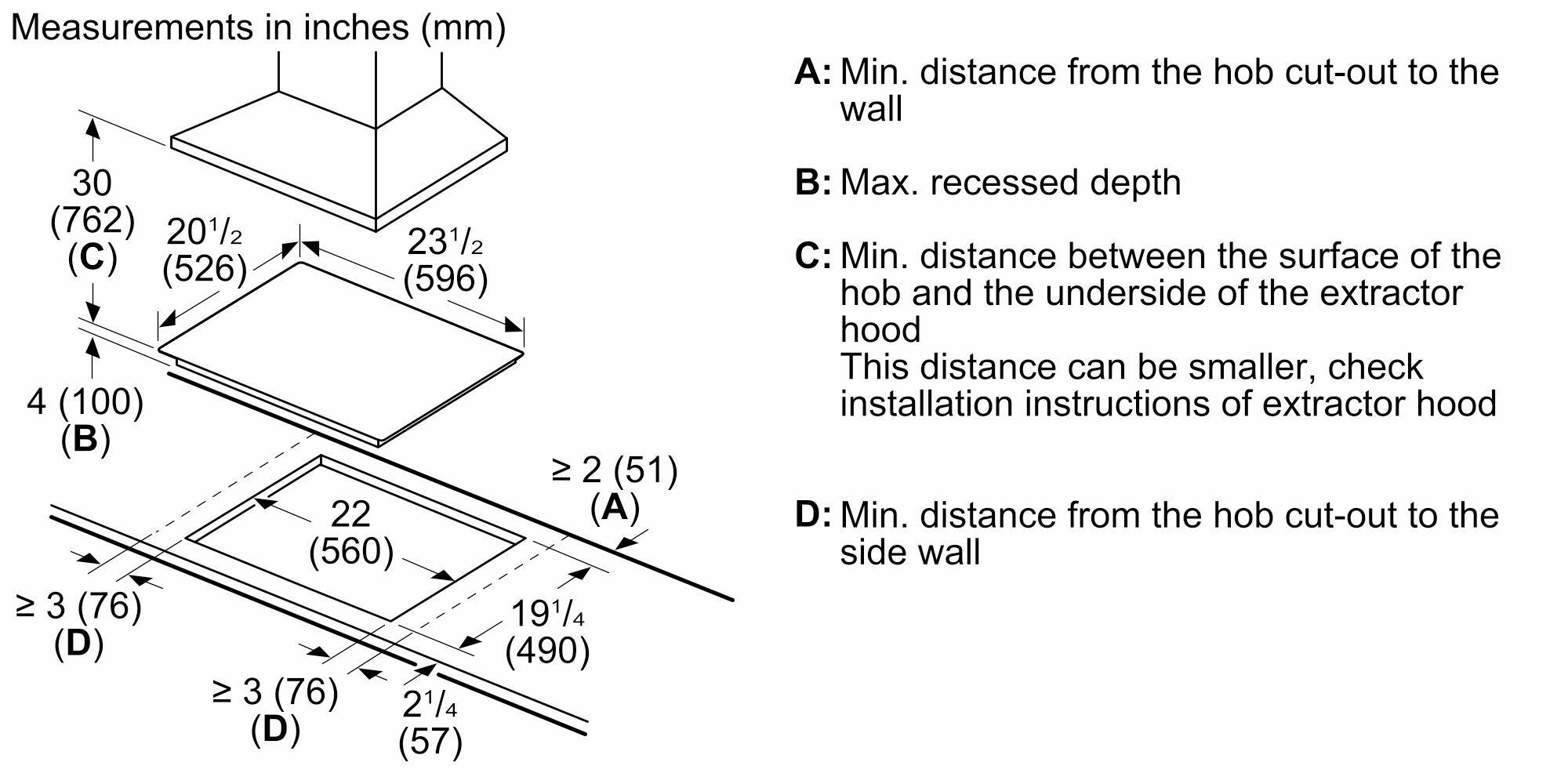

- Cut-Out Dimensions
- Cut-Out Height: 4 1/3 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 22 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true

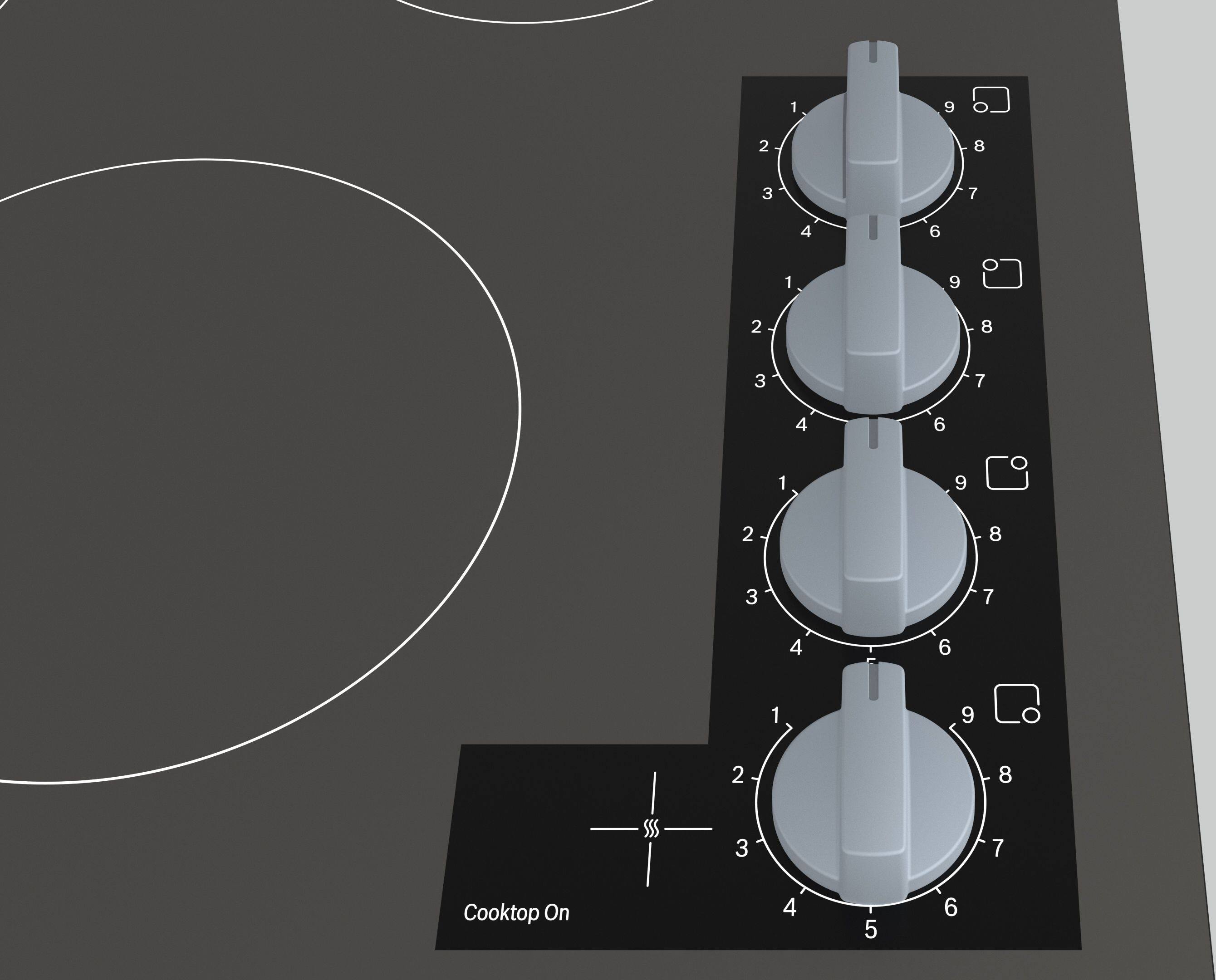

- Control Type: Analog
- Control Location: Top Right Side
- Digital Display: false
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 4
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): none
- Expandable Element: false (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Element Wattage
- Element 1 Wattage: 1850 watts
- Element 2 Wattage: 2200 watts
- Element 3 Wattage: 1200 watts
- Element 4 Wattage: 1800 watts
- Electrical
- Wattage: 7100 watts (Measurement of electrical power.)
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225916772
Create delicious home-cooked meals with this cooktop, which features a 1200-2200W power range for variable cooking temperatures. Indicator lights let you know when an element is on.
- Cook multiple dishes at once: 4 elements give you room for the main course plus side dishes.
- 6", 7" and 8" elements: Accommodate pans of different sizes.
- Easily move pots and pans from burner to burner: Glass design provides a smooth cooking surface.
- Control your cooking temperatures: 1200-2200W range lets you dial in the perfect temperature for each dish.
- Extensive temperature controls: Enable precise heating.
- Cook multiple dishes at once: 4 elements give you room for the main course plus side dishes.
- 6", 7" and 8" elements: Accommodate pans of different sizes.
- Easily move pots and pans from burner to burner: Glass design provides a smooth cooking surface.
- Control your cooking temperatures: 1200-2200W range lets you dial in the perfect temperature for each dish.
- Extensive temperature controls: Enable precise heating.
Whats Included
- NEM5466UC 500 Series 24" Built-In Electric Cooktop
- Owner's manual
- NEM5466UC 500 Series 24" Built-In Electric Cooktop
- Owner's manual
Product Manuals
Q: Does this cooktop have a smooth surface for easy cleaning?
A: Yes, the cooktop has a glass design that provides a smooth cooking surface.
Q: What is the wattage range of the cooktop elements?
A: The elements on this cooktop have a power range of 1200-2200 watts.
Q: Can I install this cooktop over a built-in oven?
A: Yes, this cooktop is designed to be installed over a built-in oven.
Q: Does the cooktop provide any indication when the elements are on?
A: Yes, the cooktop features indicator lights to let you know when an element is on.
Q: How many elements does this cooktop have?
A: This cooktop has 4 elements for cooking.
Q: What type of controls does this cooktop use?
A: This cooktop uses analog controls for temperature adjustments.
A: Hi MH, thank you for your question. The NEM5466UC requires a 30 A circuit breaker.
Q: Can you change the color of the knobs?
A: Hi cjoo, thanks for your question. Unfortunately, the color of the knobs cannot be changed.
