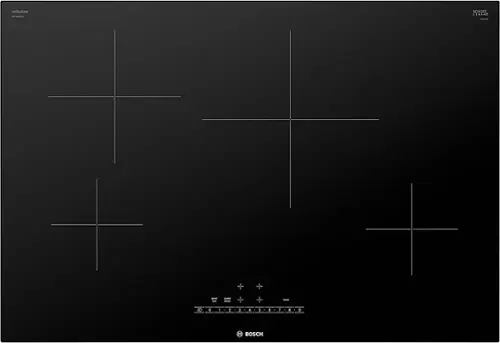

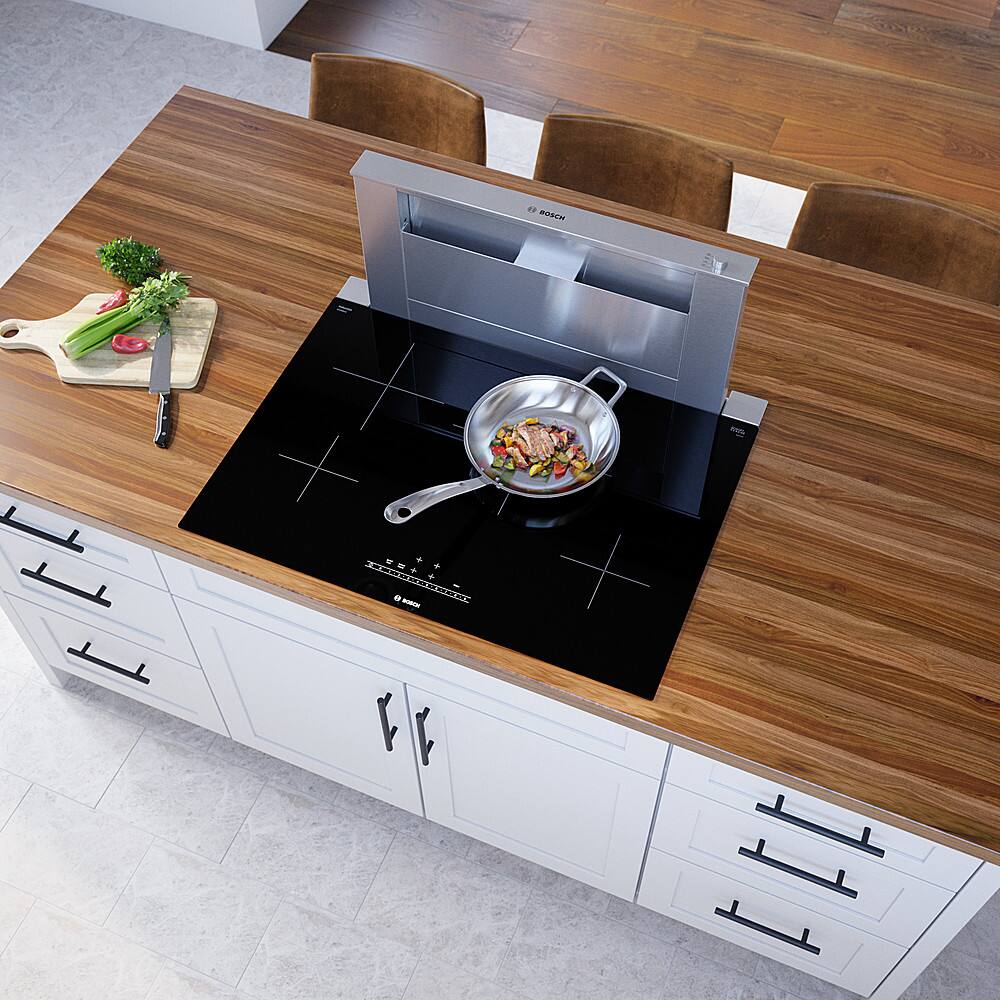

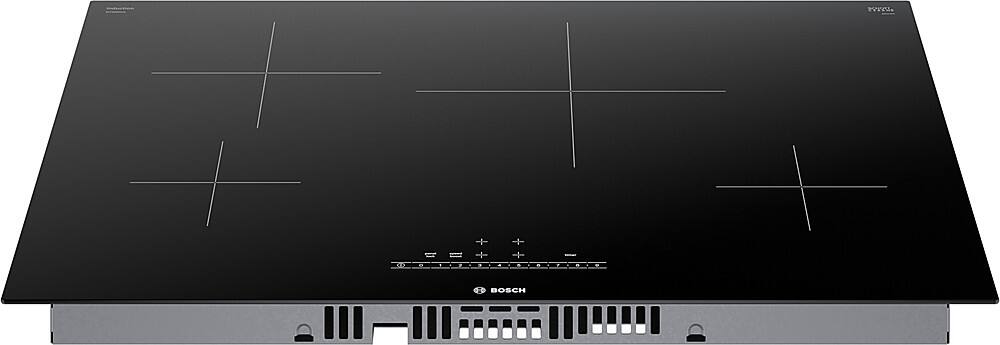

Bosch - 500 Series 30" Built-In Electric Induction Cooktop with 4 elements - Black
Model: NIT5060UC
SKU: 6496091
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NIT5060UC
- Product Name: 500 Series 30" Built-In Electric Induction Cooktop with 4 elements
- Color: Black
- Color Finish: Black
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 41 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 4 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Digital
- Control Location: Top
- Digital Display: true
- Power-On Indicator Light(s): true
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Glass, Ceramic
- Number of Cooking Zones: 4
- Number of Elements: 4
- Pan Presence Sensor: true (Sensors detect when a pan comes into contact with the cooking surface and when it is removed. When a pan is removed, the cooktop will automatically shut off as a safety precaution.)
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): None
- Expandable Element: false (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Element Wattage
- Element 1 Wattage: 2200 watts
- Element 2 Wattage: 3600 watts
- Element 3 Wattage: 3600 watts
- Element 4 Wattage: 2200 watts
- Electrical Specification
- Wattage: 7200 watts (Measurement of electrical power.)
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225961451
The 30" 500 Series Bosch induction cooktop delivers efficient cooking technology with an easy to clean, sleek surface. Each cooking zone has 17 power levels so food cooks evenly, and a cook timers let you monitor your recipes with ease.
- 4 cooking zones: 4 powerful burner elements ranging from 1400-3700 watts of power deliver versatile heating options
- 17 power levels: Each cooking zone has 17 power levels to accommodate all cooking needs from simmering to fast water boiling

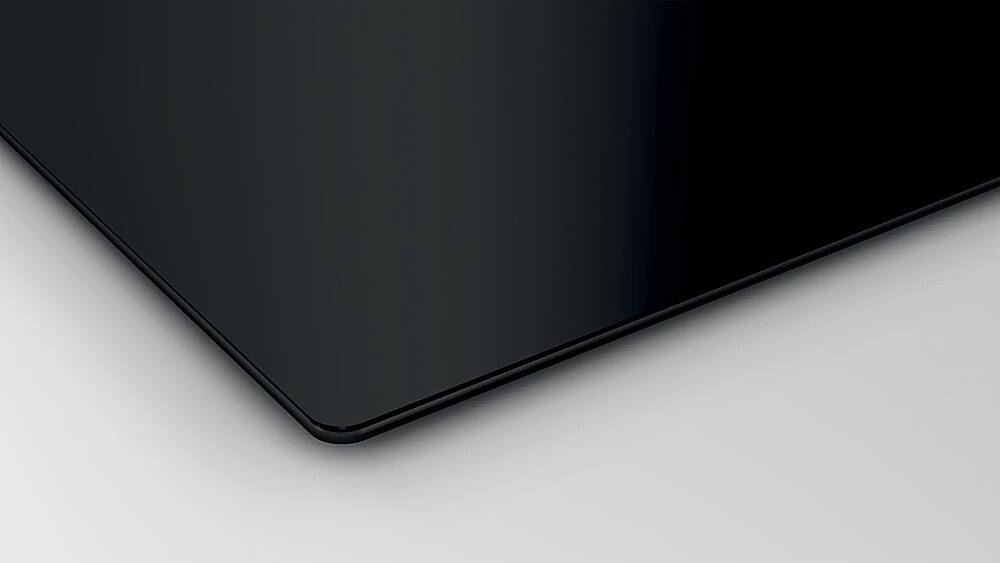

- Frameless design: The frameless design is sleek and modern, integrating into a range of kitchen styles
- SpeedBoost: The SpeedBoost feature adds a boost of cooking power to the cooktop element, so you can boil a pot of water faster, and heat a pan up more quickly

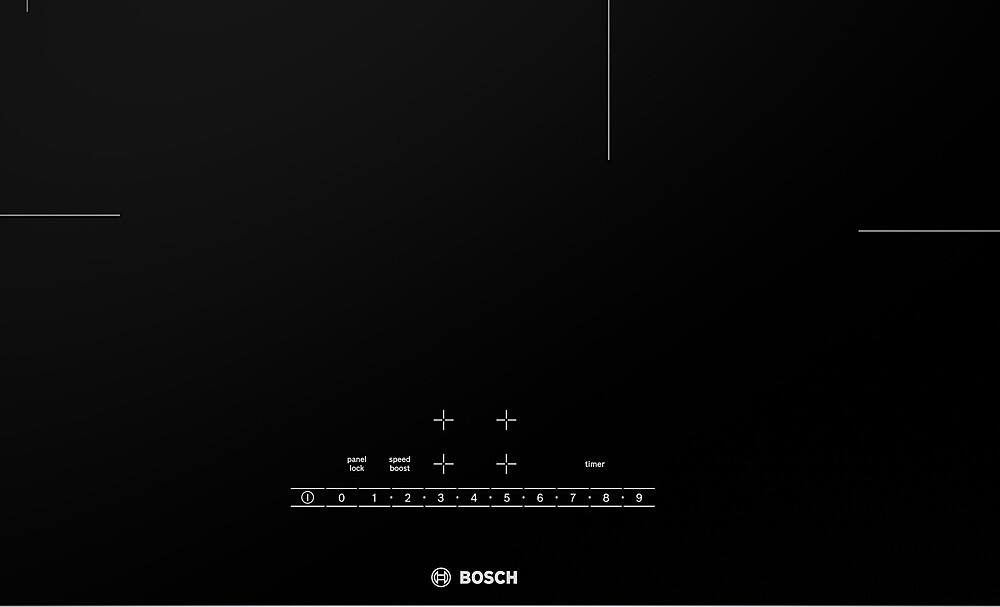

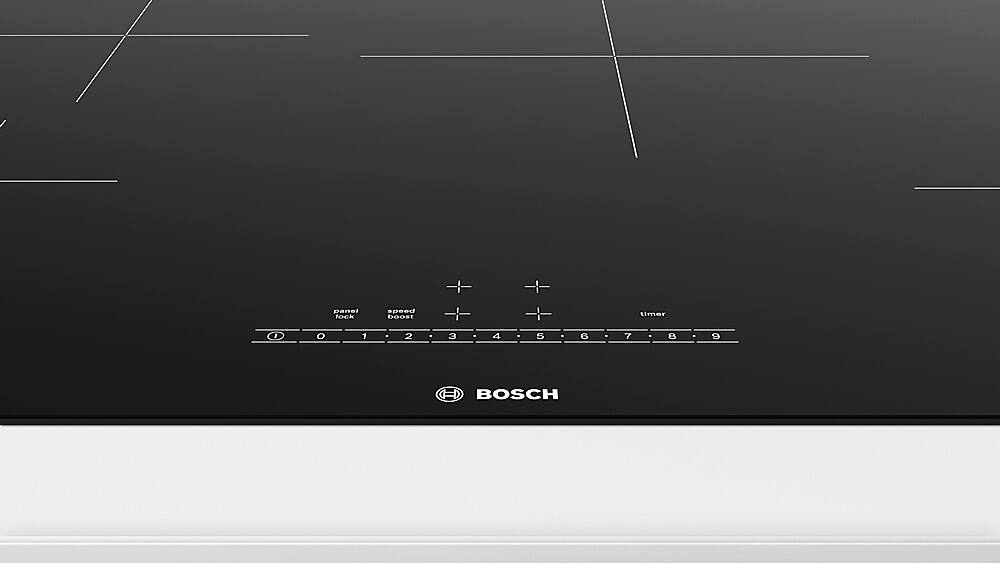

- Sleek touch controls: Easily control each cooking element with the modern touch controls
- 11" cooking zone: 11" cooking zone is perfect for larger pots and pans
- 3700W power burner: The large 11" cooking zone delivers 3700W of power (in Boost mode) to boil water and heat up pans quickly
- Panel lock: Panel lock safety feature gives you peace of mind, and also makes it easier to clean the surface without pressing unwanted buttons
- Easy to clean glass surface: The glass surface is smooth and sleek, and makes clean-up easy
- Sleek touch controls: Modern touch controls let you easily operate the cooktop with a simple touch
- Induction technology: Induction cooking technology is faster and more efficient compared to other cooking methods
- Cook timer: An integrated cook timer lets you monitor recipes with ease
- 4 cooking zones: 4 powerful burner elements ranging from 1400-3700 watts of power deliver versatile heating options
- 17 power levels: Each cooking zone has 17 power levels to accommodate all cooking needs from simmering to fast water boiling
- Frameless design: The frameless design is sleek and modern, integrating into a range of kitchen styles
- SpeedBoost: The SpeedBoost feature adds a boost of cooking power to the cooktop element, so you can boil a pot of water faster, and heat a pan up more quickly
- Sleek touch controls: Easily control each cooking element with the modern touch controls
- 11" cooking zone: 11" cooking zone is perfect for larger pots and pans
- 3700W power burner: The large 11" cooking zone delivers 3700W of power (in Boost mode) to boil water and heat up pans quickly
- Panel lock: Panel lock safety feature gives you peace of mind, and also makes it easier to clean the surface without pressing unwanted buttons
- Easy to clean glass surface: The glass surface is smooth and sleek, and makes clean-up easy
- Sleek touch controls: Modern touch controls let you easily operate the cooktop with a simple touch
- Induction technology: Induction cooking technology is faster and more efficient compared to other cooking methods
- Cook timer: An integrated cook timer lets you monitor recipes with ease
Whats Included
- 500 Series 30" Built-In Electric Induction Cooktop
- 500 Series 30" Built-In Electric Induction Cooktop
Q: How many cooking zones does this Bosch cooktop have?
A: This Bosch cooktop has 4 cooking zones.
Q: Does this cooktop require a 240V connection?
A: Yes, this cooktop requires a 240V power source.
Q: What type of surface does this cooktop have?
A: This cooktop has a smooth glass surface.
Q: Is this cooktop compatible with an app?
A: Yes, this cooktop is compatible with an app.
Q: Does this cooktop have a timer?
A: Yes, this cooktop has an integrated timer to monitor your recipes.
Q: What is the wattage of the largest cooking zone on this cooktop?
A: The largest cooking zone on this cooktop is 11 inches and has a power output of 3700W in Boost mode.
Q: can you use an existing downdraft
A: Hi T46, thank you for your interest in the NIT5060UC. When installing new Bosch cooking appliances we do recommend pairing them with current Bosch ventilation units as well.
Q: Can all 4 elements be used on the highest setting all at the same time?
A: Hi CS99, thanks for your question and interest in model NIT5060UC. All 4 cooking zones can be used on the highest setting at the same time, however per the safety instructions, it is recommended to use the high heat settings on the cooktop only when necessary.
