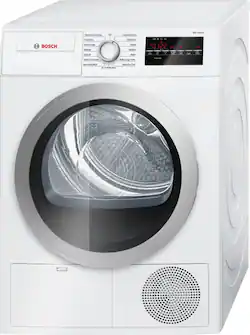

Bosch - 500 Series 4.0 Cu. Ft. 15-Cycle High-Efficiency Compact Electric Dryer - White
- Key Specs
- Color Finish: White
- Product Height: 33 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 42 22/25 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 4 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Pedestal Model Compatibility: WMZ20500
- Matching Washer Model Number: WAT28401UC
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Model Compatibility: WTZ20410UC
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: WTG86401UC
- Product Name: 500 Series 4.0 Cu. Ft. 15-Cycle High-Efficiency Compact Electric Dryer
- Color: White
- Color Finish: White
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 42 22/25 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 99 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 4 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): false
- Drying Type: Condenser (Vented dryers take in room temperature air, heat it to dry clothing, then exhaust the resulting moisture-laden air outside through a duct, and typically have shorter trying times than ventless dryers. Ventless dryers (condenser and heat pump) do not require external ventilation. Instead, condensers cool the warm air and drain or store the resulting water. Heat pump systems reheat the cooled air for another cycle. Overall, ventless dryers are more energy efficient than vented.)
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Rear
- 4-Way Venting: false (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Location: Front panel
- Compact Design: true
- Drum Material: Stainless steel
- Drying Rack: false
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 15
- Drying Cycles: Permanent Press, Permanent Press Extra Dry, Permanent Press Damp, Delicates, Quick 40, Time Dry, Hand Wash / Wool, Air fluff/No Heat, Cotton Dry, Cotton Extra Dry, Towels, Sanitize, Jeans, Bulky Large Items, Quick Dry Auto (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Dry Level, Time Dry, Finish in, Wrinkle Block, Low Heat, Signal, Start/Pause, Child Lock
- Number of Temperature Settings: 4
- Temperature Settings: 4
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: WMZ20500
- Matching Washer Available: true
- Matching Washer Type: Front load
- Matching Washer Model Number: WAT28401UC
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Included: false
- Stacking Kit Model Compatibility: WTZ20410UC
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Filter Info
- Self-Cleaning Filter: false (Filter that requires little to no cleaning maintenance.)
- Electrical Specification
- Estimated Annual Electricity Use: 311 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 37 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 13 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Advanced Tier
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 825225916864
Bosch 500 Series electric dryer: Catch up on your family's wash quickly with this electric dryer, which offers a spacious 4.0 cu. ft. capacity that can handle up to 18 bath towels at once. Vibration reduction helps ensure operational noise is kept to a minimum.
- Accommodates up to 18 bath towels at a time: 4.0 cu. ft. capacity helps you get caught up on laundry quickly.
- Pick the best setting for each load: 15 cycles, including sanitize and bulky/large items, offer flexibility that suits your lifestyle.
- Avoid over-heating delicate fabrics: Automatic control simplifies temperature selection.
- Automatically adjusts drying time and temperature: Moisture sensor ensures optimal care by monitoring moisture content inside the drum.
- Vibration reduction: Helps minimize operational noise.
- Low, 65dBA operation: Allows you to take care of laundry while others are watching TV or sleeping.
- Ductless design: Condensation drying system does not require ductwork or venting for simple installation.
- Plug your compatible washer directly into the dryer: Compatible with WAT28402UC, WAT28401UC and WAT28400UC models for ease of use.
Whats Included
- 500 Series 4.0 Cu. Ft. 15-Cycle High-Efficiency Compact Electric Dryer
- Power cord, drain pump, drainage hose
- Owner's manual
A: We bought a 500 series Bosch dryer. It is ventless and you do not need a vent kit. You need a stacking kit if you plan on stacking the washer and dryer. We are very happy with our purchase. Essentially it extracts the moisture from the circulating air and pumps the water through a small drain tube into the wall drain for the washer.
A: This dryer is a 240V 30A dryer. It will dry your clothes. Our whole building is religated to ventless dryers b/c we don't have vent connections in our apts for the dryers. Almost all the units have the Bosch (this one or its predecessor axxis) and everyone i spoke to swears by them. One of my friends who rents move from one apt in our building to another and in doing so went from an apt with the LG combo ventless to the apt with the Bosch axxis stacked units and he said that it was like night and day. He said he could dry multiple jeans in the dryer in one cycle. The LG took forever and the clothes never dried. The LG is a 110V. Our apts have small w/d areas. the closets where they all are housed in each apt are small and the doorways are max 24" so for me at least the fact that the Bosch comes in at 23.5" depth and is stackable was a big deal. Plus the washer can plug into the dryer so since we only have one outlet in our w/d areas (one 240V 30A outlet) this works out perfectly b/c it means I don't have to have an electrician run more wiring.
Q: Can the Bosch 500 washer fit a queen size comforter?
A: Hi Jaime. Thank you for your question. Yes, you can fit a Queen size comforter in the 500 Series Washer.
A: Not sure what you are asking "How does it work"? Google ventless dryer. It uses heat and a condenser to remover moisture. It takes almost twice as long as a dryer but if you don't have a way to vent the dryer it is your best option. Yes, they can be stacked or put side-by-side. Mine is pretty good and quiet. The knuckle heads from Best Buy that did the installation forgot to remove the "transport or shipping bolts" and both machines were damaged the first time the washer ran. Best Buy replaced them both without any hassle.
A: Hi Eli, thank you for your question and interest in Model:WTG86401UC. The Washer is manufactured in a Bosch Factory in Germany.
A: Hi there, thank you for your question and interest in Model:WTG86401UC. Please reach out to our Customer Support Team at 800-944-2904 as we now have an updated 500 Series Dryer and they will be able to determine which model you have and help you with your question.
A: Hi Nina, thank you for your question. The 800 Series Compact Washer, Model:WAW285H2UC is 50 dBA when washing and 71 dBA when spinning, the 800 Series Dryer, Model:WTG865H4UC is 63 dBA. The 800 Series Washer does not require a drain pan has it has our 24/7 AquaStop leak protection. AS for availability, please contact your local Best Buy store for stock levels in your area.
Q: For Bosch stackable washer/dryers, what is the difference between 500 series and 300 series?
A: Hi William. Thank you for your question. The 500 Series Compact Washer provides all of the properties of the 300 Series and in addition gives you AquaShield Hoses that provide protection from water damage, it has a sanitize cycle, and lower noise levels - washing 52 dBA, spinning 72 dBA.
