BougeRV - 1PC 24V N-Type 16BB 200W Bifacial Solar Panel for RV Camping Boat Marine Curve Surface - Black
Reviews coming soon
Related Item
- General
- Brand: BougeRV
- Model Number: BB-ISE237
- Product Name: 1PC 24V N-Type 16BB 200W Bifacial Solar Panel for RV Camping Boat Marine Curve Surface
- Color: Black
- Power
- Power Supply Output: 1 x 12V DC (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Power Delivery: 200 watts
- Current at Maximum Power (Imp): 6 amperes
- Short Circuit Current (Isc): 6 amperes
- Voltage at Maximum Power (Vmp): 31 volts
- Voltage at Open Circuit (VOC): 36 volts
- Solar Cell Efficiency: 25 percent
- Features
- Number of Units Per Package: 1
- Product Use: Universal
- Mount Type: Roof, Stand, Wall, Vehicle
- Solar Panel Design: Portable
- Dimensions
- Product Height: 1.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 50.7 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 22 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 6974090076136
BougeRV N-TYPE 200-watt solar panels are made of N-TYPE solar cells. Compared to P-TYPE solar cells, N-TYPE solar cells add an advanced Industrial Tunnel Oxide Passivated Contact to the back of ordinary solar cells, this advanced technology allows the majority carrier to pass and restrains the minority carrier, so absorbs more light, making it low resistance loss and high voltage.
- [N-TYPE Solar Cells]: N-TYPE 200-watt solar panels are made of N-TYPE solar cells, 25% Highest Conversion Rate. Compared to P-TYPE solar cells, N-TYPE solar cells add an advanced Industrial Tunnel Oxide Passivated Contact to the back of ordinary solar cells, this advanced technology allows the majority carrier to pass and restrains the minority carrier, so absorbs more light, making it low resistance loss and high voltage.

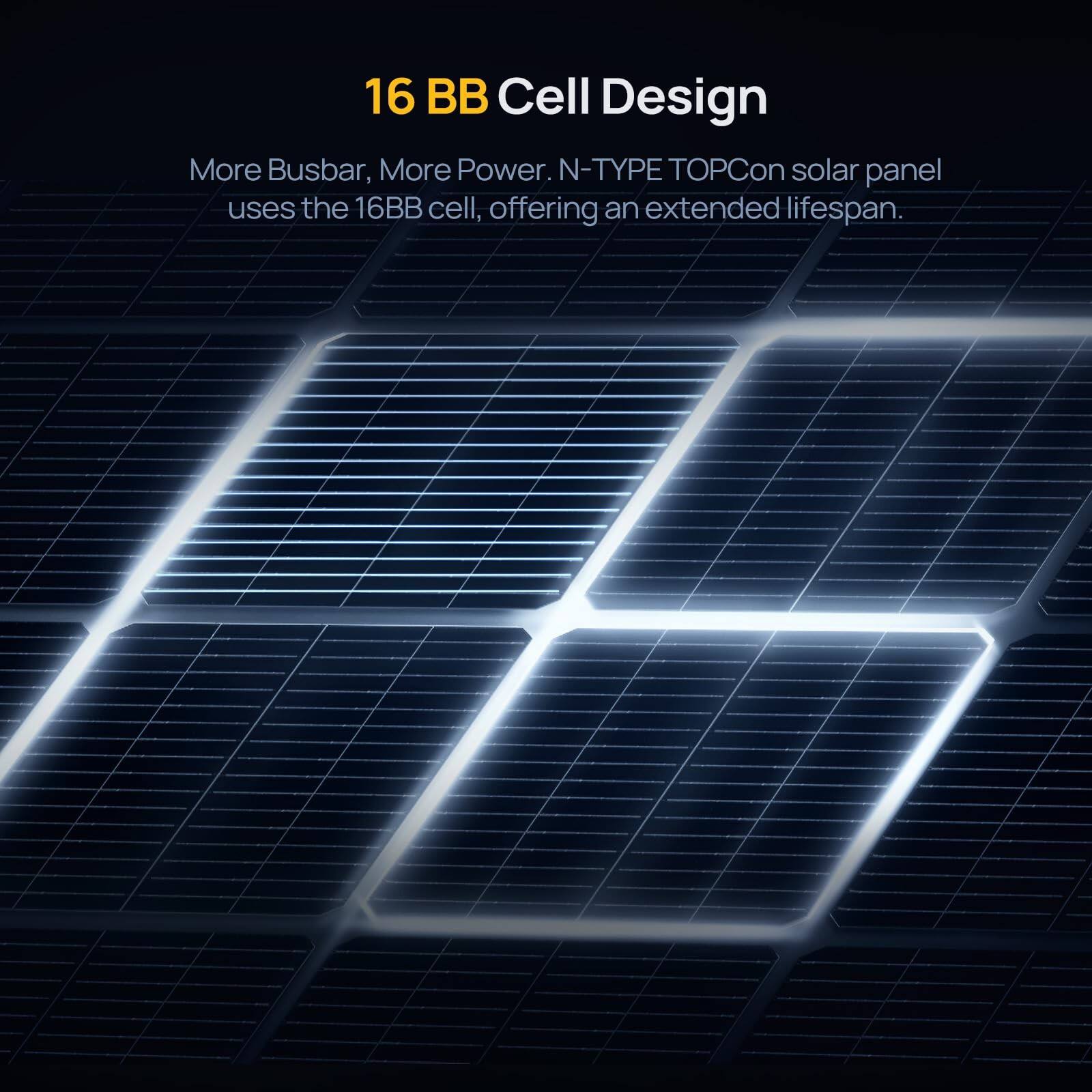

- [Smallest Size, MAX POWER]: 16BB cell design further improves the current collection capability. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%.

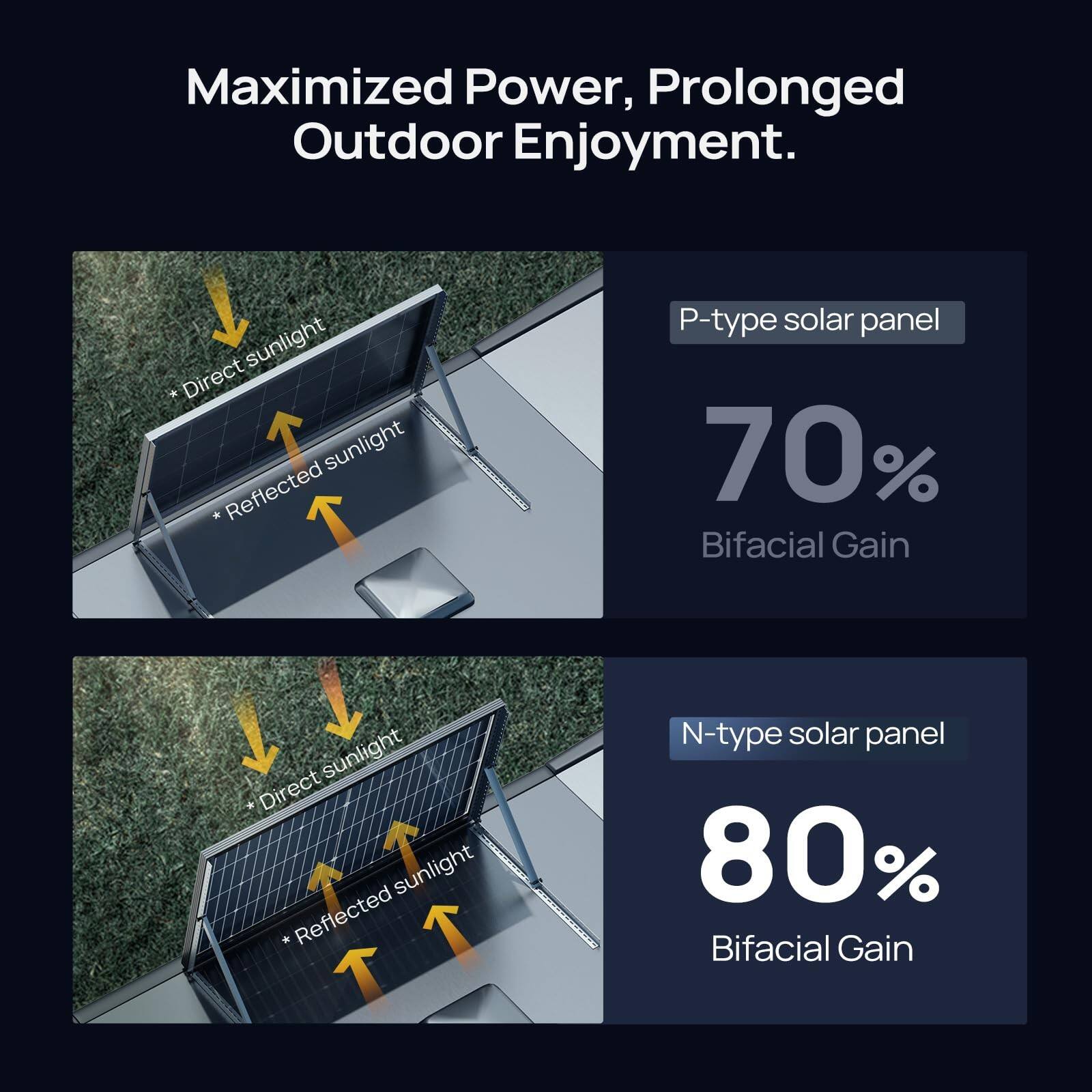

- [Bifacial Design]: BougeRV bifacial solar panels feature a transparent backside, allowing it to absorb solar energy from both sides, increases the solar output by 30%, such as direct sunlight, refracted sunlight, and diffuse sunlight. N-type solar cells have an 80% bifacial gain while P-TYPE have only a 70% bifacial gain.
- [Compatible With 12V/24V Battery]: The open circuit voltage of N-TYPE 200W solar panels is 36.4V. No need to connect in series or parallel, one panel can charge a 24V battery, avoiding current losses caused by series and parallel connections.
- [Parallel Design Producing More Energy When Shaded]: N-TYPE 200W solar panel performs better in the shaded, when half a section is shaded, another section will continue to produce power. Compatibility and Wide Usage is suitable for powering the house or for outdoor use. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life. It is easy to use and mount (pre-drilled holes on the back of the panel).
Compare similar products
BougeRV N-TYPE 200-watt solar panels are made of N-TYPE solar cells. Compared to P-TYPE solar cells, N-TYPE solar cells add an advanced Industrial Tunnel Oxide Passivated Contact to the back of ordinary solar cells, this advanced technology allows the majority carrier to pass and restrains the minority carrier, so absorbs more light, making it low resistance loss and high voltage.
This 16BB N-Type 200W Monocrystalline Solar Panel is a versatile energy solution for various scenarios. Ideal for Class B vans, off-grid setups, home backup power, marine use, and more. Its compact design and high efficiency make it suitable for both mobile and fixed power needs.
N-TYPE Technology Solar Cell, 25% Highest Conversion Rate. BougeRV N-TYPE 200-watt solar panels are made of N-TYPE solar cells. Compared to P-TYPE solar cells, N-TYPE solar cells add an advanced Industrial Tunnel Oxide Passivated connected to the back of ordinary solar cells, this advanced technology allows the majority carrier to pass and restrains the minority carrier, so absorbs more light, making it low resistance loss and high voltage.
This N-Type 16BB 100-Watt 12 Volt Monocrystalline Rigid Solar Panel is a top pick for off-grid applications. It’s ideal for RVs, marine use, rooftops, farms, battery charging, and more. With its rigid design and focus on performance, it’s well-suited for various outdoor settings.
