Bowers & Wilkins - CI600 Series 663 Reduced Depth 6" In-Ceiling Speakers (Pair) - Paintable White
- Key Specs
- Speaker Type: In-Ceiling
- General
- Product Name: CI600 Series 663 Reduced Depth 6" In-Ceiling Speakers (Pair)
- Brand: Bowers & Wilkins
- Model Number: CCM663RD
- Color: Paintable White
- Audio
- Speaker Type: In-Ceiling
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 35 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 50 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 86 decibels
- Tweeter Size: 1 inches
- Driver Size: 6 inches
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 9.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.1 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: Aluminum
- Driver Material: Aramid fiber
- Included
- Cable(s) Included: None
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 5
- Manufacturer's Warranty - Labor: 5
- Other
- UPC: 714346324811
CI600 Series 663 Reduced Depth 6" In-Ceiling Speakers- Paintable White (Pair)
- 1" Nautilus swirl Aluminum Tweeter: Delivers dynamic highs for clear sound. Nautilus tube absorbs unwanted sonic radiation for enhanced clarity.
- 6" woven Aramid fiber woofer cone: Along with a 1" aluminum dome tweeter for a complete range of sounds.

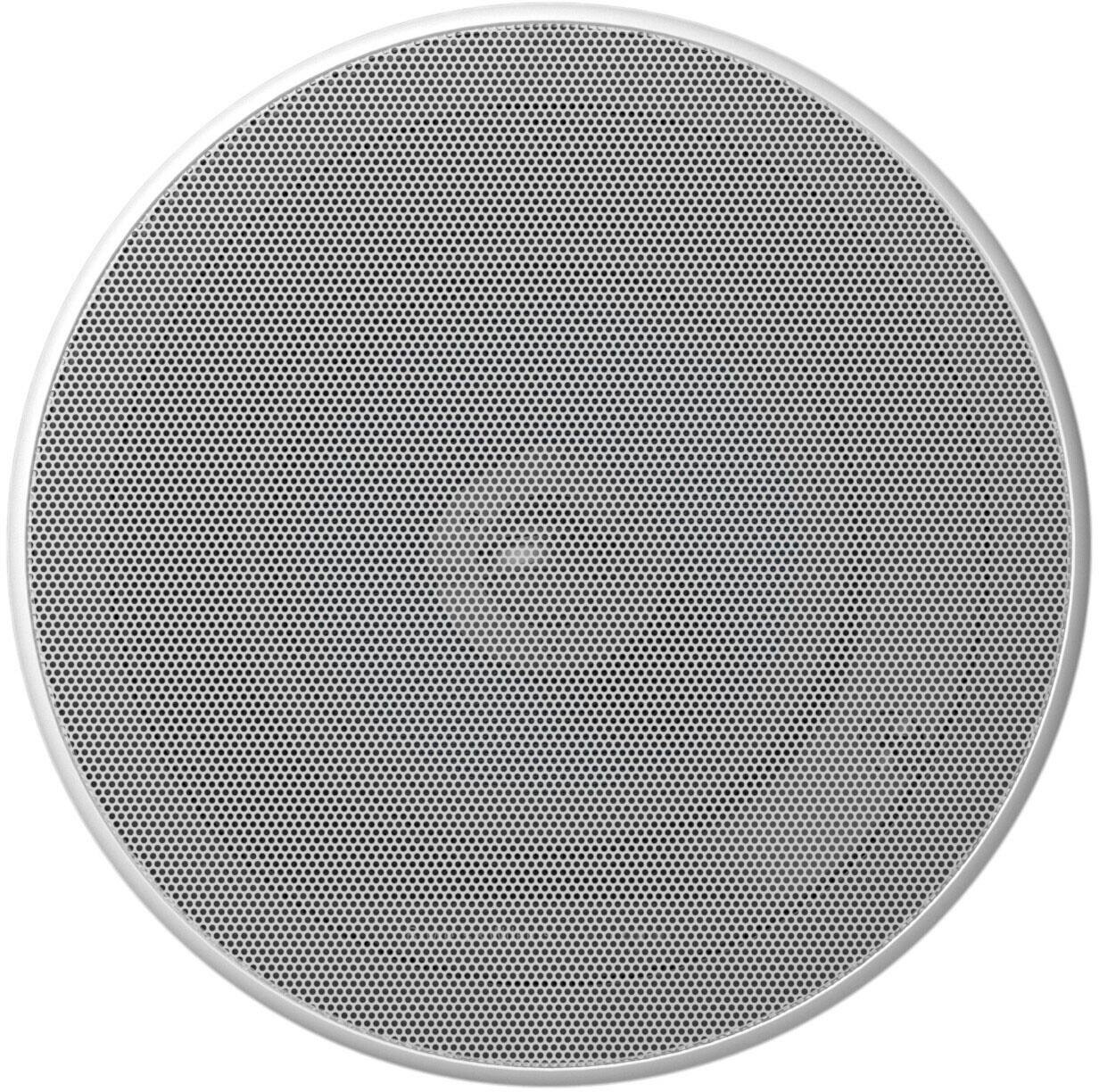

- Paintable Magnetic Grill: Paintable to match your décor
- Pivoting Equalized tweeter design: Directs high frequencies toward the listener for an open sound wherever you are. A three-position equalizer ensures a smooth transition between the tweeter and midbass.
- Die-cast Chassis: Cleaner, faster bass.

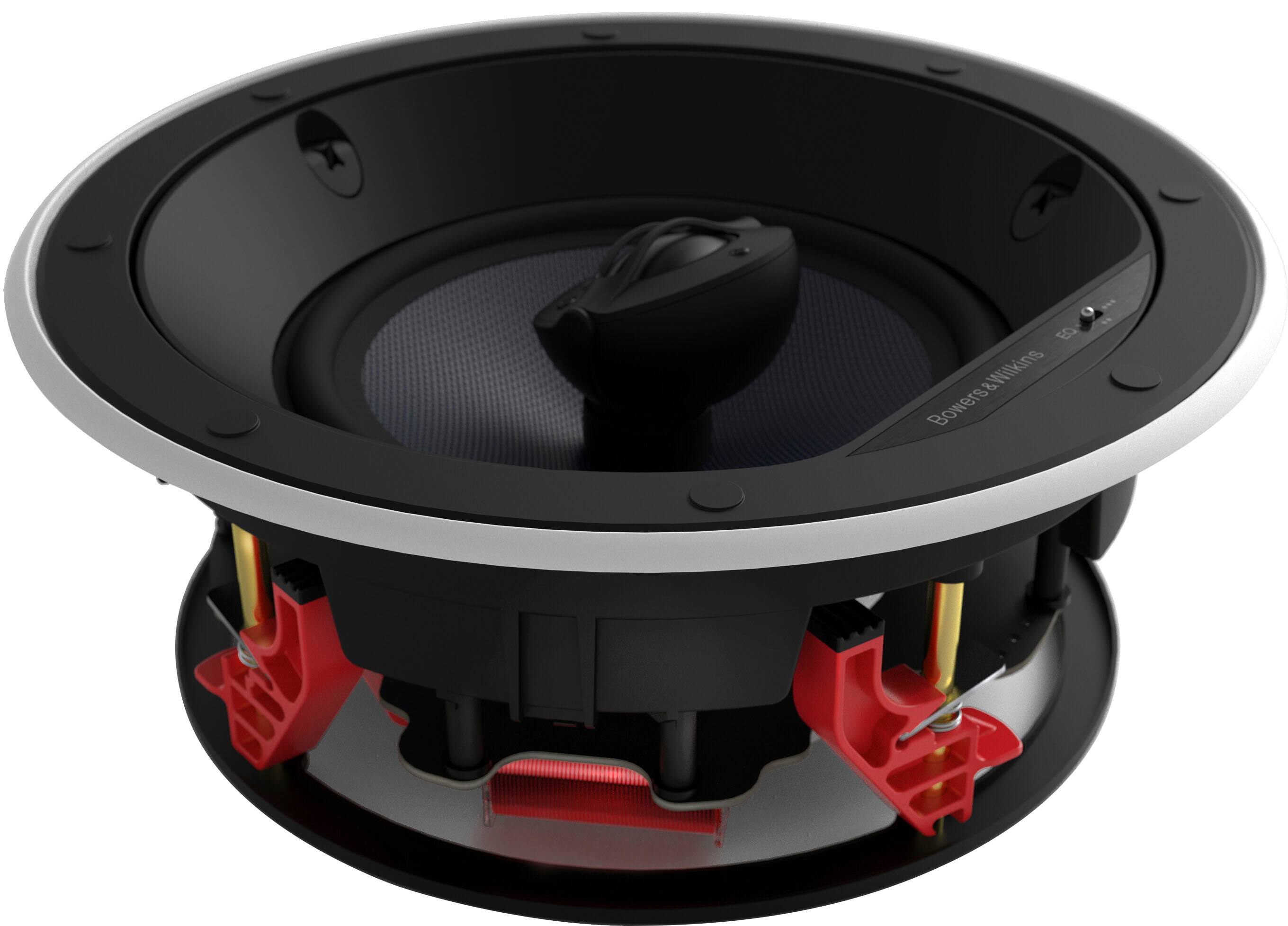

- Quick Dog Frame: Two piece system for mounting the speaker in the ceiling for simple, tool-less installation. First the mounting frame is installed and secured be applying finger tight pressure to spring clamps. Finally, the speaker is plugged into the frame and secured with push-pin connectors.
- 8" Cutout Diameter: 3.6" Depth behind drywall
- Optional Pre-mount Kit and Backbox: PMKC6 Pre Mount and BB6C Backbox available separately.
Whats Included
- Bowers & Wilkins Custom Installation Series Passive 2-Way In-Ceiling Speaker (Pair)
Product Manuals
Q: What is the diameter of the woofer cone?
A: These speakers have a 6" woven Aramid fiber woofer cone.
Q: What is the purpose of the Nautilus swirl tweeter?
A: The 1" Nautilus swirl Aluminum Tweeter delivers dynamic highs for clear sound. The Nautilus tube absorbs unwanted sonic radiation for enhanced clarity.
Q: Can the grill on these speakers be painted?
A: Yes, the grill on these speakers is magnetic and paintable to match your decor.
Q: What is the impedance of these speakers?
A: These speakers have an impedance of 8 ohms.
Q: What is the minimum frequency response for these speakers?
A: The minimum frequency response for these speakers is 35 hertz.
Q: What is the Quick Dog Frame feature?
A: The Quick Dog Frame is a two-piece system for mounting the speaker in the ceiling for simple, tool-less installation. First the mounting frame is installed and secured by applying finger tight pressure to spring clamps. Finally, the speaker is plugged into the frame and secured with push-pin connectors.
Q: Are these speakers wireless?
A: No, these speakers are not wireless.
A: CCM663RD was engineered to give CCM663 performance in situations where the CCM663 was too deep because of obstructions in the ceiling. Yes, you can use CCM663RD with CCM663 as overhead channels in an Atmos system.
