Bowers & Wilkins - CI700 Series In Ceiling 3-way Angled Speaker w/4" midrange, dual 5" bass drivers, includes retrofit back box (each) - White
More Buying Options
Specifications
- Speaker TypeIn-Ceiling
- Key Specs
- Speaker Type: In-Ceiling
- General
- Brand: Bowers & Wilkins
- Model Number: CCM73S2
- Product Name: CI700 Series In Ceiling 3-way Angled Speaker w/4" midrange, dual 5" bass drivers, includes retrofit back box (each)
- Color: White
- Audio
- Speaker Type: In-Ceiling
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Number of Speakers: 1
- Number of Tweeters: 1
- Number of Midranges: 1
- Number of Drivers: 4
- Number of Woofers: 2
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 7.66 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13.97 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.97 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 19.8 pounds (The out of box weight of the item.)
- Included
- Cable(s) Included: None
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 714346332144

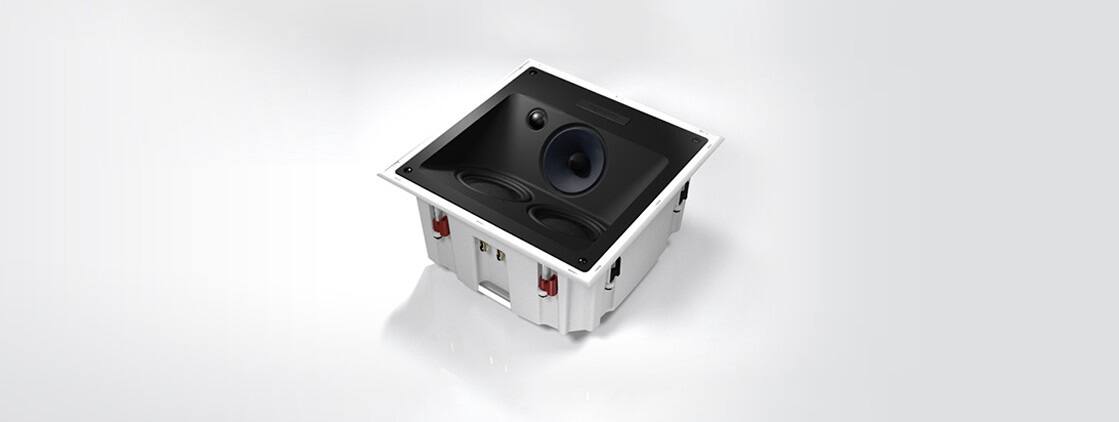

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theater and stereo applications. Its sophisticated drive unit configuration features a 1" Carbon Dome tweeter, a 4" FST Continuum cone midrange and 2 x 5" Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimizes sound quality. Bowers & Wilkins CI700 S2 Series of in-ceiling and in-wall speakers improves on the CI600 range by adding next generation technology such as Continuum drivers and Carbon Dome Tweeters. Upgraded materials in the cabinetry further improve performance and bring CI700 S2 closest to our in-room speakers in sound quality.
- 1" carbon tweeter: Pinpoint imaging accuracy and detail resulting from a Carbon Coating on our aluminum Double Dome Tweeter. The closest performance to our Diamond Dome Tweeters.
- 4" Continuum Midrange: Continnum is a woven material that blends control with flexibility. The result is breathtaking clarity right where you need it most- the midrange. Hear voices, guitars and other instruments in a whole new way.
- Aerofoil Bass Drivers: Bass drivers need to be light, stiff and not ring like a bell. Aerofoil features incredibly light materials molded into a shape resembling an airplane wing for optimal rigidity and damping. Instead of hearing one-note bass, you'll hear colors and textures with power and control

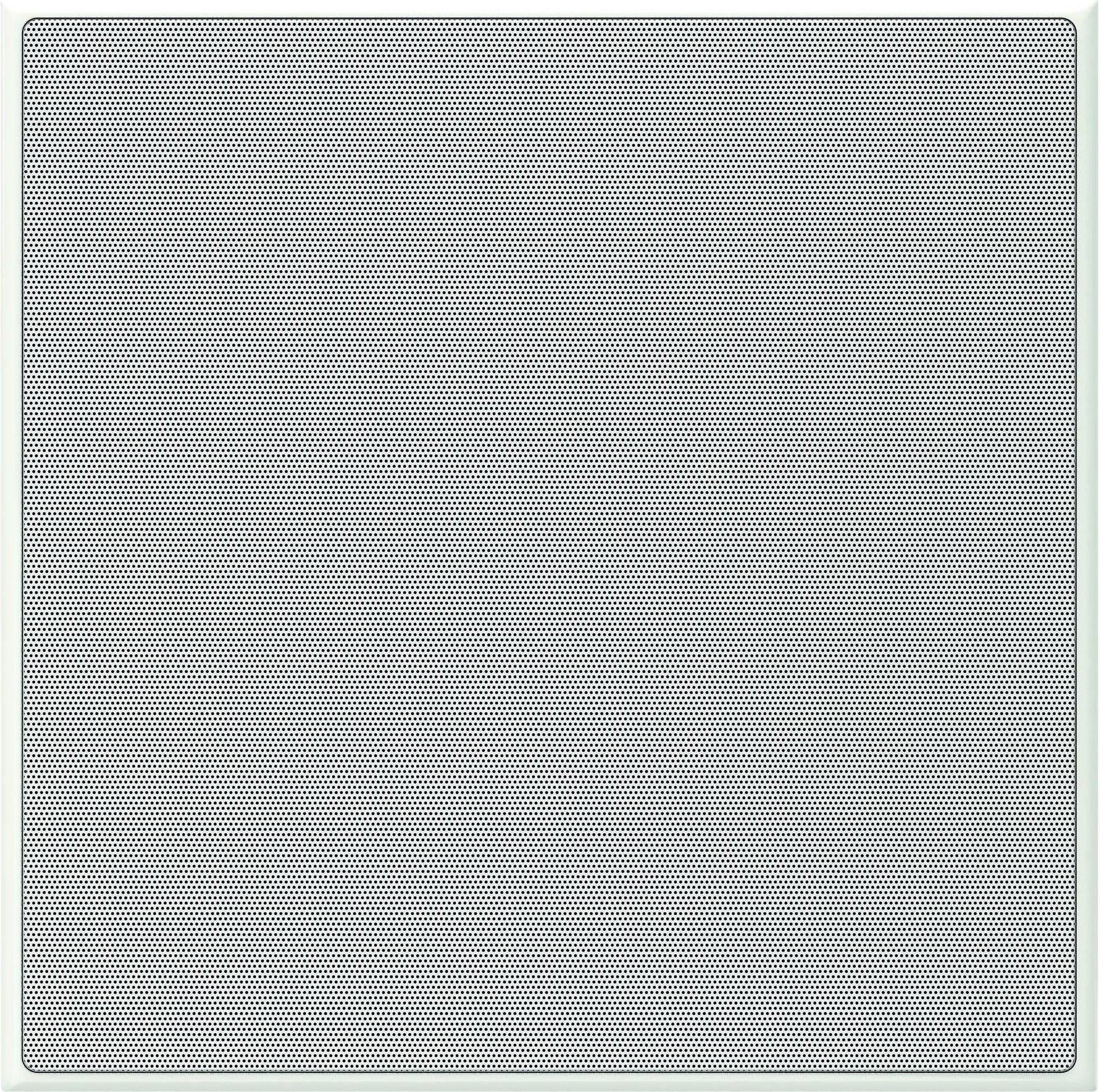

- Paintable Magnetic Grill: Paintable to match your décor
- Die-cast Chassis: Cleaner, faster bass.

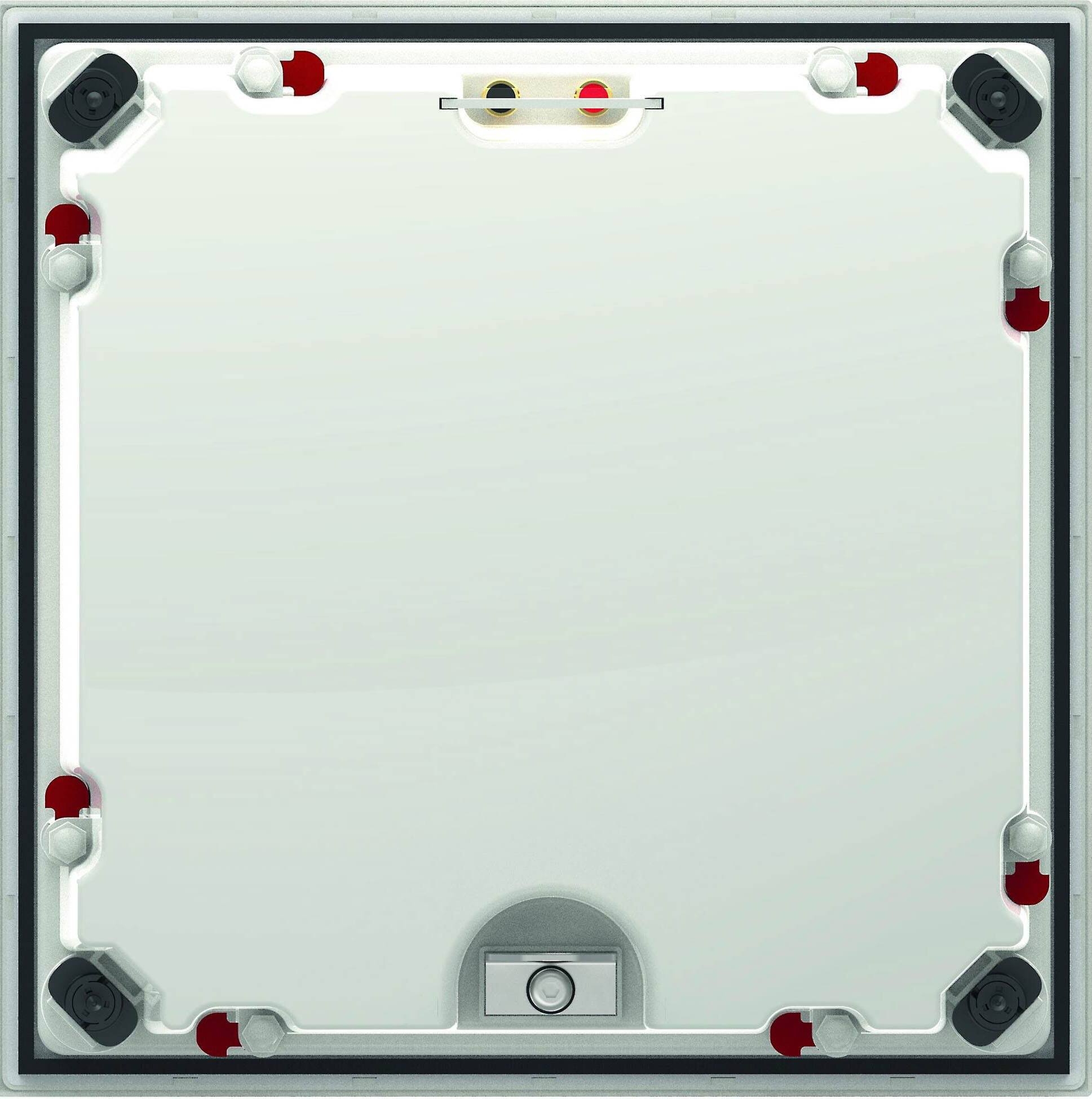

- Critically Formed Baffle and Backbox: The glass reinforced ABS front baffle and backbox dramatically improves rigidity and reduces resonance when compared to the surrounding drywall surface. You'll enjoy clearer vocals and faster bass.
- 13.1" x 13.1" Cutout: 7.66" Depth behind drywall
- Optional Pre-mount Kit: PMK7C Pre Mount available separately.
Whats Included
- Speaker
- speaker grill
- backbox
- cut-out template
- paint mask.
Q: What is the frequency response of this speaker?
A: This speaker has a frequency response of 52Hz - 33kHz, ensuring accurate sound reproduction across a wide range.
Q: What is the advantage of the Continuum Midrange in this speaker?
A: The 4" Continuum Midrange driver uses a woven material that balances control and flexibility. This results in exceptional clarity, especially in the midrange frequencies, allowing you to hear vocals, guitars, and other instruments with enhanced detail.
Q: How is the bass driver designed in this speaker?
A: The bass drivers in this speaker are designed with an Aerofoil profile. This means they're lightweight and stiff, shaped like an airplane wing for optimal rigidity and damping. This design allows you to hear nuanced bass with power and control, rather than just a single, flat note.
Q: Can the grille of this speaker be painted?
A: Yes, the speaker has a paintable magnetic grill that can be customized to match your decor.
Q: What is the impedance of this speaker?
A: This speaker has an impedance of 8 ohms.
Q: Does this speaker system have a removable grille?
A: Yes, the speaker comes with a removable grille that protects the speaker components while remaining acoustically transparent.
Q: How is the pre-mount kit used and where can I find one?
A: Hello, Thank you for your inquiry. The Bowers & Wilkins CI700/CCM7.3S2 speakers include a back box, speaker, and grill. Please note that the speakers are sold individually, not as pairs. To install, first, set up the back box, then attach the speaker. Connect the speaker wire to the back box, and secure the speaker to the back box. The signal is transmitted to the speaker through a specialized connection between the speaker and back box. Further instructions are provided in the box. If you have any additional questions, please feel free to contact the Bowers & Wilkins product support team at 1-800 370 3740.
