Broan Glacier - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 8/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Broan
- Model Number: BCDF136SS
- Product Name: Glacier 36" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Broan Glacier (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 18 inches
- Product Width: 35 8/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 24.0 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 9 watts
- Performance
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Operating Sound Level: 1.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 0.7 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 026715240524

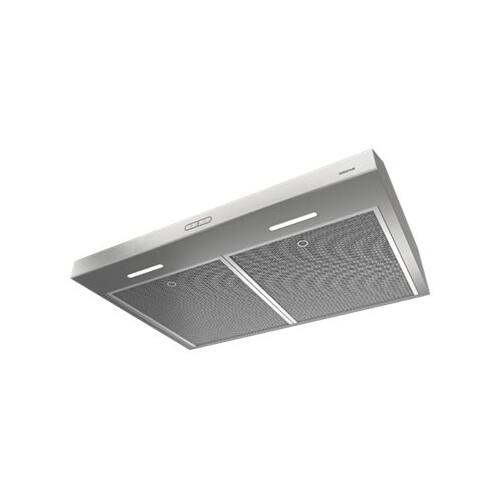

Keep kitchen air moving with this 36-inch Broan stainless steel range hood. It uses Captur system technology and a three-speed 300-cfm blower to remove odor and smoke quickly, and the blower is designed to operate efficiently and quietly. This Broan stainless steel range hood has two-level LED modules, so you can see what you're cooking.
- 300 cfm exhaust capacity: Quickly removes smoke and odors from your kitchen.
- 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Touch sensitive controls: Offer simple operation.
- Dual LED lights shine down on the cooktop: To illuminate your workspace.
- Mesh grease filters: Capture grease, steam and odors.
- Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
- Stainless steel finish: Offers a sleek, stylish look.
- Included damper: Prevents smoke and odors from recirculating back into the stovetop area.
- Designed to fit standard 7" round ductwork: For ease of installation.
Whats Included
- Broan Glacier BCDF136SS
- Damper kit
Product Manuals
Q: Does this range hood have touch sensitive controls?
A: Yes, this range hood has touch sensitive controls.
Q: Does this range hood have lights?
A: Yes, this range hood has integrated lights.
Q: Does this range hood come with a damper?
A: Yes, this range hood includes a damper.
Q: How many fan speeds does this range hood have?
A: This range hood has three fan speed settings.
Q: What type of bulb is used in this range hood?
A: This range hood uses LED bulbs.
Q: What is the maximum air flow capacity of this range hood?
A: The maximum air flow capacity is 300 cubic feet per minute.
Q: Are the grease filters removable for cleaning?
A: Yes, the grease filter is removable.
Q: This hood comes with AC cord or what accessories come with this
A: Thank you for your question regarding the BCDF136SS range hood. This hood is designed to be hard-wired and does not include a plug-in cord. The HCK44 cord kit will be compatible and it can be purchased separately. The installation instructions can be seen and downloaded here: https://www.broan-nutone.com/getmedia/768c2e22-ac42-48d8-874a-91e59529f972/Installation-Guide-BCDF1-BCSEK1.pdf?ext=.pdf
