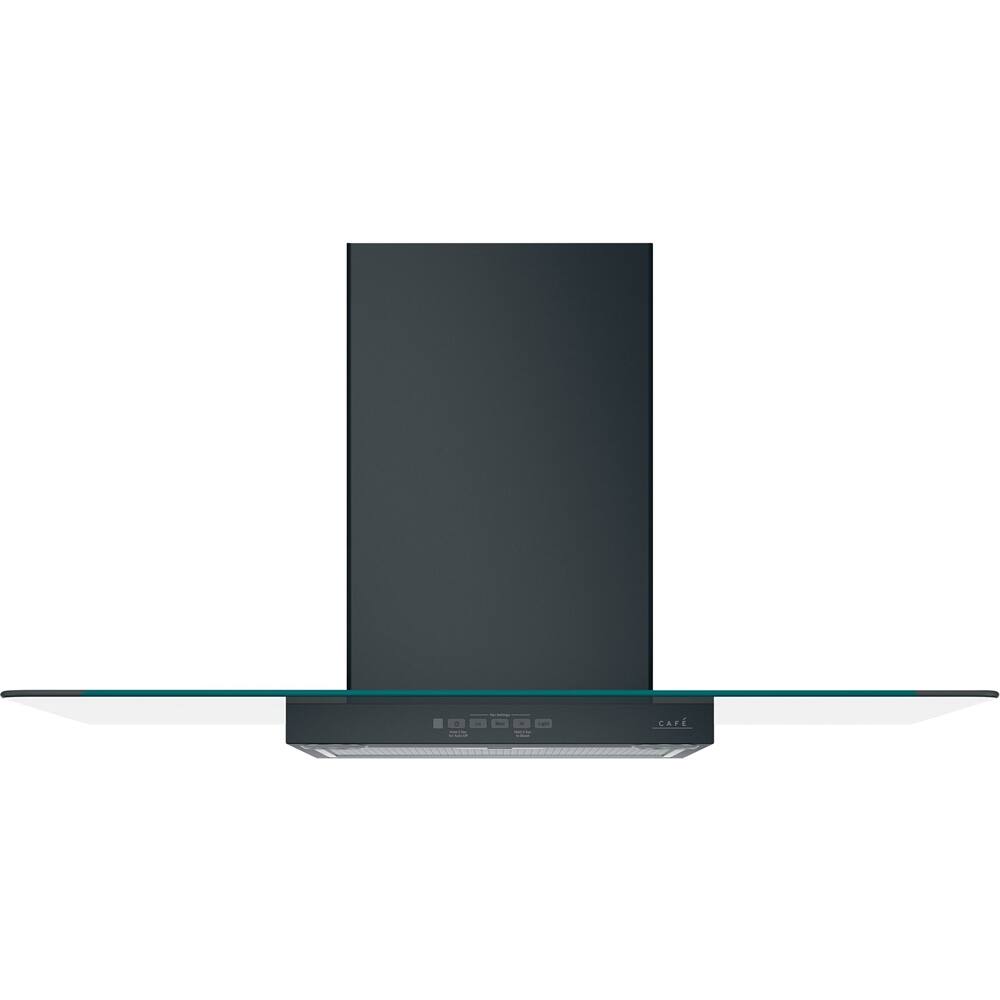

Café - 36 inches - Externally Vented & Recirculating - Wall Range Hood - Matte Black
- Key Specs
- Color Finish: Matte black
- Product Height: 1 2/3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Café
- Model Number: CVW73613MDS
- Product Name: 36" Convertible Range Hood
- Color: Matte Black
- Color Finish: Matte black
- Dimensions
- Product Height: 1 2/3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 46.1 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: true
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 350 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 160 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 1
- Electrical
- Amperage: 5.3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691839125
Enjoy working in a fresh-smelling kitchen with this 36-inch Café chimney hood. Its 350-cfm system provides powerful performance to effectively eliminate smoke, odors, grease and moisture, and the convertible venting options offer flexible operation. Bring efficiency to your work space with the electronic backlit controls and dual halogen cooktop lighting of this wall-mount Café chimney hood.
- 350-cfm venting system with boost: Keep your kitchen smelling fresh and ready for guests with a 350-cfm venting system with boost that removes smoke, grease, odors and moisture.
- Electronic backlit controls: Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use.
- Dual halogen cooktop lighting: Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface.
- Night light: See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas.
- Convertible venting options: Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting.
- Optional remote control (JXRC70): Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.
- Auto off: Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes.
- Dishwasher-safe filter: Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too.
- 350-cfm venting system with boost: Keep your kitchen smelling fresh and ready for guests with a 350-cfm venting system with boost that removes smoke, grease, odors and moisture.
- Electronic backlit controls: Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use.
- Dual halogen cooktop lighting: Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface.
- Night light: See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas.
- Convertible venting options: Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting.
- Optional remote control (JXRC70): Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.
- Auto off: Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes.
- Dishwasher-safe filter: Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too.
Whats Included
- Café 36" Convertible Range Hood
- Café 36" Convertible Range Hood
Q: Where can I purchase a replacement bulb for this vent? And how to change it? Plz advise
A: HI - Thanks for reaching out to us. The replacement light assembly (GE Appliances part - WB25X24864) is available to purchase from our GE Appliances Parts & Accessories Store by calling 1-877-959-8688. The step-by-step directions to replace the lamp assembly can be found on page 7 of the owner's manual. The owner's manual is available online or by clicking on the Features tab and scrolling to the bottom. We do hope this is helpful. Kimd regards - Vikki@Café
Q: When can I get vent hood filters for this model ?
A: Hi - we’re glad you reached out! The part number for the Charcoal Filter is JXCF71 and can be purchased from the Best Buy website. We hope this is helpful and please don’t hesitate to reach out if there are any other ways we can assist you. All the best! Lauren@Café
Q: Do they sell a replacement glass for this unit? The one we had got broken on install.
A: Hi - We are sorry to hear the glass canopy was broken during the installation of your hood. The glass canopy is not available as a service part and can't be replaced. We apologize for any inconvenience this may cause you. Kind regards - Vikki@Café
A: Hi - CVW73614MWM is a Wall Mount Chimney Hood designed to be installed onto a wall with no above cabinets. It is not designed for installation in an island over a cooktop. See Installation Guide for details: https://products.cafeappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-2000063-1.PDF - We suggest 36” Designer Custom Insert w/ Dimmable LED Lighting UVC9360SLSS. This may be installed oven an island with custom cabinet. See Installation Guide for details: https://products.cafeappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80813-2.PDF - Explore our Café Professional Collection at www.cafeappliances.com - Keep in touch! Sue
