Channel Master - Advantage 100 Antenna - Silver
Related Item
About This Item
- Key Specs
- Indoor or Outdoor Use: Indoor Antenna, Outdoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Amplified Reception: false (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- General
- Brand: Channel Master
- Model Number: CM-3020
- Product Name: Advantage 100 Antenna
- Color: Silver
- Design
- Indoor or Outdoor Use: Indoor Antenna, Outdoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Features
- Amplified Reception: false (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- Product Type: Car antenna
- Dimensions
- Product Height: 7.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 69.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 11.0625 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 90 days
- Warranty - Labor: 90 DAY
- Other
- UPC: 020572030205

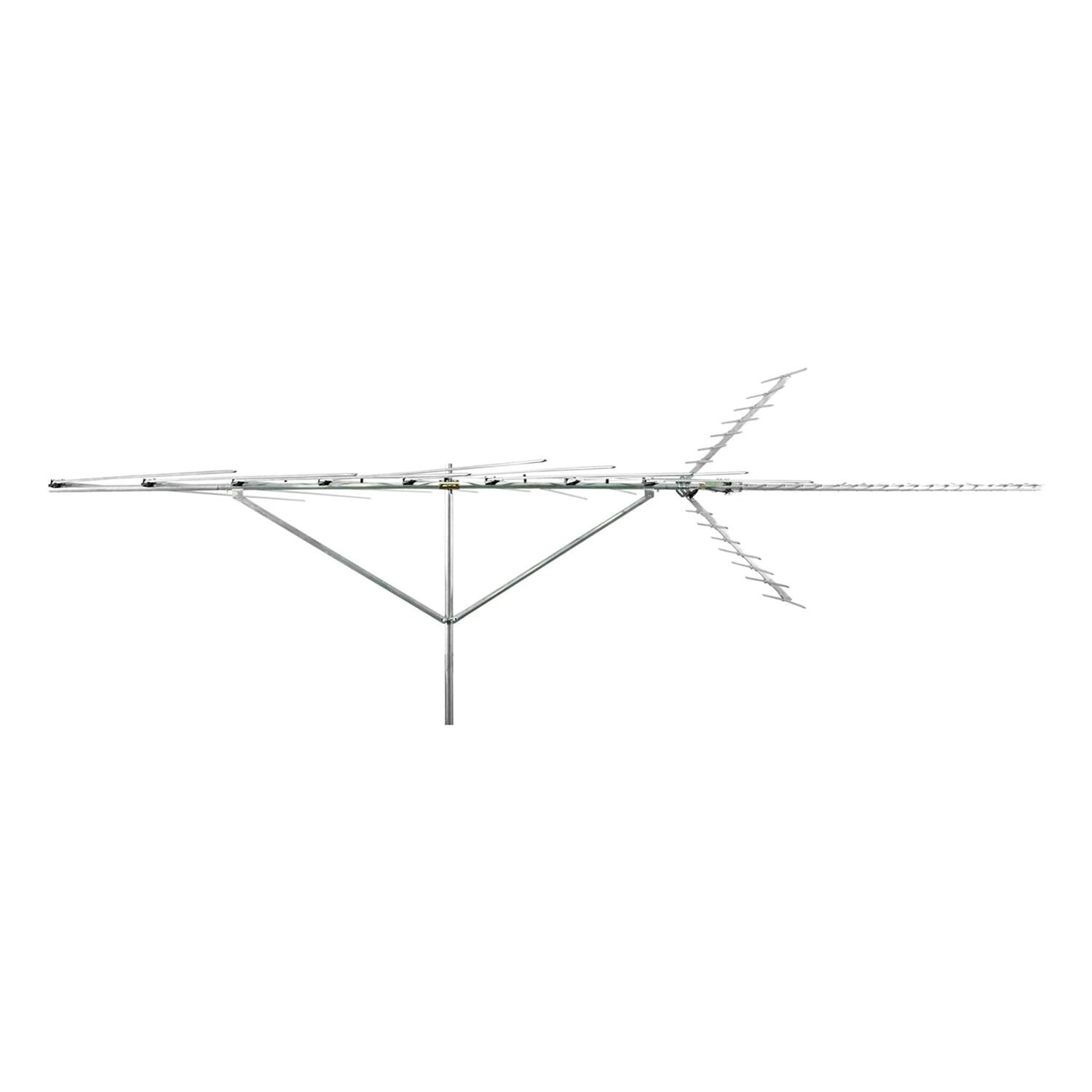

The Advantage 100 from Channel Master® is a directional (log periodic), line-of-sight outdoor antenna that receives hig- definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles. Ideally, it can be installed on roofs, masts, eaves and chimneys for optimal signal reception.
- Long-Range Reception: Receive high-definition and digital signals from up to 100 miles away with this outdoor directional antenna
- Directional Design: Focuses on signals from a single direction for improved reception quality and reduced interference
- Wide Frequency Bandwidth: Covers VHF 54 to 216 MHz and UHF 470 to 700 MHz frequencies for versatile channel access
- Signal Gain: Offers 7.5dB VHF gain and 10dB UHF gain to boost weak signals and enhance picture clarity
- Easy Installation: Includes U-bolt with bracket, balun, and installation guide for quick mounting on roofs, masts, or chimneys
Whats Included
- Antenna, Hardware: U-Bolt, Bracket, Balun, Installation Guide
Product Manuals
A: undefined
Q: Will Best Buy install this antenna out side on my house?
A: undefined
Q: If one direction does it pickup channels around on the sides
A: Not very well. There’s a national free broadcast tower and signal registry. I found it with Chat GPT. It will tell you where the closest signal repeater tower is. Once you know that, you’ll know which way to point the antenna.
Q: Can I put this in my attic by a window?
A: You can. But you need to run a search for the registry of signal repeater towers for broadcast TV. It’ll tell you where the tower is closest to you. Then you’ll know what direction to point the antenna.
