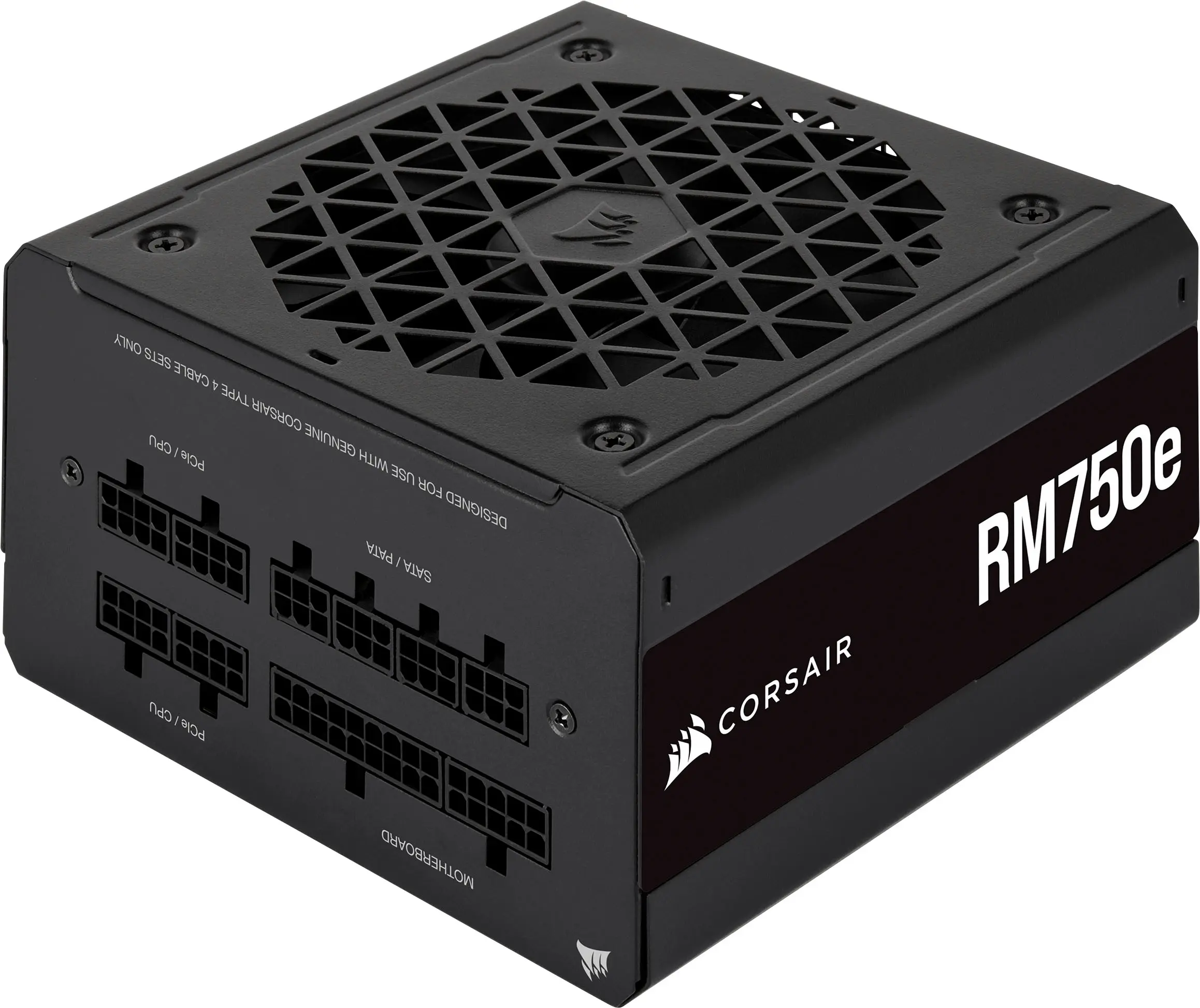

CORSAIR - RMe Series RM750e 80 PLUS Gold Fully Modular Low-Noise ATX 3.0 and PCIE 5.0 Power Supply PSU - Black
Model: CP-9020262-NA
SKU: 6537989
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 3x PCIe (6+2) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 7x SATA Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 139.95 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020262-NA
- Product Name: RMe Series RM750e 80 PLUS Gold Fully Modular Low-Noise ATX 3.0 and PCIE 5.0 Power Supply PSU
- Color: Black
- Power
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX 3.0 / EPS12V 2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 3x PCIe (6+2) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 7x SATA Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 150.11 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 129.03 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 139.95 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 52.96 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 120mm Rifle Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 7 years
- Warranty - Labor: 7 years
- Other
- UPC: 840006699408
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies provide quiet, reliable power with 80 PLUS Gold efficiency to your PC. With ATX 3.0 and PCIe 5.0 compliance and an array of PCIe 8-pin power connectors, RMe PSUs have the connections needed to power today’s demanding PC hardware. Industrial-grade, 105°C-rated capacitors deliver superb electrical performance, backed by a seven-year warranty. Wake your computer faster and consume less power with support for the new Modern Standby sleep mode. Fully modular cables make PC builds easy, as you connect only the cables your system requires. With a 140mm-long casing that works with nearly any modern case, the CORSAIR RMe Series is steady power for your system.
- Fully Modular PSU: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.
- Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
- 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- 80 PLUS Gold-Certified: Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
- Zero RPM Fan Mode: For near-silent operation at lower loads.
- The Right Fit: Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
- Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and enables use of more energy-efficient sleep states.
- Seven-Year Warranty: Your guarantee of reliable operation for peace of mind through multiple builds.
- Fully Modular PSU: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.
- Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
- 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- 80 PLUS Gold-Certified: Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
- Zero RPM Fan Mode: For near-silent operation at lower loads.
- The Right Fit: Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
- Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and enables use of more energy-efficient sleep states.
- Seven-Year Warranty: Your guarantee of reliable operation for peace of mind through multiple builds.
Whats Included
- 1x 24-pin ATX (24-pin) Connector
- 2x ATX 12V/EPS12V (4+4-pin) Connectors
- 3x PCIe (6+2) Connectors
- 7x SATA Connectors
- 4x PATA Connectors
- 1x 24-pin ATX (24-pin) Connector
- 2x ATX 12V/EPS12V (4+4-pin) Connectors
- 3x PCIe (6+2) Connectors
- 7x SATA Connectors
- 4x PATA Connectors
Q: What is the warranty period for this power supply?
A: This power supply is backed by a seven-year warranty, covering both parts and labor.
Q: How many SATA connectors does this power supply have?
A: This power supply comes equipped with seven SATA connectors.
Q: What is the wattage of this Corsair power supply?
A: This Corsair power supply has a wattage of 750 watts.
Q: Does this power supply have a fan, and if so, what size is it?
A: Yes, this power supply utilizes a 120mm rifle bearing fan for cooling.
Q: Is this power supply fully modular?
A: Yes, the Corsair RMe series power supply is fully modular, allowing you to connect only the cables your system needs.
Q: Does this power supply support Modern Standby?
A: Yes, this power supply is compatible with Modern Standby, offering fast wake-from-sleep times and improved low-load efficiency.
Q: What is the length of the power supply casing?
A: The Corsair RMe series power supply has a casing length of 140mm.
Q: Is it normal for the cables that it comes with missing pin sockets? or should I return it?
A: Hello, Correct, depending on pinout, it is normal. -Art
