Crucial - T700 1TB Internal SSD PCIe Gen 5x4 NVMe with Heatsink
Crucial - T700 1TB Internal SSD PCIe Gen 5x4 NVMe with Heatsink
Storage Capacity
1000GBFREE shipping to
More Buying Options
Related Item
Specifications
- Storage Capacity1000 gigabytesStorage Drive TypeSSD, SSDMaximum Read Speed11700 megabytes per secondMaximum Write Speed9500 megabytes per secondForm FactorM.2 2280Interface(s)PCIe Gen 5 x4
- Key Specs
- Storage Capacity: 1000 gigabytes (Measured in megabytes (MB), gigabytes (GB) and terabytes (TB), this is the amount available for storing files, music, movies, photos and more. The total includes the capacity of the hard disk drive and solid state drive if both are included on the computer.)
- Storage Drive Type: SSD, SSD (Traditional, mechanical hard disk drives are the most common type of storage because they're relatively inexpensive and offer huge capacities. However, they also generate both noise and heat. Solid state drives, also known as SSDs, are many times faster than hard disk drives and have no moving parts to wear out, but typically offer less capacity for the same price.)
- Maximum Read Speed: 11700 megabytes per second (The greatest speed at which the device can read information; for example, opening files.)
- Maximum Write Speed: 9500 megabytes per second (The greatest speed at which the device can write information; for example, saving files.)
- Form Factor: M.2 2280
- Interface(s): PCIe Gen 5 x4 (Refers to the types of connections that devices use to interact and communicate with each other.)
- General
- Brand: Crucial
- Model Number: CT1000T700SSD5
- Product Name: Crucial - T700 1TB Internal SSD PCIe Gen 5x4 NVMe with Heatsink
- Capacity
- Storage Capacity: 1000 gigabytes (Measured in megabytes (MB), gigabytes (GB) and terabytes (TB), this is the amount available for storing files, music, movies, photos and more. The total includes the capacity of the hard disk drive and solid state drive if both are included on the computer.)
- Performance
- Storage Drive Type: SSD, SSD (Traditional, mechanical hard disk drives are the most common type of storage because they're relatively inexpensive and offer huge capacities. However, they also generate both noise and heat. Solid state drives, also known as SSDs, are many times faster than hard disk drives and have no moving parts to wear out, but typically offer less capacity for the same price.)
- Maximum Read Speed: 11700 megabytes per second (The greatest speed at which the device can read information; for example, opening files.)
- Maximum Write Speed: 9500 megabytes per second (The greatest speed at which the device can write information; for example, saving files.)
- SSD Endurance: 600 terabytes (The total amount of data that the solid-state drive (SSD) is able to write before it wears out, as specified by the manufacturer. Endurance is limited because the flash on a SSD has a finite number of cycles that it can complete.)
- Heatsink: true (Dissipates heat during intense operation for sustained peak performance.)
- Compatibility
- Internal Or External: Internal
- Product Compatibility: Desktop computers
- Form Factor: M.2 2280
- Interface(s): PCIe Gen 5 x4 (Refers to the types of connections that devices use to interact and communicate with each other.)
- Features
- Usage: Gaming, Performance computing
- Lighting Type: None
- Memory
- NAND Flash Memory Type: TLC (Single Level Cell (SLC) stores 1 bit of data per memory cell; Multi Level Cell (MLC) stores 2 bits per cell, Triple Level Cell (TLC) 3 bits, and Quad Level Cell (QLC) 4 bits. Vertical NAND (V-NAND) or 3D NAND stores more data by layering cells vertically. Similarly, there are 3D MLC, 3D TLC and 3D QLC stacked cells.)
- Dimensions
- Product Height: 3.15 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.83 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.94 ounces (The out of box weight of the item.)
- Other
- UPC: 649528936714

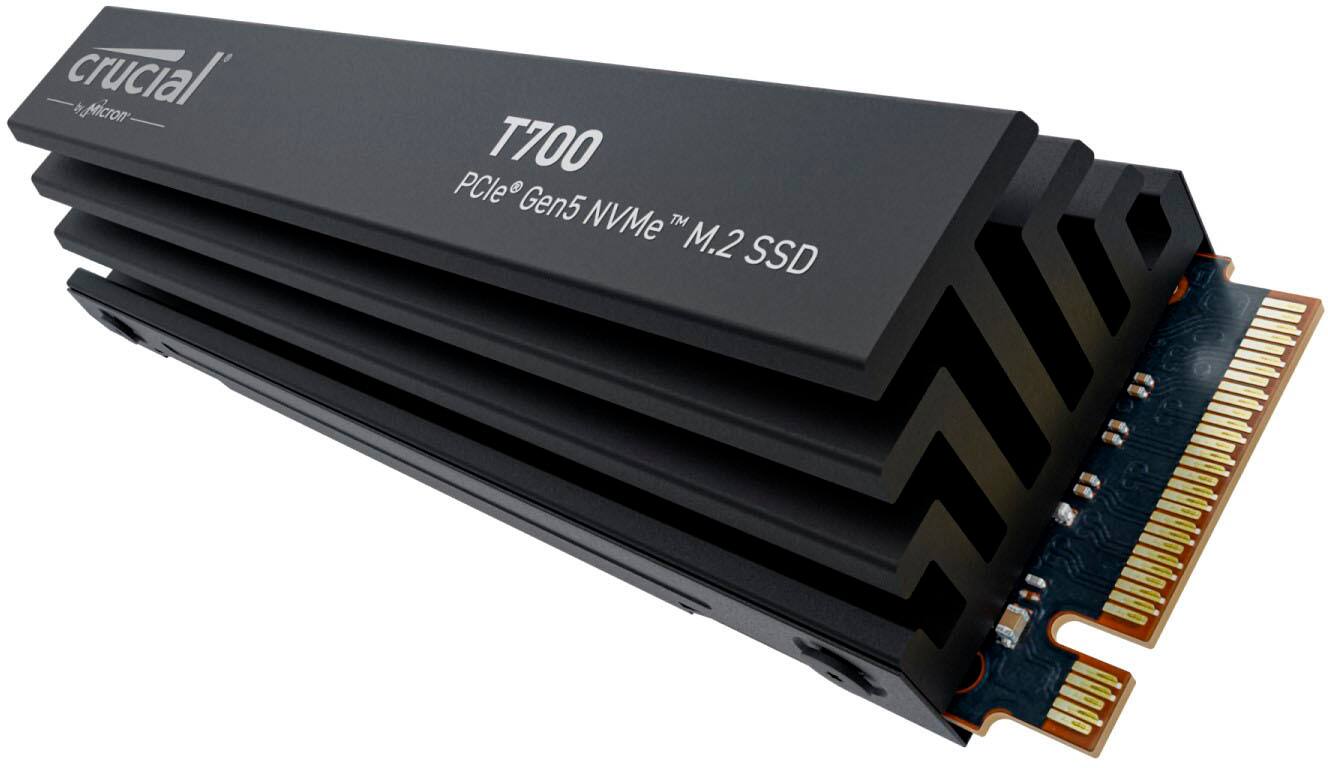

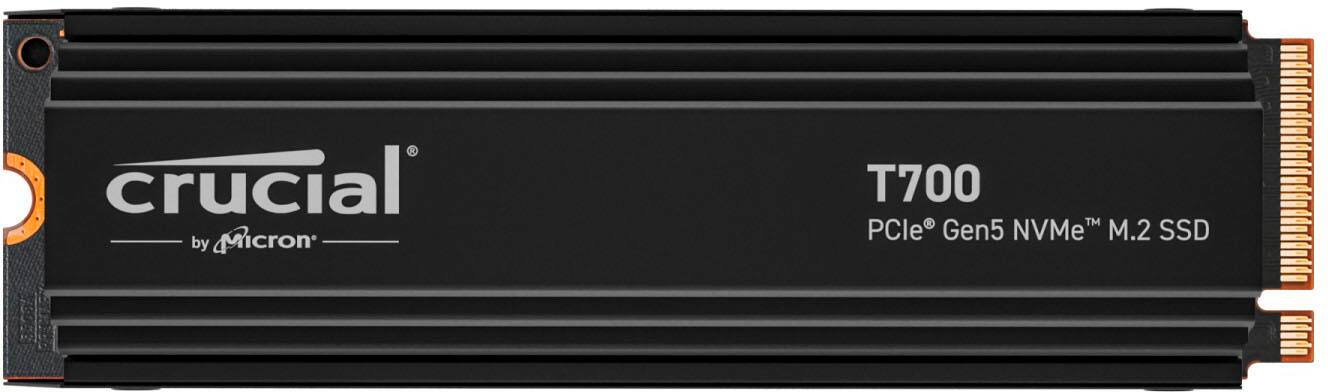

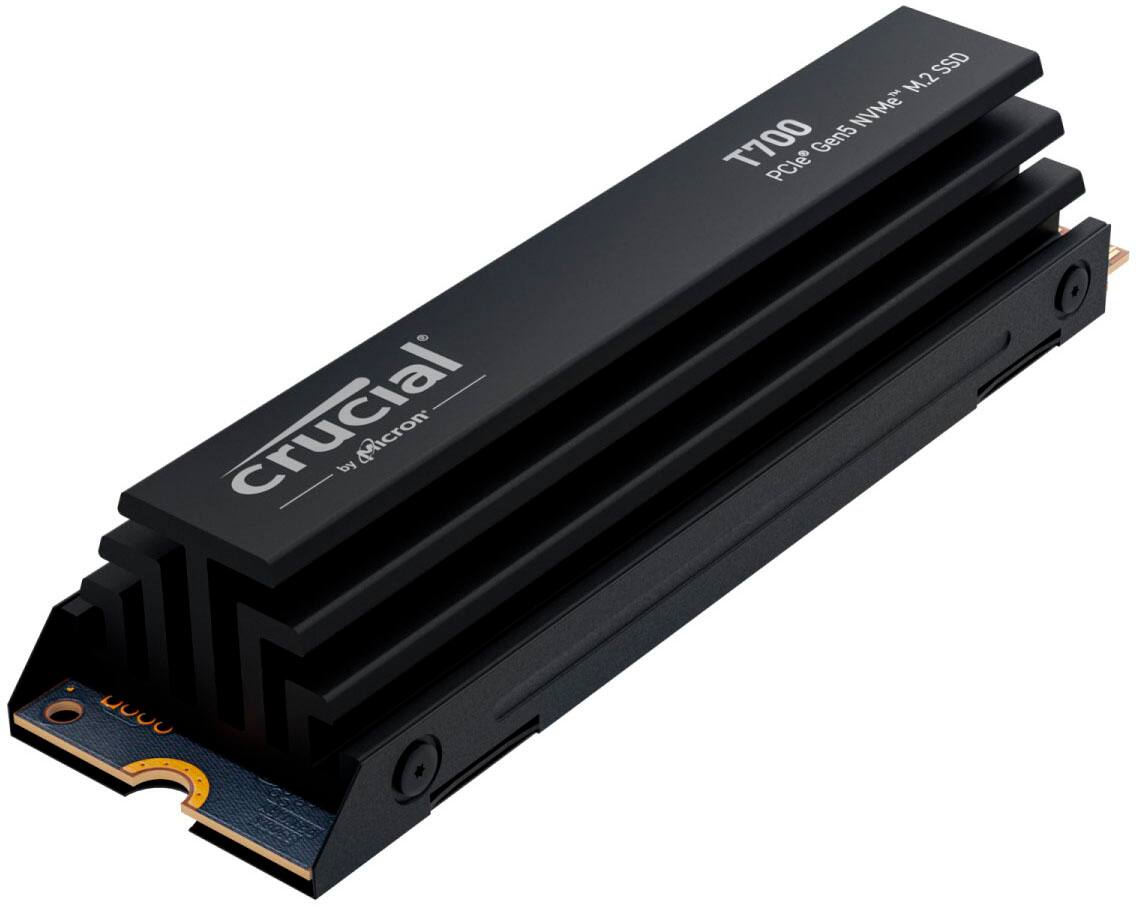

Are you ready to feel the rush of extreme performance? The Crucial T700 PCIe 5.0 NVMe SSD offers speeds of up to 11,700MB/s sequential reads and up to 9,500MB/s sequential writes (up to 1,350K/1,400K IOPS random reads/writes) for faster gaming, video editing, 3D rendering and heavy workload applications. Built with Micron 232-layer TLC NAND and featuring a premium aluminum and nickel-plated copper heatsink that dissipates heat without noisy fans or liquid cooling, the Crucial T700 Gen5 SSD is optimized for performance, takes full advantage of Microsoft DirectStorage, and is backward compatible with Gen3 and Gen4 motherboards. A non-heatsink SKU is also available for use with an integrated motherboard heatsink. With SSD speeds nearly 2x faster than Gen4 in your PC, you’ll never look back from the Crucial T700!
- Premium Heatsink: Aluminum and nickel-plated copper heatsink for maximum heat dissipation without noisy fans or liquid cooling
- Blistering Speeds: Get sequential reads/writes of up to 11,700/9,500MB/s and random read/writes of up to 1,350K/1,400K IOPS for blazing performance for faster gaming, video editing, 3D rendering and heavy workload applications
- Ultimate Gaming & Creativity: With Microsoft DirectStorage, elevate gaming with up to 60% faster texture renders and reduced load times, render photos or UHD/8K+ videos and run heavy workloads with up to 99% less CPU utilization
- Innovation: Produced in house with the Micron 232-layer TLC NAND for Intel 13th Gen and AMD Ryzen 7000 CPUs
- 1TB storage capacity: Store more games, UHD/8K+ media, apps, files and more
- PCIe Gen 5 x4 NVMe M.2 2280: Works with PCIe 5.0 desktops and workstations and also backward compatible with PCIe 3.0 or 4.0 systems
Product Manuals
Q: Hello, Is the heatsink pre-installed? Can the SSD be used with or wo heatsink of choice? Thanks!
A: Hello, thanks for getting in touch, We are sorry to inform you but this SSD CT1000T700SSD5 has re installed heat sink. removing heatsinkk form this drive will void warranty. If you need SSD without heatsink then check this part - Crucial T700 1TB PCIe Gen5 NVMe M.2 SSD CT1000T700SSD3 (Without heatsink). If you need any more information or support, please contact us back through the link below. https://www.crucial.com/support/contact - The Crucial Team
Compare similar products
Are you ready to feel the rush of extreme performance? The Crucial T700 PCIe 5.0 NVMe SSD offers speeds of up to 11,700MB/s sequential reads and up to 9,500MB/s sequential writes (up to 1,350K/1,400K IOPS random reads/writes) for faster gaming, video editing, 3D rendering and heavy workload applications. Built with Micron 232-layer TLC NAND and featuring a premium aluminum and nickel-plated copper heatsink that dissipates heat without noisy fans or liquid cooling, the Crucial T700 Gen5 SSD is optimized for performance, takes full advantage of Microsoft DirectStorage, and is backward compatible with Gen3 and Gen4 motherboards. A non-heatsink SKU is also available for use with an integrated motherboard heatsink. With SSD speeds nearly 2x faster than Gen4 in your PC, you’ll never look back from the Crucial T700!
Officially licensed for the PlayStation5 console, the WD_BLACK SN850P NVMe SSD for PS5 consoles allows you to store more titles with worry free installation. Instantly add up to 4TB of storage to hold more of your favorite games. With an optimized heatsink built specifically for the PS5 M.2 slot, you won’t need to worry about compatibility. Experience uninterrupted gameplay as your WD_BLACK drive runs cool with quality you can trust. The WD_BLACK SN850P NVMe SSD for PS5 consoles is certified and tested for PlayStation 5 consoles so you can store more, play more, fast.
The Crucial P510 offers powerfully fast Gen5 read/write speeds of 10,000/8,700MB/s, reducing load times while enhancing overall system responsiveness. Built for both laptops and desktops with an easy-to-install single-sided design and power-efficient architecture, the P510 offers lower energy consumption and is designed to support battery life. Backed by Micron’s 45-year reputation for quality and reliability, the Crucial P510 delivers top-tier performance that can boost everything from your workflow to your next game.
High-speed Gen4 performance for gamers is here. Introducing the Crucial P310 2280 Gen4 NVMe SSD, a leader in the Gen4 space with sequential reads/writes up to 7,100/6,000MB/s. Engineered with the latest Micron 3D NAND technology, the Crucial P310 comes in generous capacities and offers flexible backward compatibility, performing 2x faster than Gen3 SSDs and offering 20% faster performance in real-world tasks compared to other Gen4 SSDs when booting Windows, starting applications such as Adobe Photoshop and Illustrator, and working with popular applications such as Microsoft Excel and PowerPoint. The P310 is the NVMe storage solution that gives gamers the edge they crave.
| Pros for Crucial - T700 1TB Internal SSD PCIe Gen 5x4 NVMe with Heatsink | |||
|---|---|---|---|
| There were no pros for this product— | Storage, Ease of use, Installation, Performance, Speed | There were no pros for this product— | There were no pros for this product— |
| Cons for Crucial - T700 1TB Internal SSD PCIe Gen 5x4 NVMe with Heatsink | |||
| There were no cons for this product— | Lag | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Great m2, just make sure it fits
A word of caution in this. The heat stick sticks out about 2 inches. If you're graphics card slot in the motherboard is over top of this slot, then the drive won't fit. Also, make sure your motherboard supports gen5 m2s. I haven't seen a motherboard or there that won't take away some lanes in the primary pcie graphics card slot to run this. Even though you'll only suffer about a 2 percent performance hit on your gpu, so it might not be a deal breaker for you. That being said, that's a limitation on all gen5 m2s, not just this one. Other than that, this is a great gen 5 m2.
This review is from Crucial - T700 1TB Internal SSD PCIe Gen 5x4 NVMe with Heatsink
ahovingh Posted
