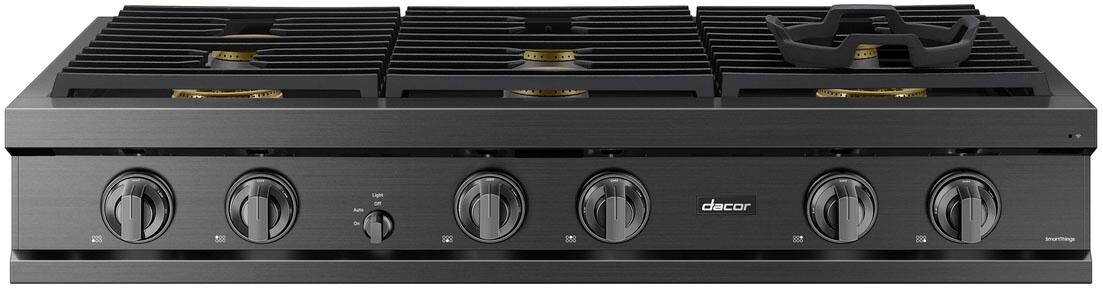

Dacor - 48" Built-In Gas Rangetop with 6 Burners - Graphite Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishGraphite steelProduct Height8 inchesProduct Width47 7/8 inchesProduct Depth27 7/8 inchesCooktop Surface TypeGrateNumber of Burners6
- Key Specs
- Color Finish: Graphite steel
- Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DTT48T960GM/DA
- Product Name: 48" Built-In Gas Rangetop with 6 Burners
- Color: Graphite Steel
- Color Finish: Graphite steel
- Vendor Collection: Dacor Transitional (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 138 pounds (The out of box weight of the item.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: false
- Control Type: Knob (Infinite switch)
- Control Location: Front panel
- Digital Display: false
- Form Factor: Rangetop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU. (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 22000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 22000 british thermal units
- Burner 3 Rating: 16000 british thermal units
- Burner 4 Rating: 16000 british thermal units
- Burner 5 Rating: 16000 british thermal units
- Burner 6 Rating: 9000 british thermal units
- Total Maximum BTU Rating: 101000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Automatic
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276759975
Refined looks and visionary performance in perfect harmony. With a lineup of features that ignite your imagination, our Pro Rangetops turn up the heat on what’s possible.
- SimmerSear Brass Burners: Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
- Ultra Wide Continuous Grates: Use multiple stock pots at a time and easily slide pots and pans across spacious cooking surface of 15 inch wide grates.
- Illumina(tm) Knobs: Warm, sophisticated and welcoming. The glowing Illumina(tm) knobs entice participation, inspire the imagination and accentuates the beauty of the product.
- Auto Connection: Activate and adjust Dacor hoods with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary, with the use of a temperature sensor.
- Luxurious Finishes: Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
- SmartThings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
- Additional Burner Caps: Includes both brass burner caps for show and black burner caps for everyday use.
- LP Convertible: Liquid porpane conversion kit included.
Whats Included
- DTT48T960GM/DA
- Grates (3)
- Burner heads (6)
- Burner caps (brass and porcelain, 8 of each)
- Wok Ring
- Regulator
- Bolt and washer (2)
- Manual
Q: What is the width of this rangetop?
A: The width of the Dacor Transitional 48" Built-In Gas Rangetop with 6 Burners is 47 7/8 inches.
Q: What is the product weight?
A: The product weight of the Transitional 48" Built-In Gas Rangetop with 6 Burners by Dacor is 138 pounds.
Q: How many different finishes are available?
A: The product comes in two different finishes: Graphite and Silver Stainless Steel. The context mentions "Luxurious Finishes: Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept."
Q: What material is the cooktop surface made of?
A: The cooktop surface of the Dacor Transitional 48" Built-In Gas Rangetop with 6 Burners is made of Porcelain.
A: The product depth of the Dacor Transitional 48" Built-In Gas Rangetop with 6 Burners is 27 7/8 inches.
Q: What is the minimum BTU output of the burners?
A: The minimum BTU output of the burners on the Dacor Transitional 48" Built-In Gas Rangetop with 6 Burners is 750 BTU. This output is provided by the SimmerSear Brass Burners, which allow for precise temperature control and can maintain a gentle simmer.
Q: What type of grates does it have?
A: The grates are made of heavy-duty cast iron, which retains heat very well. The product includes two types of burner caps (brass and porcelain) to suit customer preferences.
Q: How many burners does it have?
A: The Transitional 48" Built-In Gas Rangetop with 6 Burners by Dacor has 6 burners. The product name itself indicates that it has 6 burners. The product specifications also mention "Number Of Burners: 6".
Compare similar products
Refined looks and visionary performance in perfect harmony. With a lineup of features that ignite your imagination, our Pro Rangetops turn up the heat on what’s possible.
Refined looks and visionary performance in perfect harmony. With a lineup of features that ignite your imagination, our Pro Rangetops turn up the heat on what’s possible.
The Transitional 36" Gas Cooktop offers powerful 19K BTU's using precision dual valve SimmerSear burners. Finished in an easy-to-clean, heat-resistant, stainless steel and equipped with Wi-Fi for SmartThings integration.
Refined looks and visionary performance in perfect harmony. With a lineup of features that ignite your imagination, our Pro Rangetops turn up the heat on what’s possible.
| Pros for Dacor - 48" Built-In Gas Rangetop with 6 Burners - Graphite Steel | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Griddle | There were no pros for this product— |
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great all around experience!
I had the 15 years ago predecessor to this cooktop and I am beyond thrilled with this one! The technician that installed it was timely, knowledgeable, polite and cleaned up the mess. Great experience!
This review is from Dacor - 48" Built-In Gas Rangetop with 6 Burners - Silver Stainless Steel
Posted by MelanieC
