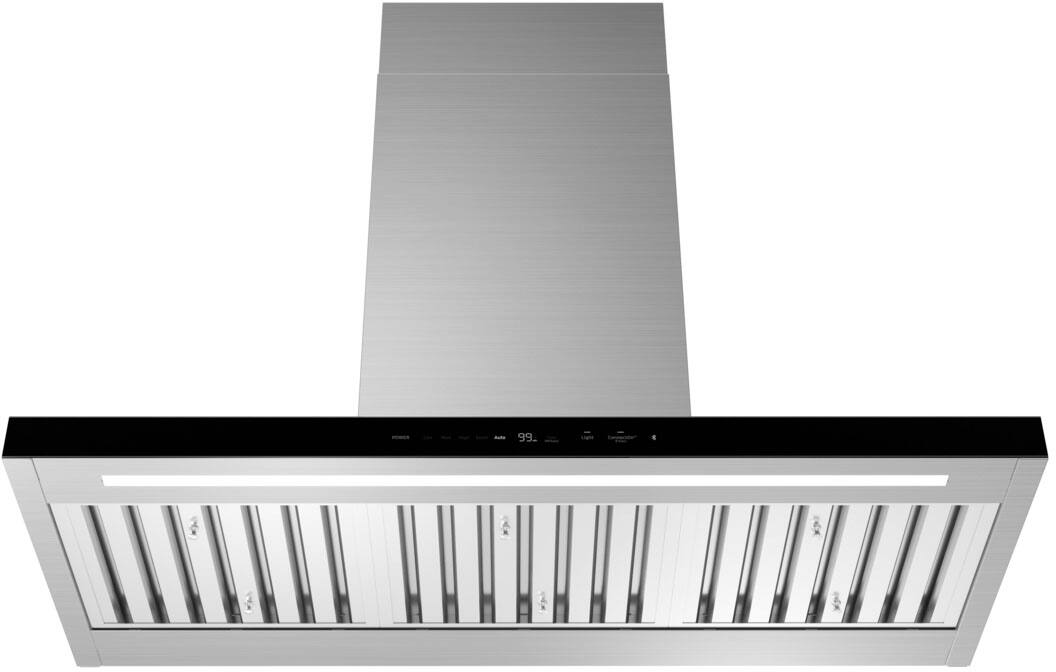

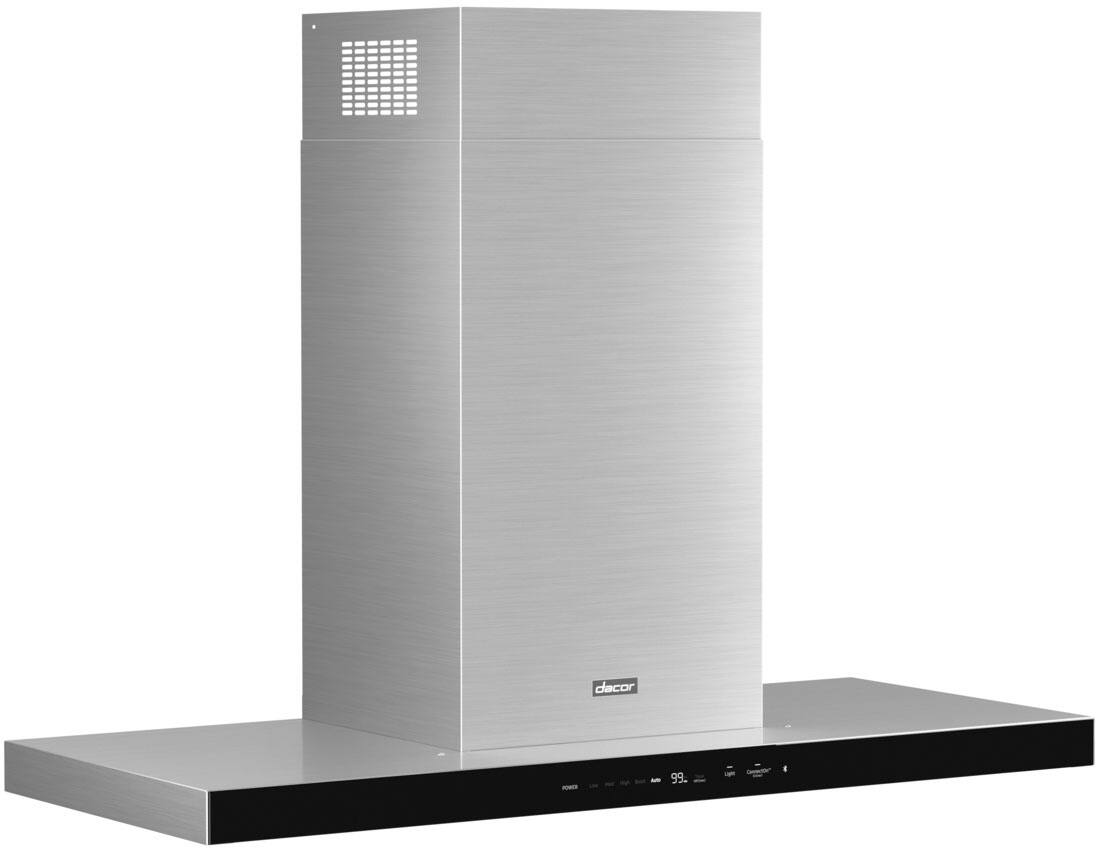

Dacor - 48 inches - Externally Vented - Wall Range Hood - Silver Stainless Steel
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height2 3/8 inchesProduct Width48 inchesProduct Depth19 11/16 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DHD48U990WS
- Product Name: 48" Externally Vented Chimney Range Hood with AutoConnect™
- Color: Silver Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 57 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Integrated Light(s): true
- Number of Lights: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless Steel Baffle Filter
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 847364026341
Bring more beauty, more light, and more powerful function into your kitchen. Dacor’s ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop, automatically adjusting the speed as necessary, with powerful performance and minimal noise.
- Powerful Yet Quiet: Four-speed fan provides great performance while minimizing noise.
- Automatic Connect Hood: Activate and adjust the hood with Bluetooth and ConnectOn(tm) auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary.
- Sustainable Illumination: Strip LED lighting provides energy efficiency and a bright cooking area.
- Removable Filter: Dishwasher-friendly baffles for easy cleanup.
- Internal Blower: 1200 CFM (780 CFM convertible) blower removes smoke and cooking fumes from your kitchen to ensure a healthy home environment.
Q: What type of control panel does this range hood have, and how user-friendly is it?
A: The Dacor 48" Externally Vented Chimney Range Hood features a user-friendly control panel with intuitive buttons for power, fan speed selection (low, medium, high, and boost), and light control. The ConnectOn button enables Bluetooth connectivity with compatible Dacor cooktops for automatic fan speed adjustment based on cooking activity. The control panel also includes a timer display and buttons for muting/unmuting the hood sounds.
A: The recommended mount type for this range hood is wall mount. When choosing a mounting location, consider the following factors: - Minimum installation height above cooktop: 30 inches - Maximum installation height above cooktop: 36 inches - CFM requirements may vary between localities, so consult an HVAC professional for specific requirements for your area. - The CFM capacity depends on the cooking product BTU rating, size and location, size of the kitchen, and the hood ductwork in the kitchen.
A: Yes, the dishwasher-safe baffles can be easily removed for cleaning. The user manual recommends cleaning the filters every 50 hours of use.
Q: What type of vent does this range hood have, and what are the advantages of an external vent?
A: This range hood has an external vent. The advantages of an external vent include: - Improved ventilation: An external vent allows for more efficient removal of smoke, cooking fumes, and other airborne particles from the kitchen, creating a healthier and more comfortable cooking environment. - Reduced noise: External vents are typically quieter than internal vents, as the fan and motor are located outside of the kitchen. - Increased energy efficiency: External vents can help to reduce energy consumption by allowing the range hood to operate more efficiently.
A: The internal blower in the 48" Externally Vented Chimney Range Hood by Dacor serves the purpose of removing smoke and cooking fumes from the kitchen. It has a powerful 1200 CFM (780 CFM convertible) blower that effectively draws out these fumes and ensures a healthy home environment.
A: The AutoConnect™ technology in the Dacor range hood utilizes Bluetooth connectivity to pair with compatible Dacor cooktops. When activated, the hood automatically turns on and adjusts its fan speed based on the cooktop's activity, providing efficient ventilation without manual intervention. Compared to traditional range hoods, this technology offers convenience, improved cooking performance, and energy savings by optimizing airflow based on cooking needs.
A: Yes, this range hood is compatible with smart home systems like SmartThings. Additional features include: - Automatic Connect Hood: Activates and adjusts the hood with Bluetooth and ConnectOn(tm) auto-responsive technology. - Removable Filter: Dishwasher-friendly baffles for easy cleanup. - Sustainable Illumination: Strip LED lighting provides energy efficiency and a bright cooking area.
A: The maximum airflow capacity of this range hood is 1200 cubic feet per minute (CFM). This is higher than most other models in its class, which typically have a maximum airflow capacity of around 1000 CFM.
