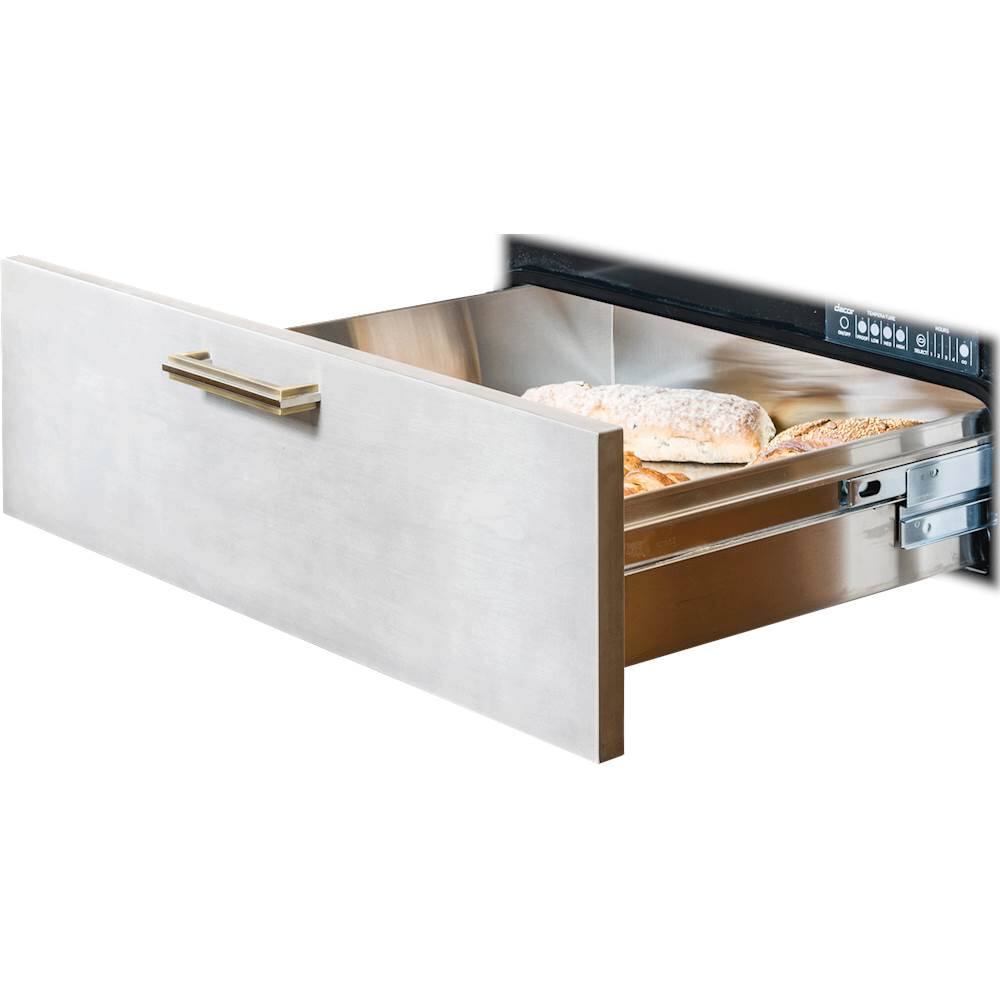

Dacor - Panel Ready 30" Warming Drawer - Custom Panel Ready
Model: IWD30
SKU: 8952848
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Custom
- Product Height: 8 9/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 3/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Capacity: 1.73 cubic feet
- Humidity Control: false (Allows you to adjust the humidity levels and maintain the optimal climate for your stored items to ensure their longevity.)
- General
- Brand: Dacor
- Model Number: IWD30
- Product Name: Panel Ready 30" Warming Drawer
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 8 9/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 3/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Interior Height: 5 inches
- Interior Width: 26 inches
- Interior Depth: 22 4/5 inches
- Product Weight: 63 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 9 1/10 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.73 cubic feet
- Features
- Temperature Control Type: LED display with touchscreen controls
- Hidden Control Panel: true
- Humidity Control: false (Allows you to adjust the humidity levels and maintain the optimal climate for your stored items to ensure their longevity.)
- Power-On Indicator Light(s): true
- Timer: true
- Flush Appearance Installation: true
- Custom Door Kit Compatible: true (Door kits give your appliance a built-in appearance and allow it to integrate with existing cabinetry and décor.)
- Full Extension Ball Bearing Glides: true (Drawers with this hardware feature allow for smooth opening and closing and open all the way in order to provide access to the entire interior space.)
- See-Through Door: false
- Minimum Temperature: 100 degrees fahrenheit
- Maximum Temperature: 200 degrees
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 500 watts (Measurement of electrical power.)
- Heating Element Wattage: 500 watts
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 year
- Other
- UPC: 847364002888
Keep dinner warm in this panel ready Dacor integrated warming drawer. Use the electronic controls to maintain the desired temperature, and set the timer to make sure all your dishes are ready at the same time. This 30-inch Dacor Renaissance integrated warming drawer is ideal for proofing yeast dough and can be installed under microwaves or cooktops. Panels are purchased separately.
- Custom design: Works with custom drawer panel to fit your cabinetry design. Panels are purchased separately.
- Versatile Installation Options: Designed to stack under wall oven, microwave, or cooktop.
- Electronic Controls: Full-touch display. Regulate time and temperature for food with perfect results.
- Moist/Crisp Selector: Select temperature for precise humidity control to keep food fresh.
- Four Timer Settings: Ensures precisely timed meals with 1, 2, 3, and 4 hours, plus an infinite mode.
- Four Temperature Levels: Proof, Low, Medium, High.
- Star-K Certified: Option to override everday operation for Shabbat observation.
Whats Included
- Warming Drawer
- Manual
- Panels are purchased separately
A: For custom panels, you must reach out to your local Dacor dealership, who can assist you with placing an order for the panel selection of your choice. For more information, please contact Dacor Support at 1-833-353-5483.
Q: May I use this product as a towel warmer?
A: undefined
