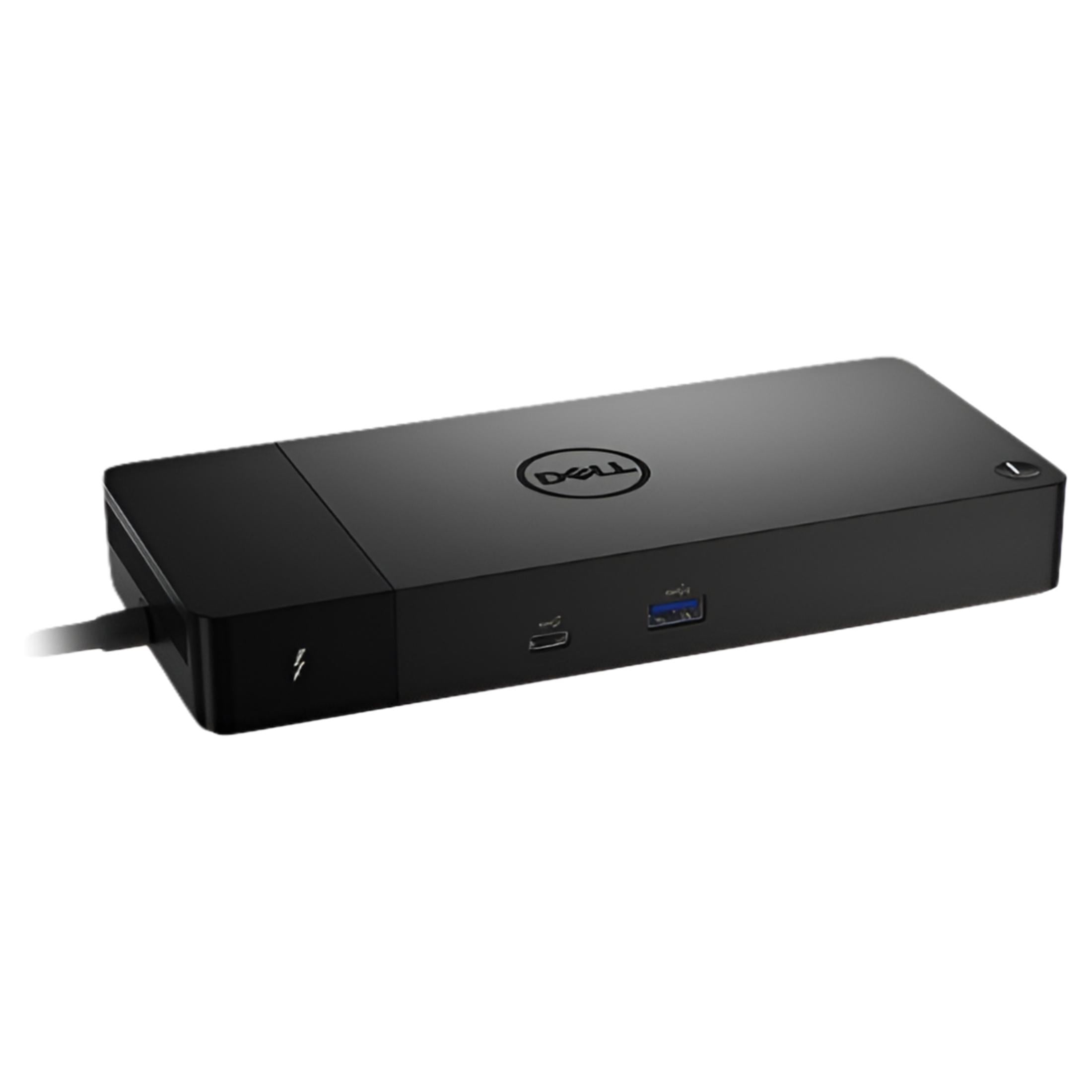

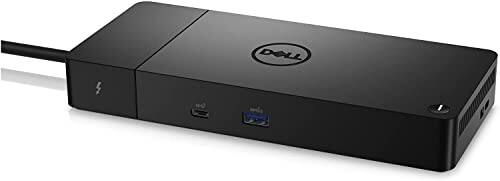

Dell - WD22TB4 Thunderbolt 4 Dock - Black
FREE shipping to
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 4
- Number of DisplayPort Outputs (Total): 2
- General
- Brand: Dell
- Model Number: WD22TB4
- Product Name: Dell WD22TB4 Thunderbolt 4 Dock
- Color: Black
- Display
- Maximum Number of Displays Supported: 4
- Ports
- Display Connector(s): 2 x DisplayPort 1.4, 1 x HDMI 2.0, 2 x Thunderbolt 4 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- USB Ports: 3 x USB-A, 4 x USB-C (The number and type of USB ports the product has.)
- Power
- Powered: true
- Compatibility
- Brand Compatibility: Dell
- Model Compatibility: Dell Latitude||Dell Precision||Dell XPS (Thunderbolt 4/USB-C)
- Dimensions
- Product Height: 3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 14.000 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.65 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 196271338475

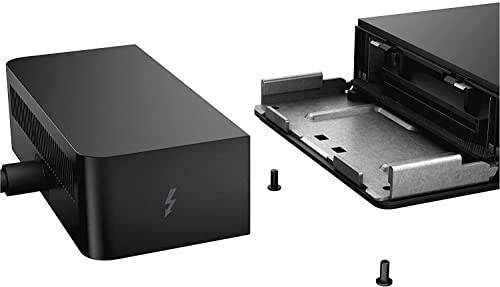

Dell Thunderbolt Dock WD22TB4 is a modular Thunderbolt dock built for upgrade flexibility, featuring swappable modules so you can adapt connectivity as your IT needs change. It supports SuperBoost technology for fast charging and is designed with the future in mind, including upgrade options that can add dual Thunderbolt 4 ports for expanded device compatibility. Power delivery is rated up to 180W, with video output support up to 5120 x 2880 at 60 Hz. Compatible operating systems include Windows 10, Windows 11, and Ubuntu 20.04 or later. A security lock slot is included for a cable lock sold separately. Networking support includes Ethernet, Fast Ethernet, and Gigabit Ethernet. Dell ExpressCharge provides up to 130W power delivery on supported Dell devices and can deliver up to 80% charge in one hour and 35% charge in about 20 minutes. The dock supports multiple display and peripheral connections at once, with data transfer speeds up to 40 Gb/s. Firmware updates can be completed in about five to seven minutes without requiring a system reboot to help keep workflows uninterrupted. Specifications include docking station form factor, 8.1 inch width, 3.5 inch depth, 1.1 inch height, and 15 oz weight.
- Feature 1: Modular Thunderbolt 4 Dock with swappable module capability for easy upgrades and SuperBoost technologies for fast charging.
- Feature 2: 2 x Thunderbolt-4 ports / 1 x USB-C 3.2 Gen 2 / 1 x USB-A 3.2 Gen 1 with PowerShare / 2 x DisplayPort 1.4 / 1 x HDMI 2.0 / 1 x USB-C Multifunction DisplayPort
- Feature 3: 2 x USB-A 3.2 Gen 1 / 1 x Gigabit Ethernet RJ45 Port / 180W Power adapter / 120/230 V AC (50/60 Hz) / For Windows 10, Windows 11
- Feature 4: Multiply Productivity: Connect displays and peripherals to your system with a single cable for ultimate productivity. Thunderbolt 4 dock with the highest number of ports connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup.
- Feature 5: Fast Data Transfer: Get the maximum from your peripherals with a data transfer of 40 GB/s.
