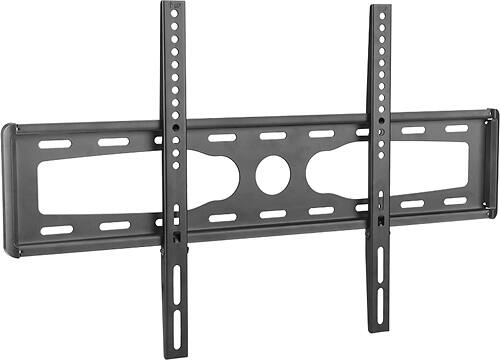

Dynex™ - Fixed Wall Mount for Most 37" - 75" Flat-Panel TVs - Black

Name: Dynex™ - Fixed Wall Mount for Most 37" - 75" Flat-Panel TVs - Black
Brand: Dynex™
SKU: 9132192
Rating: 4.6 (2794 reviews)

Model: DX-DTVMFP23

SKU: 9132192

This item is no longer available in new condition. See similar items below

General
- Brand: Dynex™
- Model Number: DX-DTVMFP23
- Product Name: Fixed Wall Mount for Most 37" - 75" Flat-Panel TVs
- Color: Black
Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Fixed
- Indoor or Outdoor Use: Indoor
Compatibility
- Maximum Weight Capacity: 120 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most 37" - 75" flat-panel TVs weighing up to 120 lbs.
- Mount Location: Wall
- Maximum Television Size: 75 inches
- VESA Wall Mount Standard: 200mm x 200mm, 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
Dimensions
- Product Height: 16.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 1/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 0.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
Other
- UPC: 600603184352

Mount your flat-panel TV to the wall with this Dynex™ DX-DTVMFP23 wall mount that features a low-profile design for a sleek appearance. This fixed wall mount is compatible with most TVs ranging from 37 - 75 inches up to 120 lbs. The spring self-locking system makes installation easy. *NOTE: earlier versions of package may reflect a maximum TV size of 70”, the mount is fully-capable of supporting most 75” TVs as long as TV is under the maximum weight capacity listed for the mount.

Low-profile design: Mounts your TV close to the wall for a sleek look.
VESA Compliant: Including 200mm x 200mm and 600mm x 400mm for a variety of mounting options.
Spring self-locking system: Makes installation easy.
Compatible with most 37" - 75" flat-panel TVs: Up to 120 lbs. for sturdy support.
Low-profile design: Mounts your TV close to the wall for a sleek look.
VESA Compliant: Including 200mm x 200mm and 600mm x 400mm for a variety of mounting options.
Spring self-locking system: Makes installation easy.
Compatible with most 37" - 75" flat-panel TVs: Up to 120 lbs. for sturdy support.

Whats Included

Dynex Fixed Wall Mount for Most 37" - 75" Flat-Panel TVs
Mounting hardware
Owner's manual
Dynex Fixed Wall Mount for Most 37" - 75" Flat-Panel TVs
Mounting hardware
Owner's manual

Product Manuals

Q: Screws

A: yes screws and anchors for the wall are included, as well as assorted sizes to fit most televisions

Q: How far out from the wall does the tv extend with this mount?

A: About 1 3/4” with the provided spacers. Spacers are about 1/2”. The mount itself is perfect and very easy to mount your tv. I have a 49” tv and needed the spacers to help with wall clearance from the hdmi cord. Highly recommend this mount.

Q: Does this wall mount work with the new Samsung Crystal UHD 70 inch Tv?

A: It worked but i had to buy different screws than the ones provided

Q: Is it compatible with a 55 inch insignia flat screen tv

A: yes they hold my 65in TV very good easy to set up

Q: I’m confused. So how do I hang this up on the drywall in my apartment? Do I use drywall screws or can I use what comes with the mount?

A: Hit a stud or get dry wall mounting screws.

Q: Will I need to buy anything else before hanging my TV on the wall?

A: So long as you plan to mount it screwed to the students behind the wall, you should be fine. It comes with the necessary wood screws.

Q: Would this work with a lg 4K 60 inch tv?

A: Without knowing the VESA mount pattern, or the specific model you are inquiring about, compatibility cannot be confirmed. This should work with most TVs between 37 and 70 inches.

Q: A tv was already mounted on the wall with this wall bracket. I don’t know how to get the tv off the mount with out breaking it. Please help

A: The should be strings hanging from each side of the brackets that are on the t.v. that release it so you can lift it off of the bracket on the wall

Customers are saying

Customers value the easy installation and affordable price of this fixed wall mount for TVs ranging from 37 to 75 inches. While most customers are pleased with the quality, a few have concerns about the lack of tilt functionality and missing or incompatible parts.

This summary was generated by AI based on customer reviews.

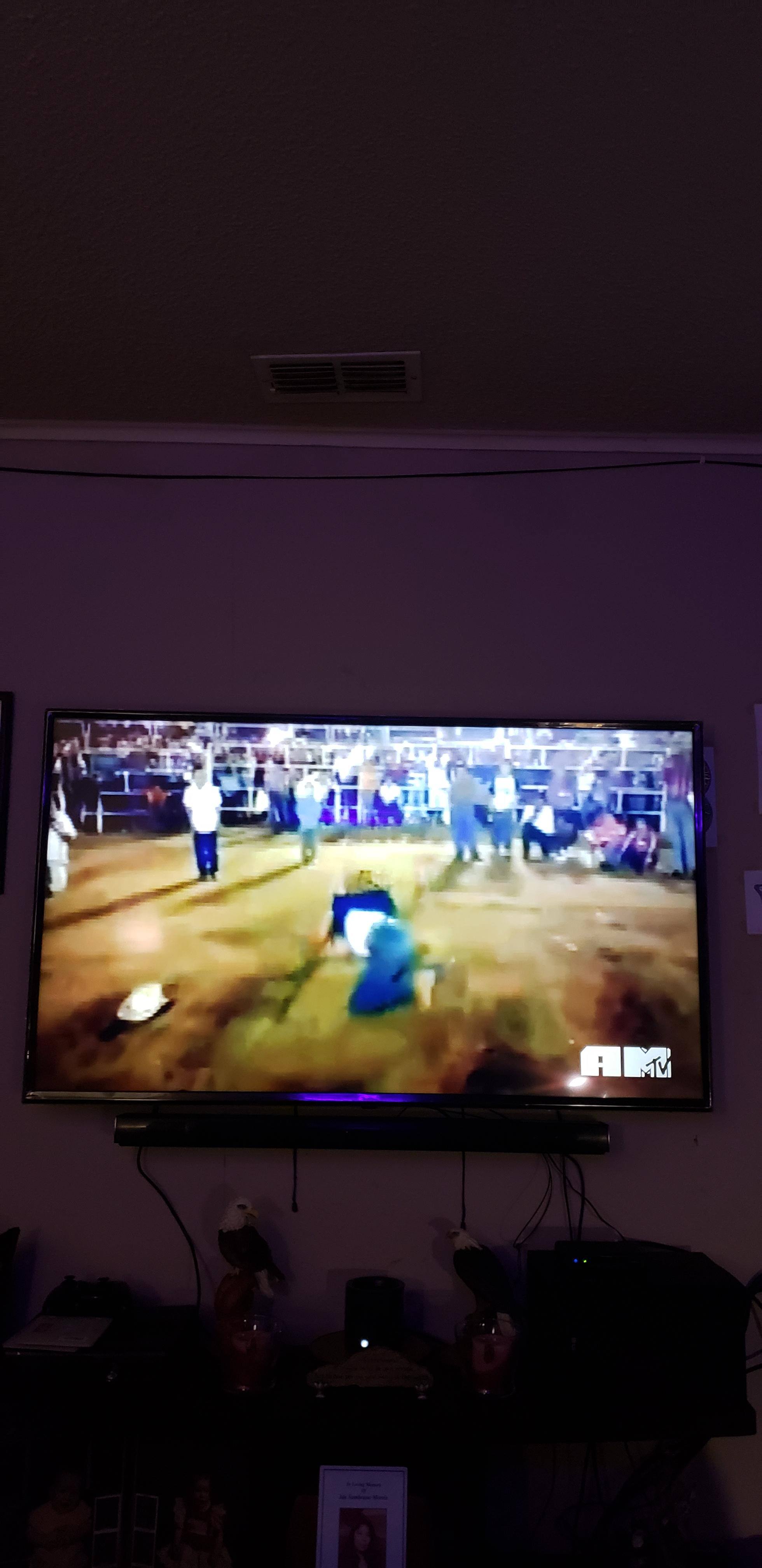

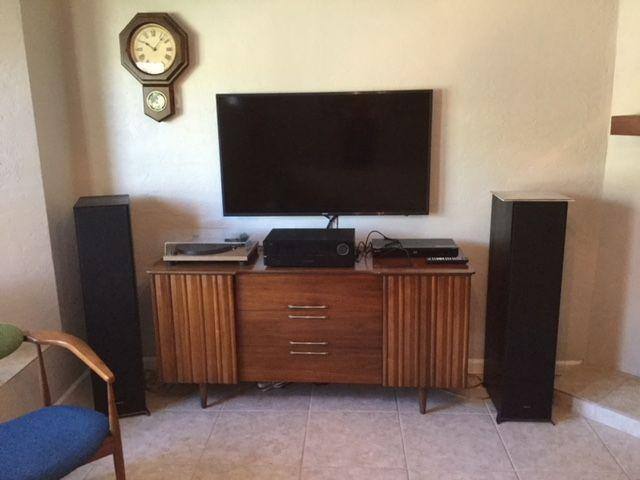

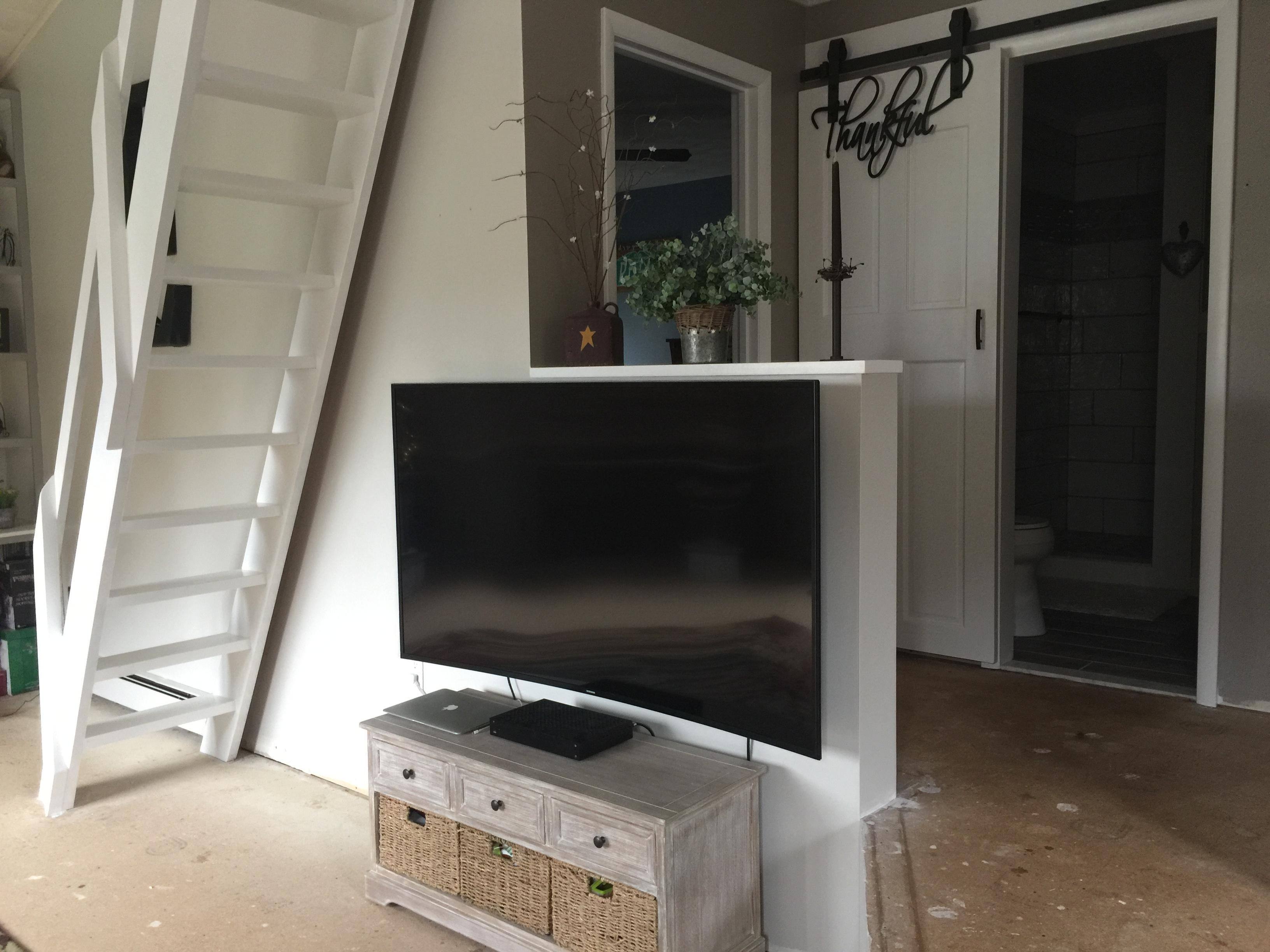

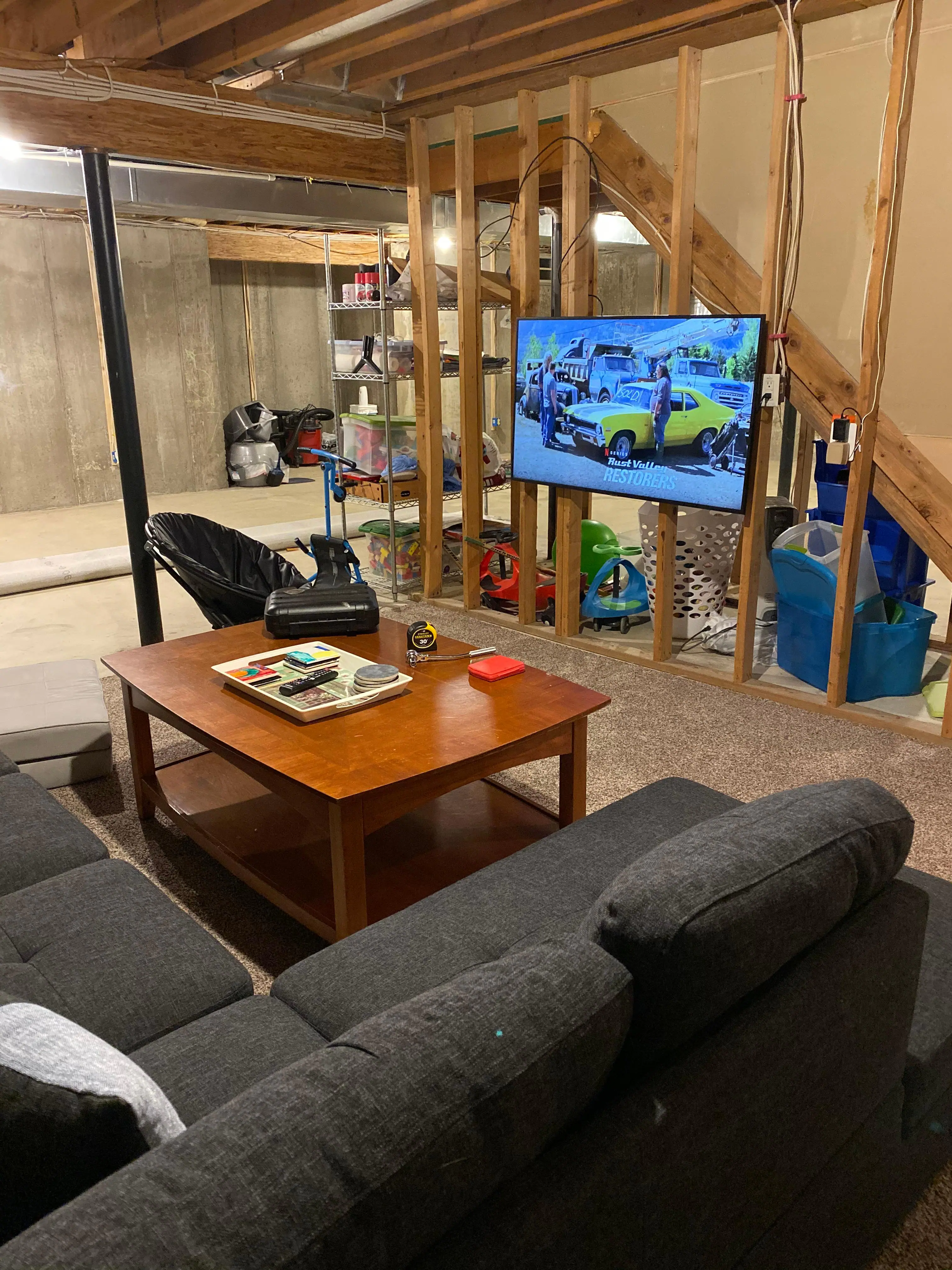

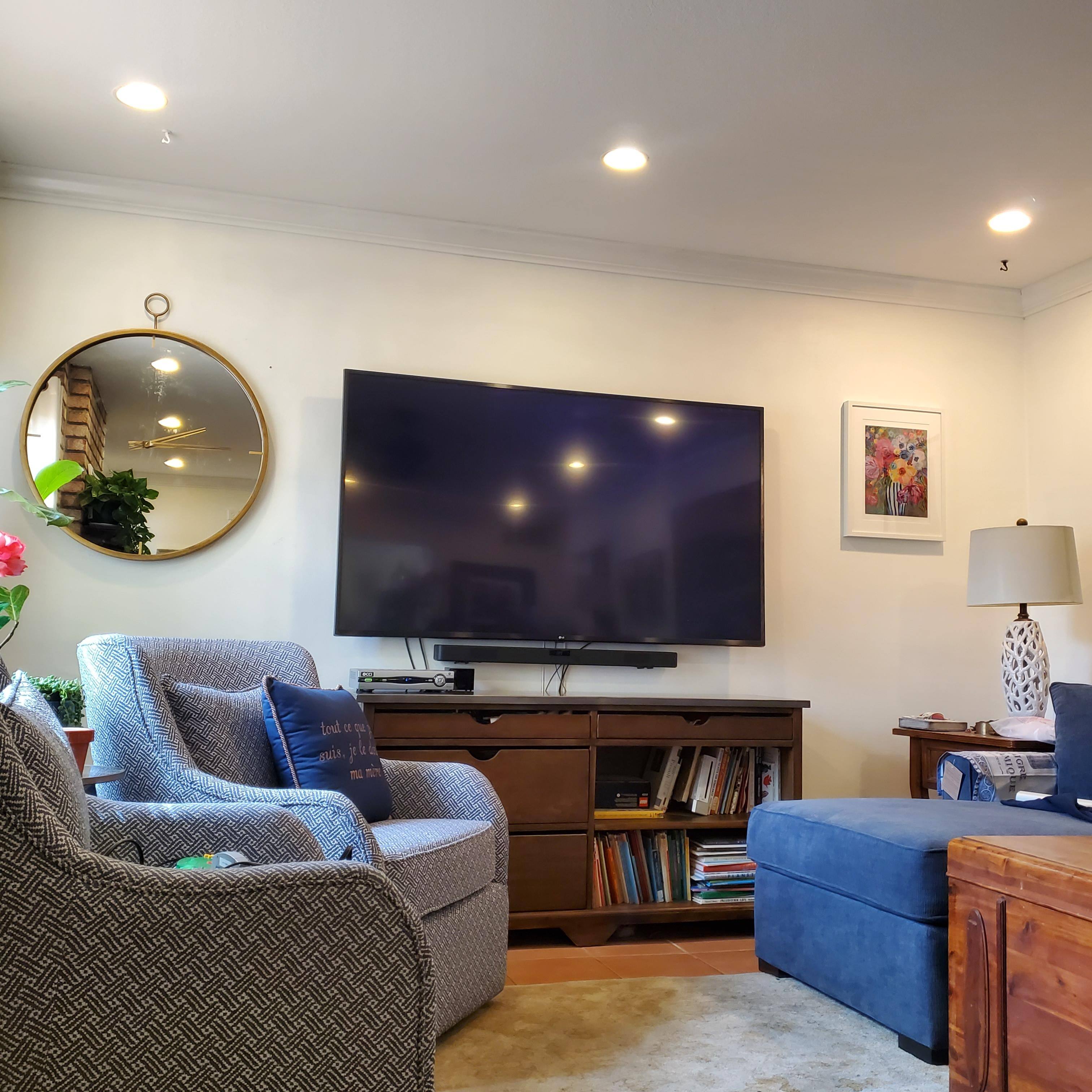

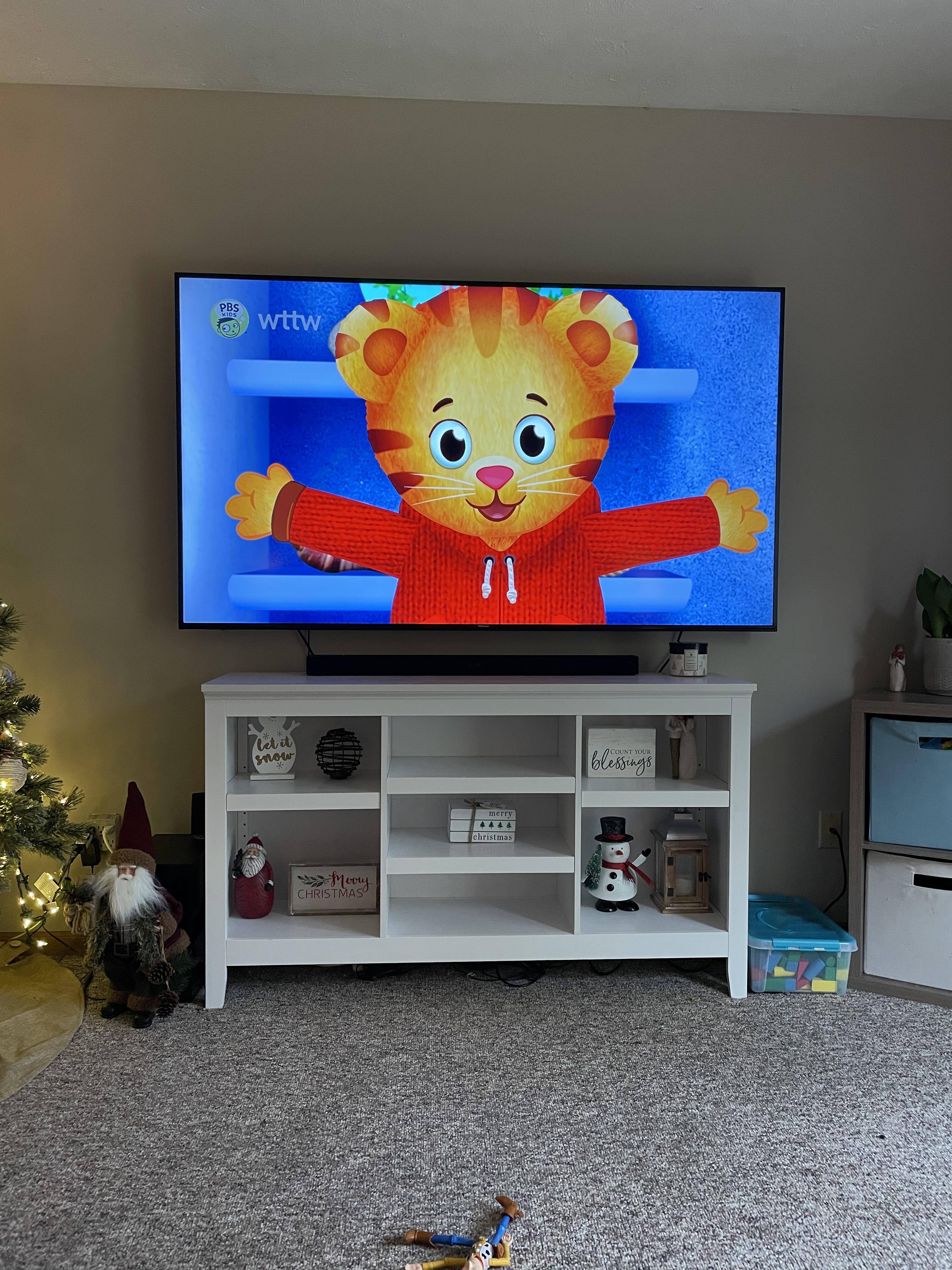

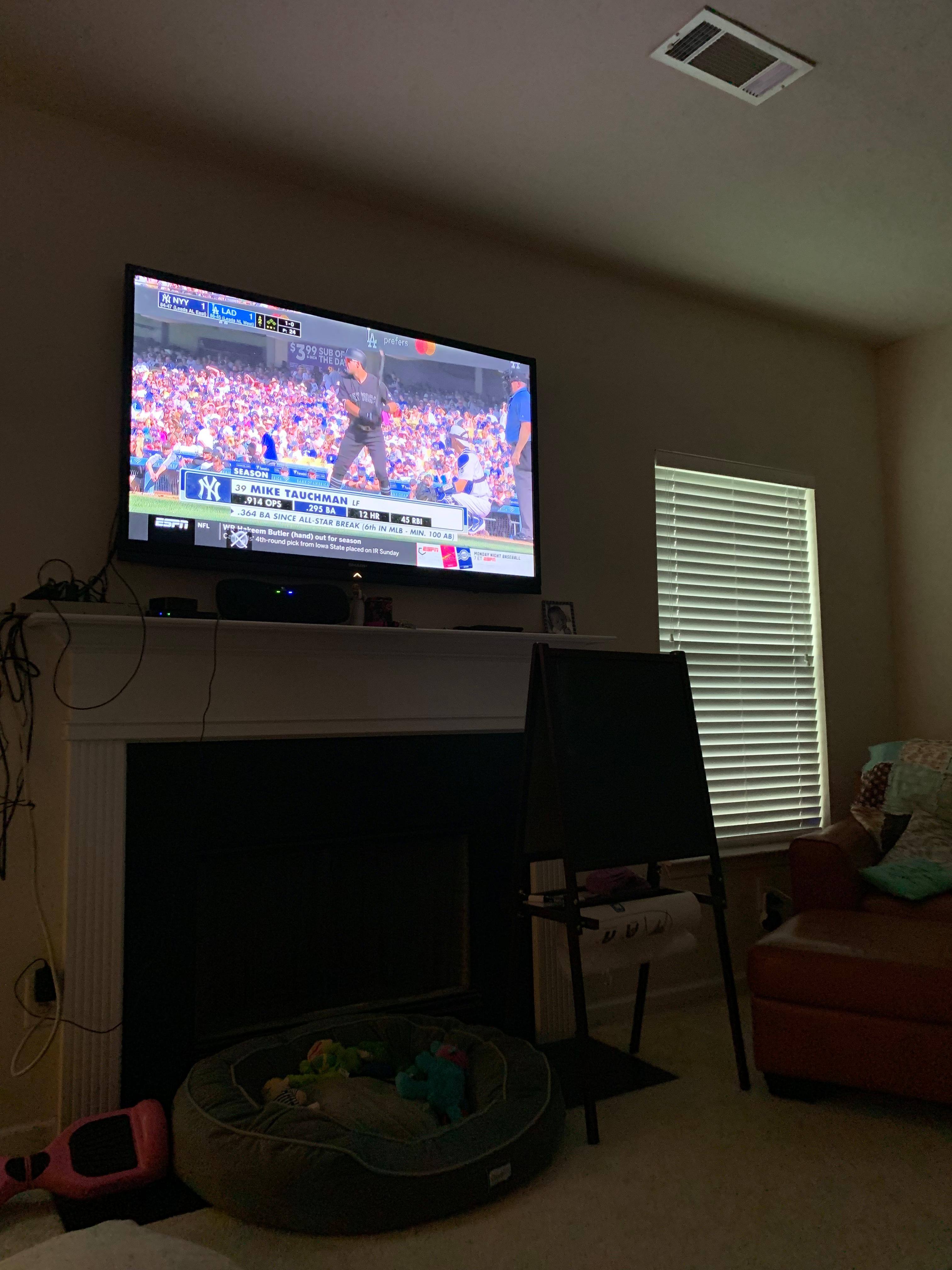

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 4 out of 5 stars
Almost a 5-Star!
This DYNEX TV wall mount is very sturdy and priced right. Once I located the wall studs it was easy to mount to the wall following the excellent instructions provided with the kit. I would have given it 5 starts but I had one major problem: None of the metric hardware provided would allow me to safely (according to the instructions) attach the vertical rails to my 50-inch Samsung TV. They were either too short or two long. I did try my local ACE Hardware and Home Depot to get a metric screw length that would fit but had no luck. So I hack-sawed off some of the longer screws provided, filed the ends as needed, and was able to mount the rails safely with enough thread. For added safety I also put some Loctite thread lock on the threads. Once the rails were mounted my wife and I just had to hand the TV/rails onto the already wall-mounted back plate. I would highly suggest that you look at the installation instructions online BEFORE purchasing to see if it will work for you.
Posted 5 years ago by Jojo
Rated 5 out of 5 stars
Works fine. Needs extra hardware.
Alright guys. I bought 2 of these because they’re dirt cheap. One of them I used to hang my 75” Hisense and the experience was.. poor. It took about 3 trips to the hardware store because the spacers and screws they include just didn’t fit my TV at all. I had to buy a ton of washers and pretty much make my own custom riser to securely mount the rails to the back of the TV. Once that nightmare was over the rest of it went pretty well. It holds my 52lb 75in TV very sturdy. I also bought one for my 55in Samsung and it was more of the same deal - spacers and screws weren’t compatible with my tv, so I had to go buy longer screws and use a couple washers to make it fit. In the end, I was able to get both of them to work with some elbow grease and I’m incredibly happy with the result and quality. For a $30 mount I am not going to complain, just be prepared to go get more screws or washers and don’t wait to start the project until late at night when everything is closed.
Posted 4 years ago by Eric
Rated 5 out of 5 stars
Great TV mount!
The Dynex fixed wall mount for my Samsung curved 65” TV was very easy to install and works perfectly. This is the third Dynex wall mount that I’ve purchased from Best Buy in the past four months. The other two are in my master bedroom and man cave. Great product and even greater price!
Posted 6 years ago by Mets27
