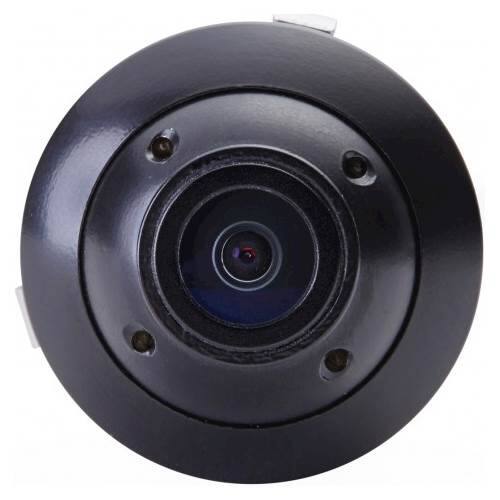

EchoMaster - Universal Adjustable Back-Up or Front View Camera with Parking Lines - Black
- Key Specs
- Field of View: 170 degrees
- G-Sensor: false
- Compatibility: Universal
- Wi-Fi Built-in: false (Able to connect directly to a wireless network without the use of an adapter.)
- Camera Mounting Location: Side mirror
- Vehicle Camera Type: Back-up
- Professional Installation Recommended: true
- General
- Brand: EchoMaster
- Model Number: PCAM-360-N
- Product Name: Universal Adjustable Back-Up or Front View Camera with Parking Lines
- Color: Black
- Vehicle Camera Type: Back-up
- Professional Installation Recommended: true
- Recording & Playback
- Field of View: 170 degrees
- G-Sensor: false
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Power Source: Vehicle battery
- Expandable Memory Compatibility: None
- Recording Feature: false
- Compatibility
- Compatibility: Universal
- Wi-Fi Built-in: false (Able to connect directly to a wireless network without the use of an adapter.)
- Features
- Lane Guidance: true
- Integrated Microphone: false
- Night Vision: false
- Display
- Screen Included: false
- Mounting
- Camera Mounting Location: Side mirror
- Mount Included: true
- Mount Type: Flush mount
- Input
- Number Of Auxiliary Inputs: 0
- Number of USB Port(s): 0
- Dimensions
- Product Height: 0.98 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.98 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 0.83 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: None
- Other
- UPC: 609098822114
Add a back-up, front view or side view camera to your vehicle with this Universal Adjustable Back-Up or Front View Camera with Parking Lines by EchoMaster. The PCAM-360-N is a versatile, adaptable safety camera that can be installed on the rear, front or side of any vehicle. This universal adjustable camera features an ultra-wide 170° viewing angle to reduce blind spots and selectable parking lines for added assistance with reversing.
- Universal compatibility: For installation with your existing vehicle.
- Adjustable, versatile mount design: Allows installation as a back-up, front view or side view camera.
- 170° ultra-wide viewing angle: Delivers an expansive view of the area around your vehicle.
- IP67-rated water-resistant and debris-proof camera: Provides trouble-free operations in all weather conditions and prevents the elements from penetrating the camera and distorting your screen.
- 1/4" CMOS image sensor: Provides crisp, clear images.
- Operates at 0.3 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
- Selectable parking lines: Ensure extra security and guidance while reversing.
- Mirrored or non-mirrored image: For flexible operation.
- Three-year warranty: To protect you against defects in materials and workmanship.
- Universal compatibility: For installation with your existing vehicle.
- Adjustable, versatile mount design: Allows installation as a back-up, front view or side view camera.
- 170° ultra-wide viewing angle: Delivers an expansive view of the area around your vehicle.
- IP67-rated water-resistant and debris-proof camera: Provides trouble-free operations in all weather conditions and prevents the elements from penetrating the camera and distorting your screen.
- 1/4" CMOS image sensor: Provides crisp, clear images.
- Operates at 0.3 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
- Selectable parking lines: Ensure extra security and guidance while reversing.
- Mirrored or non-mirrored image: For flexible operation.
- Three-year warranty: To protect you against defects in materials and workmanship.
Whats Included
- EchoMaster Universal Adjustable Back-Up or Front View Camera with Parking Lines
- Mounting hardware
- Hole saw
- Harness
- Angle adjustment tool
- User manual
- EchoMaster Universal Adjustable Back-Up or Front View Camera with Parking Lines
- Mounting hardware
- Hole saw
- Harness
- Angle adjustment tool
- User manual
Product Manuals
Q: How is this camera powered?
A: This camera is powered by the vehicle's battery.
Q: Does this camera have parking assist?
A: Yes, this camera has selectable parking lines for added assistance when reversing.
Q: What is the viewing angle of this camera?
A: This camera has an ultra-wide 170° viewing angle to help reduce blind spots.
Q: What is the warranty on this camera?
A: This camera comes with a three-year warranty to protect against defects in materials and workmanship.
Q: Can this camera be used as a front view camera?
A: Yes, this camera can be installed as a back-up, front view, or side view camera.
Q: Is this camera compatible with my car?
A: This camera has universal compatibility and should work with your existing vehicle.
A: This camera can connect to any aftermarket radio or monitor that has a standard composite video (yellow RCA type) input.
