Emporia - EV Charger / NEMA 14-50 / J1772 - White
- General
- Brand: Emporia
- Model Number: EMEVSE1-A-N-J
- Product Name: EV Charger / NEMA 14-50 / J1772
- Color: White
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: NEMA 14-50
- Charging Cable Length: 24 feet
- Surge Protection: True
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Assistant, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Display Type: LED
- Mount Type: Wall
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Certifications and Standards: UL-2594
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Environmental
- Indoor or Outdoor Use: Indoor, Outdoor
- NEMA Enclosure Rating: Type 4
- Dimensions
- Product Height: 3.39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.05 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18 pounds (The out of box weight of the item.)
- Other
- UPC: 850019360066

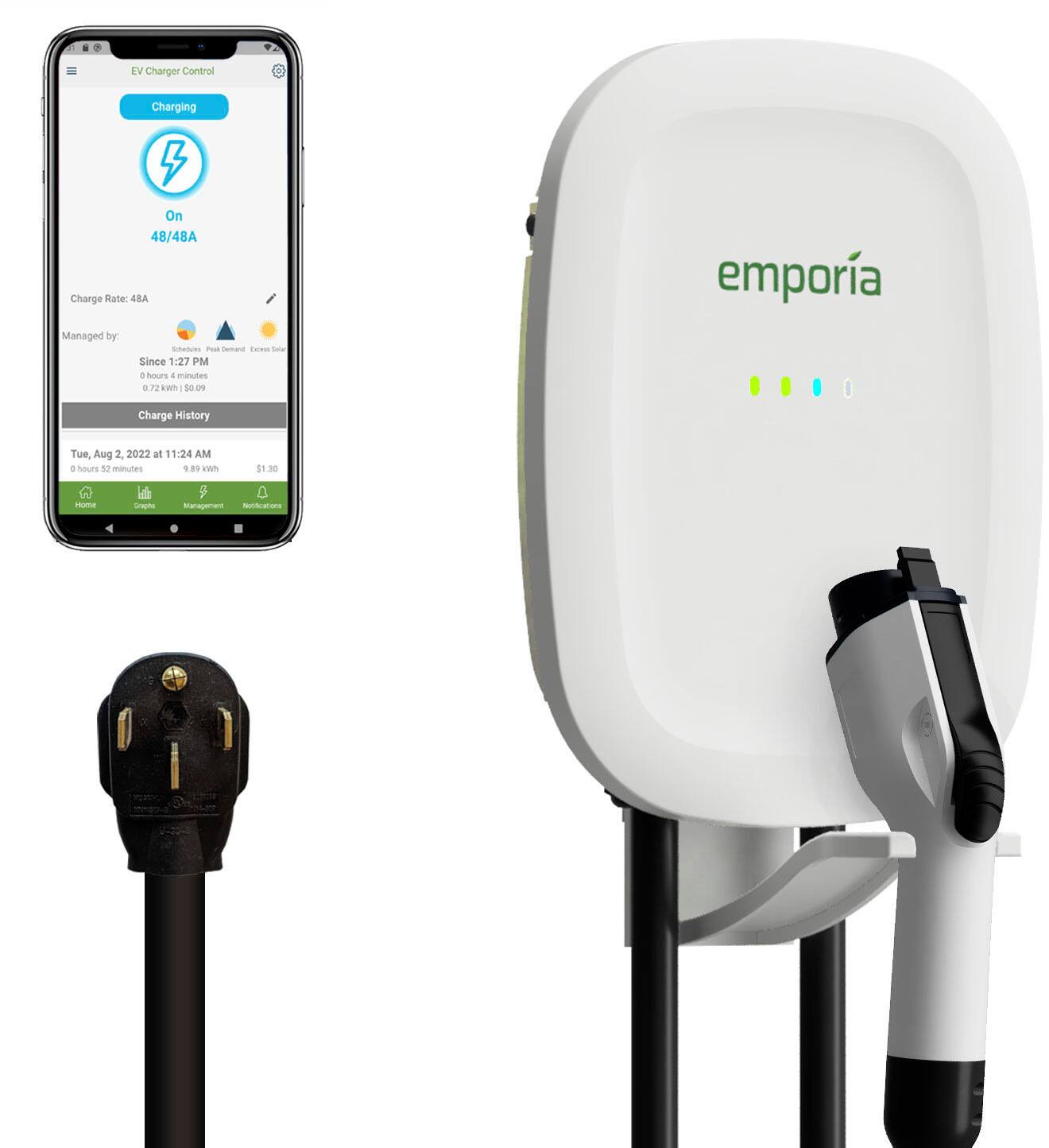

The Emporia EV Charging Station is a Level 2 electric vehicle charger that charges any EV up to 40 amps with NEMA 14-50P (with 11" cable compliant with 2017 NEC Section 625.17(A)(3)) or up to 48 amps with hardwired installation. It comes with a 24’ cable (from charger to tip of gun) with an SAE J1772 connector so it works with all electric cars. Its IP66 enclosure is made to withstand the elements outdoors.
- UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER: DEFAULT CHARGE RATE is 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
- UL LISTED WITH YOUR SAFETY IN MIND: Manufactured to meet the safety criteria defined by: NEC 625, SAE J1772 or J3400, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. Check with your state and local company to see if there are incentives and rebates in your area. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
- NEMA 14-50 PLUG READY: 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) up to 40A NEMA Type 14-50P with 22" cable compliant with 2017 NEC Section 625.17(A)(3). Requires a dual-pole, dedicated breaker at 50A+ for a 40A charge. A professional electrician is recommended for installing a NEMA Plug.
- COMPATIBLE WITH ANY EV: The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
- REAL-TIME ENERGY DATA: Requires a 2.4GHz Wifi connection with internet to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
- UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER: DEFAULT CHARGE RATE is 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
- UL LISTED WITH YOUR SAFETY IN MIND: Manufactured to meet the safety criteria defined by: NEC 625, SAE J1772 or J3400, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. Check with your state and local company to see if there are incentives and rebates in your area. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
- NEMA 14-50 PLUG READY: 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) up to 40A NEMA Type 14-50P with 22" cable compliant with 2017 NEC Section 625.17(A)(3). Requires a dual-pole, dedicated breaker at 50A+ for a 40A charge. A professional electrician is recommended for installing a NEMA Plug.
- COMPATIBLE WITH ANY EV: The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
- REAL-TIME ENERGY DATA: Requires a 2.4GHz Wifi connection with internet to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
Q: What is the maximum amperage this EV charger can handle?
A: The Emporia EV Charging Station can handle up to 40 amps with a NEMA 14-50P connection or up to 48 amps when hardwired.
Q: Is this EV charger UL certified?
A: Yes, the Emporia EV Charger is UL Listed and meets the safety standards of UL 2594.
Q: Can I use this EV charger outdoors?
A: Yes, the charger has an IP66 enclosure, making it suitable for both indoor and outdoor installations.
Q: Does this EV charger work with all electric vehicle models?
A: Yes, it comes with a SAE J1772 connector, which is compatible with all electric cars. However, a Tesla adapter is required for Tesla EVs.
Q: Does this EV charger offer any surge protection for my vehicle?
A: Yes, the Emporia EV Charger is equipped with built-in surge protection to ensure the safety of your electric vehicle during charging.
Q: How long is the charging cable that comes with this EV charger?
A: The Emporia EV Charger includes a 24-foot cable, measured from the charger to the tip of the connector.
Q: Can you change the level of charging max voltage? If so what are the levels one can choose?
A: I don't have one yet, but the install manual says you can change the charge rate, and it doesn't list values. "It is set from the factory to charge at 40 Amps (NEMA 14-50) or 48 Amps (Hardwired). To raise or lower the charge rate to match your breaker size and installation type, as well as to take advantage of the numerous other features available from Emporia, return to the Emporia App, choose Add a Device under Manage Devices and follow the instructions to set up your EV Charger. "
