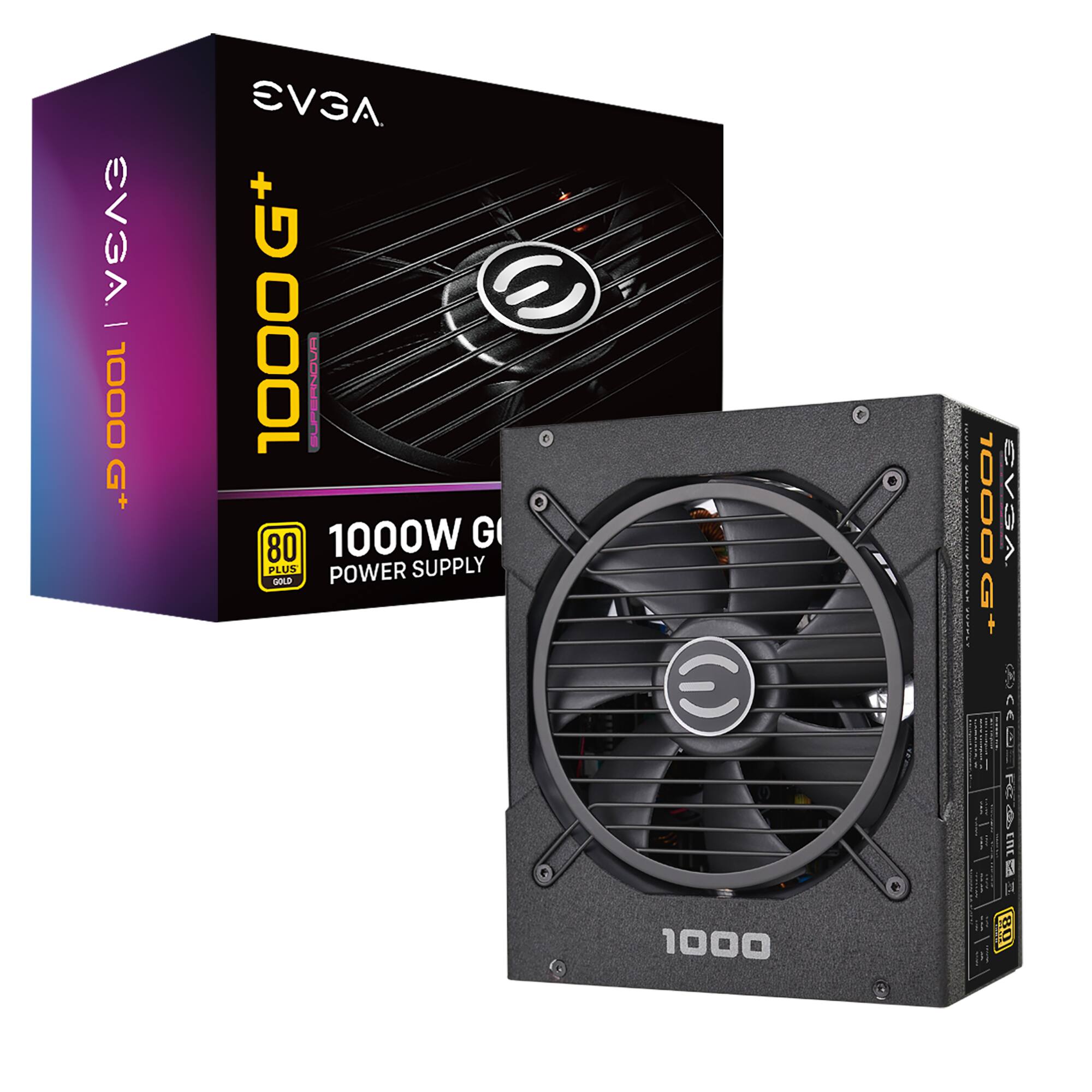

EVGA - GP Series SuperNOVA 1000W ATX 80 Plus Gold Fully Modular Power Supply - Black
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: Power 24 pin ATX, power 8 pin EPS12V with detachable 4 pin ATX12V section (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 8 pin PCI Express power with detachable 2 pin section (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- SATA Connector: 15 pin Serial ATA power (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- Product Length: 180.34 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: EVGA
- Model Number: 120-GP-1000-X1
- Product Name: GP Series SuperNOVA 1000W ATX 80 Plus Gold Fully Modular Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX / EPS
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 4.9 feet
- Connectivity
- ATX Connector: Power 24 pin ATX, power 8 pin EPS12V with detachable 4 pin ATX12V section (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 8 pin PCI Express power with detachable 2 pin section (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- SATA Connector: 15 pin Serial ATA power (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- Dimensions
- Product Height: 83.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 180.34 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 128 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: Other
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Other
- UPC: 843368048617
The EVGA SuperNOVA G+ Power Supplies have arrived. Launched in 2013, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years, it's only fitting that these are due for an upgrade. Enter the G+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating.
Compared to the EVGA SuperNOVA G1 power supplies, the G+ are up to 20mm shorter, feature 100% Japanese capacitors, are up to 20% quieter, have much tighter 12v. load regulation, and have a superior fluid-dynamic bearing fan. Combining a full set of current, voltage, and temperature protections with EVGA's World Leading 10-Year Warranty, the EVGA SuperNOVA G+ power supplies set the new Gold standard for performance and value.
- 1000W power supply: Delivers the power needed to run your PC.
- AC 100-240V input: With input 50-60Hz frequency for wide-ranging use.
- ATX and EPS compliance: Meets industry standards.
- 135mm fluid dynamic bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Maximum safety to your critical system components: Provides overheat, overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
Whats Included
- EVGA 1000W ATX /EPS 80 Plus Gold Modular Power Supply
Product Manuals
A: You should be just fine. Cables will be a little more thick than the current ones but otherwise it’s all the same just plug and play.
A: You get 10 years total if you register with EVGA They even have the ability to upload your receipt to your for registration so you don't have to go looking for it 6 years from now if you have a claim.
A: Comes with SIX 8 pin cables for VGA power!!! (There is SIX 8-Pin Output Ports on the PSU. 2 of the 6 cables are double 8 pin outputs.
Q: Work with 4090 graphic card?
A: It will not work 'direct' to a 4090 (or 3090ti), you have to use the Nvidia 12+4 (to 3 or 4 x 8-pin) adapter. This is not a PCIE 5.0/ATX 3.0 power supply so it does not have the 12+4 connection built in (nor does it come with the cable that would go directly from the power supply to the 4090).
A: This will fit in any ATX Tower PC case. I believe that most computer towers today adhere to the ATX standard so it should fit in yours. I have a Dell XPS 8930 Desktop and swapped out the 450 Watt Power Supply with this one in less than 10 minutes. If in doubt, you should contact your local Best Buy Sales Rep and provide them with the brand and model number of your PC and they can look it up for you.
Q: How many 6 pin connectors does it have? i need 8
A: It has 6, 6 pin connectors. Back image of the product in the product image list gives a great view of whats included.
Q: will this power-supply be compatible with the 3080 GPU?
A: Yes it works great with my 3080
