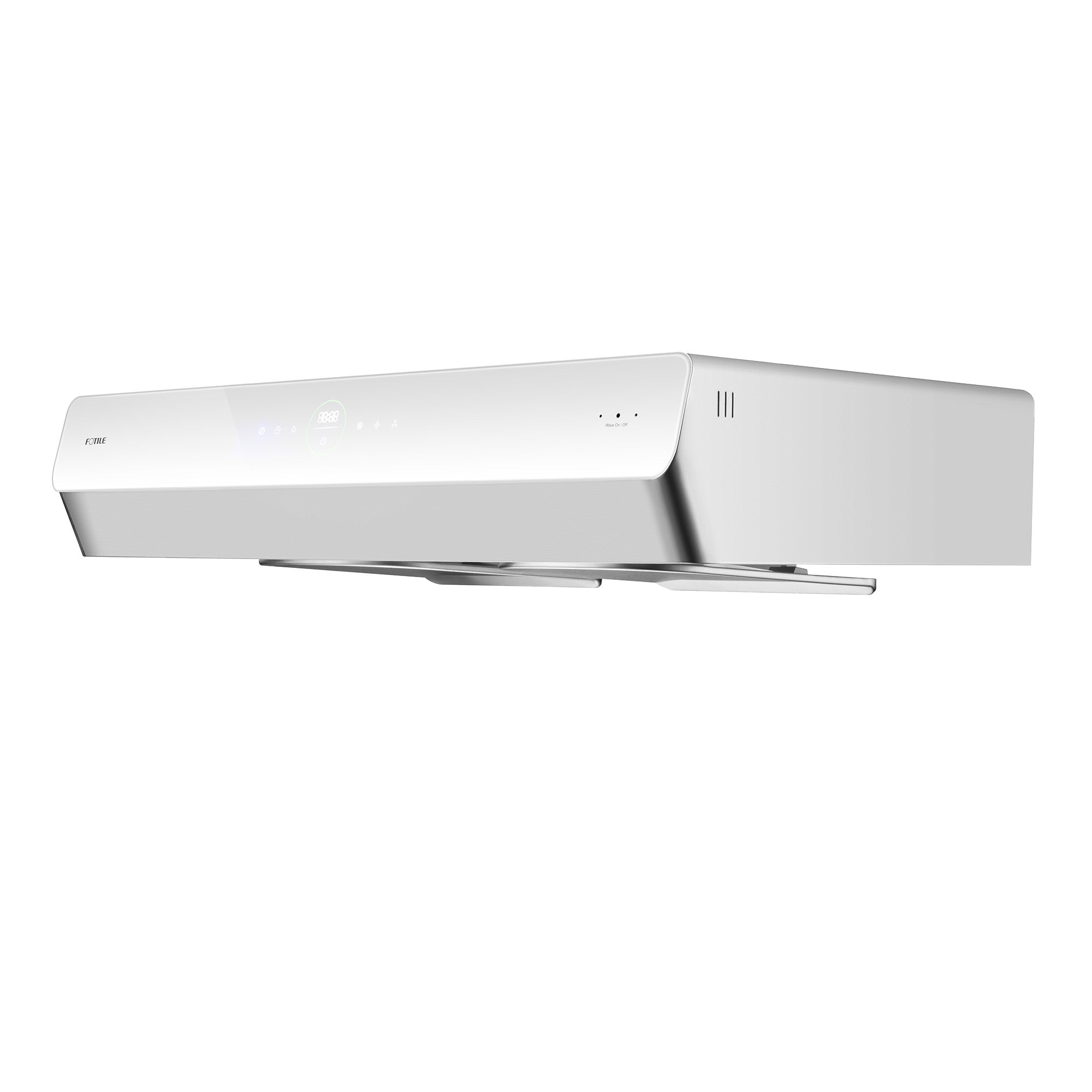

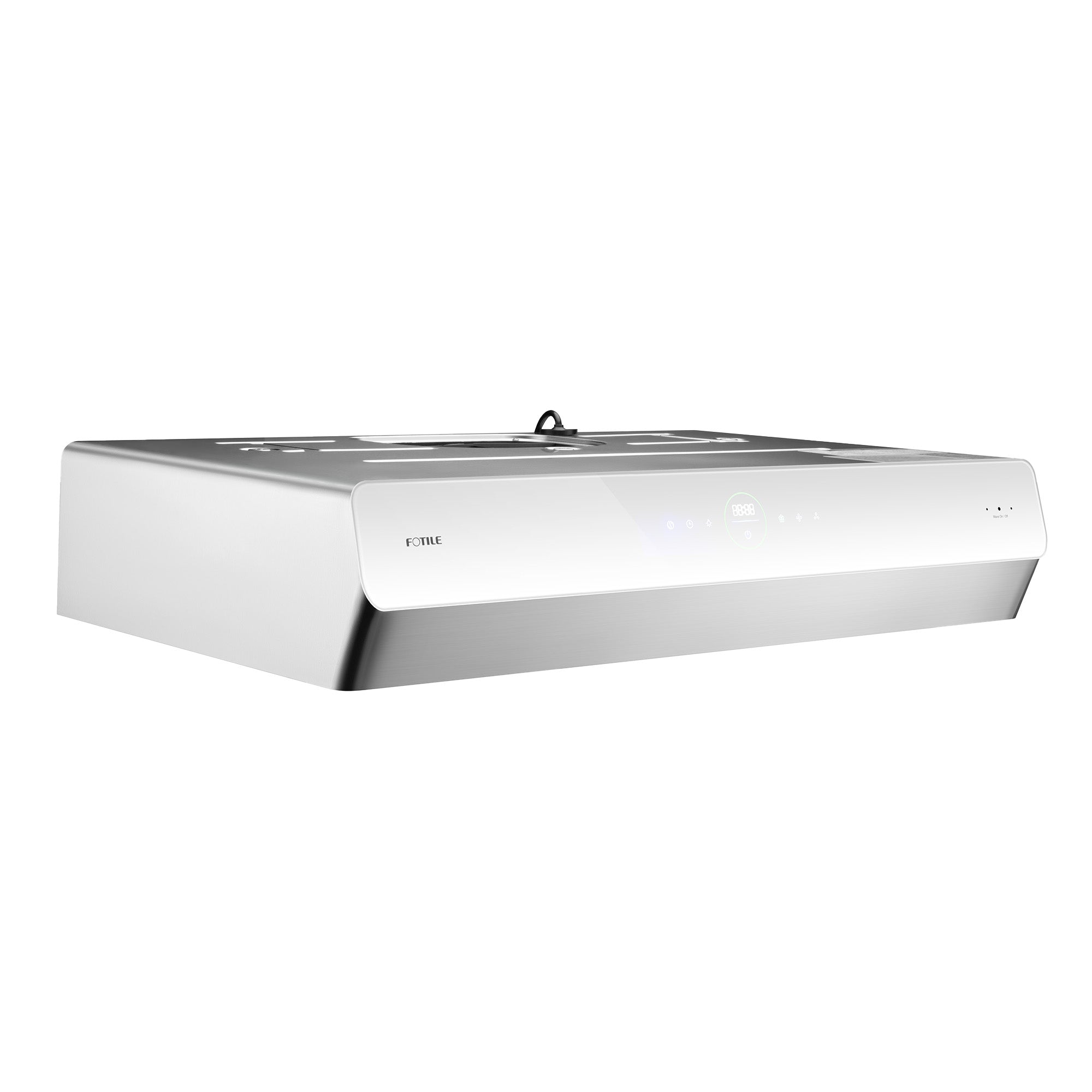

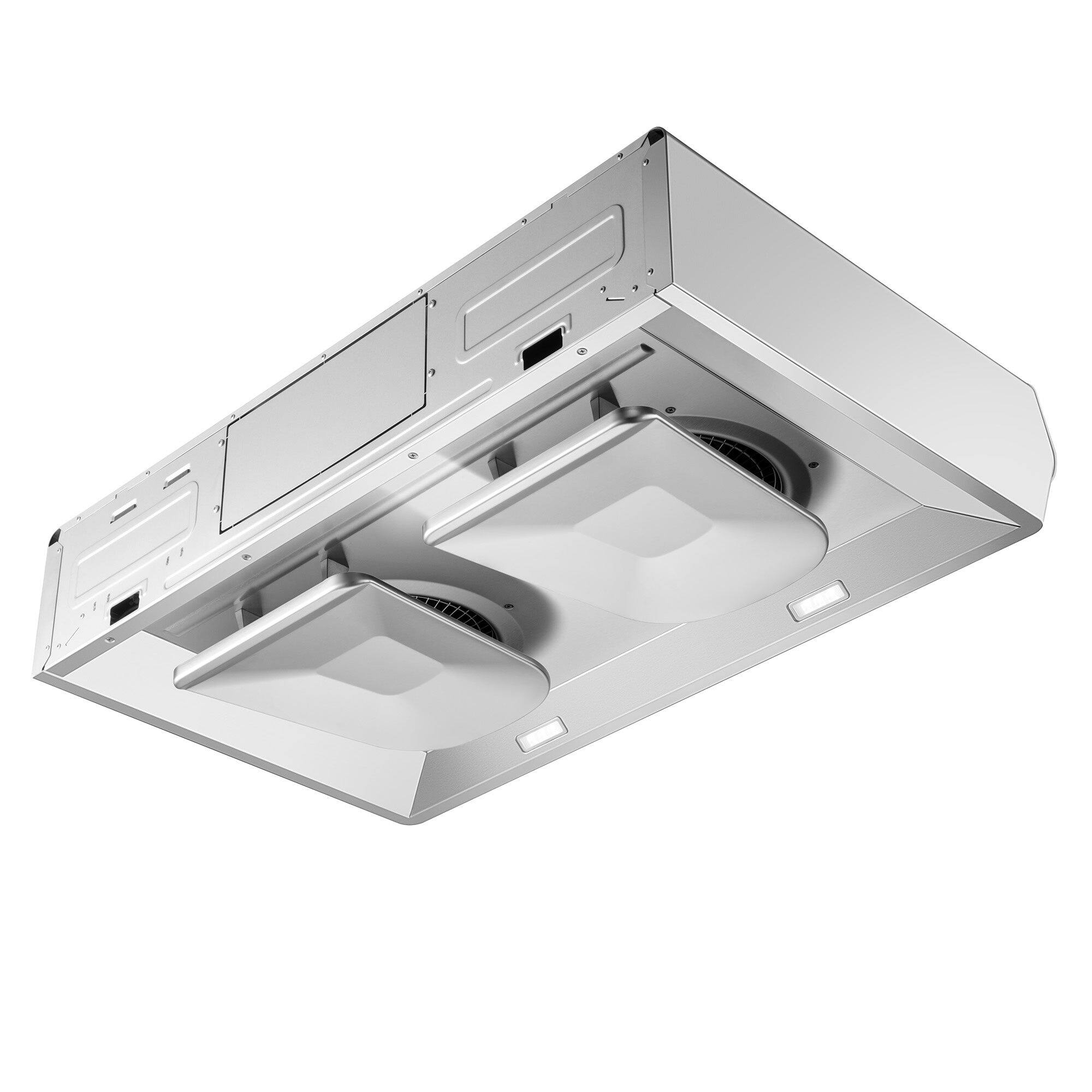

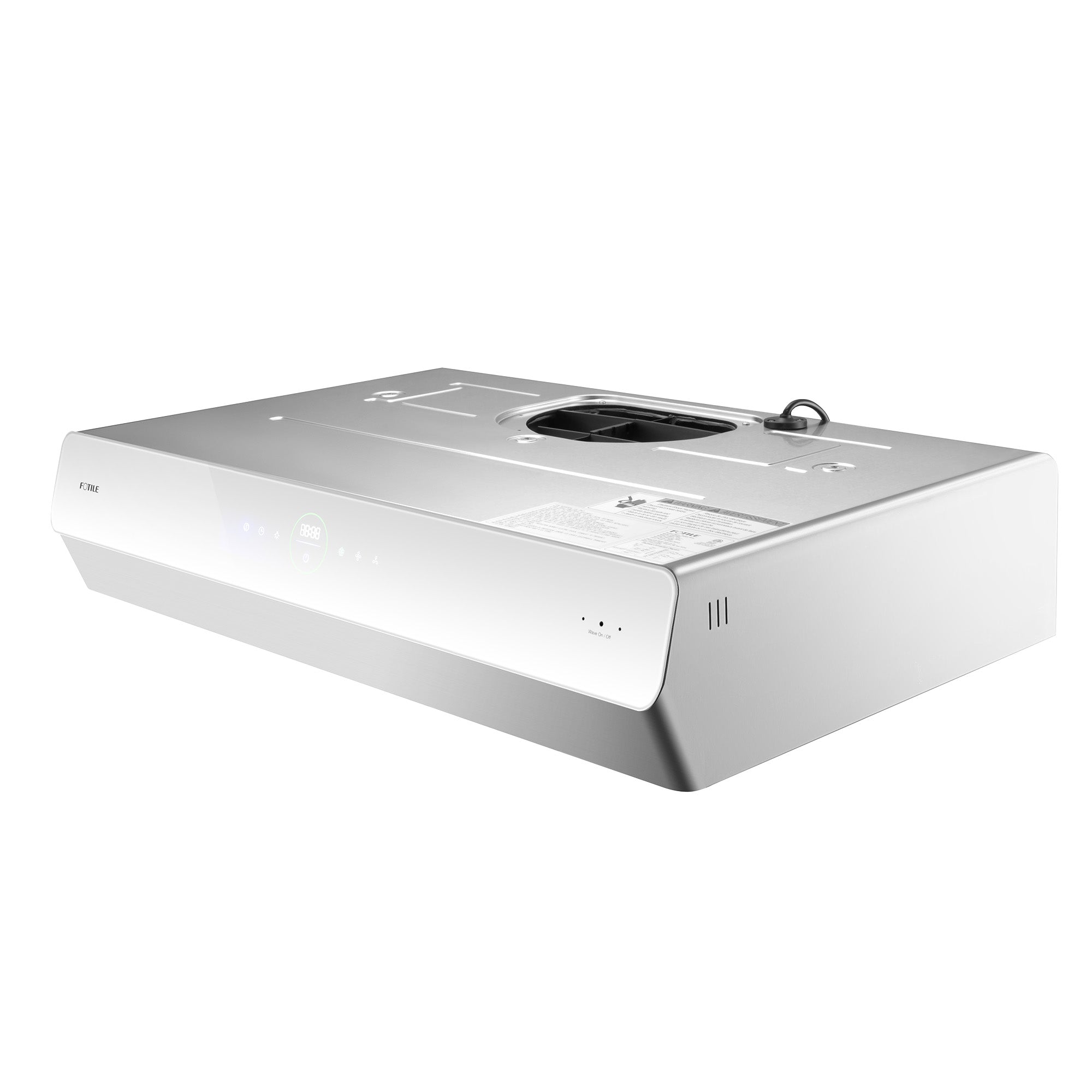

FOTILE - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Related Item
Specifications
- Color FinishWhiteProduct Height8.31 inchesProduct Width35.75 inchesProduct Depth22.06 inchesExhaust Vent LocationTop/RearVent TypeDucted
- Key Specs
- Color Finish: White
- Product Height: 8.31 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22.06 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: FOTILE
- Model Number: UQG3602
- Product Name: FOTILE Pixie Air Series 36" 850CFM Under the Cabinet Range Hood in White Tempered Glass
- Color: Stainless Steel
- Color Finish: White
- Dimensions
- Product Height: 8.31 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 32 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 35.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22.06 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 56.2 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touchscreen
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 3 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 240 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 5 Years Parts
- Warranty - Labor: 2 Years Labor
- Other
- UPC: 856454005975
The FOTILE Pixie Air Series Under-Cabinet Range Hood (UQG3002/UQG3602) combines innovative design with powerful performance to enhance your kitchen. This 30-inch or 36-inch range hood offers a sleek, slim-line look in an off-white finish, seamlessly fitting under cabinets to save space while maintaining a sophisticated aesthetic. Equipped with a high-powered 640 CFM motor, it efficiently removes smoke, grease, and kitchen odors, ensuring a clean and fresh cooking environment. The unique Capture-Shield Technology captures and condenses cooking fumes, preventing grease from spreading and making cleanup easy. Its convertible design allows for both ducted and ductless installation, providing flexibility to suit various kitchen layouts. The FOTILE Pixie Air Range Hood features touch control panels for easy operation, including three-speed settings and a delay-off function for continued ventilation after cooking. Bright LED lighting illuminates your cooking area, improving visibility and safety. Constructed with durable materials and a contemporary design, this range hood is both functional and stylish. The quiet operation ensures minimal disruption, allowing you to enjoy a peaceful kitchen environment. The FOTILE Pixie Air Series is an ideal choice for those seeking a high-performance, aesthetically pleasing range hood that enhances the overall kitchen experience. Max. EQUIV. CFM: 850: The Pixie Air range hood delivers powerful ventilation with a maximum equivalent of 850 cubic feet per minute (CFM), ensuring efficient removal of smoke, grease, and unwanted odors. 37db Minimum Noise Level: The Pixie Air range hood features FOTILE’s Bionic Impeller, ensuring ultra-quiet operation at a minimum noise level of 37 decibels, allowing for a peaceful cooking environment. Convertible with Recirculation Kit: Easily adaptable, this range hood can be installed as a ducted or ductless system using the included recirculation kit, offering flexibility for various kitchen setups Patented 3.0 Capture Shield Technology: Capture-Shield Plates enhance air speed and suction power, ensuring fast ventilation. They also include a no-drip oil cup to capture grease, keeping your kitchen cleaner. 5/15/30 Mins Delay Shutoff: Remove lingering odors after cooking with the Multi-Shift Delay Shutoff feature. Program the delay for 5, 15, or 30 minutes and let the Pixie Air handle the rest.
- Slim Design: Low profile and compact, the Pixie Air™ will blend seamlessly into your kitchen and match your existing appliances
- Combi-Vent: Flexible installation with direct venting or recirlatory venting as an accessory
- CFM Adjustment Technology, WhisPower Technology: Comply with local CFM ordinances with pre-set CFM settings, Maximises the CFM power of your range hood due to filterless technology and comfortable working sound
- Touch Free Motion Gesture Operation: Power the Unit On/Off through Hand Motion Gesture
- An Intelligent Air Management System: An Intelligent Air Management System monitors the kitchen's air for fumes or gases and if detected, the range hood will automatically turn on and vent out of the house; Once the system senses clean air, it will automatically shut off the range hood
Q: What color is this hood? Is the front white?
A: Thanks for your patience. For the UQG3602, the panel is made of stainless steel, so its color is not white but a stainless steel finish. If you have any further questions, please contact us via email at serviceusa@fotile.com. We will be happy to provide you with detailed assistance. Thank you for your interest in and support of Fotile products.
