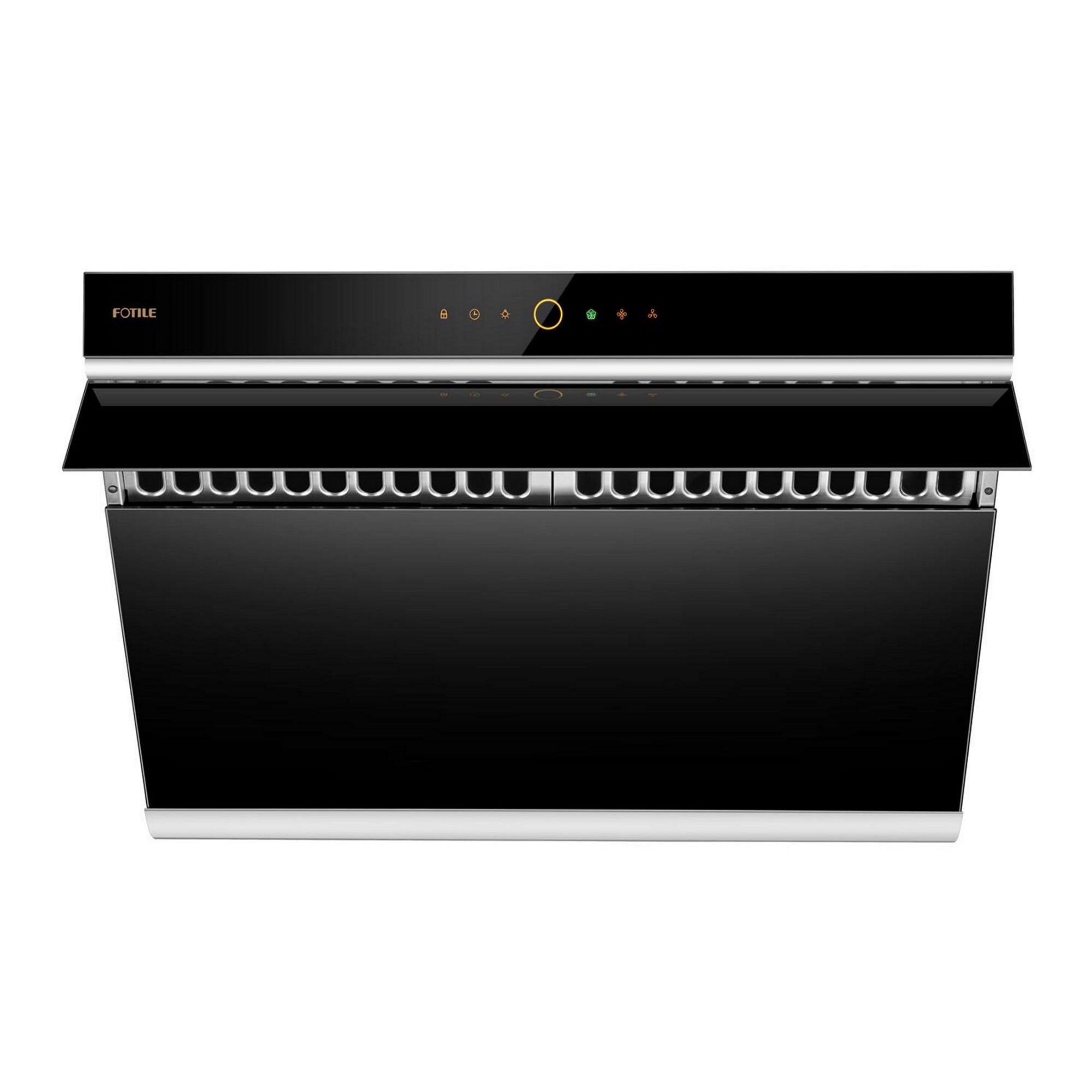

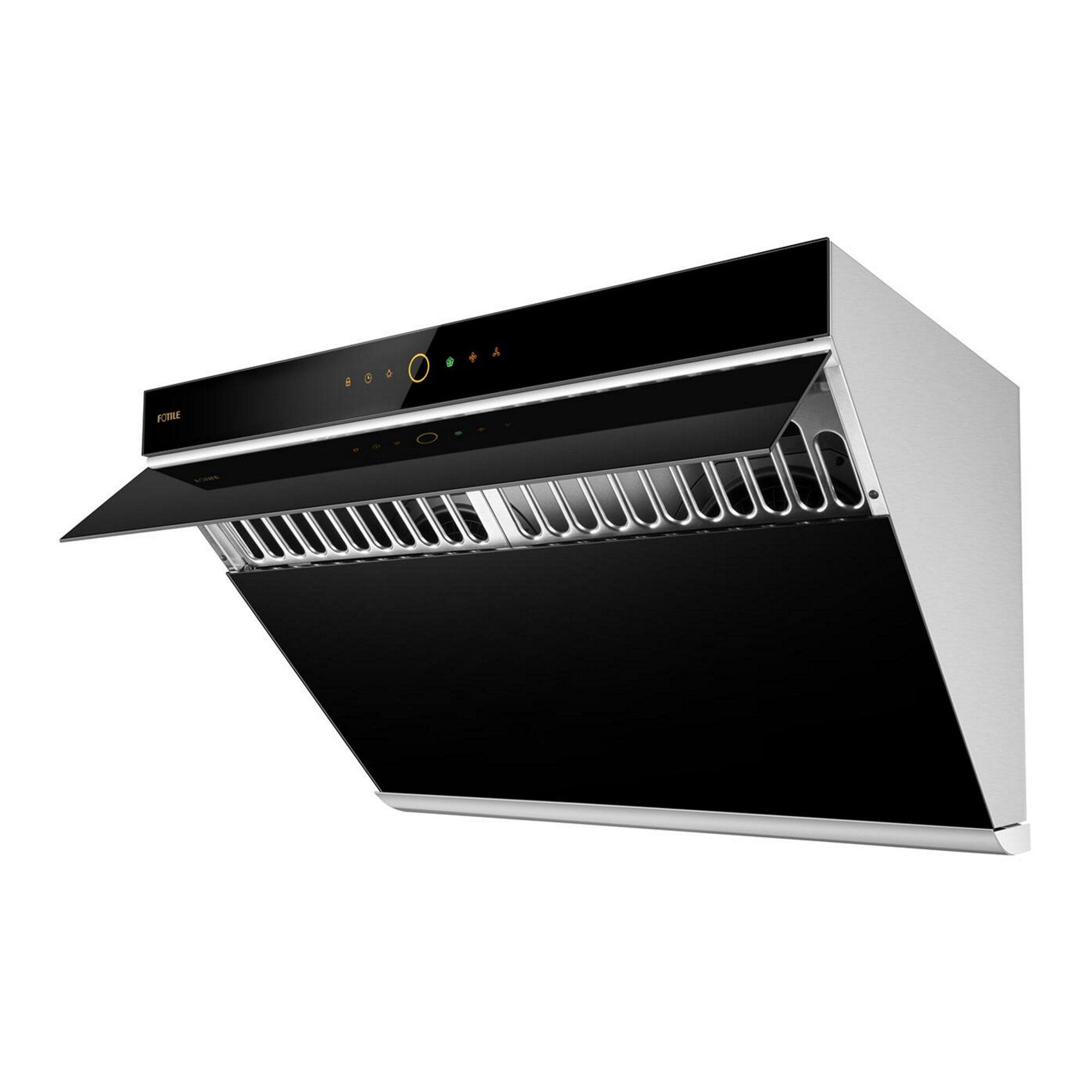

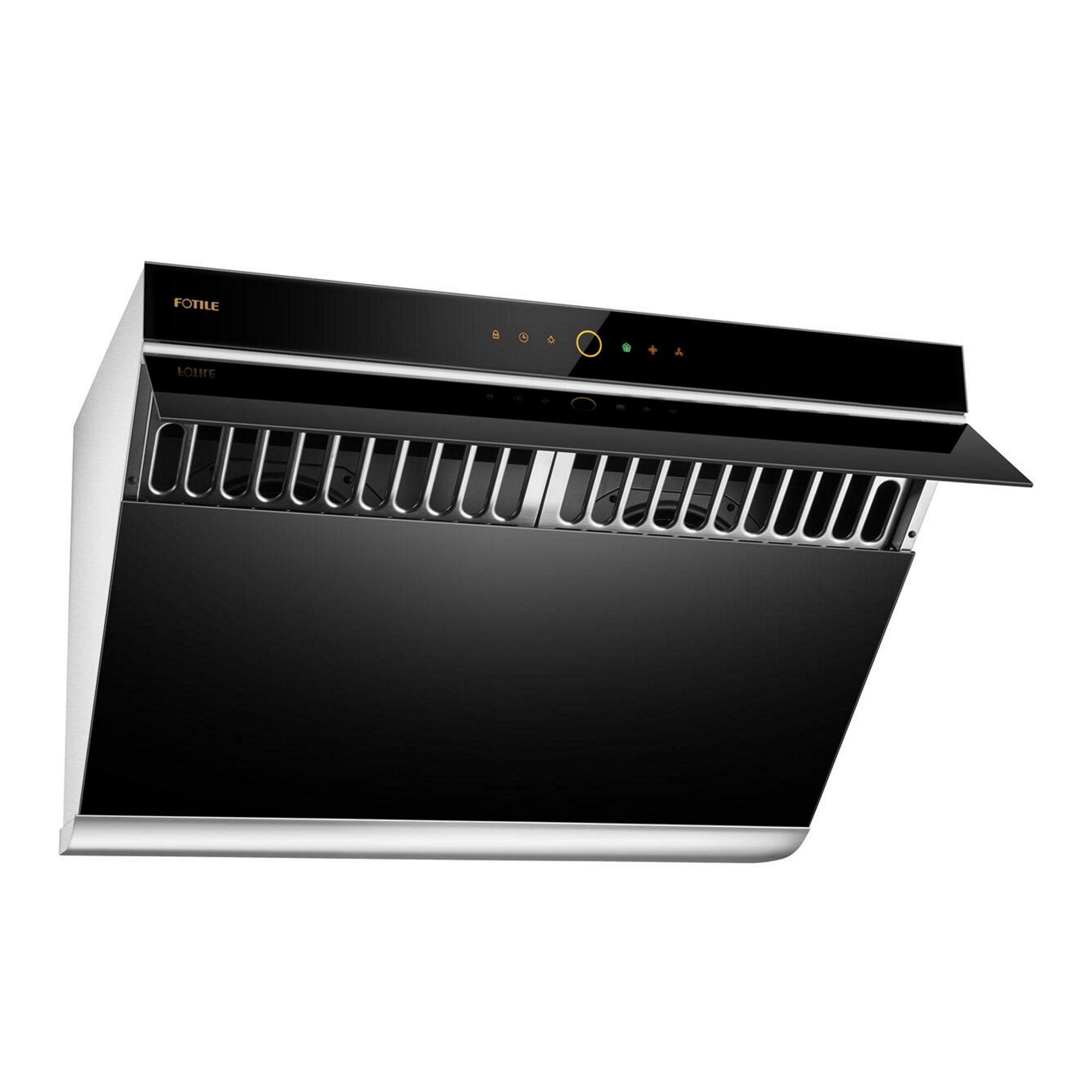

FOTILE - 30 inches - Externally Vented - Under cabinet Range Hood - Black
FREE shipping to
Specifications
- Color FinishBlackProduct Height17.4 inchesProduct Width29.9 inchesProduct Depth18.43 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Black
- Product Height: 17.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: FOTILE
- Model Number: JQG7505
- Product Name: FOTILE 30" 1000CFM Under Cabinet|Wall Mount Range Hood in Black Tempered Glass
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 17.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 29.5 inches
- Maximum Installation Height Above Cooktop: 32.5 inches
- Product Width: 29.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 64.6 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touchscreen
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 3 watts
- Performance
- Maximum Air Flow Capacity: 580 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 220 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 7.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 2 years
- Other
- UPC: 856454005425
FOTILE Slant Vent Series, 30 In. wall mount under-cabinet ducted range hood not only provides excellent performance but looks great as well. With an automatic opening baffle plate when the unit is powered on, it will open to a 90 degree angle capturing smoke and fumes before they escape. A large 6 square feet coverage area easily covers all 4 or 5 burners on your cooktop guiding smoke upwards and creating a barrier to prevent you from breathing in harmful smoke and grease. The JQG7505 is capable of normally producing 600 CFMs, but with the WhisPower motor Technology and Capture-Shield extraction, it can achieve a maximum power of 1000 CFM and lowest noise level 38dB. It is closer to the surface than traditional range hoods, maximizing the unit’s speed and efficiency for maximum smoke extraction. An elegant touchscreen control with 4 fan speed settings, it has a screen lock function to ensure your unit will not power on while you clean it with a damp cloth. A delayed shutoff function, keeps the fans on for an additional 2 minutes after your done cooking to ensure all the smoke and odor are removed from your kitchen. You can also wave at the hood to turn it ON and OFF for ease of use. Two powerful LED lights with 500 lux power light up your cooktop so you can see your food as you cook. Cleaning is easy with a large removable grease tray and removable baffle filter which are dishwasher safe. The JQG7505 will bring a whole new culinary experience to you and your family.
- Slant Vent Series: Our FOTILE range hood uses a 90° automatic open baffle plate that helps reduce the spread of cooking fumes or odors and quickly exhaust up to 6 sq. ft. of space for improved airflow.
- POWERFUL AND QUIET OPERATION: The industry's first side draft range hood with dual DC motors, boasting maximum static pressure at 540Pa, and increasing the effective extraction rate by 30% (Compared to traditional range hood), providing better extraction while lowering noise level to 39dB, so you can still enjoy conversations with friends or family.
- MOTION ACTIVATION TECHNOLOGY: Using infrared connectivity you can simply operate this kitchen range hood with a wave of your hand. This allows you to turn it off or on without smudging the surface. TOUCH SCREEN WITH ADJUSTABLE SPEEDS – This ducted range hood features 4 quick adjust airflow speeds, including a stir fry mode when held for 2 seconds, give you more control over your cooking needs.
- IMPROVED GREASE AND OIL CAPTURE: We use dual centrifugal motor &impeller in this ducted range hood to help separate up to 95% of grease and fumes , 98% odor reduction from the surrounding air. The Grease Tray and Filter can also be removed easily for quick cleaning.
- Slant Vent Series: Our FOTILE range hood uses a 90° automatic open baffle plate that helps reduce the spread of cooking fumes or odors and quickly exhaust up to 6 sq. ft. of space for improved airflow.
- POWERFUL AND QUIET OPERATION: The industry's first side draft range hood with dual DC motors, boasting maximum static pressure at 540Pa, and increasing the effective extraction rate by 30% (Compared to traditional range hood), providing better extraction while lowering noise level to 39dB, so you can still enjoy conversations with friends or family.
- MOTION ACTIVATION TECHNOLOGY: Using infrared connectivity you can simply operate this kitchen range hood with a wave of your hand. This allows you to turn it off or on without smudging the surface. TOUCH SCREEN WITH ADJUSTABLE SPEEDS – This ducted range hood features 4 quick adjust airflow speeds, including a stir fry mode when held for 2 seconds, give you more control over your cooking needs.
- IMPROVED GREASE AND OIL CAPTURE: We use dual centrifugal motor &impeller in this ducted range hood to help separate up to 95% of grease and fumes , 98% odor reduction from the surrounding air. The Grease Tray and Filter can also be removed easily for quick cleaning.
