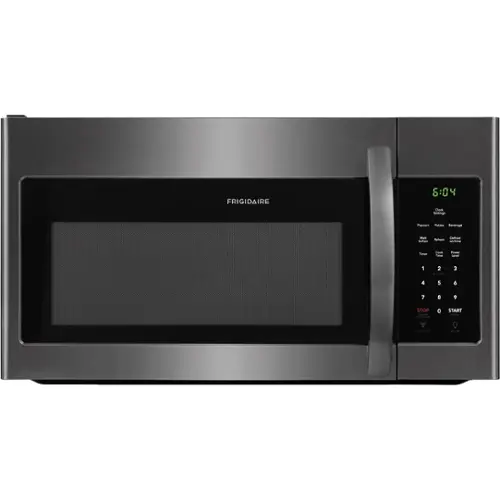

Frigidaire - 1.6 Cu. Ft. Over-the-Range Microwave - Black stainless steel
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 16 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12 1/2 inches
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Frigidaire
- Model Number: FFMV1645TD
- Product Name: 1.6 Cu. Ft. Over-the-Range Microwave
- Color: Black stainless steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 16 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 52.6 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 17 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.6 cubic feet
- Microwave Size: Full-size
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12 1/2 inches
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Number of Preset Programs: 6
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Front
- Maximum Air Flow Capacity: 220 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 13 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Other
- UPC: 012505563867
Cook large items inside this 1.6 cu. ft. Frigidaire over-the-range microwave. It lets you prepare many common foods at the touch of a button and has programmable settings you can choose to cook at multiple power levels and for preset lengths of time. This Frigidaire over-the-range microwave has a zero-clearance door that lets it fit in compact spaces.
- 1000W for standard microwave cooking: Cook frozen meals in a snap, or heat coffee, soup and leftovers in no time.
- Defrost settings offer versatility: Quickly thaw frozen items, choosing from weight and time defrost.
- Sensor controls do the cooking for you: Built-in sensors detect steam emitted by the cooking food, and then automatically adjust the cooking time, so you can focus on the next item for prep.
- A variety of cooking programs to fit your needs: Popcorn, soften, melt, potato, auto reheat, and more.
- Large 12.5" turntable keeps food rotating: By turning food items as they are prepared, the turntable ensures even, thorough cooking.
- 400 cfm fan helps remove cooking odors from your kitchen: Grease filter aids in keeping your kitchen clean.
- LED cooktop light illuminates the cooking surface below: So you can see what you're cooking on the stove.
- Electronic controls: Help simplify cooking selection.
- 1000W for standard microwave cooking: Cook frozen meals in a snap, or heat coffee, soup and leftovers in no time.
- Defrost settings offer versatility: Quickly thaw frozen items, choosing from weight and time defrost.
- Sensor controls do the cooking for you: Built-in sensors detect steam emitted by the cooking food, and then automatically adjust the cooking time, so you can focus on the next item for prep.
- A variety of cooking programs to fit your needs: Popcorn, soften, melt, potato, auto reheat, and more.
- Large 12.5" turntable keeps food rotating: By turning food items as they are prepared, the turntable ensures even, thorough cooking.
- 400 cfm fan helps remove cooking odors from your kitchen: Grease filter aids in keeping your kitchen clean.
- LED cooktop light illuminates the cooking surface below: So you can see what you're cooking on the stove.
- Electronic controls: Help simplify cooking selection.
Whats Included
- Frigidaire 1.6 Cu. Ft. Over-the-Range Microwave
- Frigidaire 1.6 Cu. Ft. Over-the-Range Microwave
A: If it is blowing circuit breakers in your home constantly this is a known issue with this product. Mine died at 14 months, and Electrolux/Frigidaire company will do nothing about it if it is past the 1yr mark. If it is not blowing circuit breakers, there are a few Youtube videos out there that show possible issues with it such as door switches and a monitoring switch, or it may be the 20amp fuse that is up on the right top corner under the touch panel. Again check YouTube, there are a couple good videos out there.
A: Hi SouthBayChef! This microwave oven is designed for adaptation to the following three types of ventilation, outside top exhaust (Vertical Duct), outside back exhaust (Horizontal Duct) and recirculating (Non-Vented Ductless). I hope this helps! -Thanks-
Q: What is the charcoal filter number for the FFMV1645TS Frigidaire overhead microwave?
A: Hi Sherri! Thank you for your inquiry. In researching, we are not showing that this model comes with a charcoal filter. However, it does come with grease filters, part number 5304509444. We hope this helps! -Thanks!-
A: The mounting bracket comes attached to the back of the microwave along the bottom edge. You unscrew the bracket from the microwave, use a template to attach the bracket to the wall, then sit the back of the microwave into the bracket. Tilt the microwave up and attach the screws through the top cabinet. These holes are also pre-drilled using a template. The bracket is pretty close with the bottom of the microwave. Maybe an inch off.
A: Hey Jenny! Yes, the width for the 2 units are the same. If you have any additional questions, comments or concerns, please contact us directly at 800-374-4432 M-F, 8:30 am- 8:00 pm. -Kiara
Q: Can you turnoff the turntable
A: Hey there! Thank you for providing the correct information. -Ciara
Q: How many CFM's with this microwave. Thanks, Lan
A: Hello Lan. The Exhaust Fan (CFM) rating is 2-Speed 105 / 220. Thank you, Anna
A: this one uses a ( J hook type bracket at the back, that you lift the bottom rear on to and then 3 screws though the over head cabinet and your done, as long as u use the template you will be fine , as for size you will have to check your measurements , 2 people required to install, one to hold and one to set the three screws , it is a good model , don't buy the previous versions of this unit , the stainless comes off
