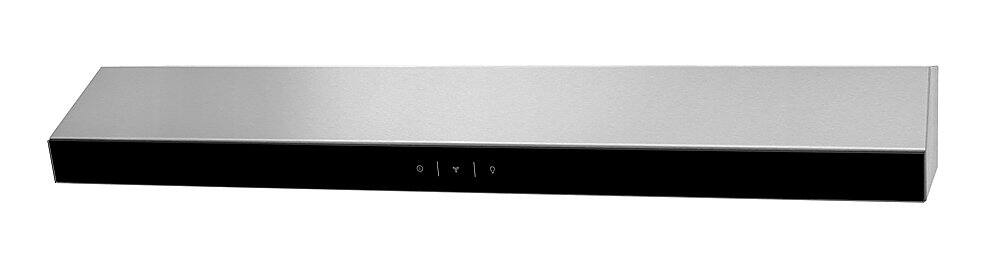

Frigidaire - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Delivery to
Related Item
Specifications
- Color FinishStainless steelProduct Height4 15/16 inchesProduct Width36 inchesProduct Depth19 3/4 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Frigidaire
- Model Number: FCVW3662AS
- Product Name: Undercabinet 36" Ventilation Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 4 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 30 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 13 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 110 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 110 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 10.1 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.7 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info

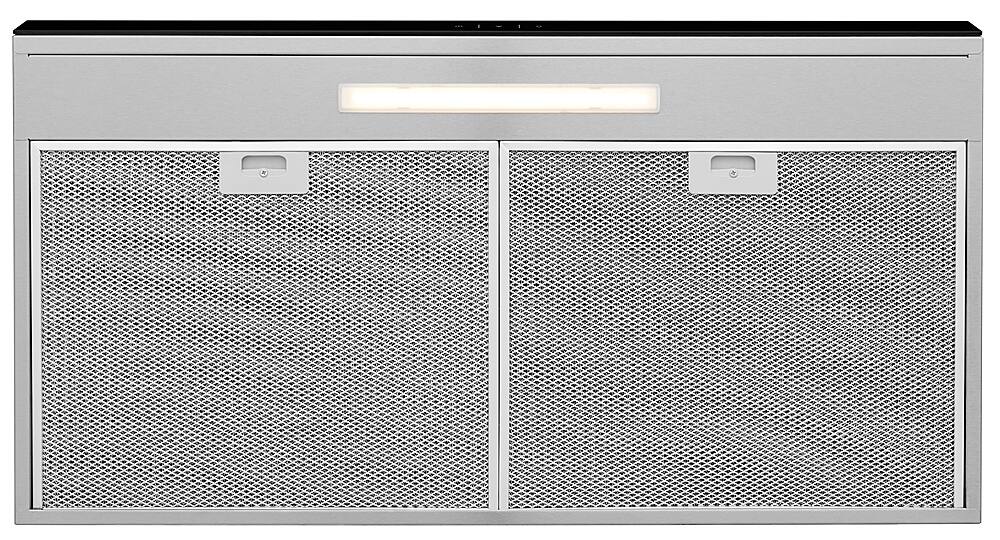

- Filter Material: Aluminum Mesh
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 012505566394
The Frigidaire Undercabinet 36" Ventilation Hood feature a filter indicator light that reminds you when it's time to replace your carbon charcoal filter to continue capturing odors and circulating fresher air. Also offers LED lighting that illuminates the cooktop, capacitive touch controls that make selecting fan and lighting options easier, and a three speed fan that recirculates air at 330 CFM.
- Filter indicator light: Keep your range hood running smoothly with the indicator light that reminds you when it's time to change your carbon charcoal filter.
- Carbon charcoal filter included: Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
- Powerful three speed ventilation fan: Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.
- Bright LED lighting: Get a clearer view of your cooktop with three LED lighting modes that illuminate the cooking surface.
- Dishwasher safe grease filter: Easily clean the aluminum grease filter by putting it in the dishwasher.

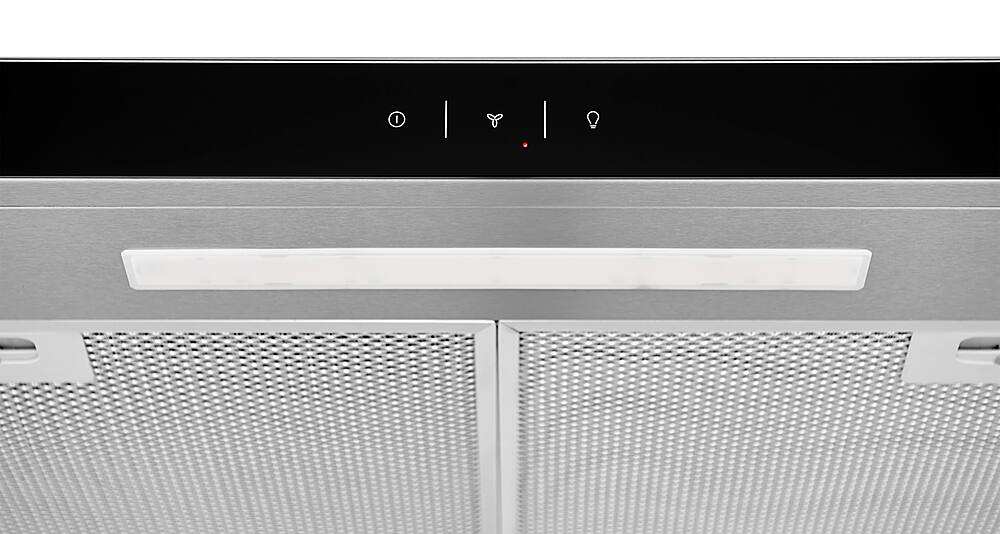

- Capacitive touch control panel: Easily adjust fan speed and lighting with responsive capacitive touch controls
- Convertible design for installation: Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
- Power button: Easily turn on/off the fan and light with the press of a button.

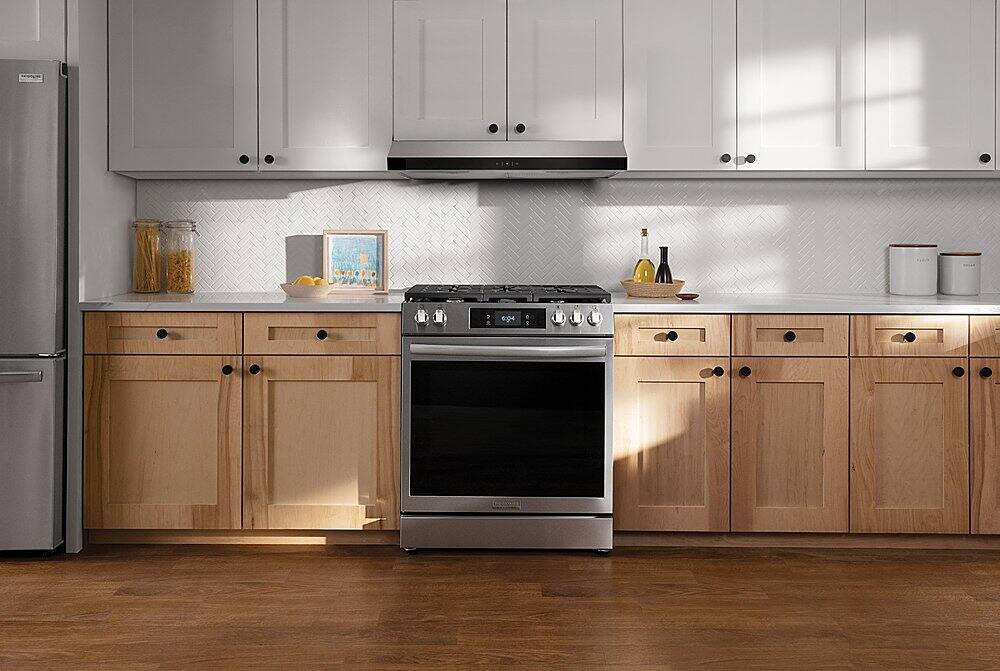

- Stylish built-in look: Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
- Filter indicator light: Keep your range hood running smoothly with the indicator light that reminds you when it's time to change your carbon charcoal filter.
- Carbon charcoal filter included: Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
- Powerful three speed ventilation fan: Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.
- Bright LED lighting: Get a clearer view of your cooktop with three LED lighting modes that illuminate the cooking surface.
- Dishwasher safe grease filter: Easily clean the aluminum grease filter by putting it in the dishwasher.
- Capacitive touch control panel: Easily adjust fan speed and lighting with responsive capacitive touch controls
- Convertible design for installation: Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
- Power button: Easily turn on/off the fan and light with the press of a button.
- Stylish built-in look: Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
Q: What is the maximum installation height above the cooktop?
A: The maximum installation height above the cooktop is 30 inches.
Q: What type of filter does the ventilation hood use?
A: This ventilation hood uses an aluminum mesh filter.
Q: What is the maximum air flow capacity of the ventilation hood?
A: The maximum air flow capacity of this ventilation hood is 110 cubic feet per minute.
Q: How many fan speeds does the ventilation hood have?
A: This ventilation hood has three fan speeds.
Q: Is the filter dishwasher-safe?
A: The filter is dishwasher safe.
Q: How to reset filter indicator? Thanks
A: Thanks for reaching out to us! To reset the filter indicator, hold the fan button for 3 seconds to reset the filter indicator. You will see more details of hood controls on page 16 of the Use and Care Manual. Please see the link for reference: https://content.syndigo.com/asset/5ba050c2-f7d5-4df8-bf5c-5d54938e2aaa/original.pdf. -Rox
Q: What type of bulb does it have
A: Hi there, valued consumer! The Frigidaire 36-inch Convertible Under‑Cabinet Range Hood (model FHWC3625MS), the lighting uses incandescent bulbs, specifically rated at 75 watts per bulb. The exact socket type (e.g., MR16, GU10, PAR20) isn’t detailed in that spec sheet; the appliance uses a standard incandescent replacement, given the “incandescent” designation and wattage rating. - Maico
