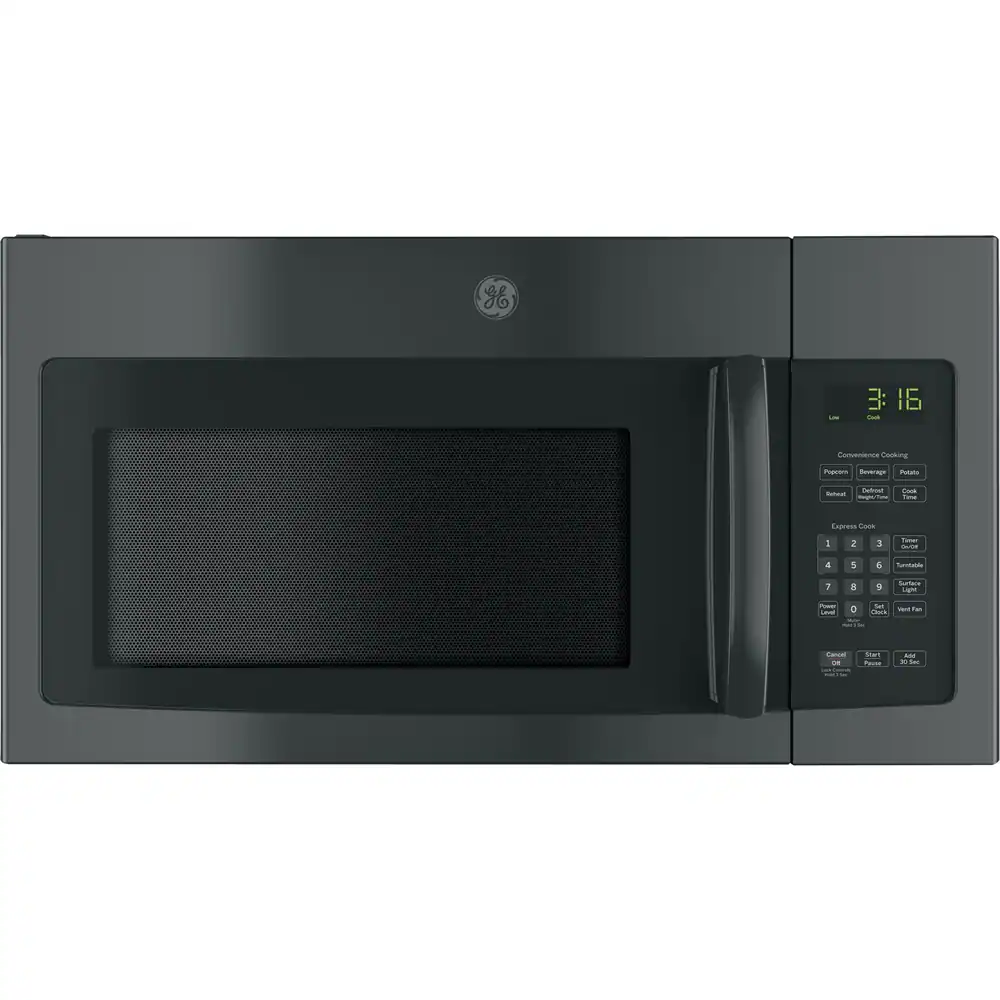

GE - 1.6 Cu. Ft. Over-the-Range Microwave with Convenience Cooking Controls - Black
Color
Black$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishBlackProduct Height16 7/16 inchesProduct Width29 7/8 inchesProduct Depth15 7/8 inchesApp CompatibleNoMicrowave TypeOver-the-range
- Key Specs
- Color Finish: Black
- Product Height: 16 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12 1/2 inches
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 950 watts (Measurement of electrical power.)
- General
- Brand: GE
- Model Number: JNM3163DJBB
- Product Name: 1.6 Cu. Ft. Over-the-Range Microwave with Convenience Cooking Controls
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 16 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 56 pounds (The out of box weight of the item.)
- Interior Microwave Cavity Dimensions: 19-1/2 x 10-15/16 x 14-3/16 (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
- Cut-Out Dimensions
- Cut-Out Height: 16 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 12 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.6 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: false
- Timer: true
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12 1/2 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LED
- Number of Preset Programs: 7
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Defrost, Cook
- Oven Preset Settings: Popcorn, beverage, potato
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Compatible Filter Model Number: WB02X35687 or WB02X33061
- Ventilation
- Vent Style: Recirculating, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear, Top
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 14 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 950 watts (Measurement of electrical power.)
- Power Consumption: 1600 watts
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: For more information about chemicals in this product, including PFAS chemicals, visit: https://www.geappliances.com/chemical-reports. Para obtener más información sobre los productos químicos de este producto, incluidos los productos químicos PFAS, visite: https://www.geappliances.com/chemical-reports.” (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited entire appliance
- Warranty - Labor: 1 year limited entire appliance
- Other
- UPC: 084691812838
Steam and cook easily in this black GE over-the-range microwave. Flip the turntable on and off as needed with the turntable switch. Choose from 10 power levels when cooking dishes in the 1.6 cubic feet interior. The two-speed 300-CFM venting system of this GE over-the-range microwave quickly whisks steam, odors and smoke away.
- 950W for standard microwave cooking: Cook frozen meals in a snap, or heat coffee, soup and leftovers in no time.
- Defrost settings offer versatility: Quickly thaw frozen items, choosing from weight and time defrost.
- A variety of cooking programs to fit your needs: Reheat, beverage, popcorn, potato, express cook, and more.
- Large 12.5" turntable keeps food rotating: By turning food items as they are prepared, the turntable ensures even, thorough cooking.
- 509.7 cfm fan: Helps remove cooking odors from your kitchen.
- Electronic controls simplify cooking selection: With digital display.
- Free delivery on appliance orders $399 and up: Over-the-range microwaves require special installation, which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- GE JNM3163DJBB
- Recirculating charcoal filter
- Quick Start Guide
Product Manuals
Q: does it require an external vent?
A: has both options, but default vents into the room, but you can change to vent to the back.. after knocking out 2 small precut panels.
Q: A red light on the "filter" on the display came on. Now I can't get it to turn off.
A: I tried everything I could find online to help me with this problem. Then I tried one more time by pushing only the word “reset”. I did not push the red light. It worked!
A: I just replaced my JVM3160RF3SS with what I thought was a JMV3160RFSS (notice the 3 is missing from 3SS) from Best Buy. But the model number on the actual unit is JVM3160RF6SS. So, I bought what I thought was JMV3160RFSS because I couldn't find the JMV3160RF3SS anywhere. I can tell you that with the JVM3160RF6SS the screw holes on top of the microwave don't exactly line up with the JMV3160RF3SS. I purchased what I thought was the same model I had before specifically so everything would line up and it would be an easy install. Not so fast my friend! The holes were slightly off, super frustrating.
A: Hi-this is Sue from GE. Thanks for your interest! The blower will need to be rotated for indoor (recirculating) venting. The directions are provided in the installation instructions included with the microwave. Also, the recirculating charcoal filter is included. The turntable can be turned off when using larger dishes. Model JNM3161DFBB is the same microwave except assembled for indoor (recirculating) venting. Thanks for checking with us!
Q: A thin card board is attached (right side)inside JVM3160 over the Range Microwave
A: Hi AGST- This is Sue at GE Appliances. Thanks for your purchase! The cardboard cover on the right top or side wall of the microwave interior is there by design. The cardboard (mica) covers the waveguide system that feeds microwave energy into the cavity and should not be removed. The microwave should not be used for any function if this cardboard cover is not in place. If removed, it would require service to replace. Thanks for checking with us!
Q: Can you use this microwave over the stove without an outside venting system?
A: Yes, you can either vent back into the room or through an external vent. I vented internally. The configuration was easy, hardest part was installing the filter. It took a bit of finesse to remove the panel from the front of the unit.
Q: Which is cheaper - Buy a new magnetron tube or buy a new unit?
A: Magnetron priced at time my 11 yr old unit expired was $168.00. BestBuy GE unit was $200.00.
Q: Old Microwave is GE Model JNM1851SM2ss...will this model match up with installation holes
A: Hi -this is Sue from GE. Thanks for your interest in our GE model JVM3160RFSS. We appreciate your loyalty! Our 30" over-the-range microwaves are designed to be installed in the same standard upper cabinet space (30" min. width, 12" min.-13" max. depth). The height and depth of the models may vary slightly. The top mounting is basically the same. You will need to use the back wall mounting bracket included with the new model as they are similar but not interchangeable. Your model, JNM1851SM2SS was shipped assembled for recirculating (indoor) venting. Model JVM3160RFSS is shipped assembled for outdoor venting. If you choose model JVM3160, you will also need to purchase the optional recirculating charcoal filter JX81L and follow the recirculating venting instructions in the installation guide. You may want to consider model JNM3161RFSS. It is the same model except is shipped assembled for recirculating (indoor) venting. You can view online at: http://www.bestbuy.com/site/searchpage.jsp?_dyncharset=UTF-8&_dynSessConf=&id=pcat17071&type=page&sc=Global&cp=1&nrp=15&sp=&qp=&list=n&iht=y&usc=All+Categories&ks=960&fs=saas&saas=saas&keys=keys&st=+JNM3161RFSS Thanks for checking with us. Enjoy!
