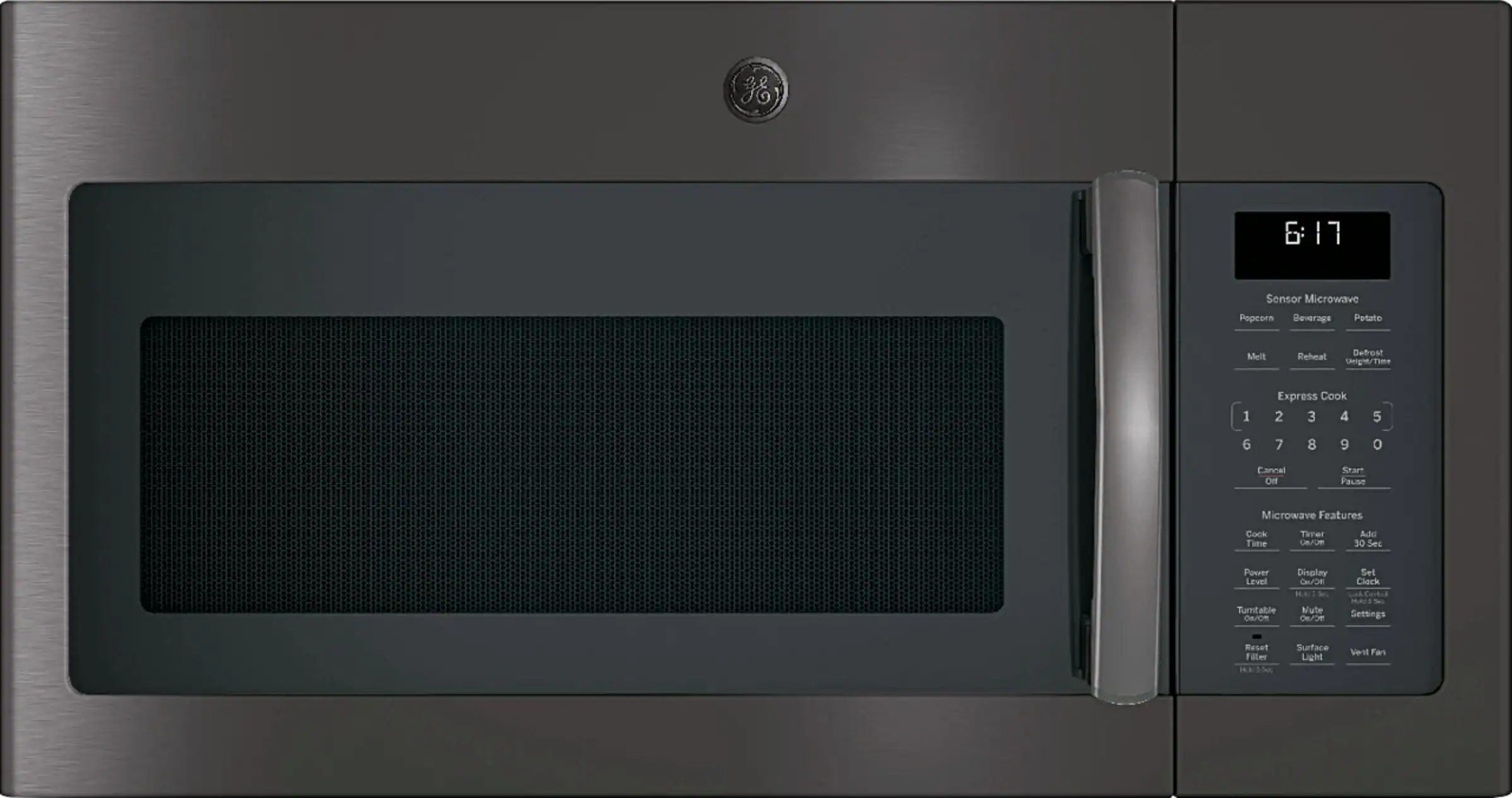

GE - 1.7 Cu. Ft. Over-the-Range Microwave - Black stainless steel
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 16 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12.8 inches
- Control Type: Button
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: GE
- Model Number: JVM6175BLTS
- Product Name: 1.7 Cu. Ft. Over-the-Range Microwave
- Color: Black stainless steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 16 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 52 pounds (The out of box weight of the item.)
- Interior Microwave Cavity Dimensions: 20-11/16 x 10-5/16 x 14-3/16 (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
- Cut-Out Dimensions
- Cut-Out Height: 16 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.7 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: false
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12.8 inches
- Interior Light(s): false
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Button
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LCD
- Number of Preset Programs: 8
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Other
- Filter Info
- Removable Filter: true
- Ventilation
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear, Top
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: For more information about chemicals in this product, including PFAS chemicals, visit: https://www.geappliances.com/chemical-reports. Para obtener más información sobre los productos químicos de este producto, incluidos los productos químicos PFAS, visite: https://www.geappliances.com/chemical-reports.” (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691826934
Let sensor controls on this GE over-the-counter range do all of the work, checking time and temperature and delivering perfect results with every dish. An integrated Melt mode lets you melt cheese, butter and other ingredients without worrying about scorching. Weight and time defrost on this GE over-the-counter range works to thaw a range of frozen meats and food.
- 1.7 cu. ft. capacity: 1000 Watts (IEC-705 test procedure)
- Weight and time defrost: Simply enter the weight of the food, and the oven automatically sets the optimal defrosting time and power level or set your desired time for defrosting
- "Add 30 seconds" button: Add 30 seconds of microwave cooking time
- Two-speed, 300-CFM venting system: Removes smoke, steam and odors
- Turntable On/Off: Controls turntable operation
- Sensor cooking controls: Automatically adjusts time and power for delicious cooking results
- 1.7 cu. ft. capacity: 1000 Watts (IEC-705 test procedure)
- Weight and time defrost: Simply enter the weight of the food, and the oven automatically sets the optimal defrosting time and power level or set your desired time for defrosting
- "Add 30 seconds" button: Add 30 seconds of microwave cooking time
- Two-speed, 300-CFM venting system: Removes smoke, steam and odors
- Turntable On/Off: Controls turntable operation
- Sensor cooking controls: Automatically adjusts time and power for delicious cooking results
Whats Included
- GE JVM6175BLTS
- Recirculating charcoal filter
- GE JVM6175BLTS
- Recirculating charcoal filter
Product Manuals
A: There is a known issue with this model number jvm3160..... microwave blowing door switches and tripping the breaker when door is open and/or closed. the microwave door was manufactured incorrectly which according to the manufacture causes this issue to occur. According to the manufacture, the repair is to replace the entire door assembly, the door switches, and the switch holder. The repair cost more than buying a new microwave. And we have seen it on microwaves from three years old and newer some being one and a half years old. We have tried just replacing the door switches, didn’t work. We have tried replacing the door switches and the switch holder, didn’t work. Best bet is just to buy a new microwave and we advise buying a five year extended warranty with it. Keep in mind that about 8 to 9 years ago or so GE appliance division was bought out by HAIER appliances. All appliances, especially microwaves, even the more expensive ones, are all made with cheaper parts nowadays. So getting five years of usage out of any appliance is considered normal. I would advise to get a 5 year extended warranty with any appliances you by now. so at least your appliance will be covered for five years. Stay far away from Samsung and LG appliances. You will thank me later.
Q: Can the vent fan exhaust to the exterior, or does it exhaust into the room?
A: Hello Inquirer - this is Nancy at GE Appliances and we are happy to help you. This microwave is ready to be installed as exhausting outside through the top of the unit. However, you can change the venting to be internally vented or recirculating. Instructions for changing the venting can be found in the Owner's Manual. We hope this helps! Thanks for checking with us!
A: We had a 10 year old GE microwave and this used the same mounting brackets, it just went right in.
A: Nick, I just bought model JVM6175SKSS to replace my old GE (that was at least 10 years old) and it was a breeze to install with the same bracket and hole location for the plug. All the settings pretty much the same too. Recommend
Q: Hi, what are the models that will replace GE JVM1740SM1SS with same specs and bracket? Thanks
A: Hi Rob- All 30" over-the-range microwaves are approximately the same width, and are designed to fit into a 30" wide cabinet opening. Each microwave comes with the mounting hardware (mounting bracket, screws, exhaust adapter), top and rear templates, and installation instructions. When replacing an over-the-range microwave, the mounting bracket included with the new microwave should be used since the mounting bracket is specific to each model. The new screws, bolts, and exhaust adapter should also be used. We suggest models GE® 1.7 Cu. Ft. Over-the-Range Microwave Oven JVM6172SKSS and GE® 1.7 Cu. Ft. Over-the-Range Sensor Microwave Oven JVM6175SKSS. Sensor cooking controls sense the humidity (steam) from foods cooking and automatically adjusts time and power for best cooking results. We certainly appreciate your loyalty! SUE@GEA
A: JVM6175DKWW 1.7 CF OTR SENSOR MICRO OVEN will fit in the same space exactly. We just replaced a GE Spacemaker XL last week. Even the bracket was the same.
A: Hi dvdc - We certainly appreciate your loyalty. Model jvm1790sk01 is a convection microwave. Model jvm6175skss is a microwave only. We also offer GE Profile™ Series 1.7 Cu. Ft. Convection Over-the-Range Microwave Oven PVM9179SKSS. All 30" over-the-range microwaves are approximately the same width, and are designed to fit into a 30" wide cabinet opening. Each microwave comes with the mounting hardware (mounting bracket, screws, exhaust adapter), top and rear templates, and installation instructions needed to make installation a simple process. This makes choosing a replacement microwave easy. When replacing an over-the-range microwave, the mounting bracket included with the new microwave should be used since the mounting bracket is specific to each model. The new screws, bolts, and exhaust adapter should also be used. Each model can be vented on top like your current model. Keep in touch at GEAppliances.com! Sue
A: Hi KenJ- Thanks for continuing to make GE Appliances a part of your home! We know you have choices and appreciate the trust you've placed in us. We are excited to hear your Spacemaker XL1800 provided you with great service for 14 years. GE® 1.7 Cu. Ft. Over-the-Range Sensor Microwave Oven JVM6175BLTS is a great choice. Sensor controls make programming easy and automatically adjusts time and power for delicious cooking results. We also offer JVM7195BLTS with a dark gray, easy clean enamel interior with steam clean option. Messes inside the microwave are easy to wipe away after steam loosens food grime. All 30" over-the-range microwaves are approximately the same width, and are designed to fit into a 30" wide cabinet opening. Each microwave comes with the mounting hardware (mounting bracket, screws, exhaust adapter), top and rear templates, and installation instructions needed to make installation a simple process. This makes choosing a replacement microwave easy. You may want to pair with GE Profile™ Series 30" Slide-In Electric Double Oven Convection Range PS960BLTS in Black Stainless. Keep in touch! SUEatGEA
