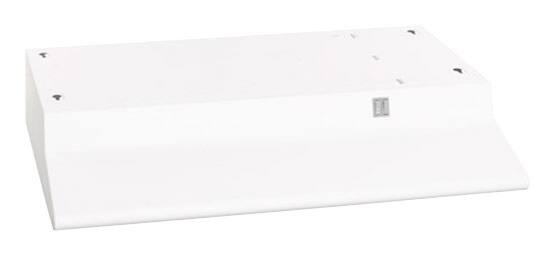

GE - 30 inches - Externally Vented - Under cabinet Range Hood - White
Model: JV338HWW
SKU: 6677483
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: GE
- Model Number: JV338HWW
- Product Name: 30" Externally Vented Range Hood
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 19 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 2
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Rocker
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 1
- Bulb Type Required: Incandescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 160 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 160 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 2.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691081852
Pull the smoke and vapors out of your kitchen and out of your home with this externally vented range hood.
- Vented: Channels exhaust from the kitchen to the outside of the home
- Vertical and rear exhaust: Exhausts from the top or rear of the hood
Whats Included
- GE 30" Externally Vented Range Hood
- Owner's Manual
- Drain
Q: How powerful is this unit,, i.e. what is the CFM rating?
A: Hello, and thanks for reaching out. We appreciate your interest in this range hood, and we're glad to advise the model has a CFM rating of 160. We hope this information is helpful, and are always available if you have any other questions or concerns. Wishing you all the best! -Sarah@GEA
Q: What do I need to buy to vent this externally (through the ceiling and attic and out to the roof)?
A: Hi there, If you are wondering about venting externally with this vent hood, you can view the model's installation instructions through this link: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80589-7.pdf - If you take a look at pg. 8 you will find information about ductwork requirements. We hope that this helped! Thanks so much for your question. -Michael
