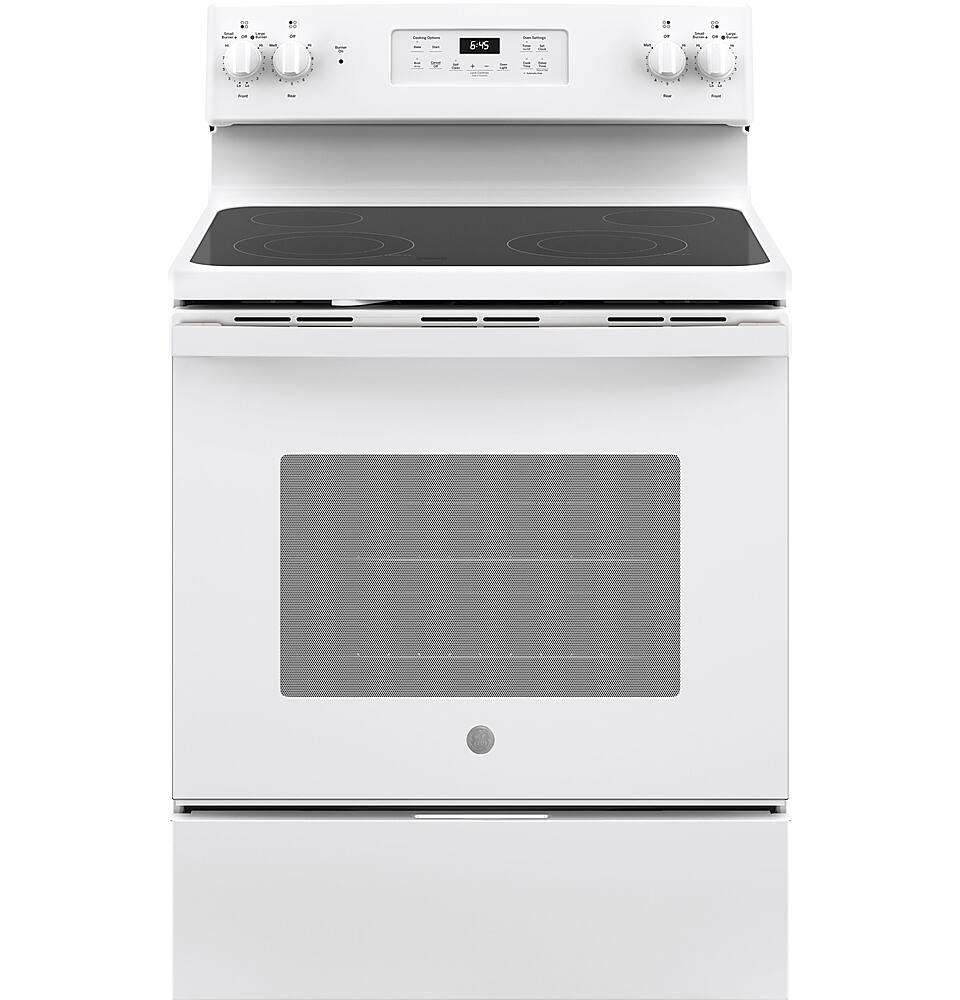

GE - 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning - White
- Key Specs
- Color Finish: White
- Product Height: 47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: GE
- Model Number: JB645DKWW
- Product Name: 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 158 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.3 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Control Type: Knob
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Power-On Indicator Light(s): true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Bake, Broil
- Oven Settings: Delay Bake Option, Delay Clean Option, Time Bake, Timer
- Oven Features
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 6
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): PowerBoil
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 208 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: For more information about chemicals in this product, including PFAS chemicals, visit: https://www.geappliances.com/chemical-reports. Para obtener más información sobre los productos químicos de este producto, incluidos los productos químicos PFAS, visite: https://www.geappliances.com/chemical-reports.” (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Warranty
- Warranty - Parts: Limited 1-year entire appliance
- Warranty - Labor: Limited 1-year entire appliance
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 084691819318
Unlock your inner gourmet with this GE free-standing electric range, and create memorable meals with the radiant heat cooktop. Dual-element baking lets you get the most out this oven's 5.3-cubic-foot capacity. This versatile GE free-standing electric range easily incorporates into your kitchen without need to rearrange counters or create cutouts.
- Two 9"/6" Power Boil elements: Two powerful elements boil water 25% faster than standard GE elements and adjust to fit cookware
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- Dual-element Bake: Upper and lower elements produce even heat and great results
- Ceramic glass cooktop: Smooth cooktop easily wipes clean
- Removable full-width storage drawer: Store cookware or kitchen accessories
- 5.3 cu. ft. oven capacity: Enough room to cook an entire meal at once
- Two 9"/6" Power Boil elements: Two powerful elements boil water 25% faster than standard GE elements and adjust to fit cookware
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- Dual-element Bake: Upper and lower elements produce even heat and great results
- Ceramic glass cooktop: Smooth cooktop easily wipes clean
- Removable full-width storage drawer: Store cookware or kitchen accessories
- 5.3 cu. ft. oven capacity: Enough room to cook an entire meal at once
Whats Included
- GE 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning
- Cooktop cleaning cream and sponge
- Owner's Manual
- GE 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning
- Cooktop cleaning cream and sponge
- Owner's Manual
Q: does this oven actually clean itself or is it the new "water & steam" type of cleaning?
A: Hi dazy - GE® JB645RKSS has a self-cleaning oven (not steam clean). The oven is cleaned by heat, at temperatures above normal cooking temperatures. During the cleaning cycle the oven is heated to about 880 degrees Fahrenheit (471° C.). At this temperature, food soils inside the oven decompose. Play Video: https://www.youtube.com/embed/NSt_-Doo_3w?rel=0 - You might want to pair with matching GE® 1.6 Cu. Ft. Over-the-Range Microwave Oven JVM3160RFSS (Stainless/Black). Two-speed, 300-CFM venting system removes smoke, steam and odors. Or, GE® 30" Under The Cabinet Hood JVX3300SJSS. Two-speed, 200-CFM venting system. EASY INSTALLATION- Play Video: https://www.youtube.com/embed/nrqTMMN9feA?rel=0 - We hope you'll choose GE! Sue
A: Yes. There is a polisher for the top, which comes with the unit and it helps.
A: We wipe ours down with a damp sponge to clear off crumbs and such, and use a washcloth with the glass cooktop cleaner (we get it at the grocery store) to scrub off any grease or food spots after cooking. It's a quick clean before each cooking and a quick clean up if something spills to keep it in shape, but it's not hard to do. Just be sure you have the right pans (they must have the flat bottoms so they don't scratch it).
Q: Is power cord included? What accessories go with this?
A: Hi - The power cord is not included. GE Appliances does not package the power cord with electric free-standing ranges since it is not possible to determine the type of facilities each consumer has available or what the local electrical codes require (ex. 3-wire vs 4-wire). We suggest to view the Installation Guide at the following link for materials you will need: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11105-4.pdf - We also offer UNIVERSAL RANGE BROILER PAN WB48X10056. Sold separately at GEApplianceparts.com - Also, you might want to pair with GE® 1.7 Cu. Ft. Over-the-Range Sensor Microwave Oven JVM6175DKWW. Two-speed, 300-CFM venting system removes smoke, steam and odors. Thanks for choosing GE! Sue
Q: Can I use cast iron cookware on this cook top
A: Hello Stovetop, Thank you for reaching out to us about this amazing electric range. This is a great question and we are happy to help. Cast Iron cookware is not recommended as a burr or rough spot, will scratch the glass surface. Porcelain Coated Cast Iron cookware is okay as long as the cookware is covered completely with porcelain enamel. Caution is recommended when using Cast iron cookware that is not completely covered with smooth porcelain enamel, as it may scratch the glass ceramic cooktop. We hope this information helps, feel free to reach out again with any other questions you may have. Have a great day!-Avery@GEA
Q: How to unlock & how to change the time? JB645RK1SS
A: Hi Ducie, thanks for your question! If you're refencing the oven door locking during the self clean cycle, the door will remain locked for about 30 minutes after the cycle has finishes to allow the oven to cool. If it does not unlock, see the following information: Do not force the latch at any time. If the oven will not unlock after self-cleaning try the following: 1. Disconnect power to range for 30 seconds 2. Reconnect power and see if door will unlatch. 3. If the door unlocks, the control has reset itself and there should not be any other problems. - If the door does not unlatch: If the door does not unlatch and you have food in the oven, wait for oven to cool completely and try again. If it still will not open service will be required. If the door does not unlatch, and you do not have food in the oven, set the oven up to clean for 1-2 hours. Wait approximately 30 minutes for the oven to cool and try to unlock the door. - If you're referring to your control panel being locked, press and hold the +/- pads or the Lock Controls pad, for three seconds to lock or unlock the control. Cancel/Off is always active, even when the control is locked. - And as for changing the time of day, press the Set Clock pad twice or press and hold the +/- pads for 3 seconds and the +/- pads to program the clock. Press Start to save the time. We hope that this helps! Stay safe. -Michael
Q: What does F4 mean when you preheat the oven?
A: Hi - Thanks for reaching out! F4 fault code usually means that the oven sensor needs to be replaced. Fault codes are programmed in all electronic ranges. These codes help GE Appliances Factory Service technicians quickly diagnose issues. We suggest to reset the electronics by turning off power at the circuit breaker that the range is connected to for 30 seconds to clear the code. If it repeats, please schedule an appointment with GE Appliances Factory Service at GEAppliances.com/service or call 1-800-GECares (1-800-432-2737). We hope the reset works! Keep in touch- Sue
A: Hi Mike, thank you for your question! Cast iron cookware is not recommended for use on a glass ceramic cooktop as it may scratch the glass surface. Additionally, because this cookware holds an intense amount of heat it can cause the element to shut down as a response to the temperature limiters. Porcelain coated cast iron cookware is okay as long as the cookware is covered completely with porcelain enamel. For your cooktop, we recommend using stainless steel or heavy weight aluminum cookware for best results. More information on suitable cookware for your unit can be found here: https://products.geappliances.com/appliance/gea-support-search-content?contentId=16259. However, yes it is safe to take a hot cast iron skillet out of the oven and place it on the cooktop. Our glass ceramic cooktops are tested to withstand up to 1000 degrees. We hope that this helps. All the best! -Eliza
