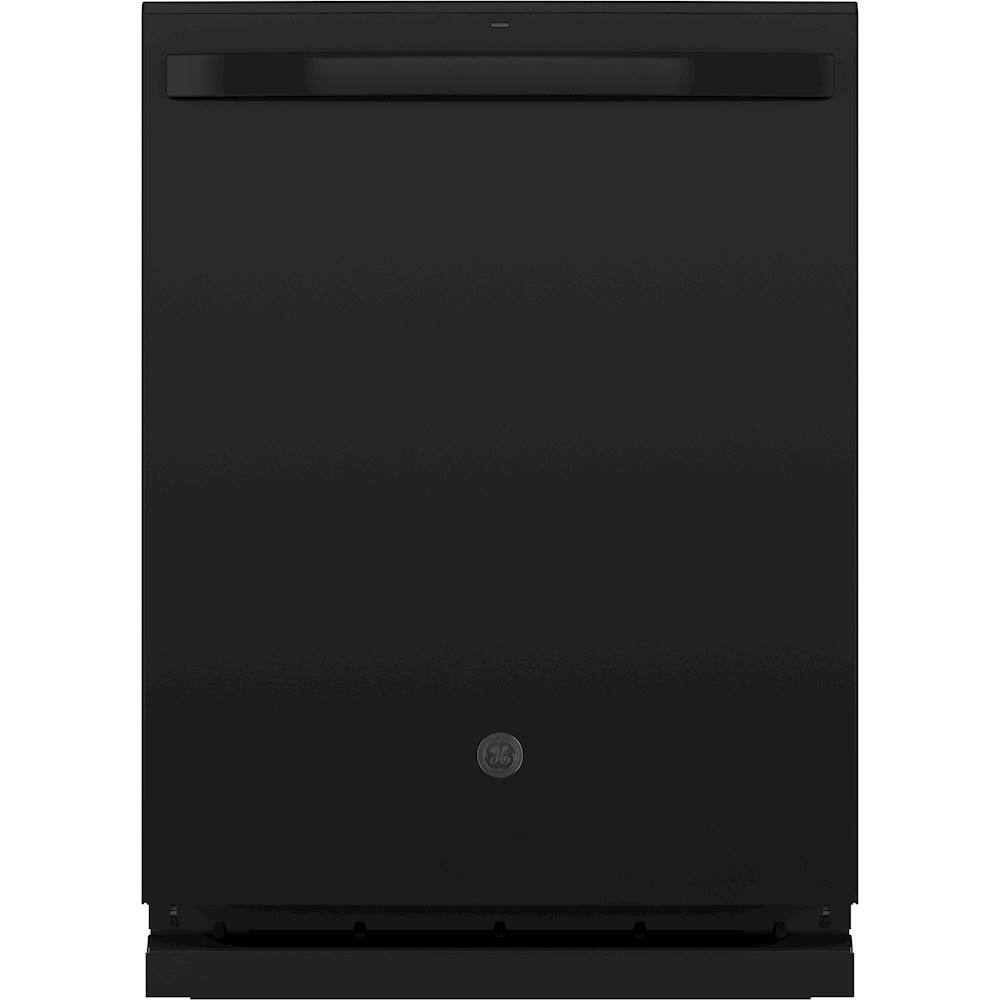

GE - Top Control Built-In Dishwasher with Stainless Steel Tub, 48dBA - Black
- Key Specs
- Color Finish: Black
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 13/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 48 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: GE
- Model Number: GDT645SGNBB
- Product Name: Top Control Built-In Dishwasher with Stainless Steel Tub, 48dBA
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 13/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 99 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: true (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 48 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: Wi-Fi adapter required (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 1 Hour Wash, Auto Sense, Heavy Wash, Light Wash, Normal Wash
- Options and Programs: Bottle Jets, Child Lock, Delay Start 2/4/8 Hr., Dry Boost, Heated Dry,Sanitize (Certified to NSF Standard 184), Start/Reset, Steam PreWash, Wash, TempBoost
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: true (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: true (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Adjustable height, Ball-tipped tines, Removable, Bottle wash tines (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Ball-tipped tines, Removable silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Handle Type: Bar handle
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 240 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 34 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 6.6 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691843603
Stay on top of kitchen cleanup with this GE built-in dishwasher. Its AutoSense cycle automatically adjusts to a soil level to maximize energy savings and ensure clean dishes. This GE built-in dishwasher has a 48dBA sound level to create a peaceful kitchen environment.
- Dry Boost with Fan Assist: Gets hard-to-dry items up to 3 times drier than heated dry cycles (compared to heated dry option).
- Bottle jets: Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean.
- Wash zones: Wash a true half load in either the upper or lower rack without sacrificing cycles and options available on a full wash.
- Steam and Sani options: Loosen tough soils before any cycle, virtually eliminating the need for soaking or prerinsing dishes. Plus, a high-temperature rinse sanitizes and reduces most bacteria found on dishes.
- 1-hour wash: Enjoy a quality cleanup when you're short on time.
- Manual and adjustable upper rack: Fitting plates up to 10.5" and other tall items in the upper rack is possible with an adjustment.
- Piranha hard food disposer: To ensure consistently clean items, this stainless steel blade rotates at 3600 rpm to pulverize food particles and helps prevent large particles from clogging the wash arms.
- AutoSense cycle: Automatically adjusts to a soil level to maximize energy savings and ensure clean dishes.
- 16 place setting capacity: Easily clean dishes after large gatherings thanks to extra capacity that holds up to 16 place settings.
- 48dBA: Ultraquiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance.
Whats Included
- Dishwasher hookup kit is not included
- GE Top Control Built-In Dishwasher with Stainless Steel Tub, 48dBA
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: Is there a light on the outside door to indicate that the cycle is finished?
A: My dishwasher is finished. White light is on. Should I pull the door open not shore how to open it.
A: Hello- We appreciate your question and will be happy to help! This model can be 33-3/8" Minimum and 34-5/8" Maximum. We hope this is helpful! Please let us know if you have any additional questions. We are here to help! Joyce@GEA
A: Hi there - Great question! Don't worry, GDT645SSN3SS is the same model as what you ordered, GDT645SSNSS. The extra digit just adds some additional information to the model, much like when you add the area code to your local phone number. When the dishwasher is manufactured, these extra numbers are placed on the rating plate and registration card. Should service or parts be needed, these are used as identifiers for the specific appliance. Thanks so much for checking! -Mikayla
A: Hi Dennis, thanks for reaching out! We're sorry to hear about your dishwasher starting, we know that must be frustrating. There is an article on our website titled "DISHWASHERS - WILL NOT RUN, HAS LIGHTS OR SOUND" that may prove helpful. If that does not help, you may want to reach out to service to see if anything else can be done to help. We hope that this helps. Stay safe. -Michael
A: This model does NOT have the small drying rack for spatulas etc
Q: Can the heated dry feature on this dishwasher be turned off?
A: Yes. There are 3 modes. Off, normal and dry boost.
Q: Does this model come with tub trim?
A: This is a great question! Yes, this dishwasher features Tub Collar Trim. If there's anything else we can do to help, let us know! -Chris@GEA
A: Hi there, and thanks for communicating this situation to us. We hate to hear you’ve had an issue with the H2O code, even after replacing and cleaning parts; we know this must be frustrating, and regret any inconvenience caused. The H2O code is meant to warn you of a low water situation. As you have already replaced the undersink valve and connection hose, those may not be the issue, but you may want to double check that the inlet water hose/any water connection doesn’t have any kinks. If the H2O code appears specifically during the 1-Hour Wash, it’s possible a software update may be needed. If that’s the case, please call our Service Department at 1-800-432-2737. Disconnecting the dishwasher from power for a couple minutes before reconnecting may also help; this resets the electrical components and can often clear the error if the issue has been resolved. We hope one of these tips helps, but if you are unable to resolve this you may want to arrange service with that provided number; a technician would be glad to examine the dishwasher. If you have any other concerns or questions, we are always happy to offer further assistance, here or over social media. All the best! -Sarah@GEA
