GIGABYTE - NVIDIA GeForce RTX 5070 AORUS MASTER 12G GDDR7 PCI Express 5.0 Graphics Card - Black
Model: GV-N5070AORUS M-12GD
SKU: 6621259
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 2.512 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.715 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

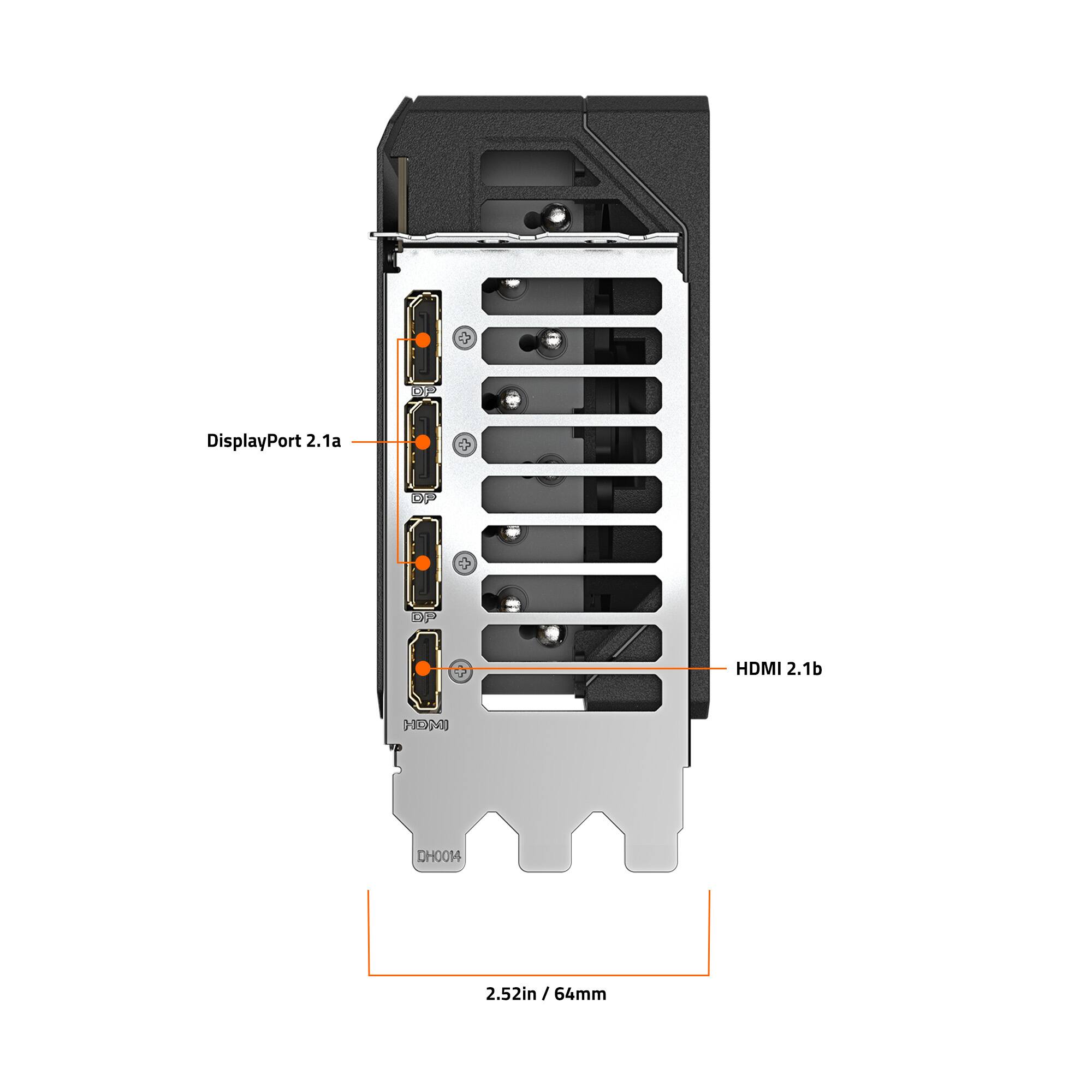

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 64 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 136 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 317 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5070 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-N5070AORUS M-12GD
- Product Name: NVIDIA GeForce RTX 5070 AORUS MASTER 12G GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5070 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.512 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.715 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 28 gigahertz
- Compatibility
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Features
- Multi-GPU Support: None
- Power
- Total Graphics Power: 250 watts
- Recommended Power Supply: 750 watts
- Dimensions
- Product Height: 64 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 136 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 317 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 3.09 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889523048405
Ahead of its time, ahead of the game is the GIGABYTE AORUS GeForce RTX 5070 MASTER 12G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE AORUS GeForce RTX 5070 MASTER 12G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 12 GB of GDDR7 memory.
- Graphics Processing Unit (Gpu)/Clock Speed: Powered by the NVIDIA geforce RTX 5070 graphics processing unit (GPU)
- Video Memory: 12gb gddr7
- Interface Compatibility: pci express 5.0
- Nvidia Geforce Technology: NVIDIA Blackwell architecture and DLSS 4
- HDMI And Display Port Outputs: HDMI x 1, DP x 3
- Series: NVIDIA geforce ""Blackwell"" RTX 50-Series
- 3.7-Slot Design: protective metal back plate
- Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans
- Rgb Lighting: With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
- Power Indicator: When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
- Aorus Extended Warranty: 4-Year Extended Warranty with Registration (Details on the AORUS website)
- Graphics Processing Unit (Gpu)/Clock Speed: Powered by the NVIDIA geforce RTX 5070 graphics processing unit (GPU)
- Video Memory: 12gb gddr7
- Interface Compatibility: pci express 5.0
- Nvidia Geforce Technology: NVIDIA Blackwell architecture and DLSS 4
- HDMI And Display Port Outputs: HDMI x 1, DP x 3
- Series: NVIDIA geforce ""Blackwell"" RTX 50-Series
- 3.7-Slot Design: protective metal back plate
- Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans
- Rgb Lighting: With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
- Power Indicator: When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
- Aorus Extended Warranty: 4-Year Extended Warranty with Registration (Details on the AORUS website)
Whats Included
- NVIDIA GeForce RTX 5070 AORUS MASTER 12G GDDR7 PCI Express 5.0 Graphics Card
- User Manual Quick Guide
- Warranty registration
- Versatile VGA Holder Manual
- Versatile VGA holder
- 1x 12V-2x6 to 4x PCIe 8pin adapter
- AORUS metal sticker
- AORUS identity stickers
- NVIDIA GeForce RTX 5070 AORUS MASTER 12G GDDR7 PCI Express 5.0 Graphics Card
- User Manual Quick Guide
- Warranty registration
- Versatile VGA Holder Manual
- Versatile VGA holder
- 1x 12V-2x6 to 4x PCIe 8pin adapter
- AORUS metal sticker
- AORUS identity stickers
Q: Does the graphics card come with a warranty?
A: Yes, it comes with a 3-year warranty for both parts and labor.
Q: How many display ports does the graphics card have?
A: The graphics card has 3 DisplayPorts.
Q: What is the slot size of the graphics card?
A: The GIGABYTE GeForce RTX 5070 MASTER is a 3.5-slot card.
Q: What type of video memory does this graphics card use?
A: This graphics card uses 12GB of GDDR7 video memory.
Q: Does this graphics card support RGB lighting?
A: Yes, the card features RGB lighting that can be customized with 16.7 million color options and various lighting effects.
Q: What is the power consumption of the graphics card?
A: The total graphics power is 250 watts.
