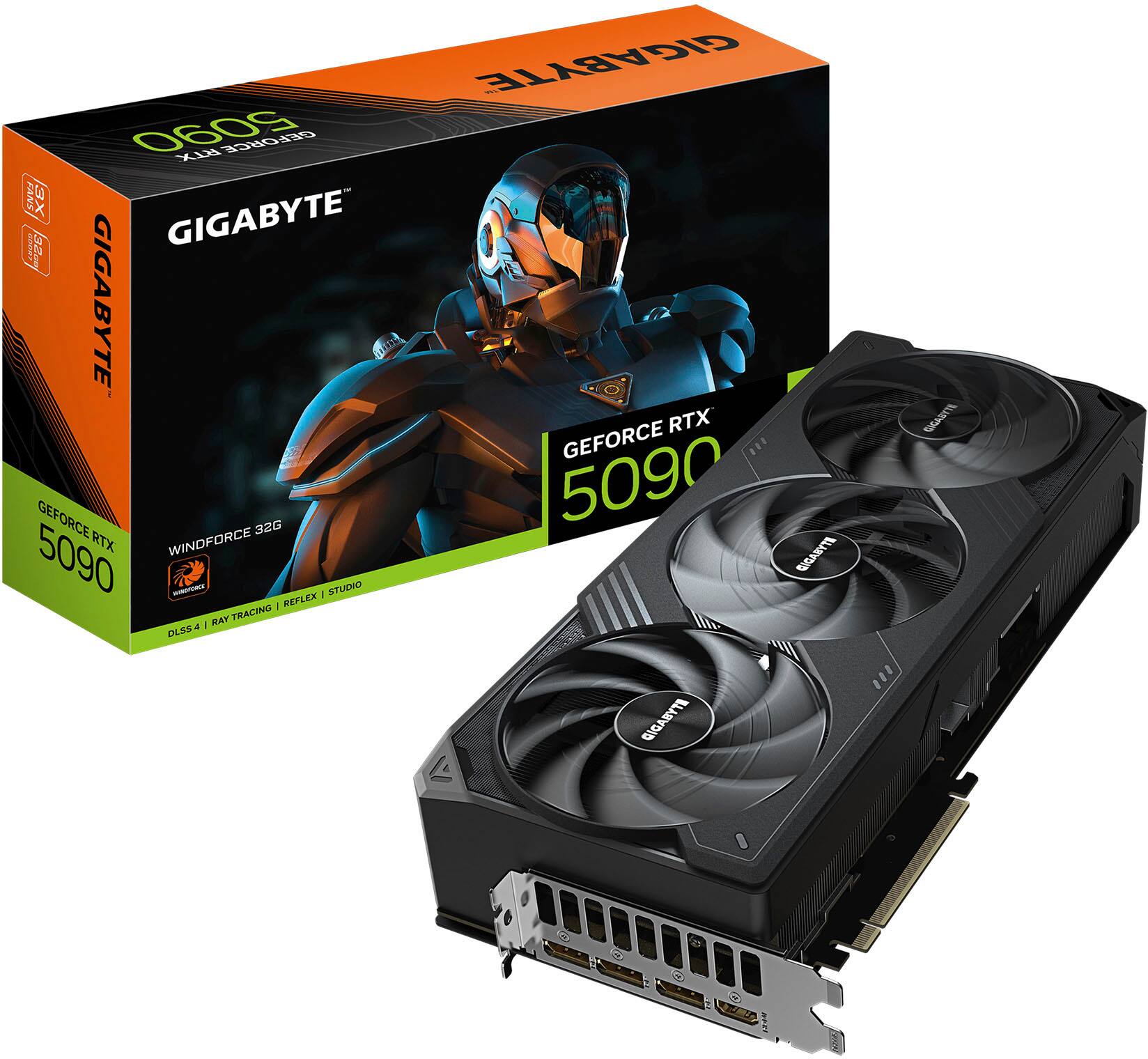

GIGABYTE - NVIDIA GeForce RTX 5090 WINDFORCE 32G GDDR7 PCI Express 5.0 Graphics Card - Black
Related Item
Specifications
- GPU Base Clock Frequency2.617 gigahertzGPU Boost Clock Frequency2.617 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.617 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.617 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

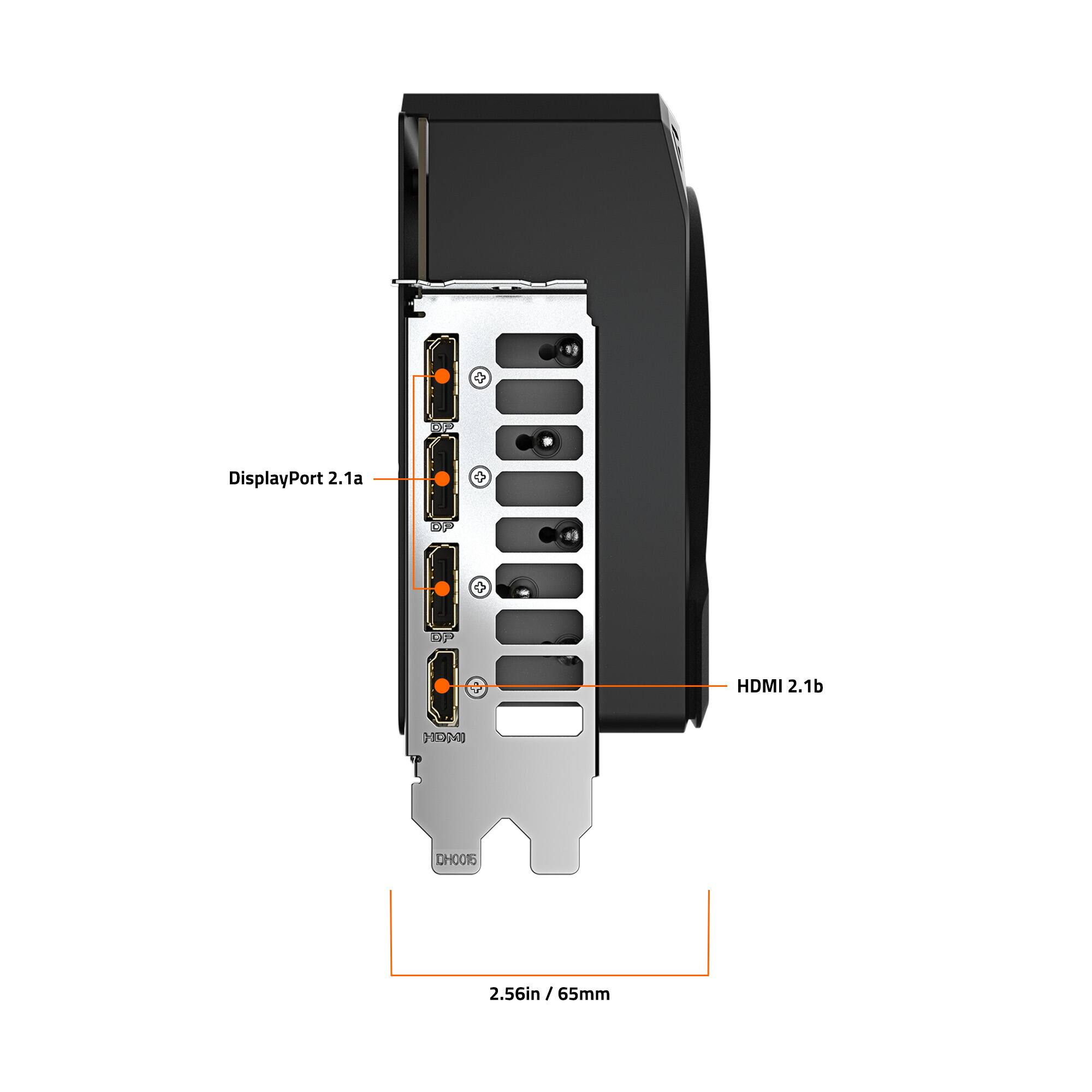

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0

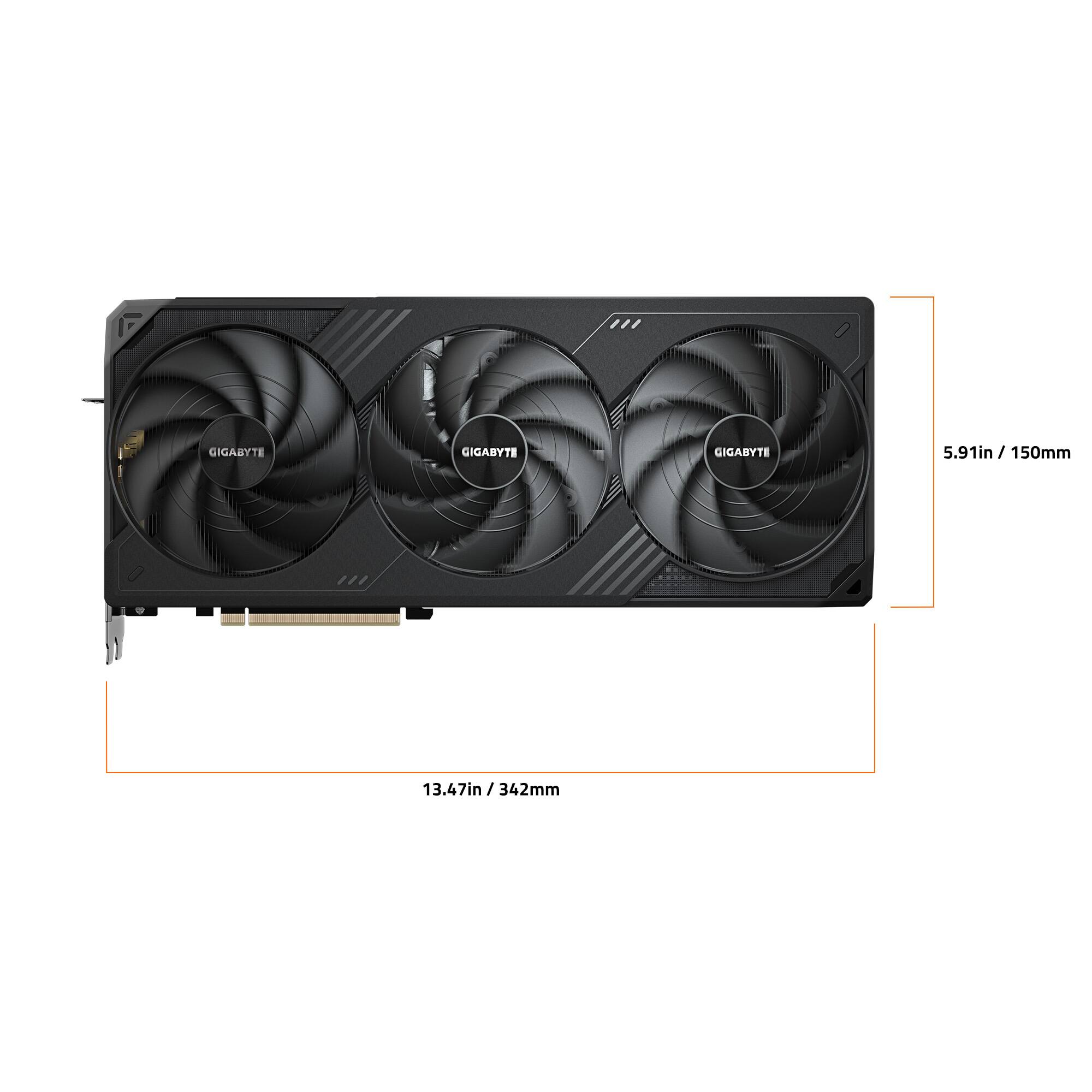

- Product Height: 65 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 342 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-N5090WF3-32GD
- Product Name: NVIDIA GeForce RTX 5090 WINDFORCE 32G GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.617 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.617 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 28 gigahertz
- Compatibility
- Slot Size: 3.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 575 watts
- Recommended Power Supply: 1000 watts
- Dimensions
- Product Height: 65 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 342 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.91 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 Year
- Other
- UPC: 889523048436
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5090 WINDFORCE 32G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5090 WINDFORCE 32G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 32 GB of GDDR7 memory.
- Graphics Processing Unit (Gpu)/Clock Speed: Powered by the NVIDIA geforce RTX 5090 graphics processing unit (GPU)
- Video Memory: 32gb gddr7
- Interface Compatibility: pci express 5.0
- Nvidia Geforce Technology: NVIDIA Blackwell architecture and DLSS 4
- HDMI And Display Port Outputs: HDMI x 1, DP x 3
- Series: NVIDIA geforce "Blackwell" RTX 50-Series

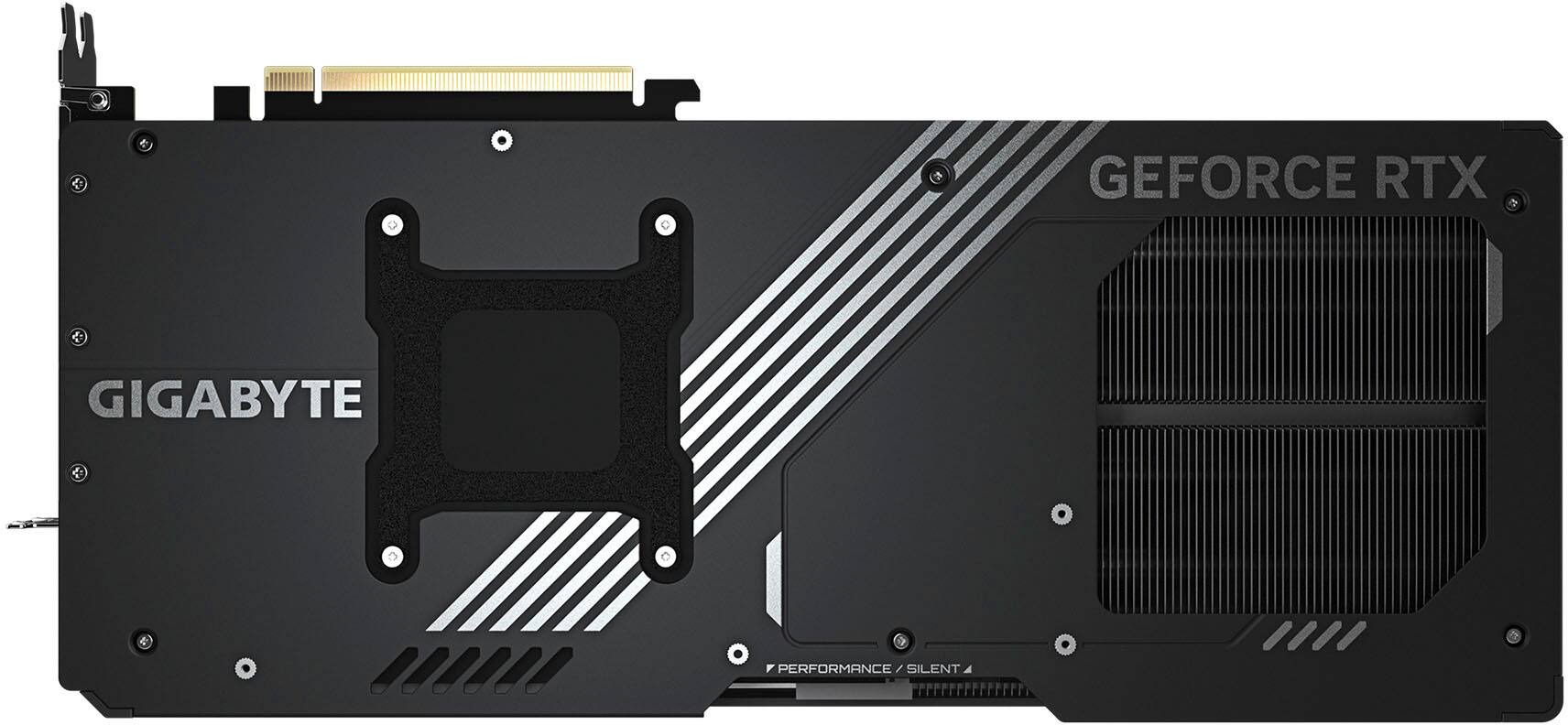

- 3.5-Slot Design: protective metal back plate

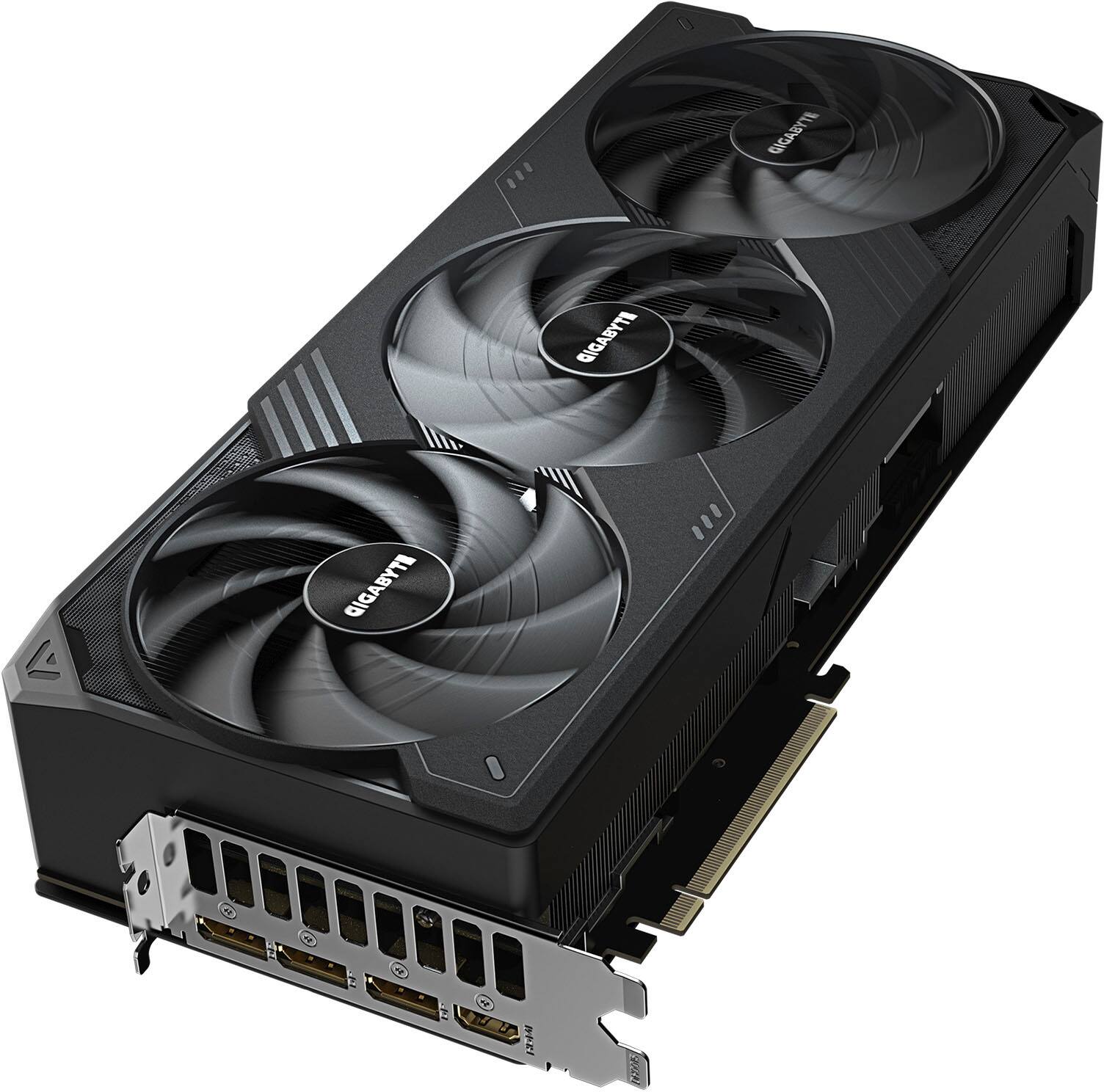

- Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans
Whats Included
- NVIDIA GeForce RTX 5090 WINDFORCE 32G GDDR7 PCI Express 5.0 Graphics Card
- User Manual Quick Guide
- Versatile VGA Holder Manual
- Versatile VGA holder
- 1x 12V-2x6 to 3x PCIe 8pin adapter
Q: How many HDMI ports does the graphics card have?
A: The graphics card has one HDMI 2.1 port.
Q: What is the interface compatibility of this graphics card?
A: This graphics card is compatible with PCI Express 5.0.
Q: What type of video memory does this graphics card use?
A: This graphics card uses GDDR7 video memory.
Q: What is the maximum resolution supported by this graphics card?
A: The maximum resolution supported is 8K (4320p).
Q: What is the recommended power supply for this graphics card?
A: The recommended power supply for this graphics card is 1000 watts.
Q: How much video memory does the graphics card have?
A: The graphics card has 32 GB of GDDR7 video memory.
Q: What is the total graphics power of this card?
A: The total graphics power of this card is 575 watts.
Q: Can this GPU be powered by a discrete power supply?
A: undefined
Compare similar products
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5090 WINDFORCE 32G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5090 WINDFORCE 32G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 32 GB of GDDR7 memory.
MSI GeForce RTX 5090 32G VENTUS 3X OC focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
The ASUS ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
The ASUS ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
| Pros for GIGABYTE - NVIDIA GeForce RTX 5090 WINDFORCE 32G GDDR7 PCI Express 5.0 Graphics Card - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Performance, Design, Noise Level, Temperature, Power Consumption | Performance, Design, Noise Level, Cooling System, Graphics Card |
| Cons for GIGABYTE - NVIDIA GeForce RTX 5090 WINDFORCE 32G GDDR7 PCI Express 5.0 Graphics Card - Black | |||
| There were no cons for this product— | There were no cons for this product— | Size, Weight | There were no cons for this product— |
Specs
- Crucial - X10 4TB External USB-C SSD - Blue$399.99$453.99
- Crucial - X10 Pro 2TB USB-C External SSD - Black$259.99$295.99
- Crucial - P310 2TB Internal SSD PCIe Gen 4 x4 NVMe M.2$191.99$200.99
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Absolute Monster GPU – 4K Ultra & 200+ FPS No Prob

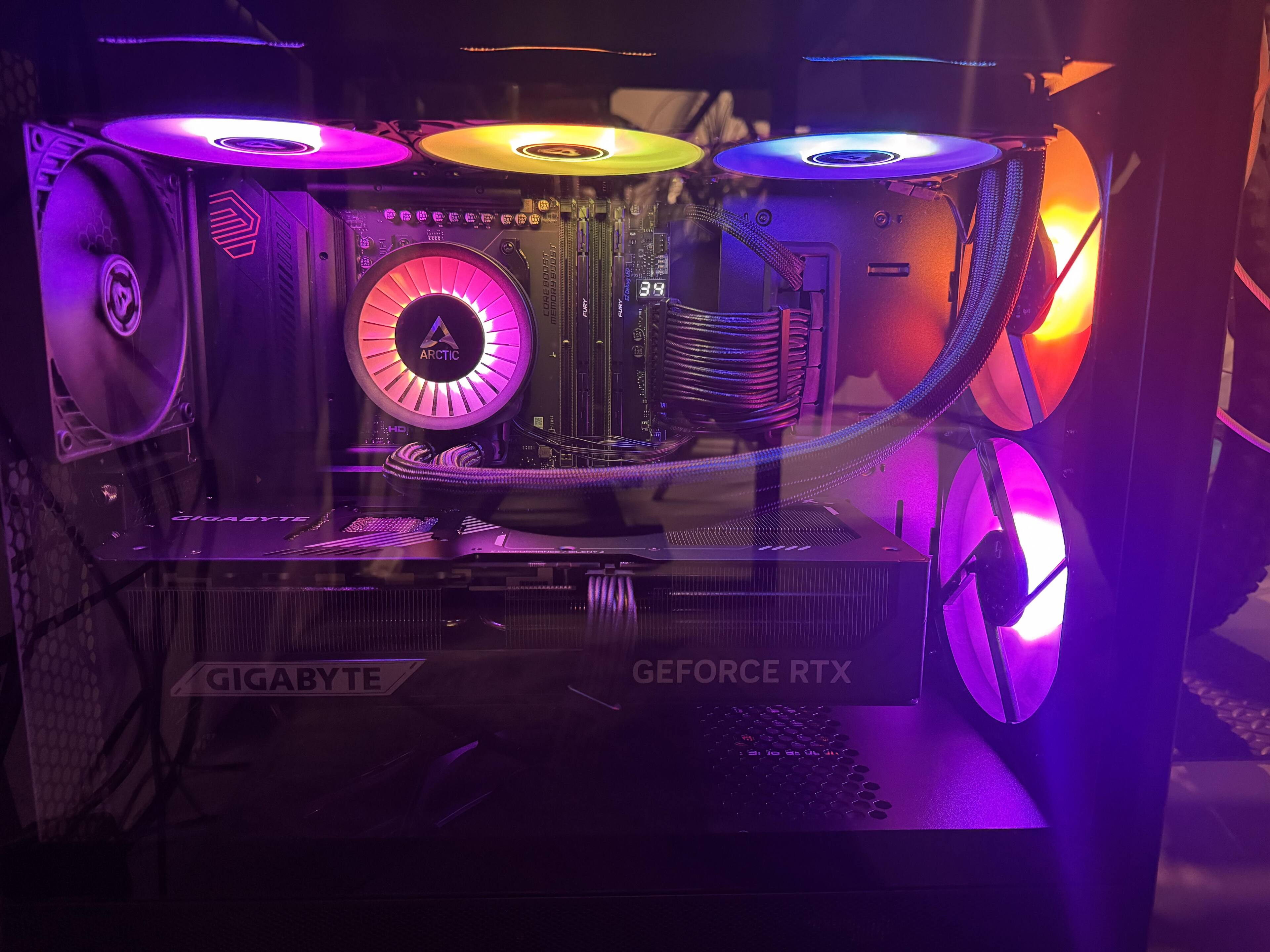

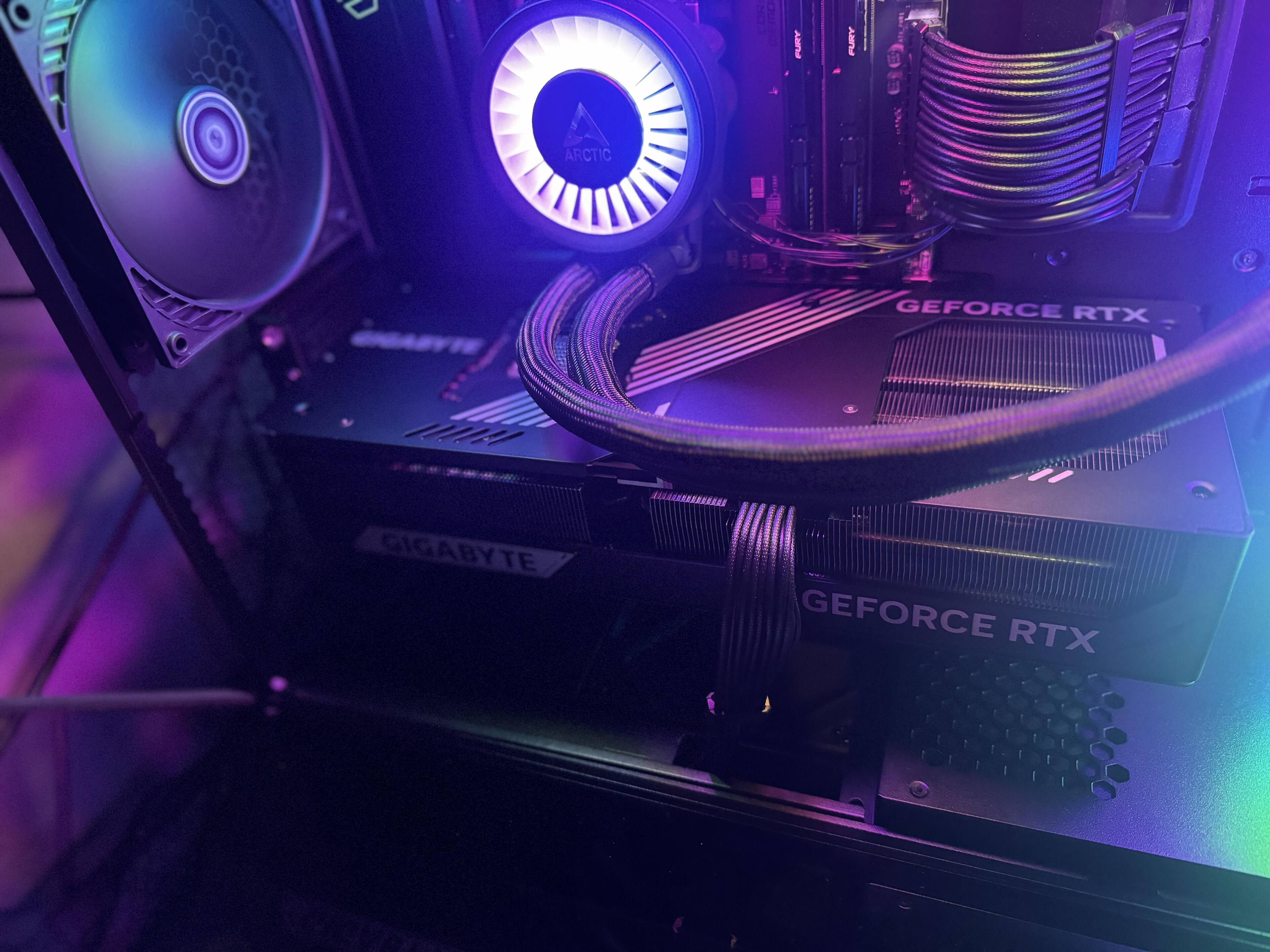

I upgraded to the GIGABYTE - NVIDIA GeForce RTX 5090 WINDFORCE 32G GDDR7 PCI Express 5.0 Graphics Card (Black) from a previous-gen RTX card, and the difference is ridiculous in the best way. I’m running this in a high-end rig paired with a 48" Samsung widescreen display, and it chews through every game I throw at it. In Battlefield 6 and Black Ops 7, I’m playing on ultra settings across the board (textures, shadows, ray tracing, you name it), and I’m still getting around 236 FPS on that 48" ultrawide. Gameplay is insanely smooth and responsive — no stutters, no dips, even in big chaotic firefights. The WINDFORCE cooling system is also solid. Even under extended gaming sessions, temps stay under 56C and the fans never get annoyingly loud. The triple-fan setup and overall build feel solid and premium, and PCIe 5.0 gives you plenty of bandwidth to keep this thing fed for years. Yes, it’s an expensive card, but if you’re looking for: Ultra settings in modern AAA titles 200+ FPS on a large widescreen Cool and quiet operation A GPU that’s clearly built for the long haul …then this RTX 5090 WINDFORCE is absolutely worth it. If you’ve got the rest of your system to match, this card is a beast.
