HUANUO - Single Monitor Desk Mount with Gas Spring Arm and Height Adjustable Column - Black
Related Item
About This Item
- General
- Brand: HUANUO
- Model Number: HNSS25B
- Product Name: Single Monitor Desk Mount with Gas Spring Arm and Height Adjustable Column
- Color: Black
- Assembly Required: Partial
- Features
- Mount Profile: Recessed (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion, Rotating, Swiveling, Tilting, Full Motion
- Pan: ±90° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: +85°~ -30° (Angles upward or downward for customized viewing and/or accessibility.)
- Rotation: 360° (Orientation can be rotated for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Motorized: false
- Adjustable Height: true
- Cord Storage: true
- Number Of Shelves Included: 0
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 19.8 pounds (The maximum load that can be supported by the product.)
- Compatibility: Monitors 13-32″
- Mount Location: Desktop
- Maximum Television Size: 32 inches
- Minimum Television Size: 13 inches
- VESA Wall Mount Standard: 75mm x 75mm, 100mm x 100mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 23.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 22.05 inches
- Product Weight: 8.6 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5-year Limited
- Warranty - Labor: None
- Other
- UPC: 810158824263
The HNSS25B is a single monitor desk mount for 13-32″ monitors that weigh between 4.4 and 19.8 lbs. The gas spring arm provides easy height adjustment – simply move the monitor where you want it, no tools required! The heavy duty pillar offers extended height adjustment. Height, swivel, and tilt adjustments allow the monitor to be placed in the optimal position. Versatile mounting options include desk clamp or grommet mounting for a variety of desk types. Integrated cable management allows cables to be neatly organized for a clean look.
- Wide Compatibility: Fits most 13-32″ monitors that weigh between 4.4 and 19.8 lbs with 75 x 75 or 100 x 100mm VESA mounting hole patterns.

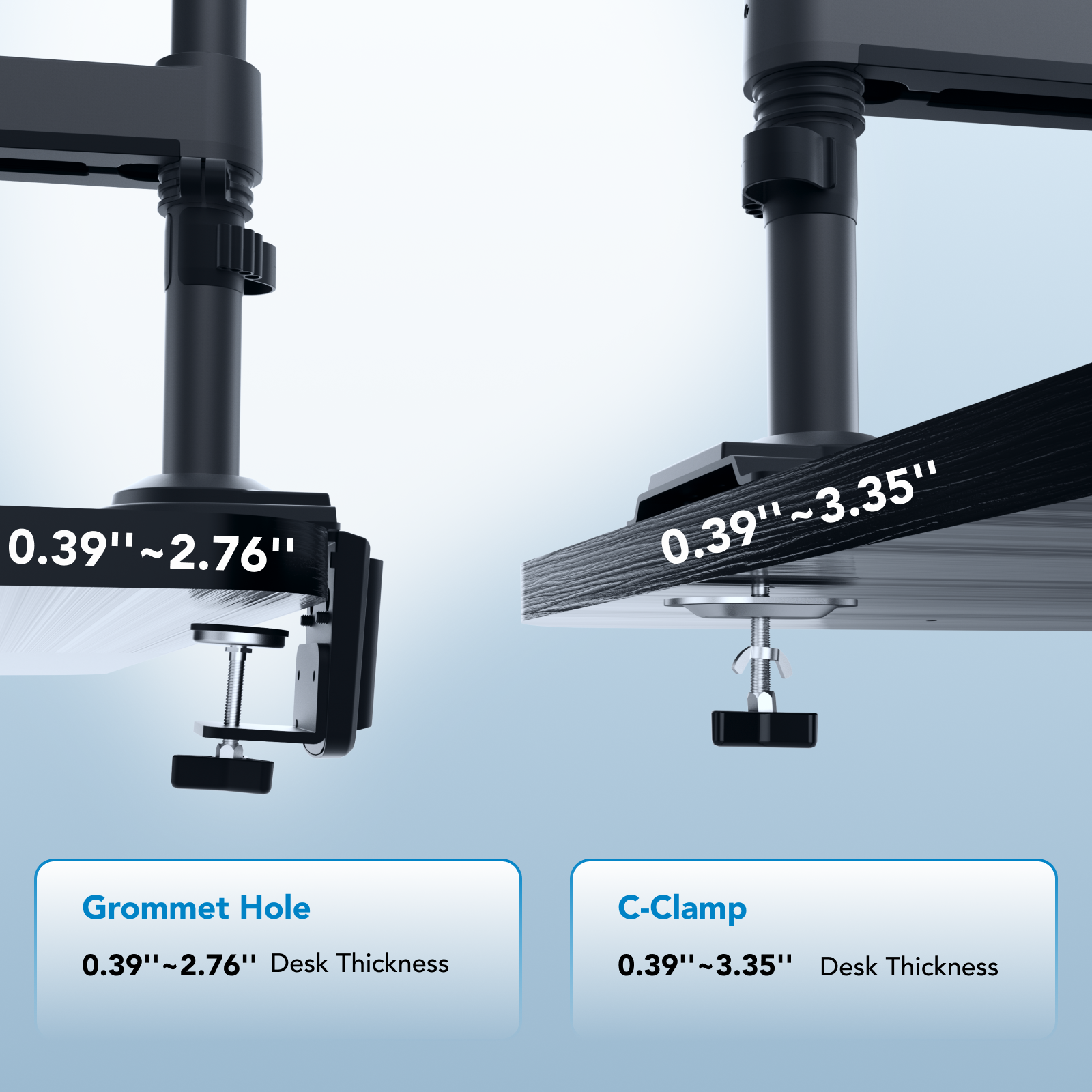

- Versatile Mounting Options: Includes desk clamp and grommet mounting hardware for a variety of desk types. Compatible with 0.39″ to 3.35″ thick desktops.

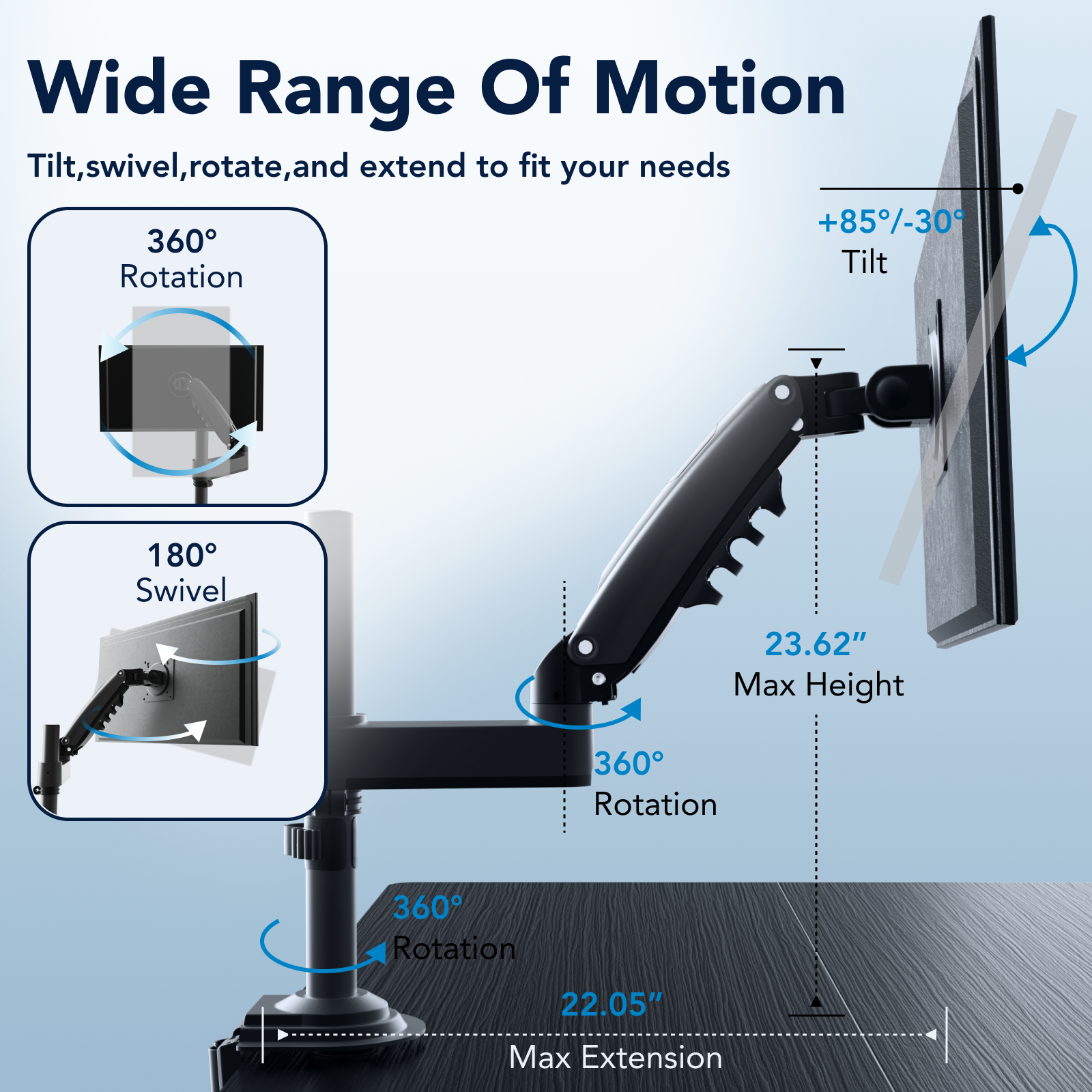

- Fully Adjustable: Pillar & arm height, swivel, extension, and tilt adjustments allow monitors to be placed in the optimal position.
- Steel Support Column: The strong pillar offers extended height adjustment up to 14.17″.
- Heavy-Duty Gas Spring Arm: Provides arm extension up to 22.05″.
- 360° Rotation: Easily rotate your monitor from a horizontal view to vertical.
- Monitor Tilt: Provides +85° to -30° tilt for the best viewing angles.
- Cable Management: Integrated cable management allows cables to be neatly organized for a clean look.
- Hassle-Free Assembly: Step-by-step instructions and labeled hardware kit are included.
Whats Included
- Single Monitor Desk Mount
- Clamp and grommet mount
- Mounting hardware
- User manual
Q: Can the desk mount be installed using a clamp or a grommet?
A: This desk mount offers versatile mounting options, including both desk clamp and grommet mounting.
Q: Is assembly required for the desk mount?
A: This desk mount requires partial assembly.
Q: What is the range of motion for the desk mount?
A: The desk mount can tilt +85°~-30°, swivel ±90°, and rotate 360°.
Q: What is the minimum and maximum monitor size compatible with the desk mount?
A: The desk mount is compatible with monitors that range in size from 13 to 32 inches.
Q: What is the weight capacity of the desk mount?
A: The maximum weight capacity of this desk mount is 19.8 pounds.
Q: Does the desk mount allow for height adjustment?
A: The gas spring arm on this single monitor desk mount provides easy height adjustment.
A: Dear Customer, we regret that we were unable to view the image you sent. Please contact us directly so that we may provide you with an accurate response. Thank you.
A: AskANotNinja, this is technically possible. However, your cabinet/counter needs to be shallow enough to not interfere with the gas spring arm. If that is the case, you can slide the arm down the pole and have a portion of your monitor sit below the cabinet/counter surface. How far below the surface depends on the size of your monitor and the positioning of the VESA holes on the back.
Reviews
This product doesn't have any reviews yet.
Compare similar products
The HNSS25B is a single monitor desk mount for 13-32″ monitors that weigh between 4.4 and 19.8 lbs. The gas spring arm provides easy height adjustment – simply move the monitor where you want it, no tools required! The heavy duty pillar offers extended height adjustment. Height, swivel, and tilt adjustments allow the monitor to be placed in the optimal position. Versatile mounting options include desk clamp or grommet mounting for a variety of desk types. Integrated cable management allows cables to be neatly organized for a clean look.
The HNSS36B is a single monitor desk mount for 27-49″ ultrawide gaming monitors that weigh between 13.2 and 35.2 lbs. The mechanical spring arm provides easy height adjustment – simply move the monitor where you want it, no tools required! Height, swivel, and tilt adjustments allow the monitor to be placed in the optimal position. Versatile mounting options include desk clamp or grommet mounting for a variety of desk types. Integrated cable management allows cables to be neatly organized for a clean look.
The HNSS37B single monitor desk mount utilizes our premium arm and is designed for a single 13-35″ monitor that weighs between 4.4 and 26.4 lbs. The premium gas spring arm provides easy height adjustment – simply move the monitor where you want it, no tools required! Height, swivel, and tilt adjustments allow the monitor to be placed in the optimal position. Versatile mounting options include desk clamp or grommet mounting for a variety of desk types. Integrated cable management allows cables to be neatly organized for a clean look.
FlowLift™ single arm monitor mount is compatible with most 13"–32" monitors (4.4–19.8lbs) with 75×75mm or 100×100mm VESA patterns. MechaSpring™ mechanical arm technology delivers up to 5× longer lifespan than most gas spring designs while providing smooth and stable adjustments. Also featured is our visible tension adjustment, quick-release VESA plate, cable management, and tool-free installation. Our FLowLift™ monitor mounts are ACA-endorsed for their ergonomic support and provides a cleaner more comfortable workspace.
