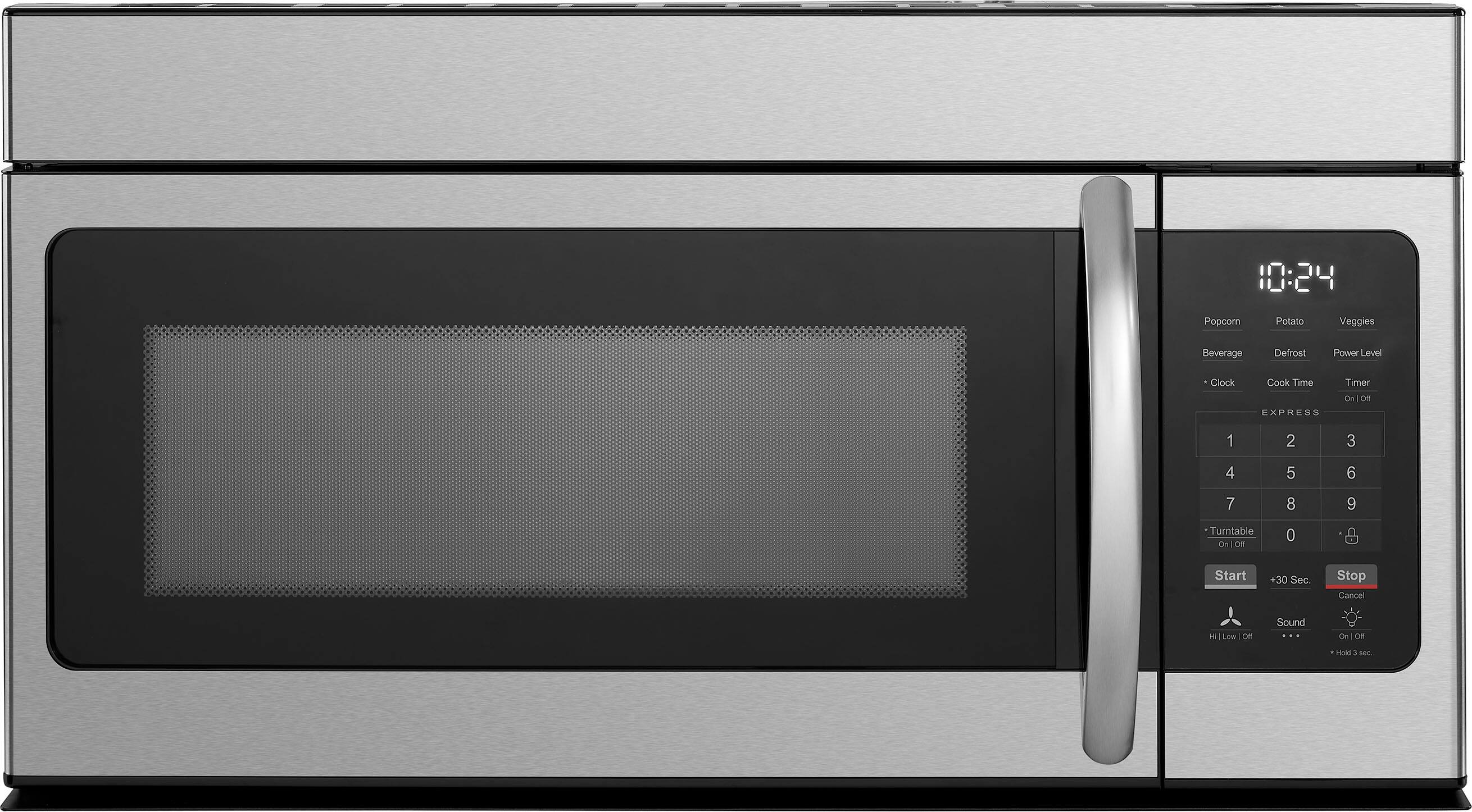

Insignia™ - 1.6 Cu. Ft. Over-the-Range Microwave - Stainless Steel

Model: NS-OTRB16SS3
SKU: 6501125
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Stainless steel
    • Product Height: 16 4/9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
    • Turntable Diameter: 13.6 inches
    • Control Type: Touchpad
    • Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
    • Wattage: 1000 watts (Measurement of electrical power.)
  • General
    • Brand: Insignia™
    • Model Number: NS-OTRB16SS3
    • Product Name: 1.6 Cu. Ft. Over-the-Range Microwave
    • Color: Stainless Steel
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 16 4/9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 52.7 pounds (The out of box weight of the item.)
    • Interior Microwave Cavity Dimensions: 9 5/16 x 20 1/4 x 14 7/16 in. (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
  • Cut-Out Dimensions
    • Cut-Out Height: 16 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Capacity
    • Capacity: 1.6 cubic feet
    • Microwave Size: Full-size
  • Connectivity
    • App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • Features
    • Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
    • Interior Material: SPCC Steel
    • Timer: true
    • Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
    • Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
    • Removable Turntable: true
    • Turntable Diameter: 13.6 inches
    • Interior Light(s): true
    • Cooktop Lighting: true (A light that illuminates the cooktop below.)
  • Controls
    • Control Type: Touchpad
    • Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
    • Display Type: LED
    • Number of Preset Programs: 9
    • Number of Fan Speeds: 2
    • Number of Power Levels: 10
    • Turntable On/Off Option: true
  • Functions
    • Oven Cooking Modes: Defrost, Cook
    • Oven Preset Settings: Popcorn, Potato, Veggies, Beverage, Defrost
  • Filter Info
    • Filter Type: Charcoal
    • Removable Filter: true
  • Ventilation
    • Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
    • Exhaust Vent Location: Rear, Top
    • Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
  • Electrical
    • Amperage: 13.5 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
    • Wattage: 1000 watts (Measurement of electrical power.)
    • Power Consumption: 1500 watts
  • Certifications Listings & Approvals
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
    • Chemical Disclosures: This product contains: Diboron trioxide. For more information about PFAS or chemicals in this product, visit: https://www.bestbuy.com/ChemicalDisclosure Este producto contiene: trióxido de diboro. Para más información sobre PFAS o sustancias químicas en este producto, visite: https://www.bestbuy.com/ChemicalDisclosure (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
  • Warranty
    • Warranty - Parts: 1 year limited
    • Warranty - Labor: 1 year limited
  • Other
    • UPC: 600603288388

The Insignia Over-the-Range Microwave has 1000W of power and a 1.6 cu. ft. interior that make it perfect to cook or reheat meals. Nine auto-cook settings, ten power levels, a defrost setting and a two-speed hood fan grant ideal heating for any type of dish. Control it all with a simple and straight-forward digital LED display and buttons. A removable 13.6 in. glass turntable ensures that your food is evenly heated and makes cleaning the inside of the microwave easy. Offering a modern design, this over-the-range microwave saves you counter space and illuminates the work surface below.

  • 1.6 cu. ft. interior: Cook or reheat large meals with a spacious interior.
  • Over-the-range design: Saves you countertop space and adds a modern look to your kitchen.
  • Removable 13.6-inch glass turntable: Automatically rotates to evenly heat food and aids in easy cleaning.
  • Task lighting: Lights up your stovetop to help you cook.
  • Integrated cooking light: Check your items as they are heating to prevent overcooking or burning.
  • Defrost setting: Quickly thaws frozen items when you need them.
  • 9 pre-set programs: Clearly labeled buttons allow you to easily choose between defrost, beverage, popcorn, potato, vegetables and more.
  • 10 variable power levels: Heats your foods to your preferred temperature.
  • 1,000 watts of power: Quickly cook or reheat meat, vegetables, pasta and more at the touch of a button.
  • 30-second express cooking: Heats with one press.
  • 2-speed hood fan: Circulates air over your stove top.
  • Convertible exhaust fan: Vents through the top or back and recirculates air to ensure an even cook.
  • Digital LED display with buttons: Easy to operate and control.
  • Child lock function: Keeps your children safe.
  • Brought to you by Best Buy: Insignia brings you affordable, dependable products with all the features you need.
Whats Included
  • Insignia 1.6 Cu. Ft. Over-the-Range Microwave
  • Turntable (with ring)
  • Exhaust adapter
  • Grease filters (2)
  • Installation hardware
  • Installation Guide
  • User Guide
  • Top Cabinet Template
  • Rear Wall Template

Q: Can this over-the-range microwave be vented through the back?

A: Yes, this microwave has a convertible exhaust fan that can vent through the top or back.

Q: What type of display does this microwave have?

A: This microwave has an easy to operate digital LED display.

Q: How many power levels does the microwave have?

A: This microwave has 10 power levels to choose from.

Q: Does this Insignia microwave have a turntable?

A: Yes, this microwave comes with a removable 13.6-inch glass turntable.

Q: What is the wattage of this microwave?

A: This Insignia microwave has 1,000 watts of power.

Q: Do the parts to convert this from external vent to recirculating vent come with the unit or do I need to purchase separate?

A: Not sure if this answers your question but the vent can be positioned for external exhaust or recirculation.

Q: Is this used?

A: New in box
