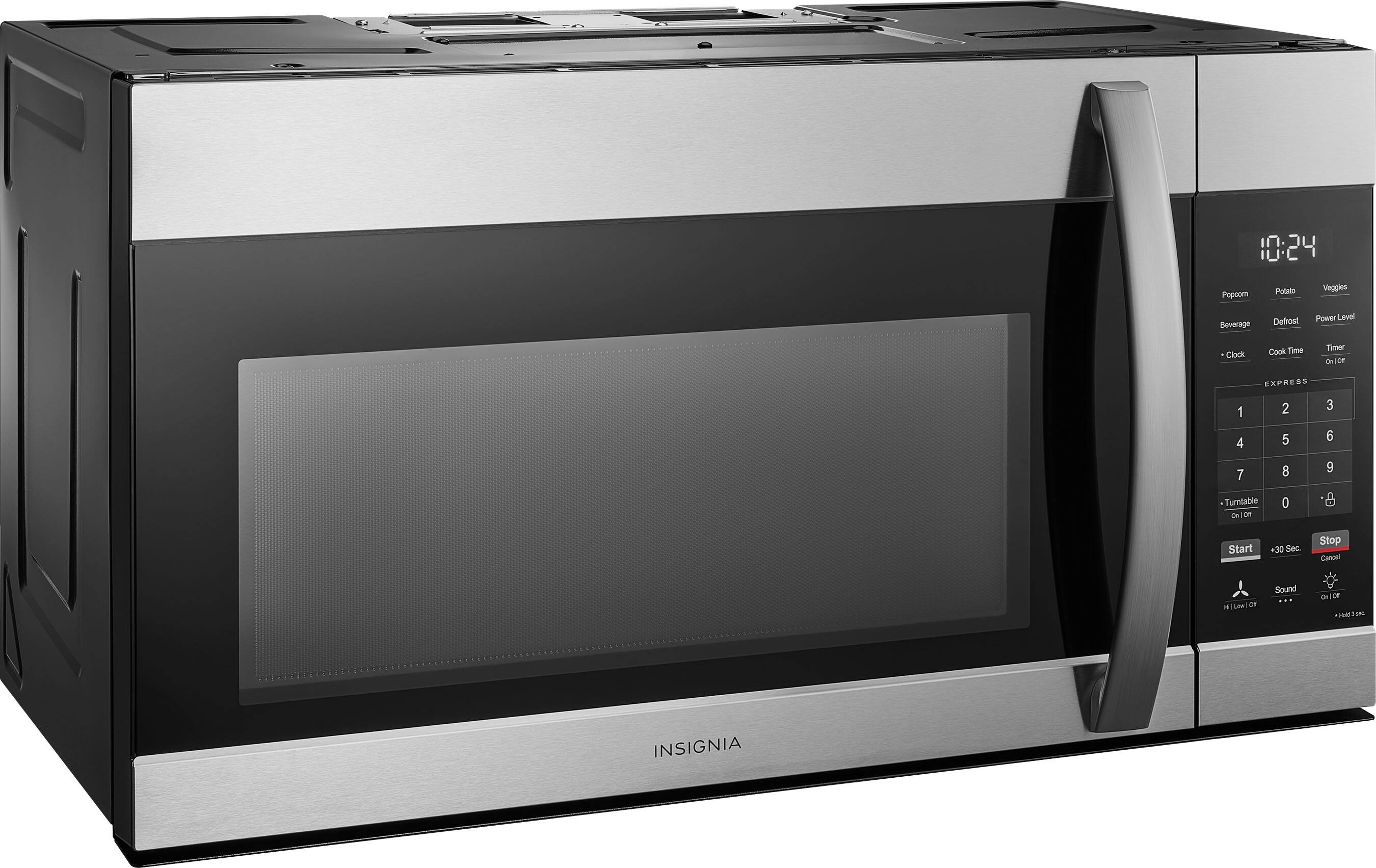

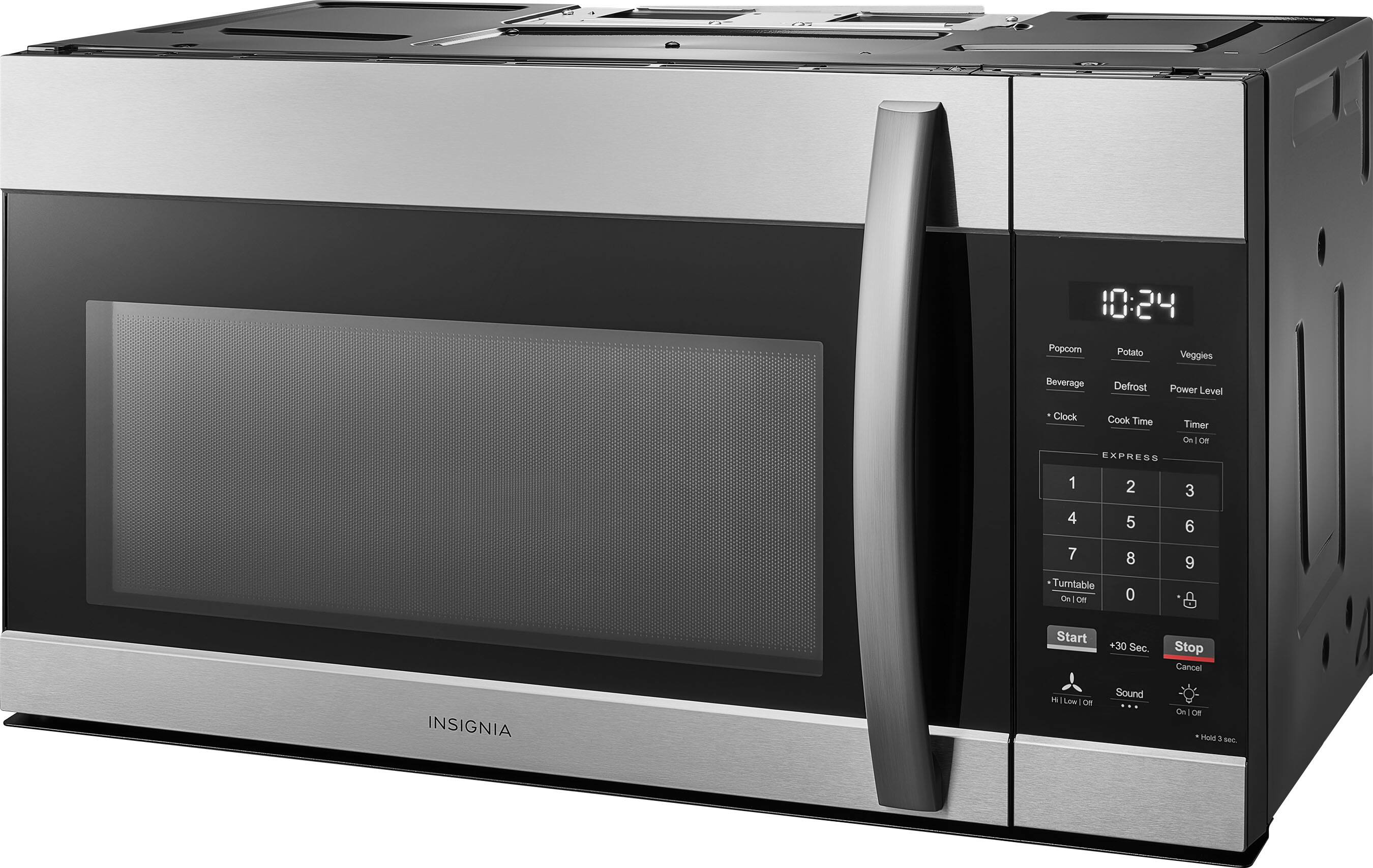

Insignia™ - 1.7 Cu. Ft. Over-the-Range Microwave with 2-Stage Cooking - Stainless Steel
Insignia™ - 1.7 Cu. Ft. Over-the-Range Microwave with 2-Stage Cooking - Stainless Steel
Color
Stainless SteelMore Buying Options
Related Item
Specifications
- Color FinishStainless steelProduct Height15.54 inchesProduct Width29.88 inchesProduct Depth15.47 inchesApp CompatibleNoMicrowave TypeOver-the-range
- Key Specs
- Color Finish: Stainless steel
- Product Height: 15.54 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.47 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 13.6 inches
- Control Type: Touchpad
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Insignia™
- Model Number: NS-OTR17SS26
- Product Name: 1.7 Cu. Ft. Over-the-Range Microwave with 2-Stage Cooking
- Color: Stainless Steel
- Color Finish: Stainless steel

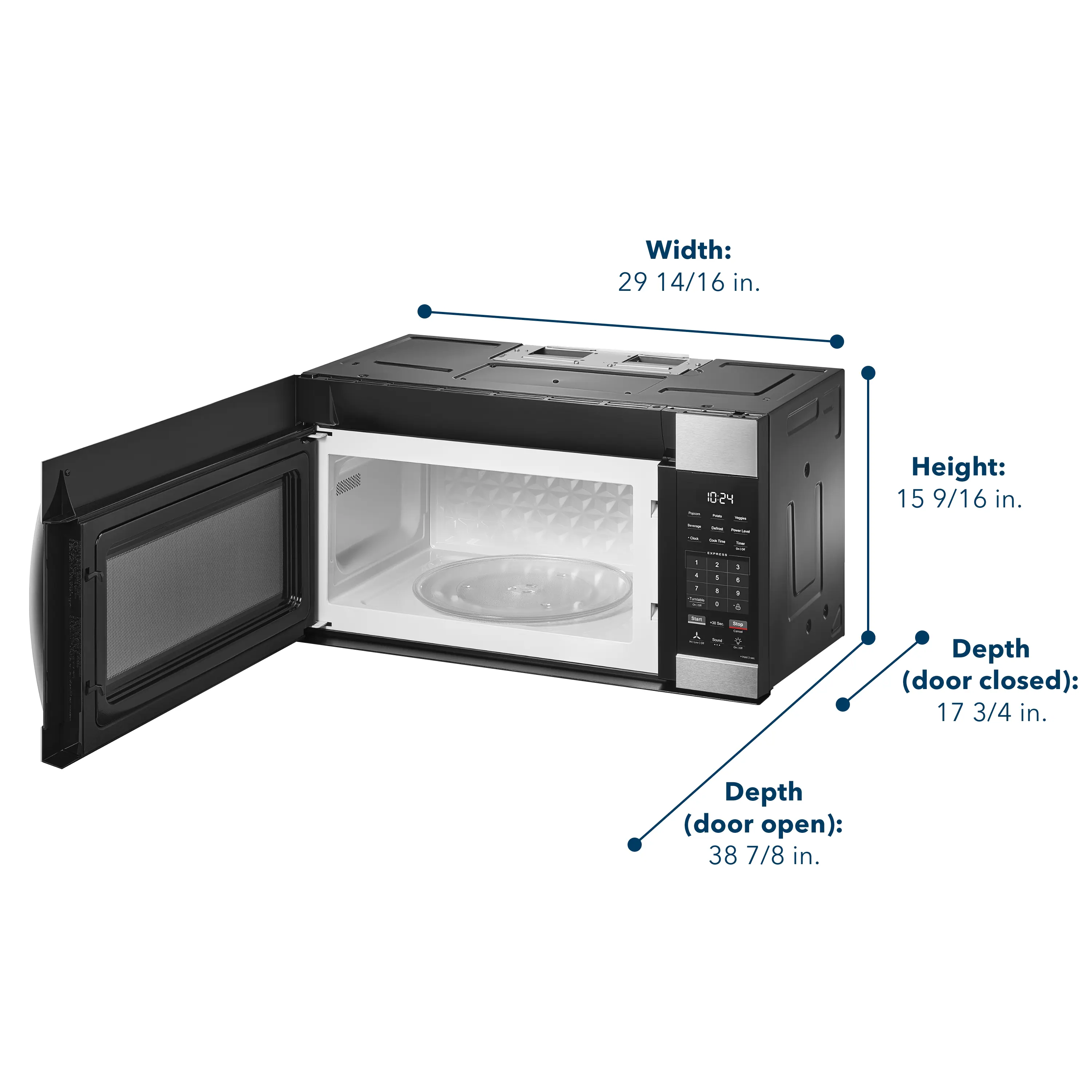

- Dimensions
- Product Height: 15.54 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.47 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 52.47 pounds (The out of box weight of the item.)
- Interior Microwave Cavity Dimensions: 10.33 x 20.94 x 13.78 in. (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
- Cut-Out Dimensions
- Cut-Out Height: 20.08 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 33.27 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19.29 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.7 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Interior Material: SECC
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 13.6 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Controls
- Control Type: Touchpad
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LED
- Number of Preset Programs: 16
- Number of Fan Speeds: 2
- Number of Power Levels: 11
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Cook, Defrost
- Oven Preset Settings: Popcorn, Potato, Veggies, Beverage
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear, Top
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical
- Amperage: 13.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Power Consumption: 1500 watts
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): cULus, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Lead, Diboron trioxide (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603314698
Not only does this microwave use a powerful 1,000 watts, it also features 11 power levels and a two-stage cooking function—programming two cook times and power levels at the same time—so you can control exactly how you cook. A removable turntable helps evenly heat the food and can be turned off if needed. When your stovetop dishes produce too much steam, simply turn on the fan to vent or filter to clear the air. Exterior task lighting makes it even easier to keep an eye on dinner. Solve dinnertime frustrations with the Insignia 1.7 Cu. Ft. Over-the-Range Microwave with 2-Stage Cooking.

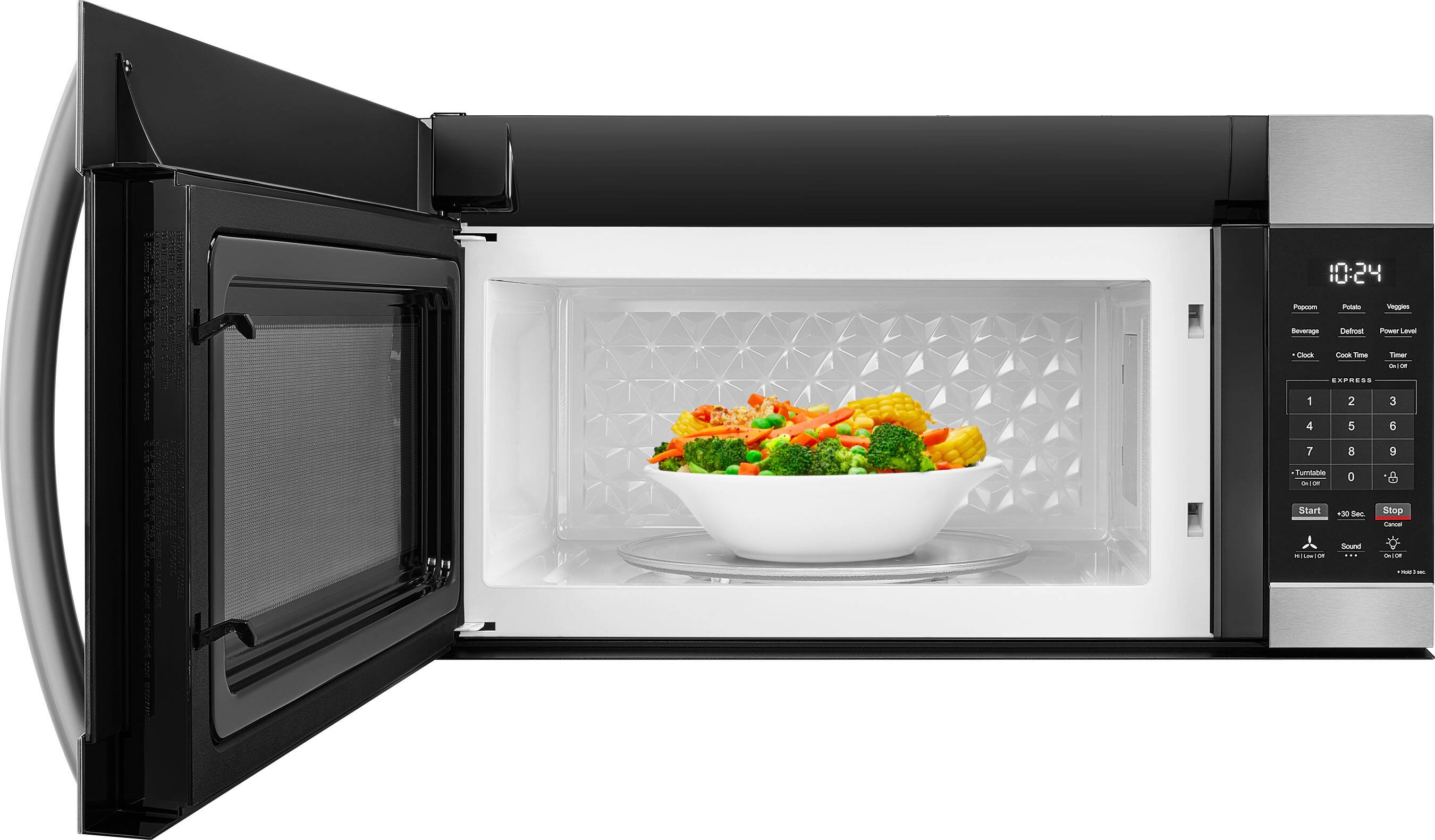

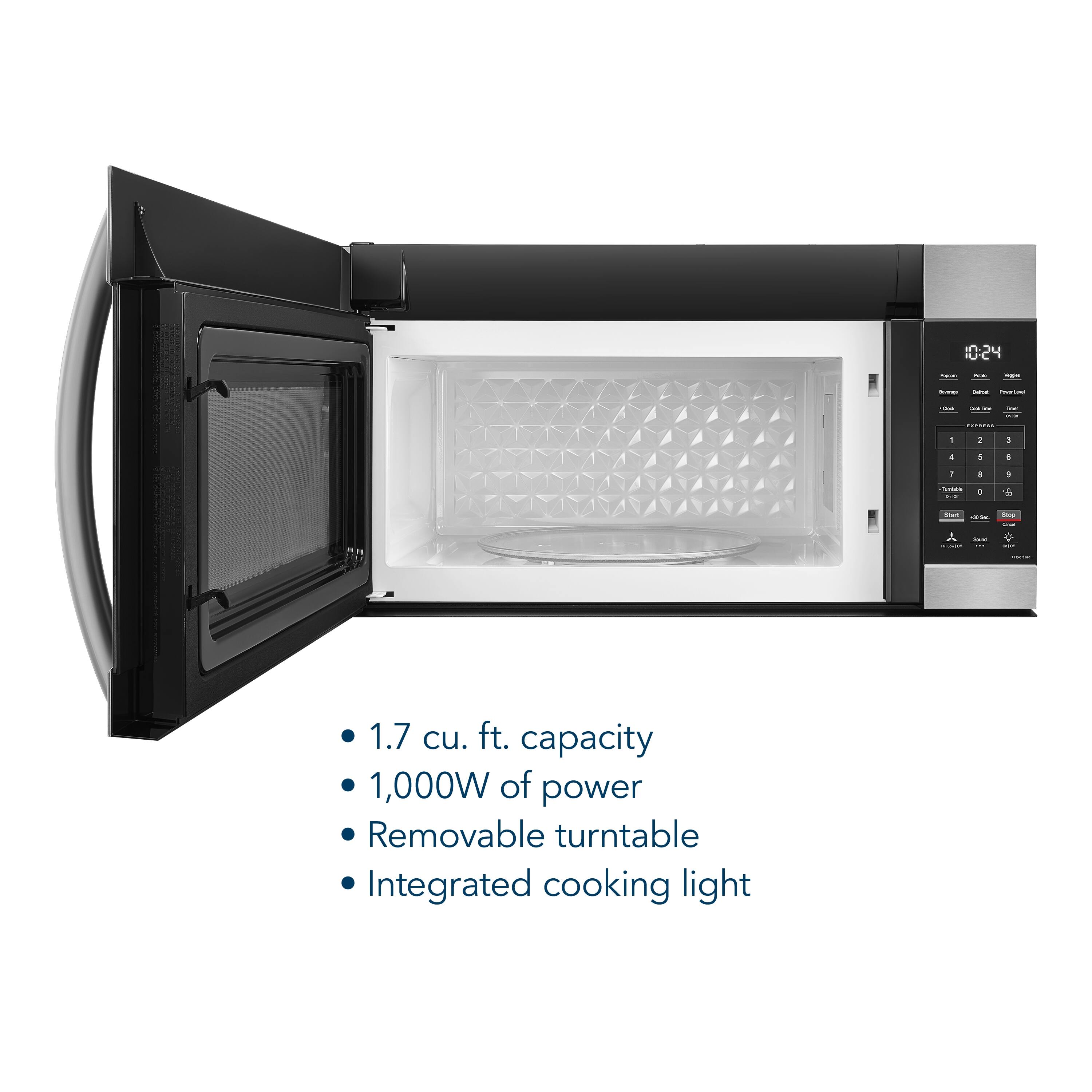

- Spacious, 1.7 cu. ft. interior: Fits larger dishes, allowing you to cook or reheat more food.

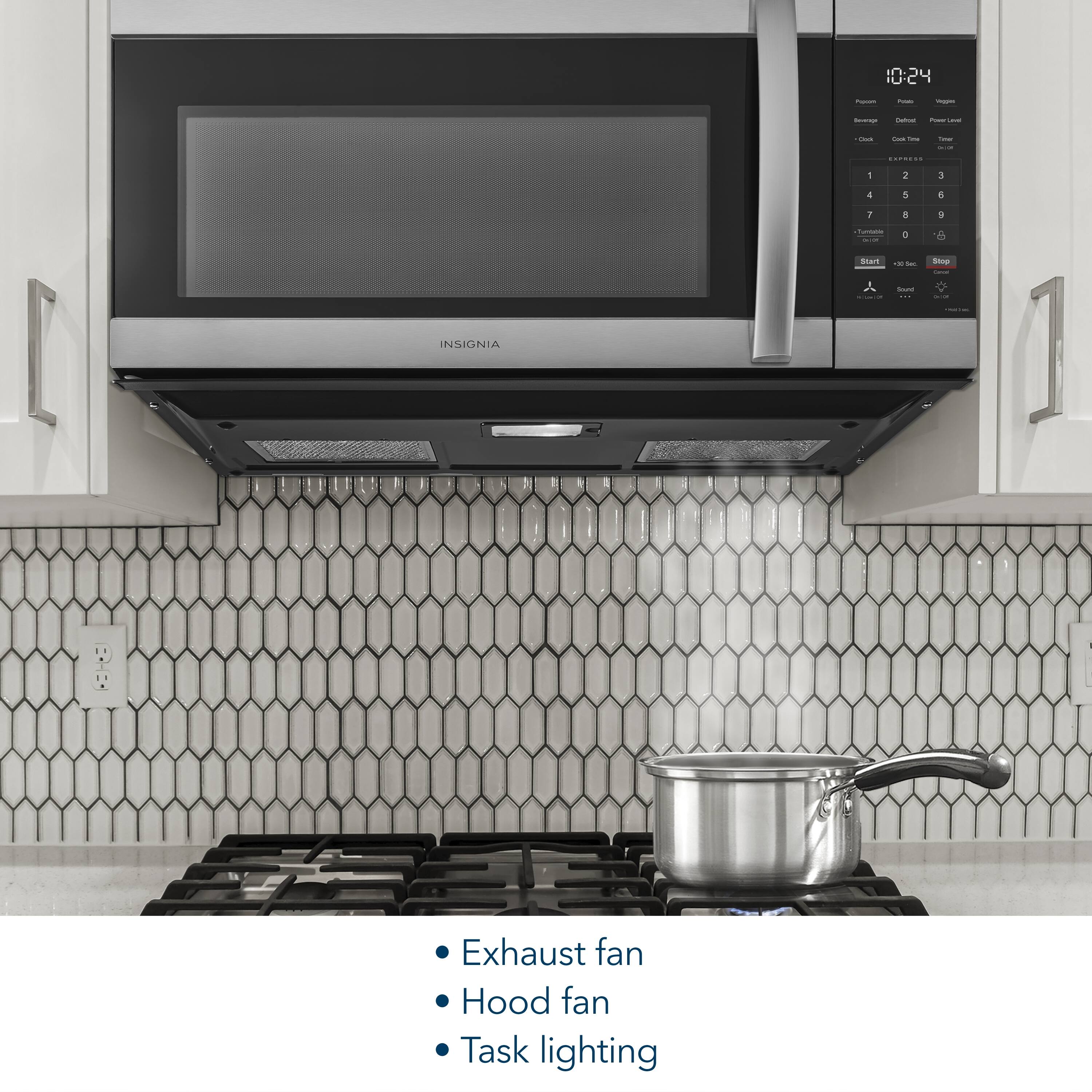

- Removes steam and odors from your stovetop: The 2-speed exhaust fan vents through the top/back of your microwave or recirculates filtered air to improve air quality.
- Removable 13.6-inch glass turntable: Choose whether the turntable rotates to evenly heat food or turn it off to fit larger dishes.

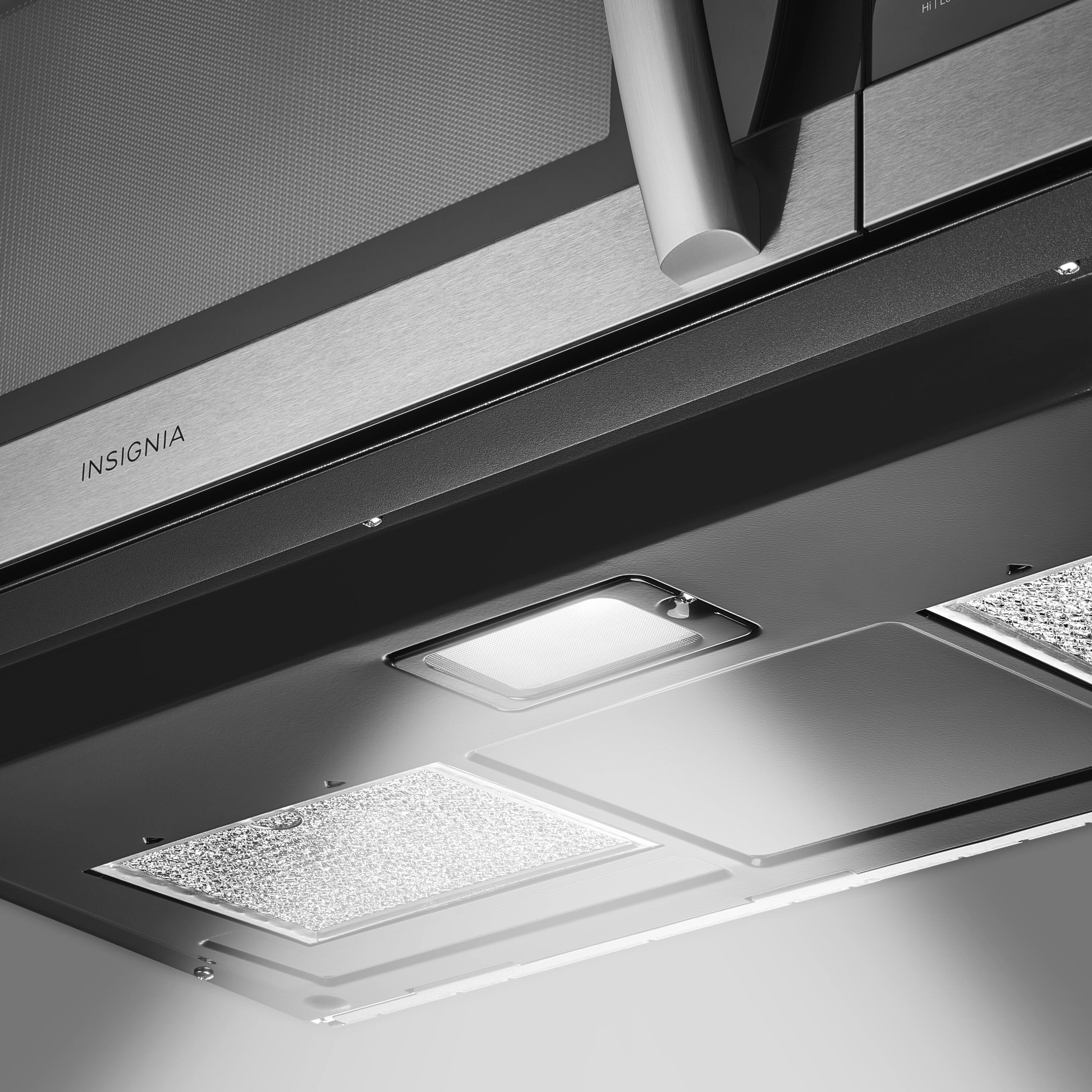

- Interior and exterior lighting: The microwave cooking light and stovetop task light help you keep an eye on your food.
- Defrost setting: Quickly thaws frozen items when you need them.

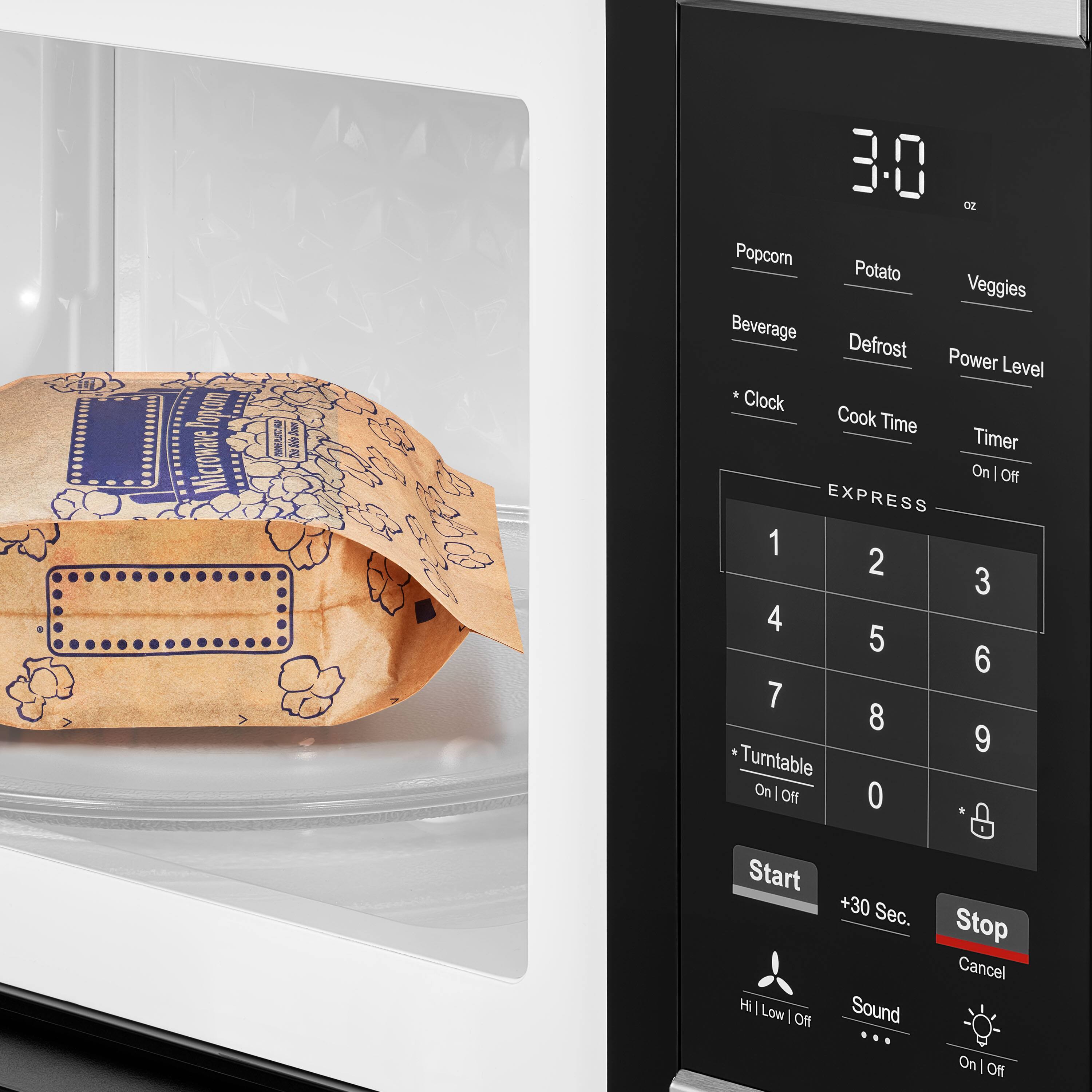

- Auto-cook presets: Heat beverages, popcorn, potatoes, and vegetables with confidence.
- 1,000W with variable power levels: Quickly cook or reheat meat, vegetables, pasta and more. Adjust the microwave’s power to prevent overcooking, heat more evenly, or maintain food texture.
- 30-second express cooking: Start heating with one press or add additional time to your cooking cycle.
- 2-stage cooking: Program two cook times and power levels at the same time, so you can multitask in the kitchen.

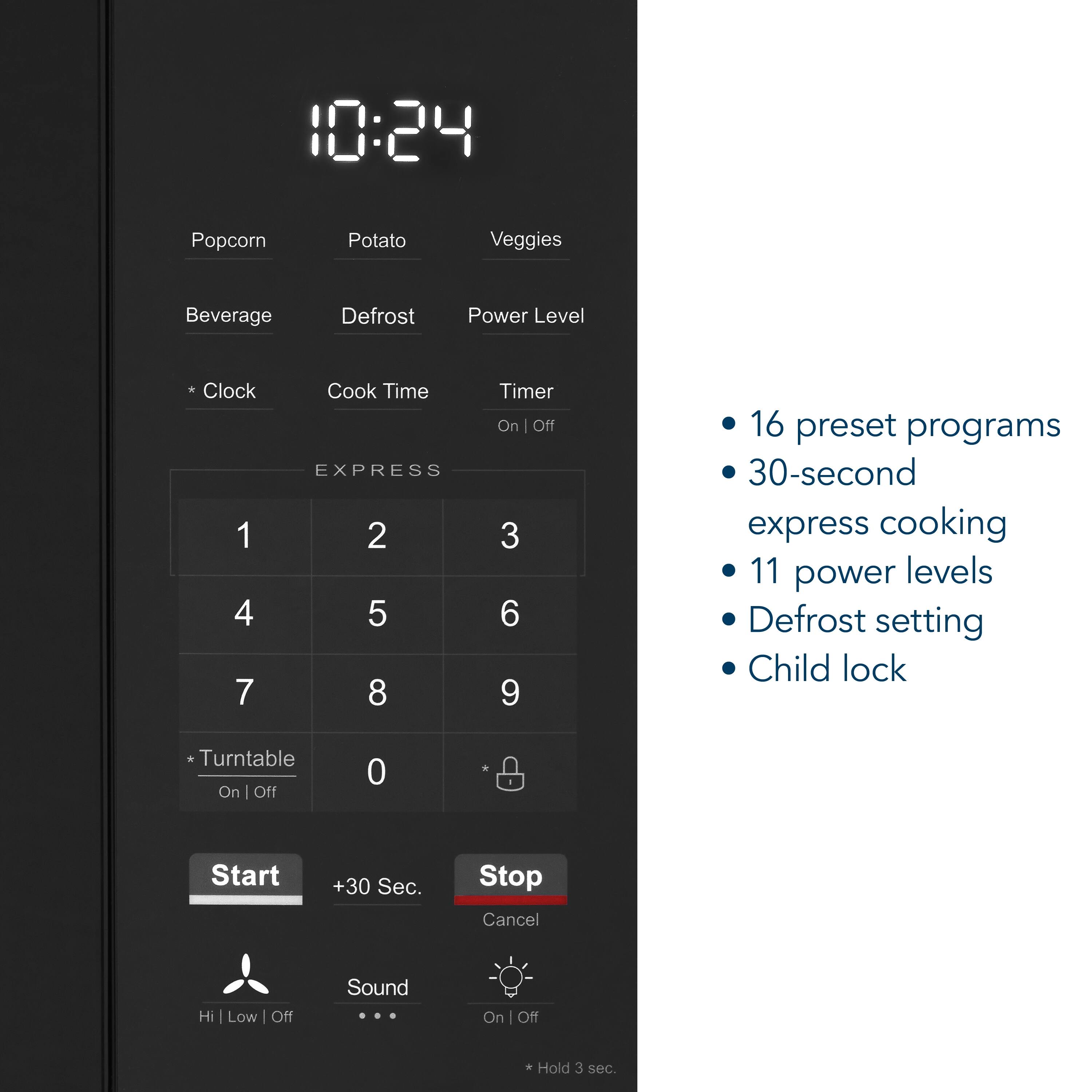

- Digital LED display with buttons: Provide simple operation and control.
- Child lock: Keeps your children safe by locking the control panel from accidental input.
- Brought to you by Best Buy: Insignia brings you affordable, dependable products with all the features you need.
- Spacious, 1.7 cu. ft. interior: Fits larger dishes, allowing you to cook or reheat more food.
- Removes steam and odors from your stovetop: The 2-speed exhaust fan vents through the top/back of your microwave or recirculates filtered air to improve air quality.
- Removable 13.6-inch glass turntable: Choose whether the turntable rotates to evenly heat food or turn it off to fit larger dishes.
- Interior and exterior lighting: The microwave cooking light and stovetop task light help you keep an eye on your food.
- Defrost setting: Quickly thaws frozen items when you need them.
- Auto-cook presets: Heat beverages, popcorn, potatoes, and vegetables with confidence.
- 1,000W with variable power levels: Quickly cook or reheat meat, vegetables, pasta and more. Adjust the microwave’s power to prevent overcooking, heat more evenly, or maintain food texture.
- 30-second express cooking: Start heating with one press or add additional time to your cooking cycle.
- 2-stage cooking: Program two cook times and power levels at the same time, so you can multitask in the kitchen.
- Digital LED display with buttons: Provide simple operation and control.
- Child lock: Keeps your children safe by locking the control panel from accidental input.
- Brought to you by Best Buy: Insignia brings you affordable, dependable products with all the features you need.
Whats Included
- Insignia™ 1.7 Cu. Ft. Over-the-Range Microwave with 2-Stage Cooking
- Glass turntable (with ring)
- Installation hardware
- Top and rear templates
- Grease filter

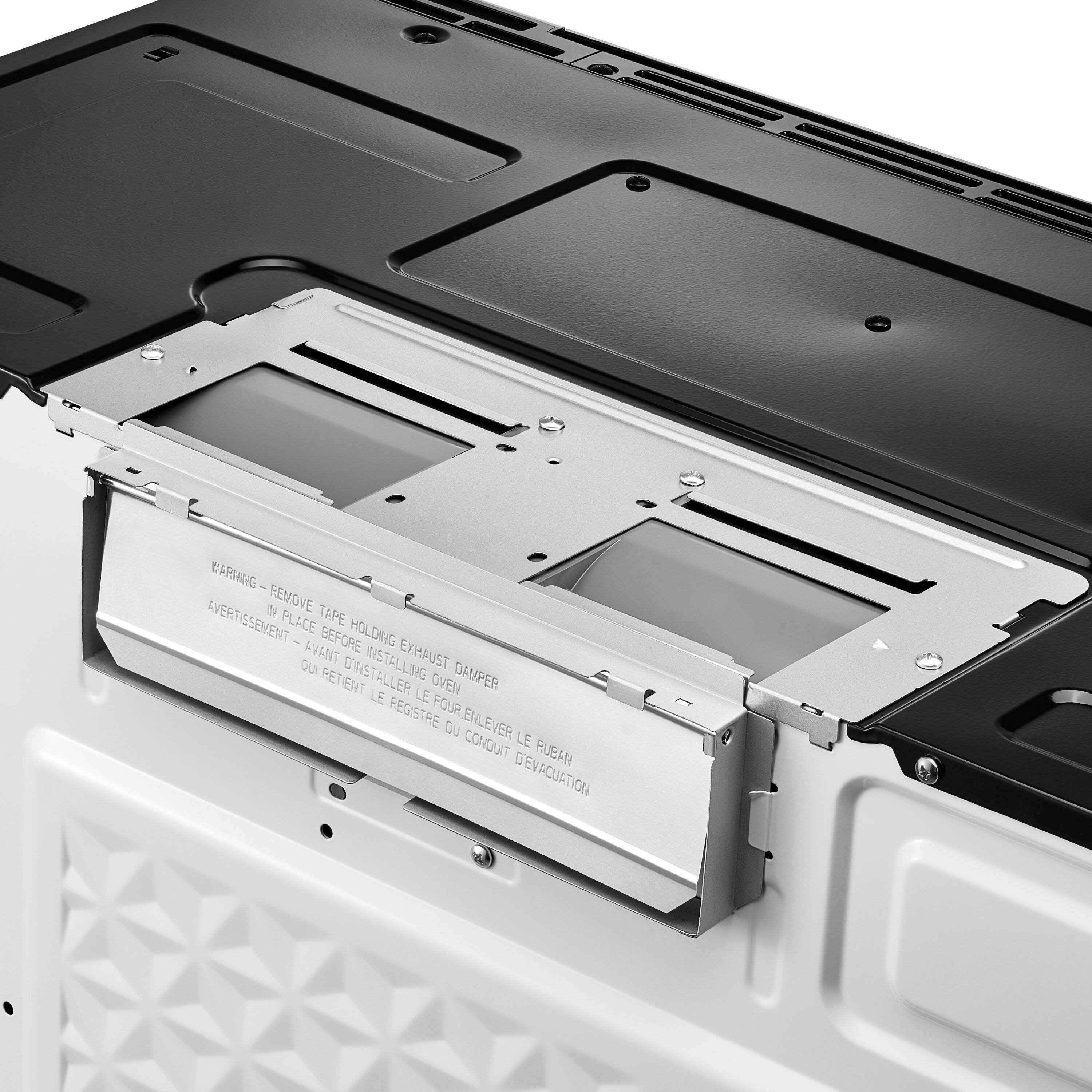

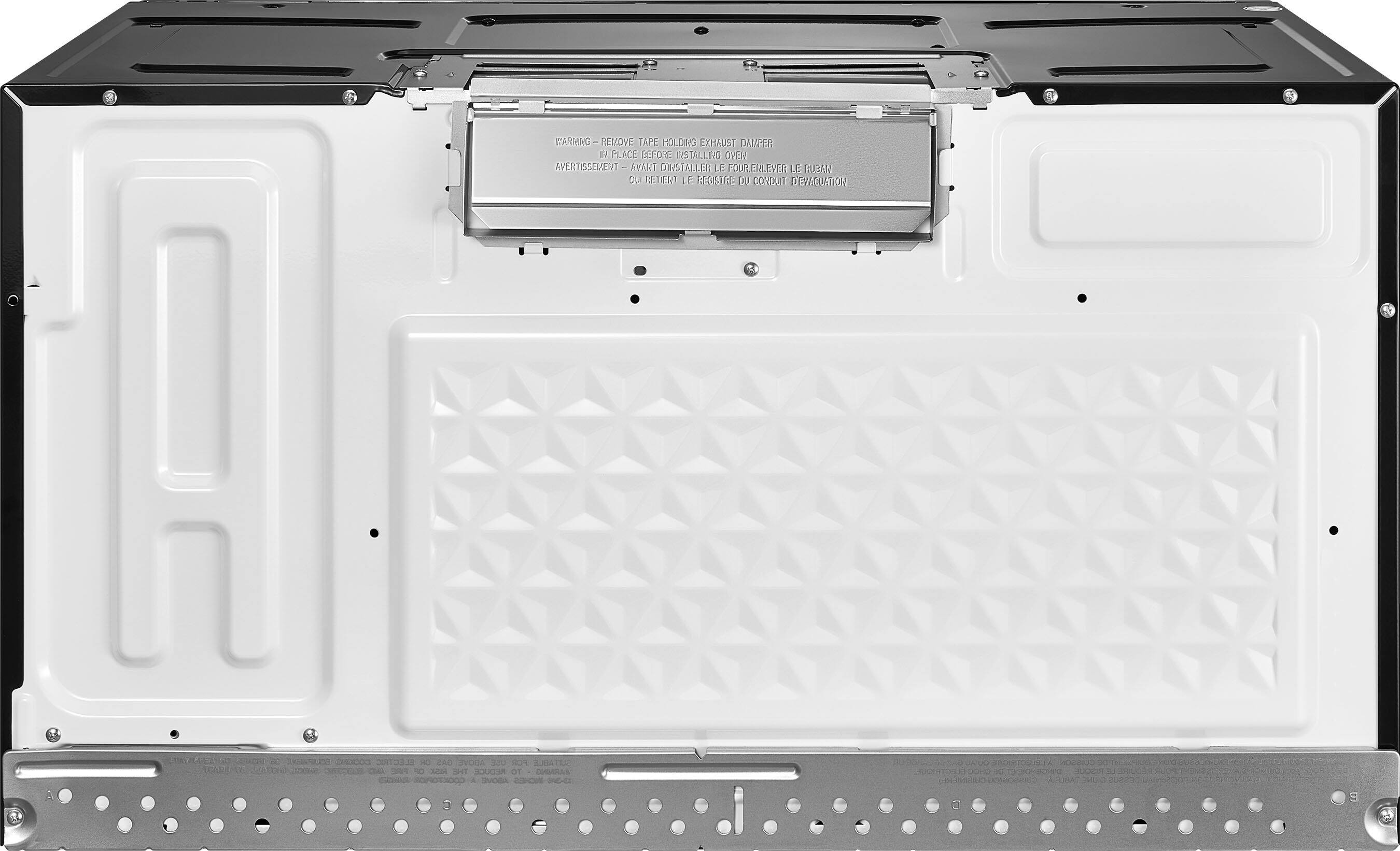

- Exhaust damper
- Installation Guide
- User Guide
- Insignia™ 1.7 Cu. Ft. Over-the-Range Microwave with 2-Stage Cooking
- Glass turntable (with ring)
- Installation hardware
- Top and rear templates
- Grease filter
- Exhaust damper
- Installation Guide
- User Guide
Product Manuals
- Installation Guide
- Installation Guide
- User Manual
- User Manual
- Instructions/Assembly Guide
- Instructions/Assembly Guide
- Warranty Manual
- Specification Sheet
- Specification Sheet
- Installation Guide
- Installation Guide
- User Manual
- User Manual
- Instructions/Assembly Guide
- Instructions/Assembly Guide
- Warranty Manual
- Specification Sheet
- Specification Sheet
A: The product specs are incorrect. Rear height for mounting is 16-3/8". The front tapers up to 15-3/4" I purchased this specifically because of the height specs given. Replacing an old one and have granite backsplash. What should have taken a 1/2 hr to swap cost an entire day, pulling the cabinets and having the granite cut to size.
A: Fan vents upwards, above the door.
Q: Do you have a link to this products installation guide
A: This is the owner's manual. https://files.bbystatic.com/Hlrc1JMyLZ2%2BPiPU8ZosRA%3D%3D/User%2BGuide Unit is a clone of the Midea MMO17S5AST (minor changes in control panel layout). The Midea manual is more thorough. https://www.midea.com/content/dam/midea-aem/us/microwaves/midea-1-7-cu--ft--30--over-the-range-microwave-with-sensor-cooking/MMO17S3AST-User-Manual.pdf
A: Hello Anne, thank you for your question. Yes, the Insignia™ 1.7 Cu. Ft. Over‑the‑Range Microwave does come with a thin protective film over the control panel when it’s brand new. It can sometimes be difficult to see or peel because it’s applied very tightly to protect the surface during shipping. If you gently run your fingernail along the edge of the number pad, you should feel the film lift so you can remove it. Sudeep | Insignia
Q: Does the unit have a follow up alarm if you leave something after heating
A: Every 2 min it will beep again if door has not been opened. Do not know how many times this will repeat but at least 2x.
Q: How high above the stove does this microwave need to be installed
A: 16" is the min height of any over the range oven. Will need to use a slim model if you lack the clearance.
