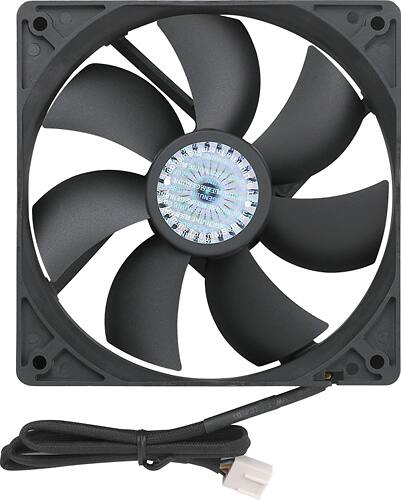

Insignia™ - 120mm Case Cooling Fan - Black
- Key Specs
- Airflow Volume: 44 cubic feet per minute
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 1200 revolutions per minute
- Noise Level: 22.5 decibels adjusted
- Product Height: 0.98 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.72 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- General
- Brand: Insignia™
- Model Number: NS-PCF1250
- Product Name: 120mm Case Cooling Fan
- Color: Black
- Cooling
- Airflow Volume: 44 cubic feet per minute
- Cooling Fan Type: Case
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 1200 revolutions per minute
- Noise Level: 22.5 decibels adjusted
- Dimensions
- Product Height: 0.98 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.72 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.72 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.34 ounces (The out of box weight of the item.)
- Compatibility
- Processor Socket: Socket (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Other
- UPC: 600603163470
Help keep your computer cool with this Insignia NS-PCF1250 120mm case fan, which offers a 44 cfm airflow volume for efficient heat dissipation. The 22.5dBA maximum noise level helps ensure quiet performance.
- Compatible with most cases with 4-pin connectors: For wide-ranging use.
- 120mm case cooling fan: Helps draw heat away from sensitive components.
- 44 cfm airflow volume: Ensures efficient cooling.
- 22.5dBA maximum noise level: For minimal operational sound.
- 1.6' cable: Allows flexible installation options.
- Compatible with most cases with 4-pin connectors: For wide-ranging use.
- 120mm case cooling fan: Helps draw heat away from sensitive components.
- 44 cfm airflow volume: Ensures efficient cooling.
- 22.5dBA maximum noise level: For minimal operational sound.
- 1.6' cable: Allows flexible installation options.
Whats Included
- Insignia™ 120mm Case Cooling Fan
- Mounting screws
- Owner's manual
- Insignia™ 120mm Case Cooling Fan
- Mounting screws
- Owner's manual
Product Manuals
Q: will this work while hooked to a 12vdc battery?

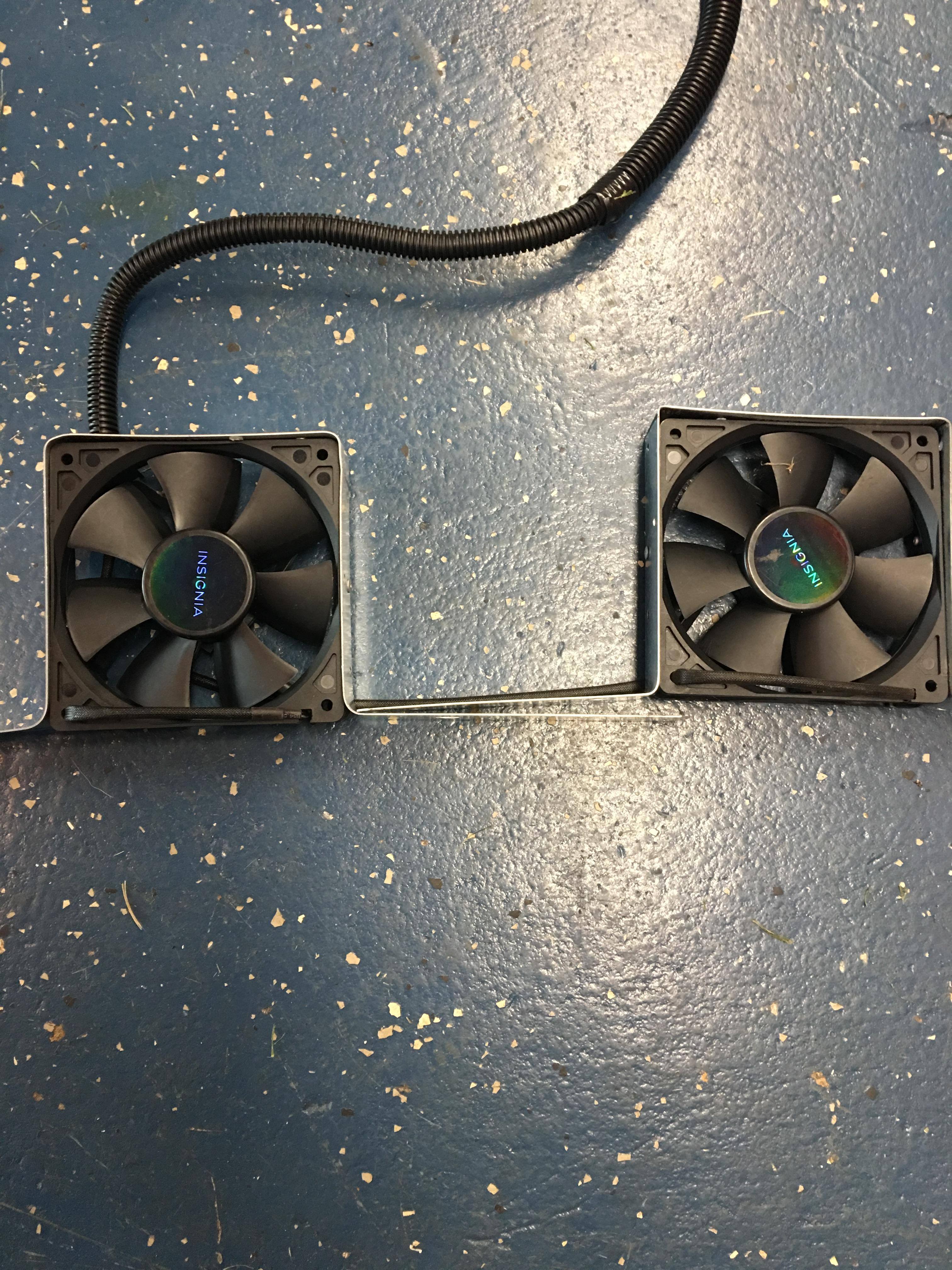

A: Robert, this will definitely work. I installed two of these in electrical parallel in my RV to remove heat from the refrigerator.
A: This fan is cheap and does not cool well. I ended up buying 1 120mm Antec fan from Wal-Mart for $7.99. It cooled better than two of the Insignia fans.
Q: Wiring info for "Insignia PC Case Fan - 120mm"
A: Ground is Black and Power (12VDC) is Yellow. Just an FYI Green is the wire that tells signals the RPMs and Blue is to control the fan.
Q: i need a fan that has usb plug for power.
A: Sorry, the fan is for 12 VDC use (USB supplies 5 VDC). There are fans for USB use - search the web for "usb 5V fan".
A: This is a 12 volt input power device max.
Q: Is this fan compatible with socket 775?
A: Fans are not cpu dependent. Motherboard fan plugs are universal.
Q: What is the polarity of this fan
A: undefined
Q: Can I take a sanyo cooling fan and put it in a insignia tv
A: undefined
