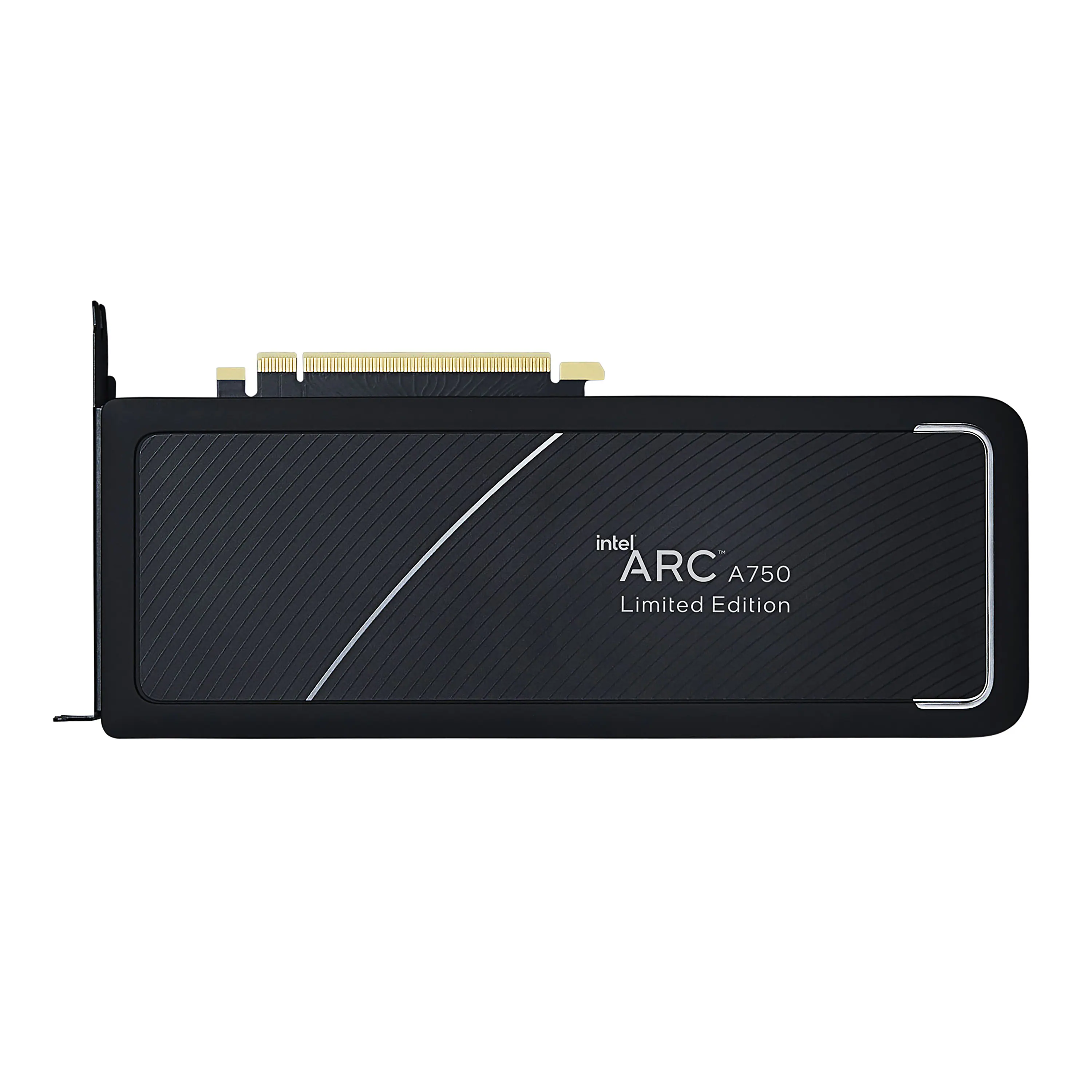

Intel - Arc A750 Limited Edition 8GB GDDR6 PCI Express 4.0 Graphics Card - Black
- Key Specs
- GPU Base Clock Frequency: 2.05 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.05 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 4 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 280 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 45 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 115 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): Intel Arc A750 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: Intel
- Model Number: 21P02J00BA
- Product Name: Arc A750 Limited Edition 8GB GDDR6 PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: Intel
- Graphics Processing Unit (GPU): Intel Arc A750 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2022
- Performance
- GPU Base Clock Frequency: 2.05 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.05 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 4 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 1x 6-pin + 1x 8-pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 8 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 11 or 10 64-bit, 10th Gen Intel Core Processors or later with compatible motherboards supporting Resizable BAR, AMD Ryzen 5000, select AMD Ryzen 3000 Processors with compatible AMD Ryzen 500 Series motherboards supporting Smart Access Memory (The software that a product must have for it to be able to integrate with another product.)
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 225 watts
- Recommended Power Supply: 600 watts
- Dimensions
- Product Height: 280 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 45 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 115 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.71 pounds (The out of box weight of the item.)
- Other
- UPC: 735858501019
Performance Gamer - Crank up your settings and play the latest games. Do more than just game with seamless streaming features and the advanced content creation capabilities
- Intel Arc A750 Limited Edition: Powered by the Intel with a 2050 MHz clock speed to help meet the needs of demanding games.
- 8Gb GDDR6: 8Gb GDDR6 on-board memory and 28 XE-cores and 512 GB/s bandwidth provide the memory needed to create striking visual realism.
- Supported Technologies: DirectX 12 Ultimate, Ray Tracing, Variable Rate Shading, Vulkan, OpenGL, Adaptive Sync
- Architecture: Xe HPG
- Intel Xe Matrix Extensions (Intel XMX) Engines: 448
- Graphics Output: DP 2.0 up to UHBR 10, HDMI 2.1
- Max Resolution (DP): 7680 x 4320@60Hz
- Card Dimension: 280x115x45mm
- Intel Arc A750 Limited Edition: Powered by the Intel with a 2050 MHz clock speed to help meet the needs of demanding games.
- 8Gb GDDR6: 8Gb GDDR6 on-board memory and 28 XE-cores and 512 GB/s bandwidth provide the memory needed to create striking visual realism.
- Supported Technologies: DirectX 12 Ultimate, Ray Tracing, Variable Rate Shading, Vulkan, OpenGL, Adaptive Sync
- Architecture: Xe HPG
- Intel Xe Matrix Extensions (Intel XMX) Engines: 448
- Graphics Output: DP 2.0 up to UHBR 10, HDMI 2.1
- Max Resolution (DP): 7680 x 4320@60Hz
- Card Dimension: 280x115x45mm
Whats Included
- Arc A750 Limited Edition 8GB GDDR6 PCI Express 4.0 Graphics Card
- Arc A750 Limited Edition 8GB GDDR6 PCI Express 4.0 Graphics Card
Q: Will this GPU work with AMD A10-7800 CPU and MSI Orchid2-s motherboard ?
A: I wouldn't recommend that. This CPU is too old to have rebar (amd calls it smart access memory) support. Arc cards are really bad without it. In fact, I had it disabled at first and it wouldn't even work reliably when I installed with linux. In windows, it's know to be very slow without rebar. I wouldn't go older than a 3000 series ryzen CPU with these.
A: Greetings from the Intel team. Thank you for your question. The Intel® Arc™ A750 Graphics has a TBP of 225 W. Total Board Power (TBP) represents the total power draw of a graphics card or other add-in card in watts when operating under a typical load such as a gaming workload. Power supply requirements for the Intel® Arc™ A770 Limited Edition and A750 Limited Edition Graphics: Minimum 600W power supply with two PCIe power connectors – 1x8-pin & 1x6-pin For further system requirements information, check the Intel® Arc™ A-Series Graphics – Desktop Quick Start Guide: https://www.intel.com/content/www/us/en/support/articles/000091128/graphics.html#:~:text=Power%20Supply%20Requirements&text=Intel%C2%AE%20Arc%E2%84%A2%20A770,1x8%2Dpin%20%26%201x6%2Dpin For detailed information about the Intel® Arc™ A750 Graphics, visit: https://ark.intel.com/content/www/us/en/ark/products/227954/intel-arc-a750-graphics.html Thank you for choosing Intel! Emilio_Intel
Q: Will this GPU pair with the Gigabyte Z790 Aorus Elite AX motherboard?
A: Yes the "Intel Arc A750" will work with the "Gigabyte Z790 Aorus Elite AX". The Intel GPU is fully compatible with any modern gaming motherboard.
A: AutoCAD will entirely depend on your use case, but for 2D its more than enough. 3D should also work ok but this does not have double precision which can cause issues. The python libraries for ML and the like usually default to CUDA which is Nvidia specific and support for others is lacking or less performant. If you want a good experience there, you will want to stick with Nvidia.
Q: Is this compatible with my mother board? The asrock b560m-c/ac. Lmk!
A: Yes.. but you wont be able to utilize (Deep Link) if you have a 10th gen intel. Thankfully your board supports both 10th and 11th gen intel. So long as you have an 11th gen cpu combined with this GPU, (Deep Link) will be automatically enabled. Intel Deep Link technology allows ARC GPUs to work seamlessly with Intel CPUs with built-in graphics to increase gaming performance, creation, and streaming with the following features: Hyper Encode. It combines multi-platform multimedia engines to speed up video encoding workloads by up to 60% compared to separate Iris XE graphics. Hyper Compute: Similarly, it uses the combined power of computational and Al engines found across the Intel platform (including Intel Core processors, Iris XE graphics and Intel Arc GPUs) to speed up a variety of new workloads. Dynamic Power Share: intelligently and automatically prioritizes the performance of the engine based on the workload, sending more power to the Intel Core processor or the Intel Arc graphics product as necessary. Hence the namr (ARC) If you dont mind tinkering with settings, diagnosing random bugs and you have an 11th gen intel, i say go for it. If you do, immediately check advanced settings in bios and make sure resizable bar is enabled. (Resizable BAR) essentially makes the entirety of the graphics frame buffer accessible to the CPU at once and will help reduce stuttering. If you have a 10th gen intel, either upgrade the cpu along with your gpu or just get a 3060 or 4060. You would be spending a little bit more, but remember you get what you pay for. If you're willing to wait... The second Generation of Intel Arcs (code name :battlemage)have lots of hype behind them. Ultimately the decision is up to you. Just do your research.
Q: will a Dell 0GY6Y8, intel i7 12700KF, and a EVGA BP series 750W power supply work with this?
A: Yes. Max power draw is 225w. Typically pulls 180-200 watts. Must have one 6-pin and one 8-pin PCIe power cables.
A: Greetings from the Intel team. Thank you for your question. Based on the Intel® Arc™ A-Series Graphics – Desktop Quick Start Guide, your system doesn't meet the system requirements for the Intel® Arc™A750 Limited Edition Graphics. For system requirements information, check the Intel® Arc™ A-Series Graphics – Desktop Quick Start Guide: https://www.intel.com/content/www/us/en/support/articles/000091128/graphics.html#:~:text=Power%20Supply%20Requirements&text=Intel%C2%AE%20Arc%E2%84%A2%20A770,1x8%2Dpin%20%26%201x6%2Dpin For detailed information about the Intel® Arc™A750 Limited Edition Graphics, visit: https://ark.intel.com/content/www/us/en/ark/products/227954/intel-arc-a750-graphics.html Thank you for choosing Intel! Emilio_Intel
