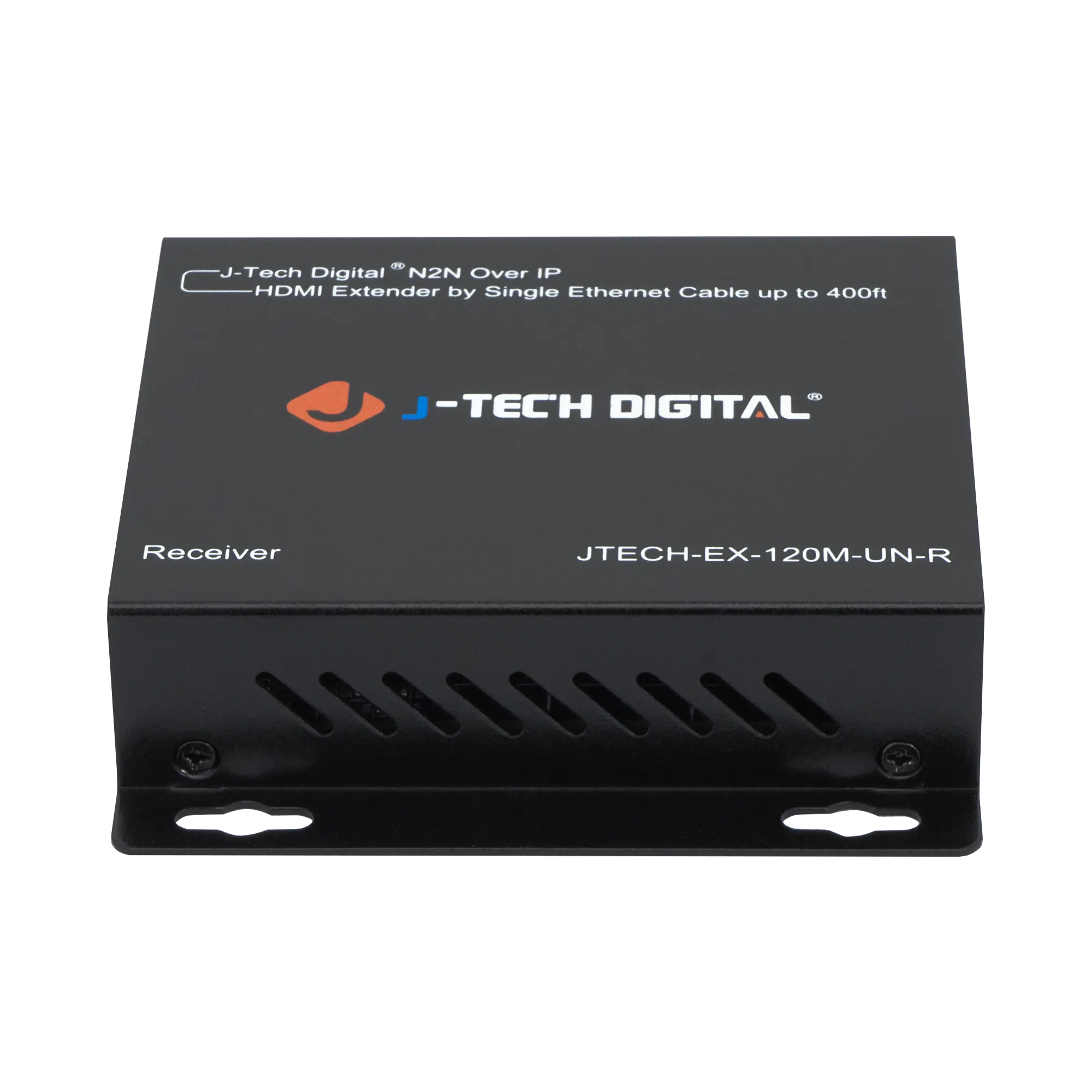

J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Ethernet For AV Over IP System - 400ft. (Receiver) - Black
Reviews coming soon
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EX-120M-UN-R
- Product Name: J-Tech Digital 1080P 60Hz HDMI Extender Balun Over Ethernet For AV Over IP System - 400ft. (Receiver)
- Color: Black
- Features
- Maximum Video Resolution: 1080p (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 1080p (Full HD) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false

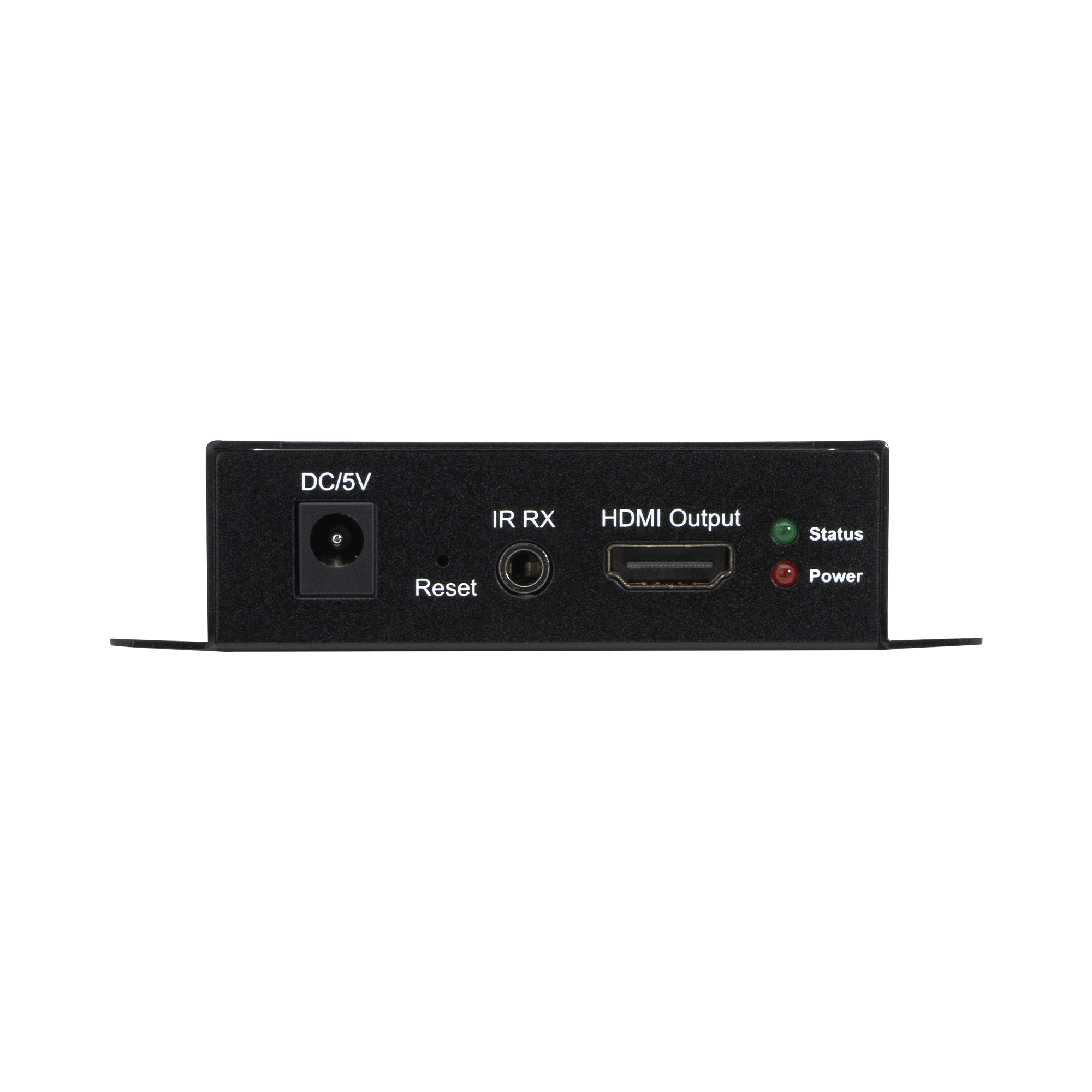

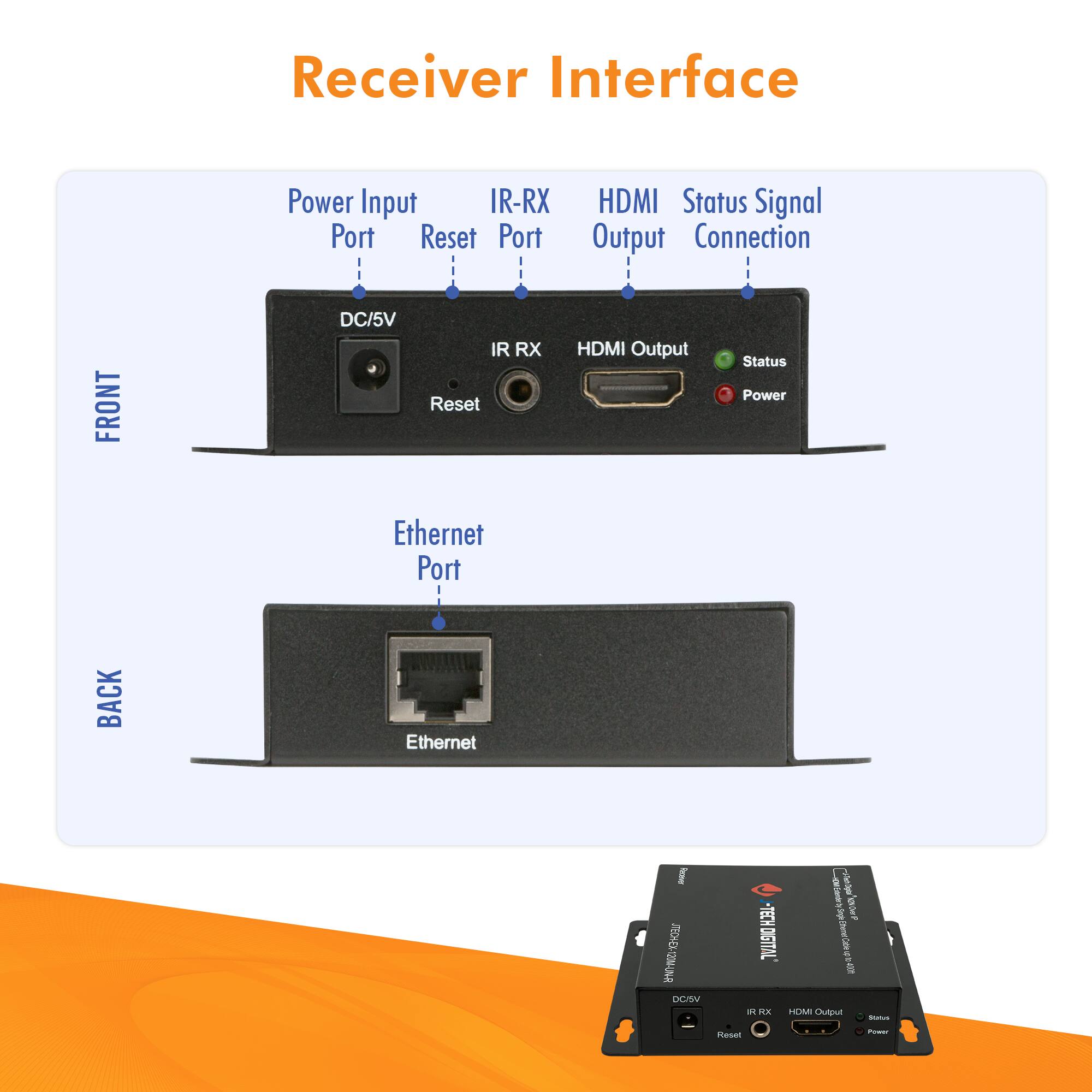

- Input(s): 1 x IR
- Output(s): 1 x HDMI
- Maximum Transmission Range: 400 feet
- Dimensions

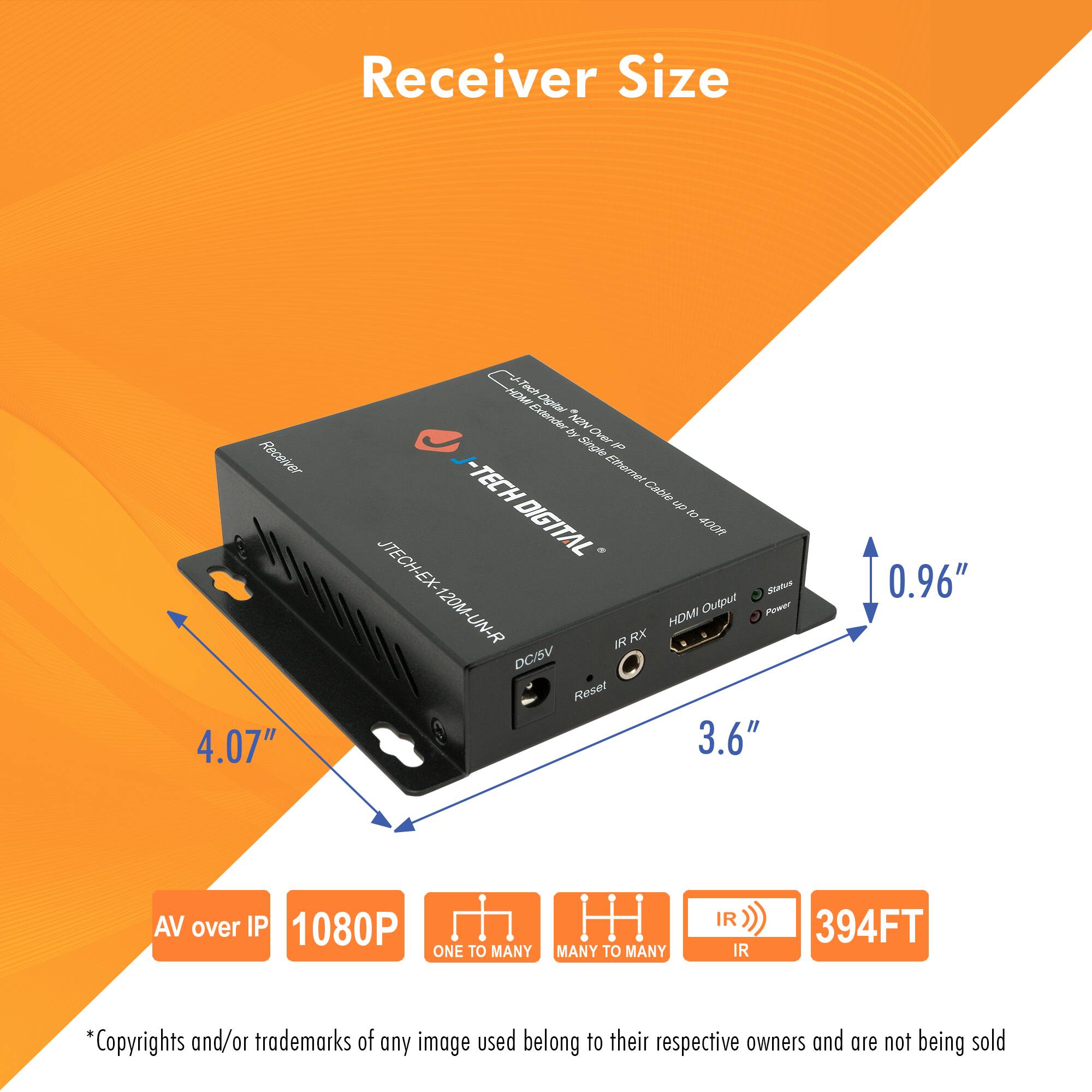

- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 766150278064
J-Tech Digital ProAV Unlimited HDMI by Single Ethernet Cable up to 400ft is most advanced TCP/IP HDMI extender matrix on the market. It is a flexible and powerful alternative and combination of HDMI extender and HDMI matrix. Three Working Modes Three modes includes point-to-point, point-to-many & many-to-many. For point-to-point mode, HDMI signal can be extended up to 120m (394ft) over a single Cat5E/6 cable. Any-to-Any Broadcasting Extend your HDMI signal from any source to any receiver can never be too easy. By configuring J-Tech Digital customised gigabit network switch (JTECH-EX-120M-UN-S), you can stream your HDMI signal to one receiver or many receivers; also, receiver can pick the signal from any of the transmitters. The network switch can be cascaded to form a many-layer network to support a large HDMI extender system. Standard TCP/IP Protocol HDMI signal is repacked into IP packets. Each receiver and transmitter has a unique IP address which you can manually set by logging into their web GUIs.
- Please Note: This is an HDMI extender receiver only that is designed to work with JTECH-EX-120M-UN-T(JTD-791) transmitter

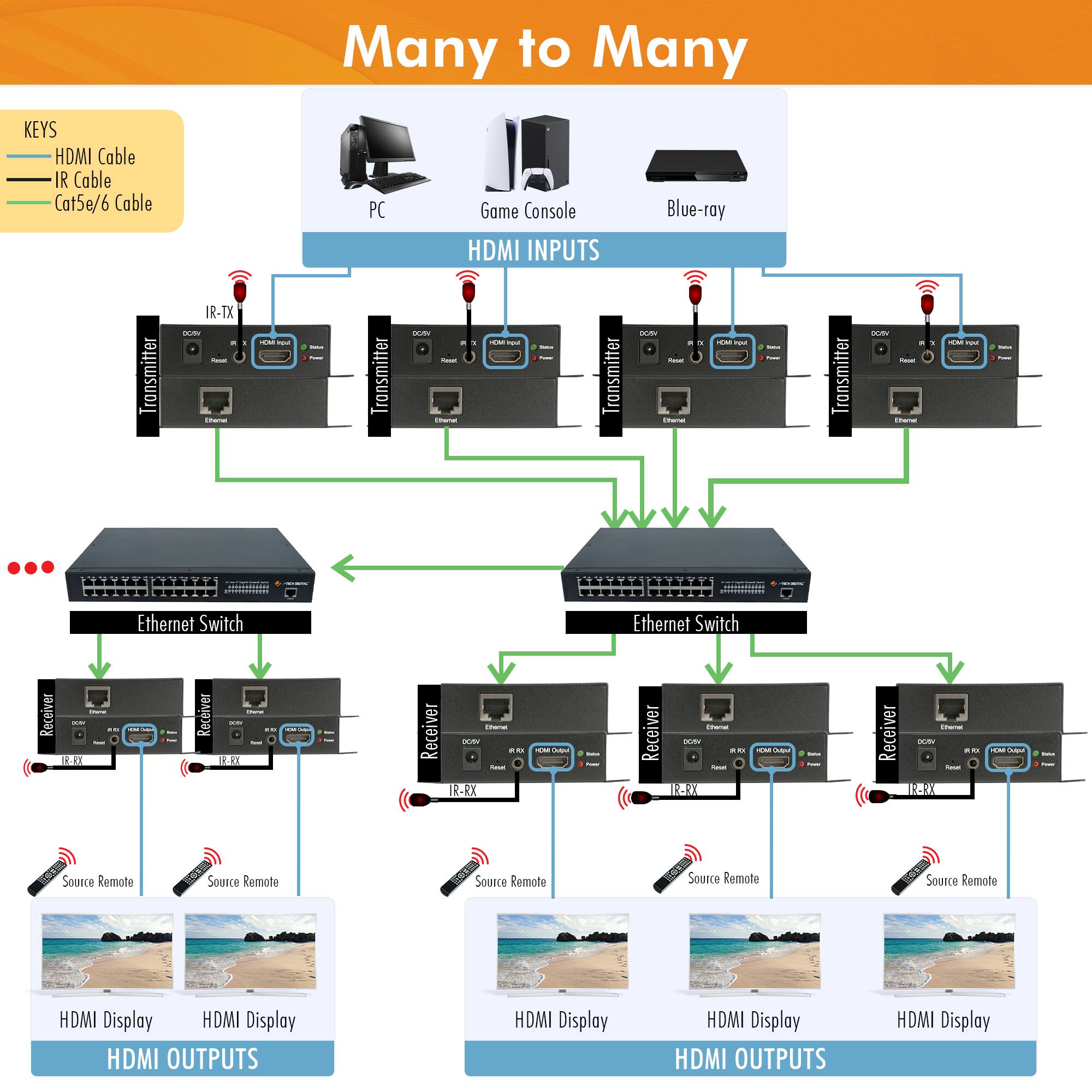

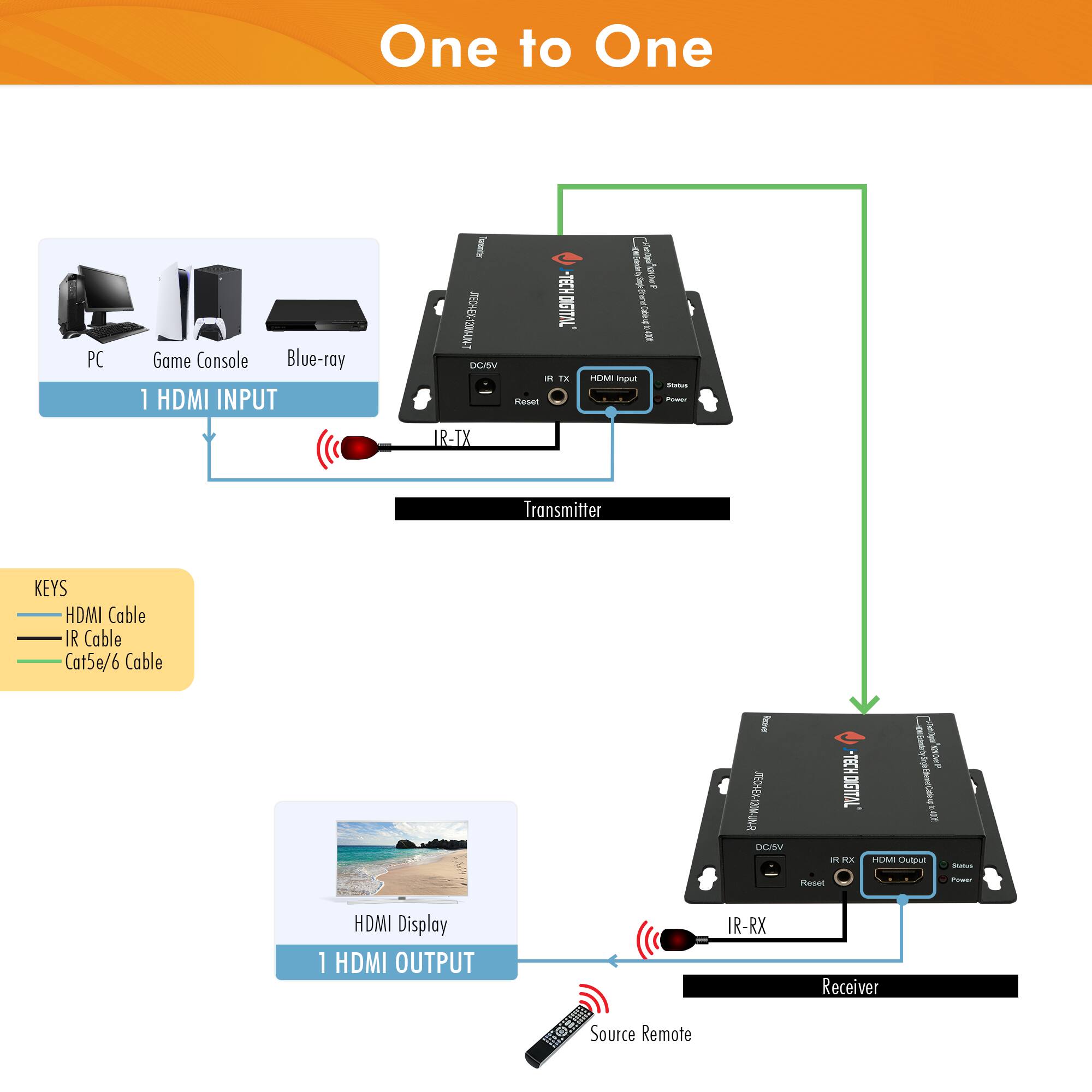

- Various Setup Configurations: Supports One-to-One, One-to-Many, and Many-to-Many broadcasting. Extends 1080P HDMI signal up to 120m (394ft) over a single Cat5e/6 cable
- Virtual N2N Setup: Can be cascaded for many layers by adding Ethernet switches
- Flexible Control: Each receiver and transmitter has a unique IP address which you can manually set by logging into their web GUIs
- Ensure Maximum Compatibility: Optimized to work with J-Tech Digital 24 / 48 Port Non-PoE AV Over IP Network Switches
Whats Included
- Reciever, IR Cable, Power Adapter, User Manual
Product Manuals
Reviews
This product doesn't have any reviews yet.
Compare similar products
J-Tech Digital ProAV Unlimited HDMI by Single Ethernet Cable up to 400ft is most advanced TCP/IP HDMI extender matrix on the market. It is a flexible and powerful alternative and combination of HDMI extender and HDMI matrix. Three Working Modes Three modes includes point-to-point, point-to-many & many-to-many. For point-to-point mode, HDMI signal can be extended up to 120m (394ft) over a single Cat5E/6 cable. Any-to-Any Broadcasting Extend your HDMI signal from any source to any receiver can never be too easy. By configuring J-Tech Digital customised gigabit network switch (JTECH-EX-120M-UN-S), you can stream your HDMI signal to one receiver or many receivers; also, receiver can pick the signal from any of the transmitters. The network switch can be cascaded to form a many-layer network to support a large HDMI extender system. Standard TCP/IP Protocol HDMI signal is repacked into IP packets. Each receiver and transmitter has a unique IP address which you can manually set by logging into their web GUIs.
Users have the ability to daisy chain one receiver to another via Ethernet to share the source signal from the transmitter. Now, instead of running an additional Ethernet cable back to your equipment rack for each receiver, users can simply make a much shorter Ethernet run from one receiver to another. This daisy chain method saves users on Ethernet cable costs, simplifies installation and reduces the number of break points in your AV over IP installation.
