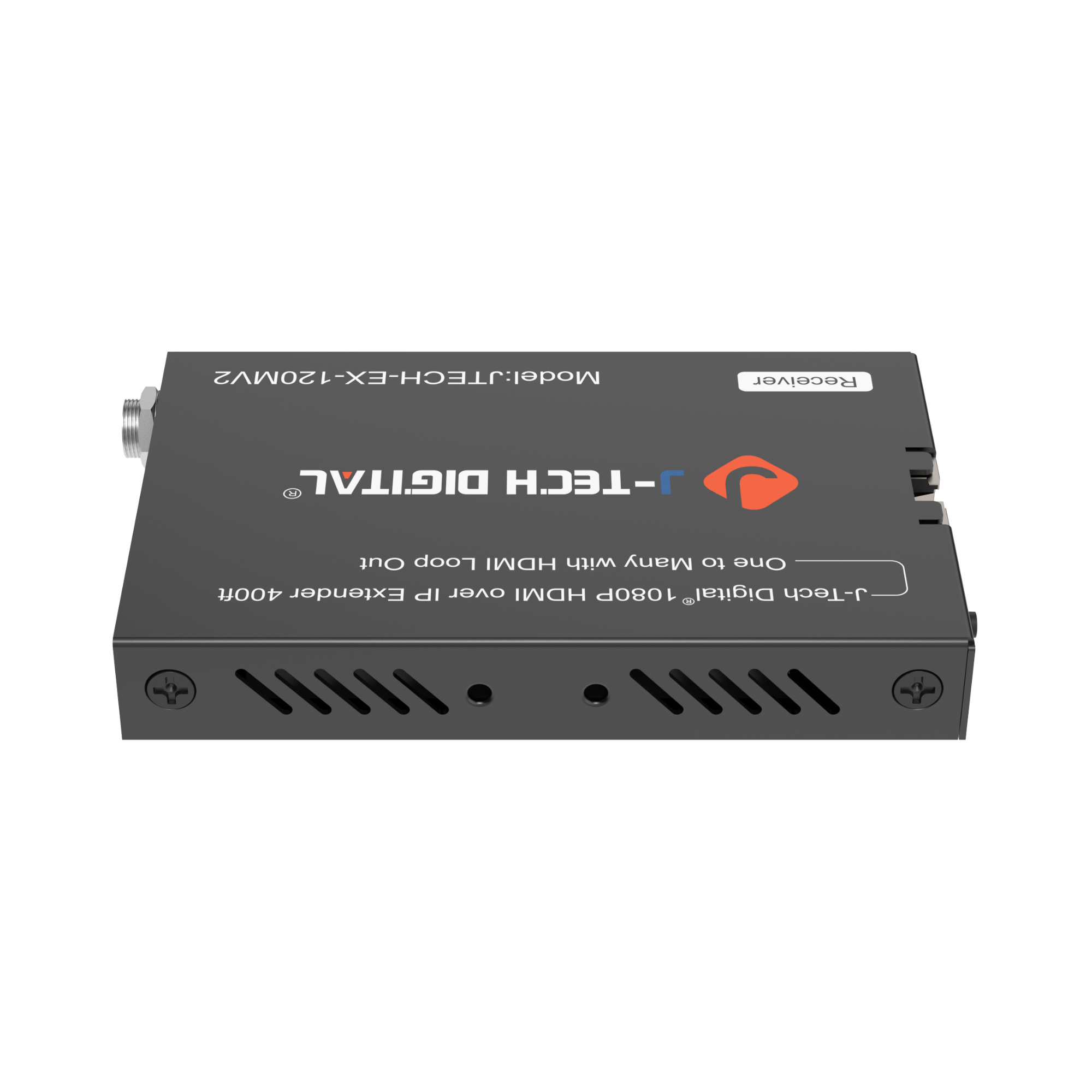

J-Tech Digital - 1080P HDMI Extender over Cat5e/6/7 (400ft) – Receiver Only - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EX-120MV2R
- Product Name: J-Tech Digital 1080P HDMI Extender over Cat5e/6/7 (400ft) – Receiver Only
- Color: Black
- Features
- Maximum Video Resolution: 1080p (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 1080p (Full HD) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x IR
- Output(s): 1 x HDMI
- Maximum Transmission Range: 400 feet
- Dimensions
- Product Height: 0.62 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.51 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058922212

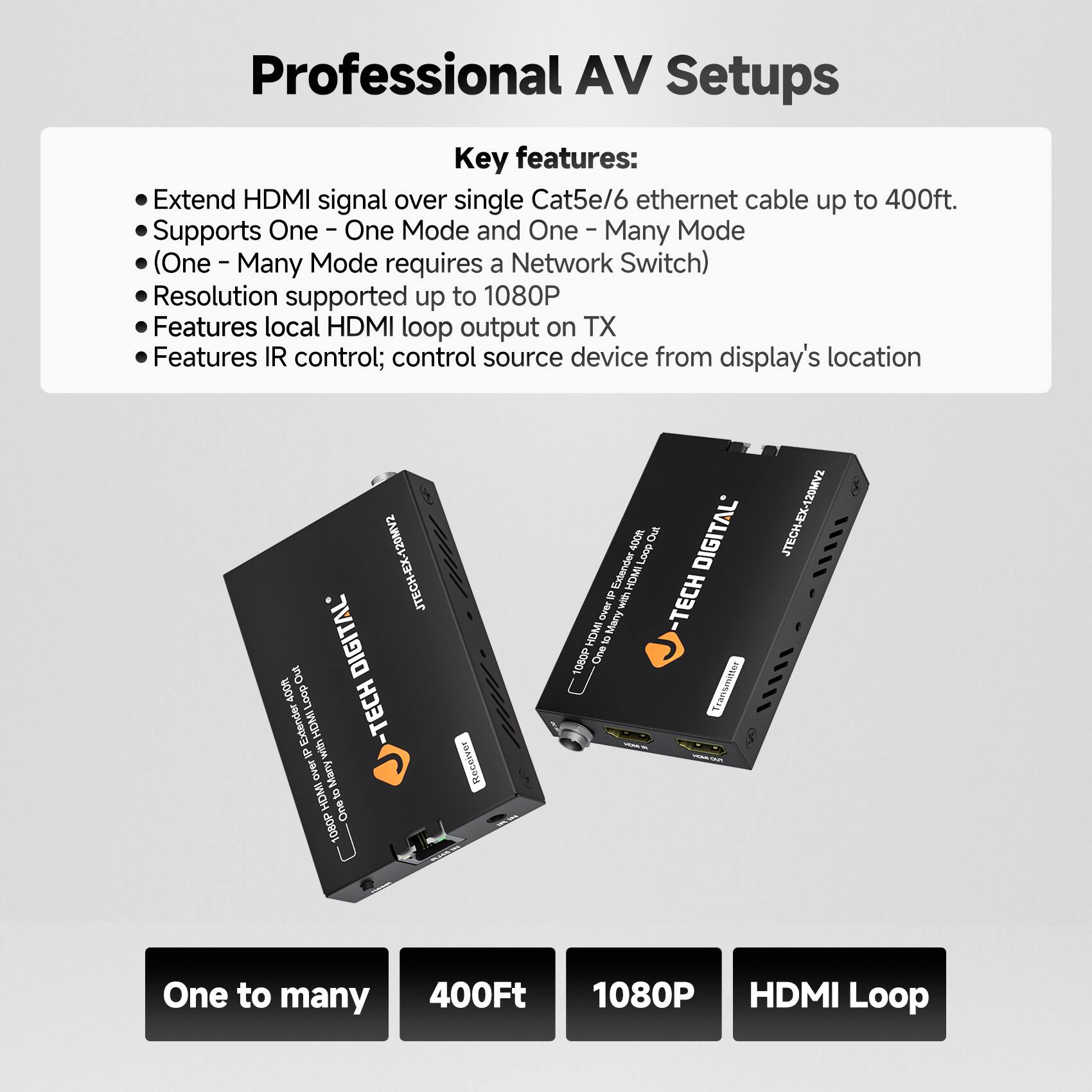

Introducing the JTECH-EX-120MV2 by J-Tech Digital; 1080P 60Hz HDMI extender over single ethernet Cat5e/6/7 cable. Extend Full HD 1080p video up to 400ft (120m) or 720p HD video up to 660ft (200m) with zero latency and crystal-clear quality. This one-to-many HDMI extender allows you to distribute one HDMI source to multiple displays over a LAN network. Featuring an HDMI loop-out on the transmitter, it enables local monitoring while extending the HDMI signal for real-time surveillance, gaming setups, and control rooms. Supporting 480p, 720p, 1080i, and 1080p resolutions with 4.95Gbps high-speed bandwidth and TCP/IP protocol compatibility, this HDMI over Cat6 extender ensures seamless, lag-free video transmission for professional and commercial AV applications.
- Please note: This listing is for a Receiver only which is compatible with JTECH-EX-120MV2 (JTD-3176) HDMI extender over ethernet kit
- HDMI Extender over Ethernet Up To 400ft: Transmit full HD 1080p video up to 400ft (120m) over a single Cat6 cable or 660ft (200m) for 720P HD video. Ideal for home theaters, digital signage, classrooms, and conference rooms needing long-range HDMI connectivity
- One-to-Many HDMI Distribution Over LAN: Broadcast one HDMI source to multiple displays over a network with three modes: simple, allocation, and infinite mode. Perfect for video walls, retail displays, security systems, and multi-screen presentations
- HDMI Loop-Out for Local Viewing & Monitoring: Includes HDMI loop-out on the Transmitter for simultaneous local display while extending the signal to the Receiver, ensuring real-time monitoring for surveillance, gaming setups, control rooms, and business applications
- High-Performance Video & Network Integration: Supports 480p, 720p, 1080i, and 1080p resolutions, follows TCP/IP standards, and delivers 4.95Gbps total bandwidth for ultra-clear, lag-free video transmission
Whats Included
- Receiver, Power Adapter, User Manual
