J-Tech Digital - 4K 60Hz 8x8 HDBaseT HDMI Matrix Extender with PoC (131ft) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-4K88-EX2
- Product Name: J-Tech Digital 4K 60Hz 8x8 HDBaseT HDMI Matrix Extender with PoC (131ft)
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 131 feet
- Dimensions
- Product Height: 1.69 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.32 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.77 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058921369

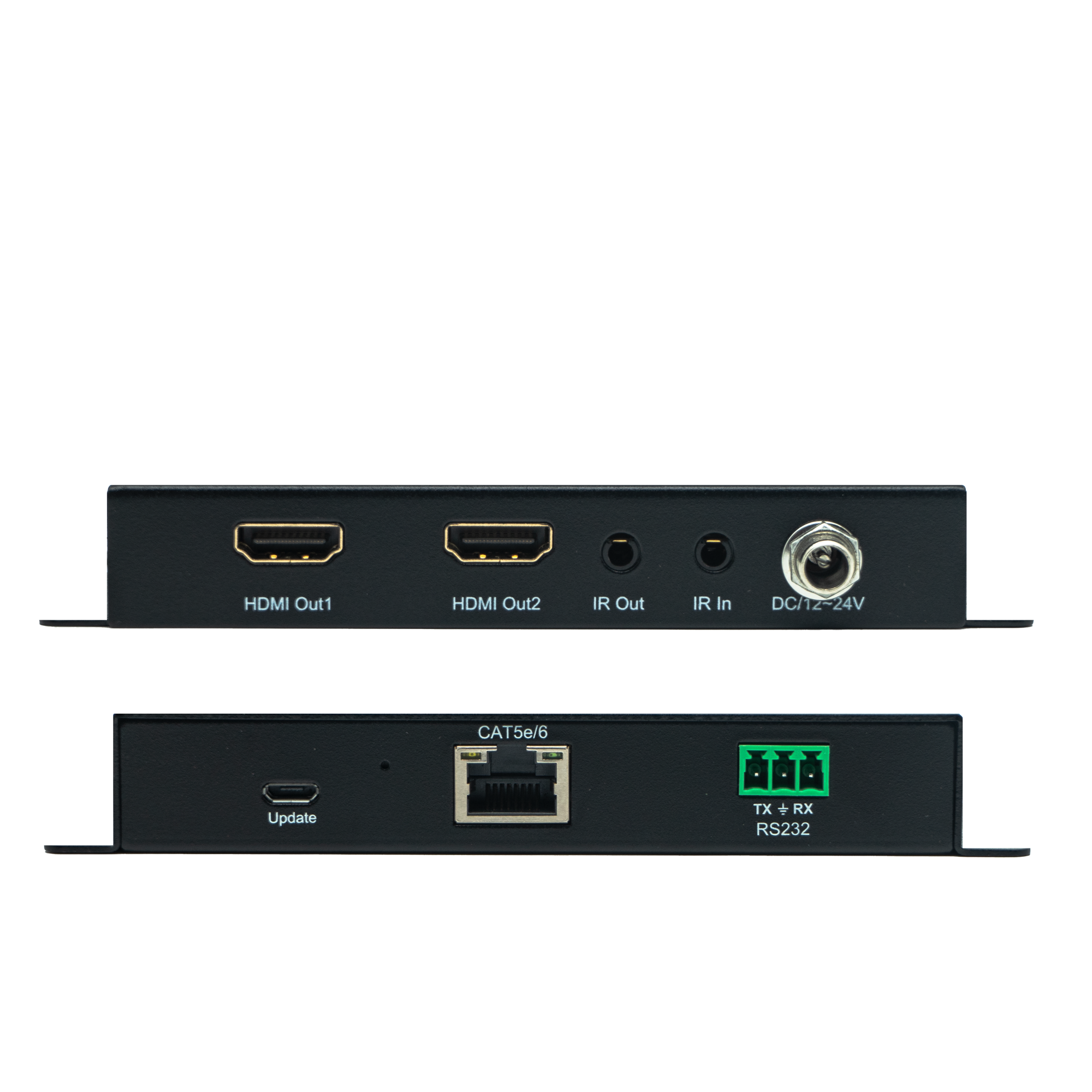

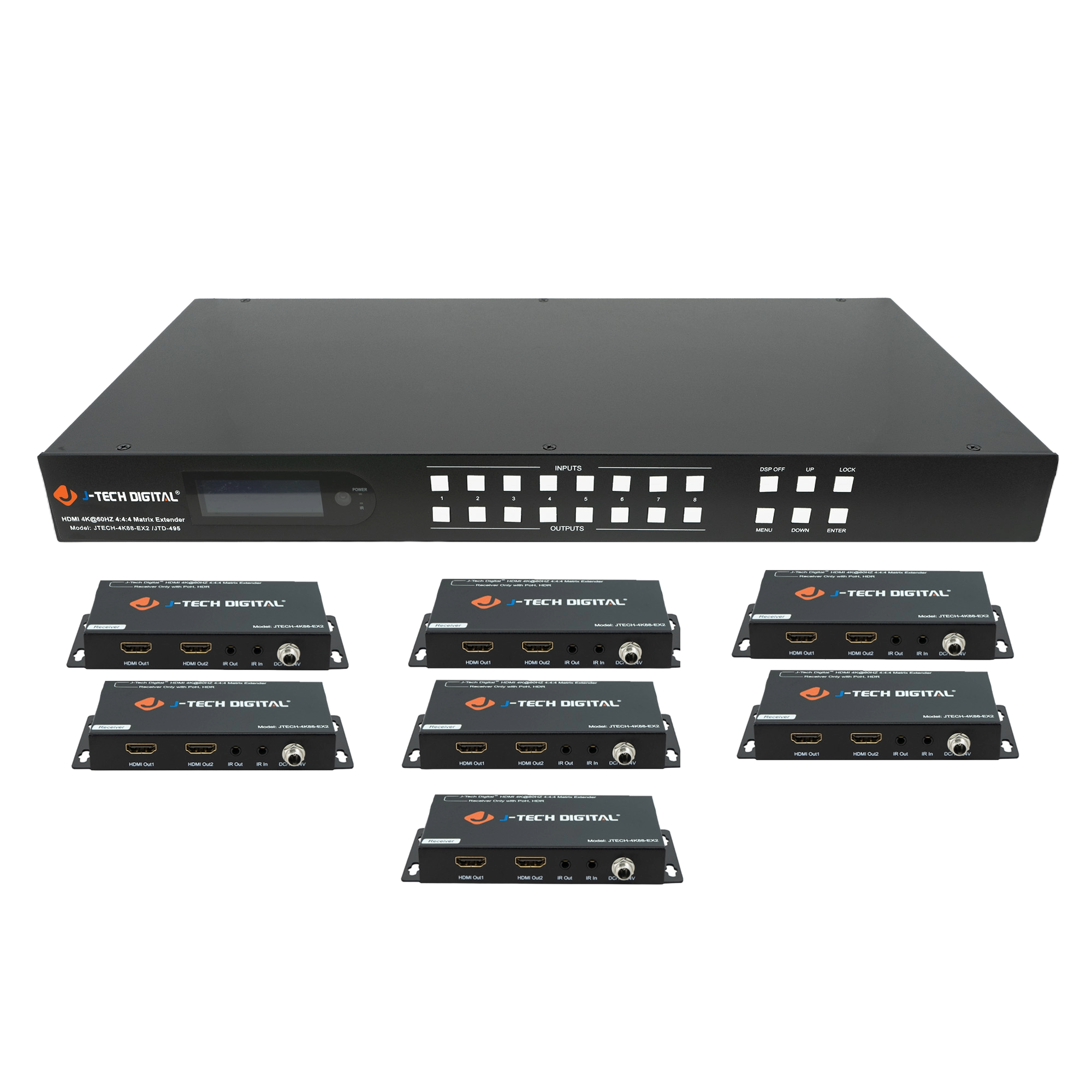

Connect up to 8 different HDMI source devices and route your signal to any of the connected displays. Includes 7 HDBaseT receivers with dual HDMI outputs, and 1 local HDMI output on the main matrix.
- 4K@60Hz 4:4:4 UHD Resolution w/ HDR Support: Transmit 4K@60Hz 4:4:4 HDR HDMI Signals up to 131 ft. (40m) via HDBaseT port. 7 HDBaseT outputs with transmission distances of up to 230 ft. (70m) at 1080p and 131 ft. (40m) at 4K over a single Cat5e/6 cable

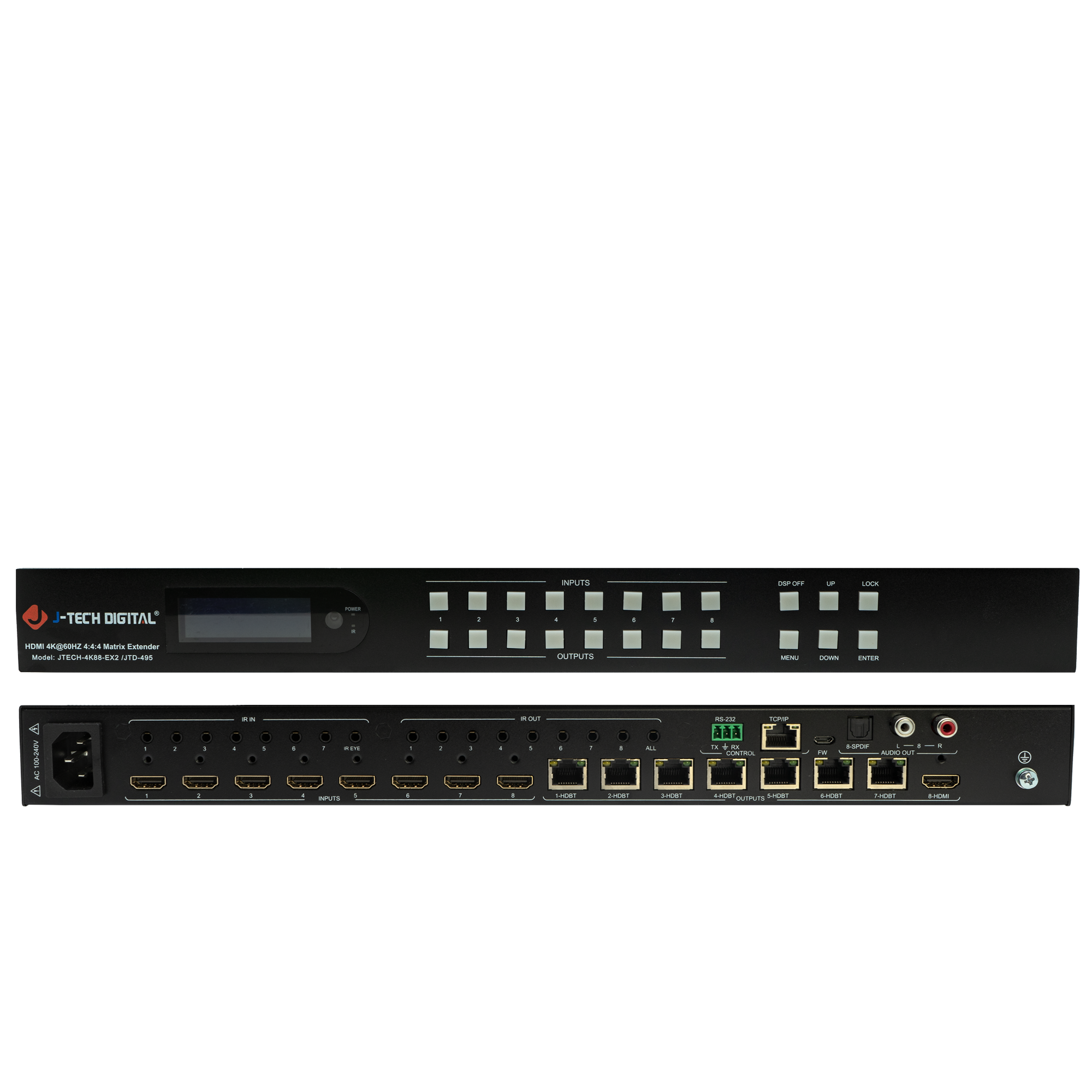

- 8 x HDMI Inputs | 1 x Local HDMI Output + 7 x HDBaseT Output: With this HDBaseT HDMI matrix extender, distribute any HDMI source signal to any output for ultimate flexibility in your environment. Save up to 8 unique & fully customized routing presets for easy operation
- Various Control Methods: Control your source signal routing and EDID settings using the front panel buttons, included IR remote, RS-232 command port or IP control via Web GUI. Copy the EDID settings of your connected HDMI displays to ensure signal compatibility with source devices
- Bi-Directional IR & EDID Copy Functions: Bi-Directional IR allows the user to control the source device at the location of the display or control the display from the location of the source device
- PoC & Audio Extraction Features: PoC (Power Over Cable) function provides power to the 7 included HDBaseT Dual-HDMI Output receivers without the use & clutter of additional power adapters. Optical SPDIF & Analog RCA audio output ports allow for easy integration of audio processing devices
Whats Included
- Transmitter, Receivers, Power Adapters, User Manual, IR Cables, Mounting Kit
